Marvin Inactive Panel, Sliding door lock, 2-3/8"

Part Number: 10510132-YDI Price: $272.48
COLOR: - Yellow Dichromate

Marvin Inactive lock for the Passive panel on French wood or Ultimate sliding door.

This lock has rods attached to the top and bottom that hold the inactive / passive door in place ( rods not included )


Backset: 2-3/8 inch

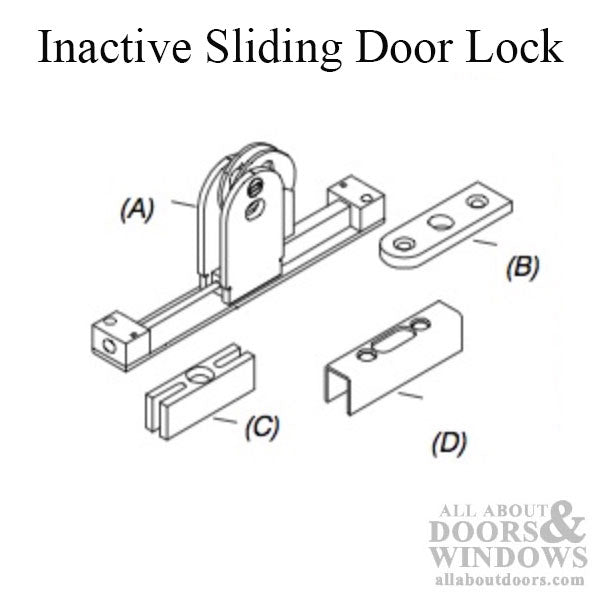

Includes:

1 − Hardware assembly (A)

1 − Guide plate (B)

1 − Adjustable strike slide (C)

1 − Strike cover (D)

2 − #10−24x1 1/2, Phillips flathead machine screws with T-nuts (strike)

4 − #8x1 1/2, Phillips flathead wood screws

(hardware assembly and guide plate)


Related Marvin Sliding Door Lock Parts

10145001 = Active Door Lock

10510132 = Inactive Door Lock

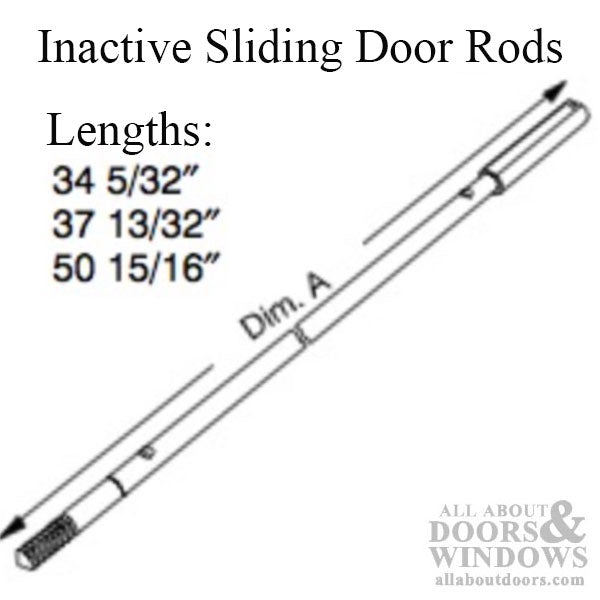

10830034 = Locking Rod, CN 6-5 Door  34-5/32" Length

10830003 = Locking Rod, CN 6-8 Door  37-13/32" Length

10830080 = Locking Rod, CN 8-0 Door  50-15/16" Length
