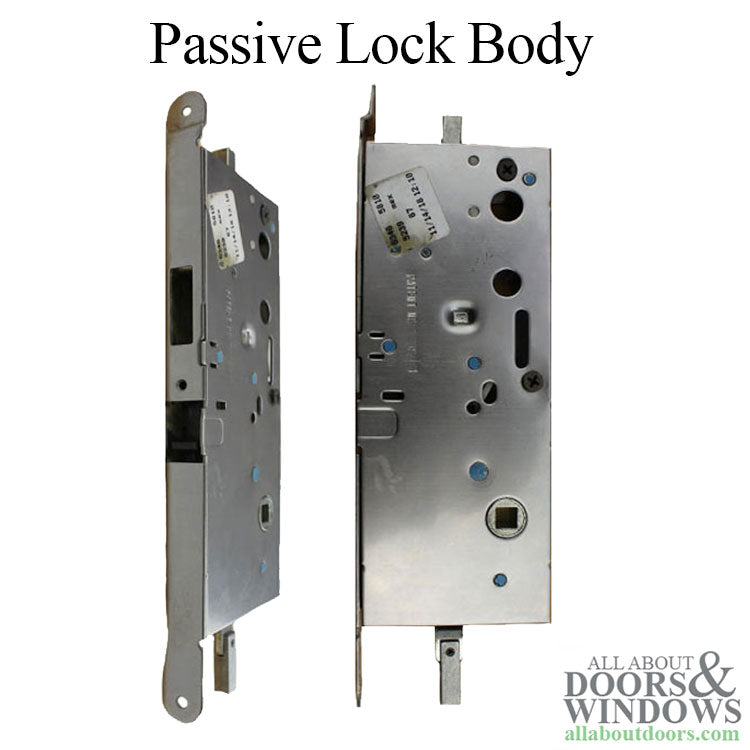

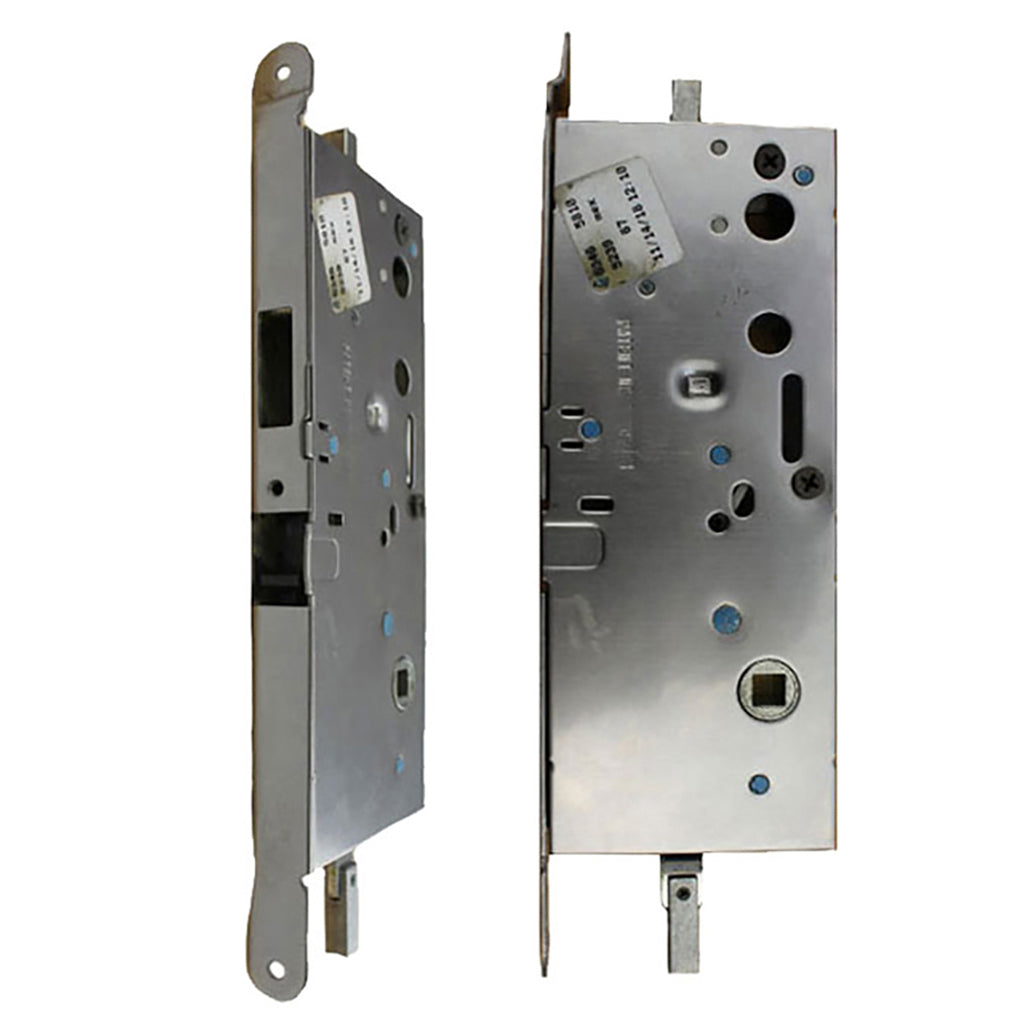

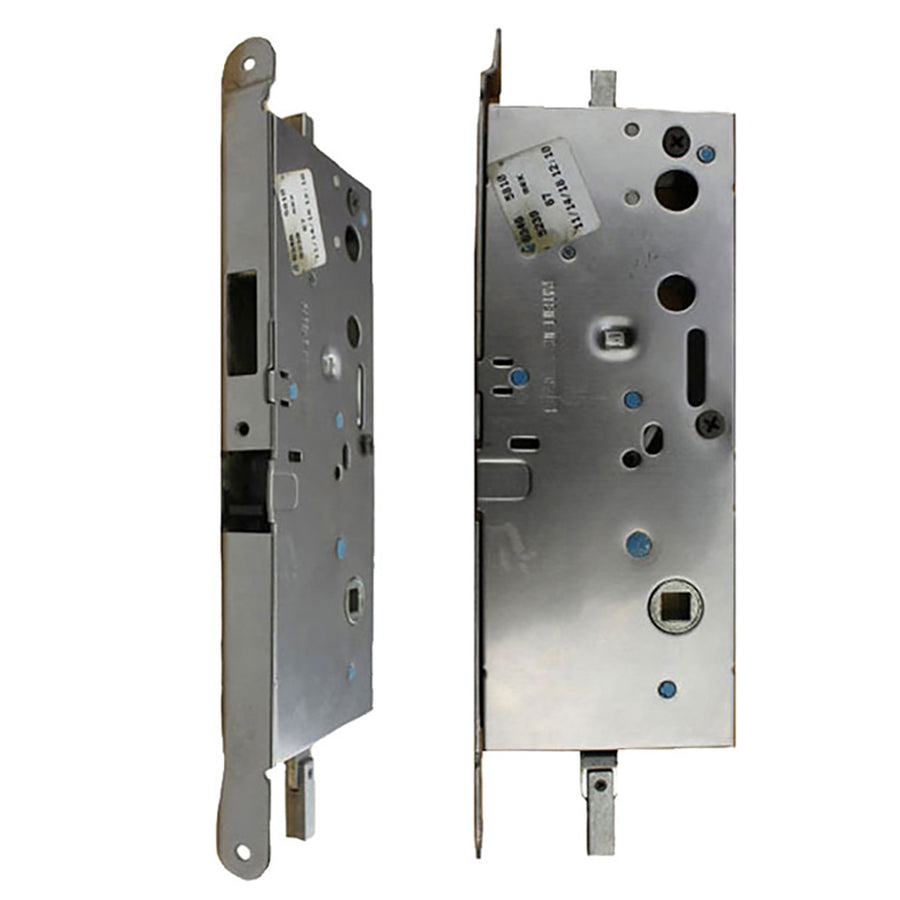

Marvin Passive Multi-Point lock body, used with Concealed Rods that screw into top and bottom.
Application: Marvin Ultimate inswing double French doors manufactured 1/17/2000 to present.

Version: Concealed Rod
Key Cylinder: No cylinder on passive lock body.
Handle spacing PZ: 3-5/8 inch (92mm).
Backset: 2-1/4 inch (57mm)
Deadbolt throw: 1 inch (25.4mm) (Active lock body only)
Markings: Patent NO. 6,209,931

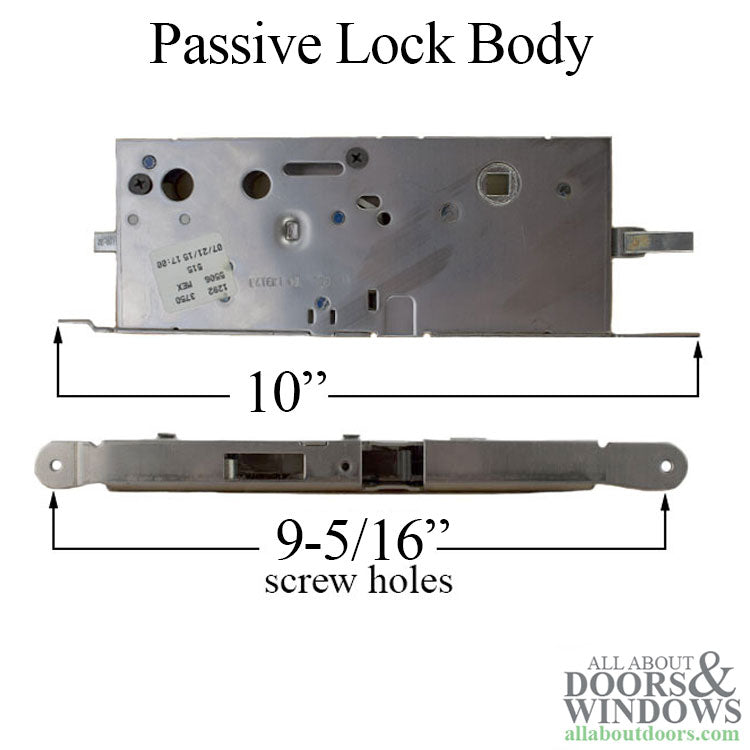

Faceplate Length: 10"
Faceplate: Has offset mounting tab on one end, Straight on the other.
Note: The passive door does not have a thumb turn on the inside handleset
