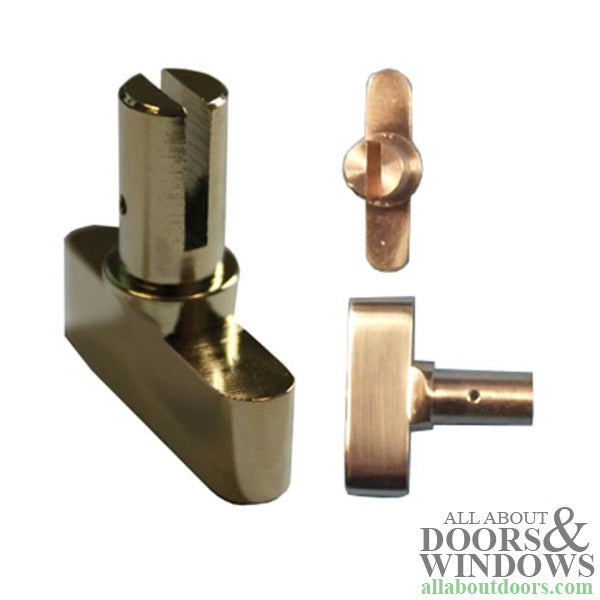

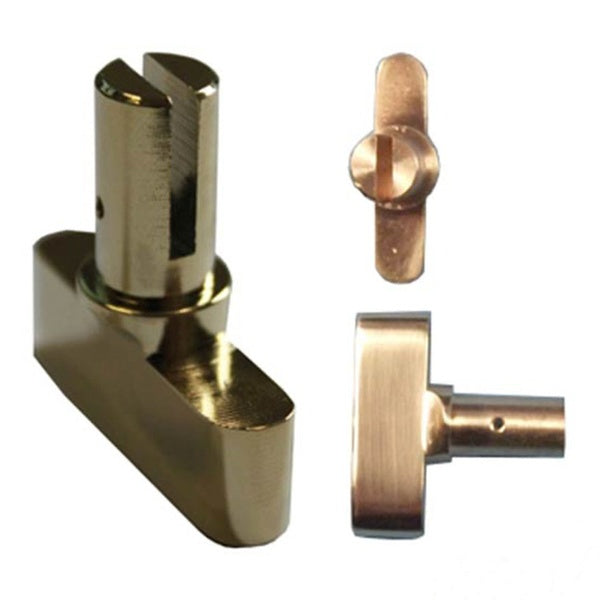

Marvin Thumb turn Only, Hinged Patio door hardware

Part Number: 14570-PC Price: $31.95
COLOR: - Polished Chrome

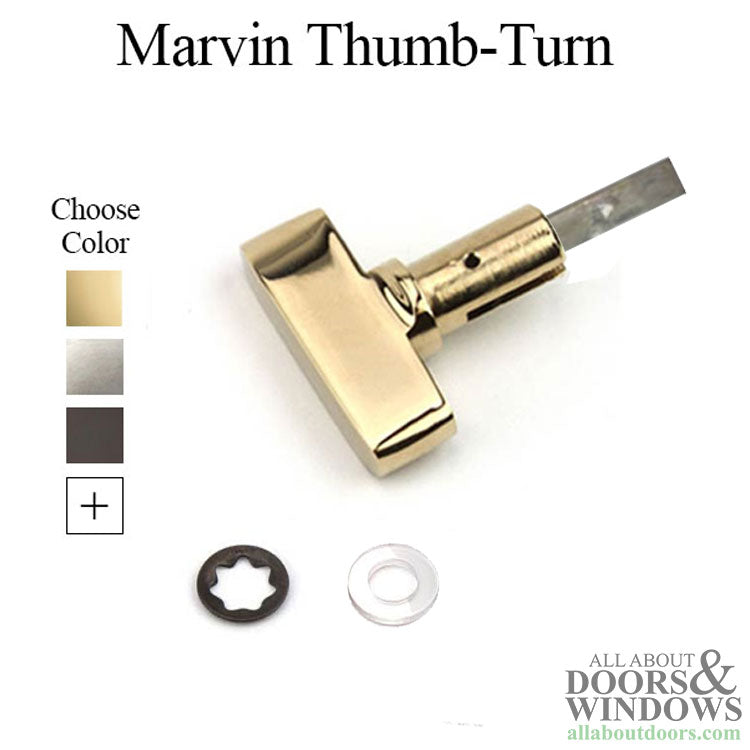

Marvin thumb turn for Hinged Patio Door is available in 10 finishes

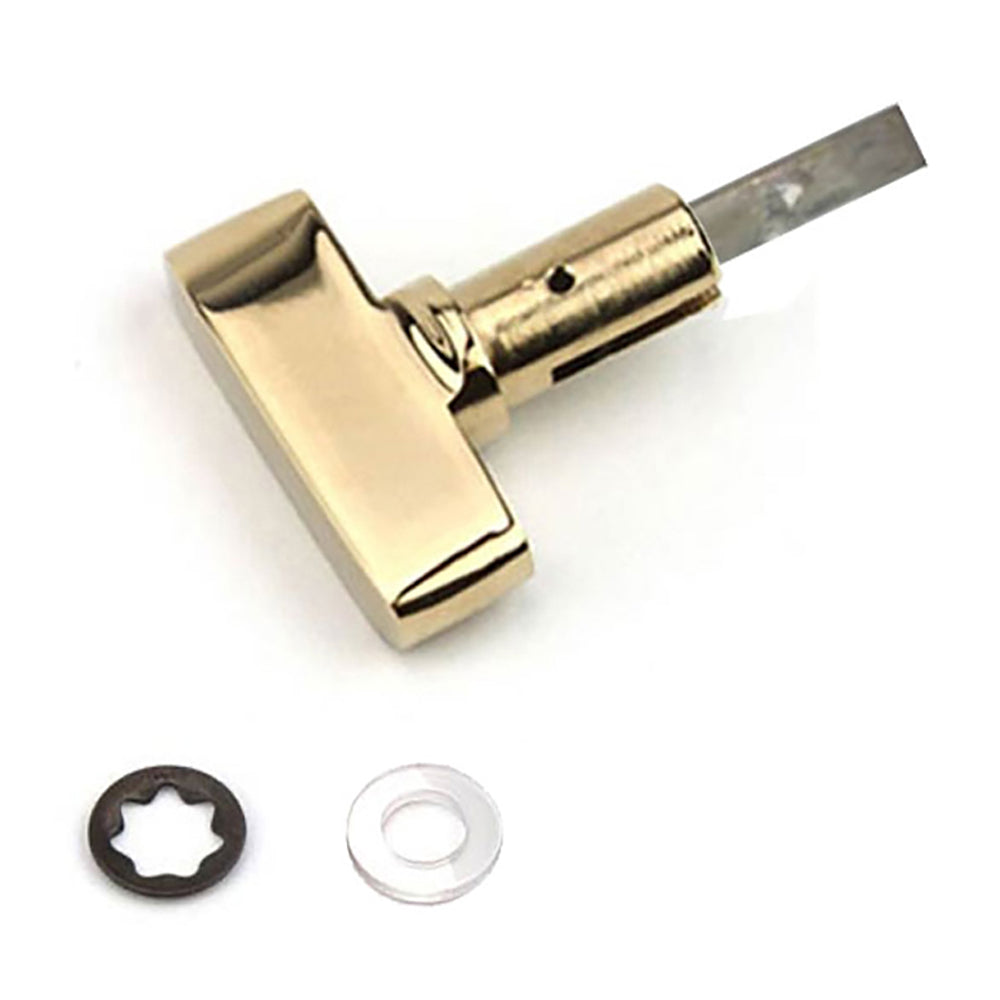

Thumb turn with tail piece, bushing and push nut included.

Priced and sold each.

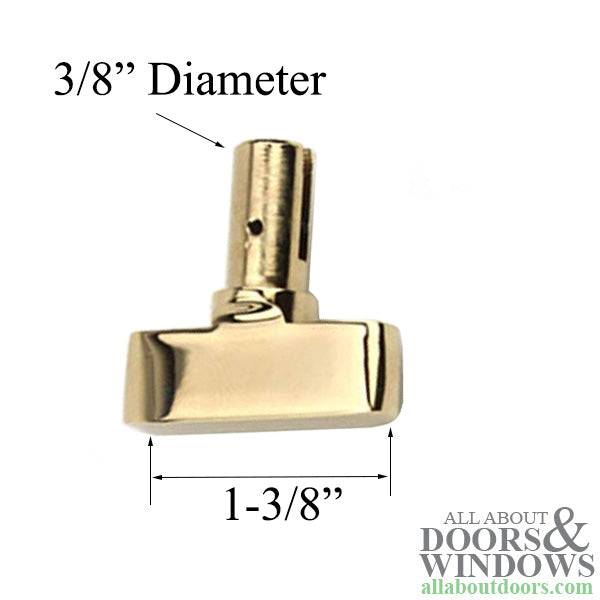

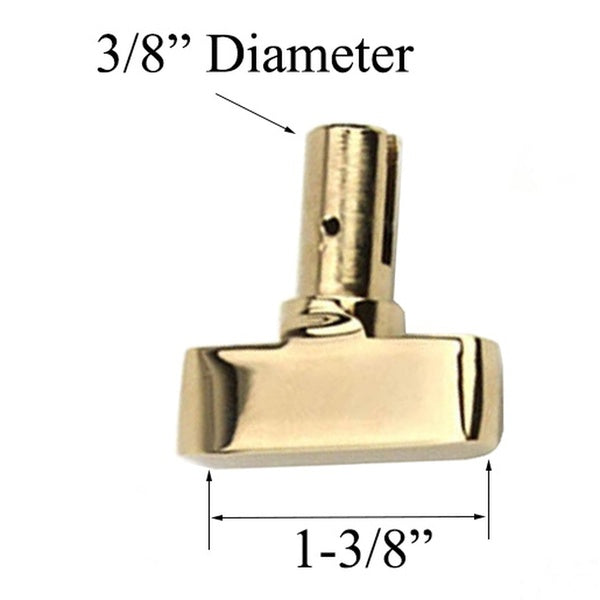

Shaft Diameter: 3/8" .377" Actual

Material: Solid Brass

Color / Finish: Available in assorted finishes, prices may vary by color



Marvin Trim Parts - Sold individually

#   14570  - Thumb turn only

# 00143045 -  Washer for thumb turn

# 00143010 -  Push Nut for thumb turn

# 05570548 - Tail Piece with roll pin ( Actuator)



Tailpiece: 1-1/2 Long by 3/16 wide

Pin for Tailpiece: 3/8” Long

Washer: 5/8 diameter x 1/8” thick

Push Nut: 5/8 diameter

Thumb Turn: 1-3/8 long x 1/4 wide

Thumb Turn projects through handle 11/16”
