Marvin Ultimate Double Hung Sash Lock With Tilt Feature Sash Lock

Part Number:93501011 Price: $24.98 to $198.29
Color: - Polished Chrome

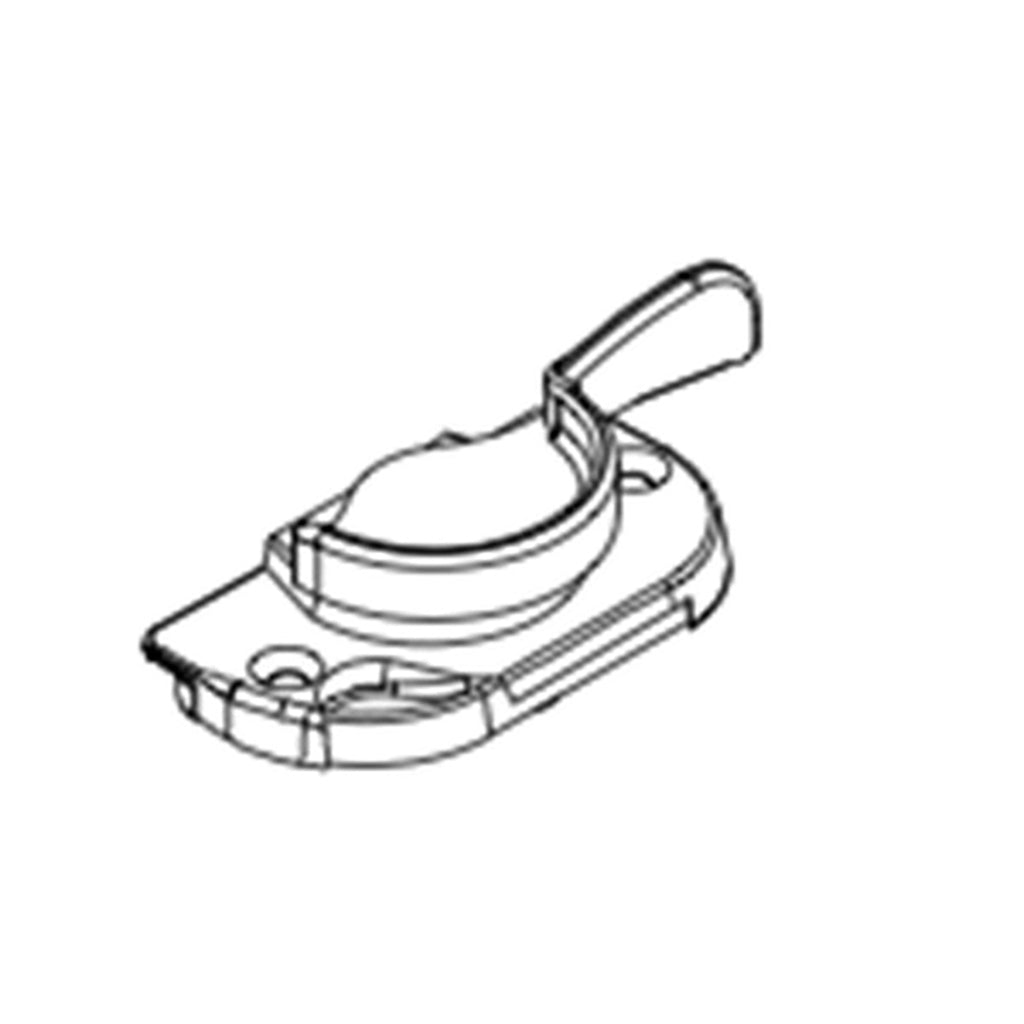

Marvin Ultimate Double Hung Window Sweep Latch with Tilt Feature

The sash lock has a built-in tilt feature used on Marvin windows
A small cam under the sash lock will retract the tilt latches for easy tilt in
Important Note:
Unlock the Sash and engage the tilt feature. The step separates the cord winder from the sash lock and preps it for installation of replacement sash Lock

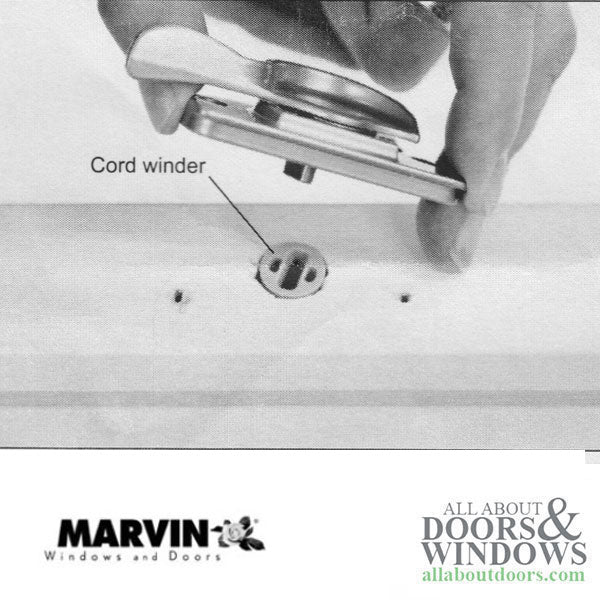

The sash winder is a plastic insert that fits into the top of the sash and connects with the cord.
After installing replacement sash lock raise sash about 4' and test the tilt in feature is functioning properly

Sold each, No plastic Cord winder included

Keeper sold separately: 9350104 - Marvin Ultimate Double Hung Keeper

Markings: CAV.8 P.N. 41131

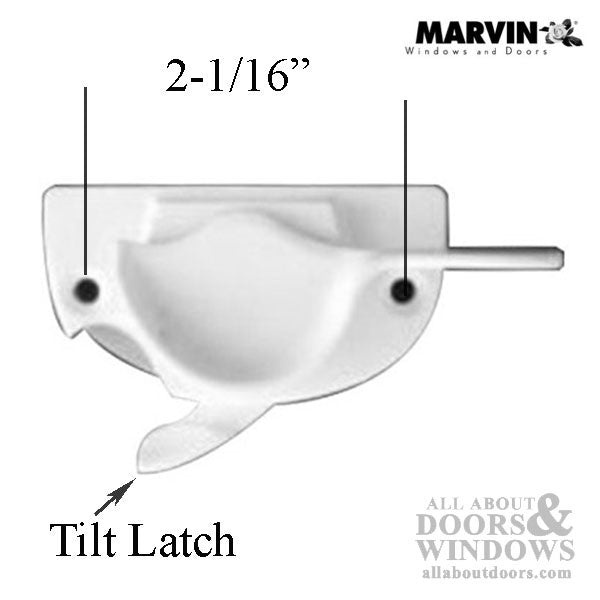

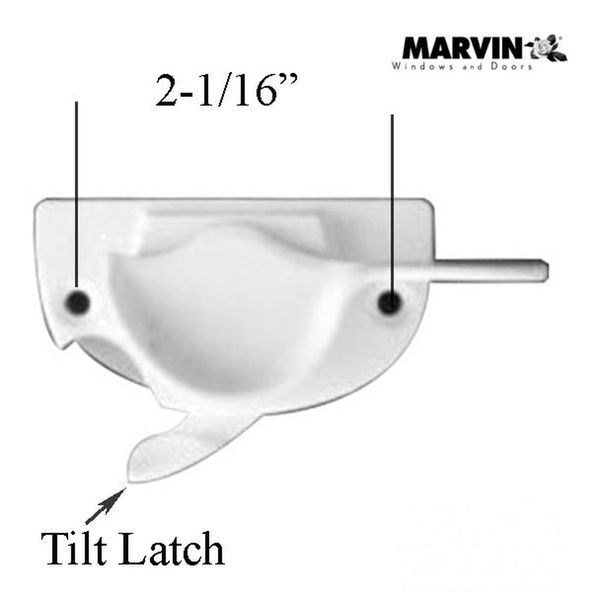

Screw Hole Spacing: 2-1/16 inch

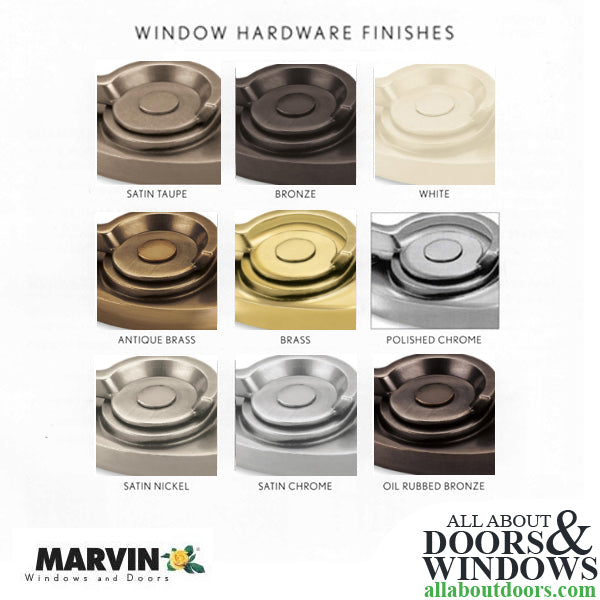

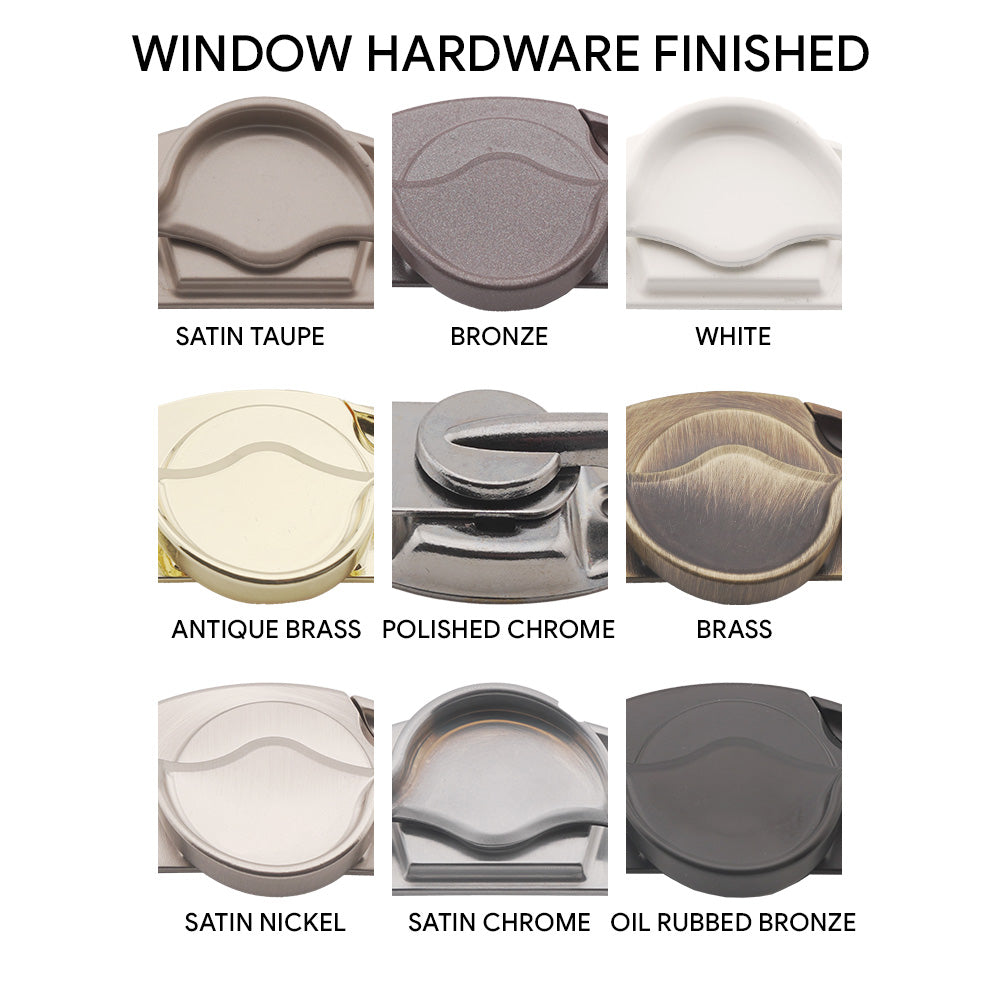

Available in 9 Colors:
Taupe
Bronze
White
Brass
Antique Brass
Satin Chrome
Satin Nickel
Oil Rubbed Bronze
Polished Chrome

See additional information tab for original Marvin manufacturer part numbers for each color

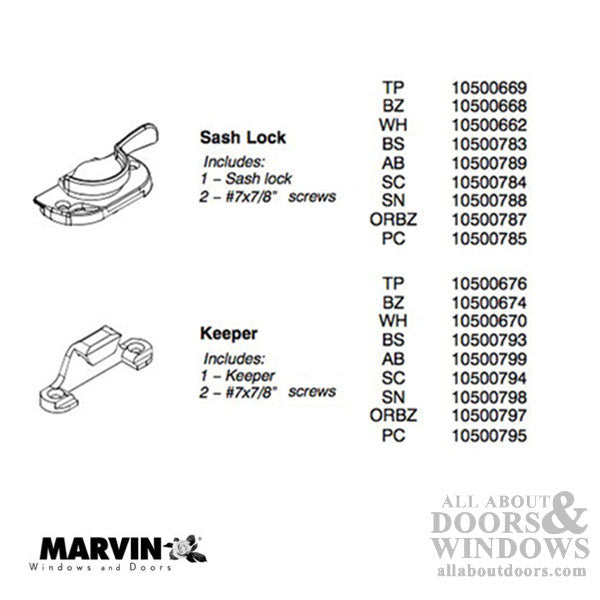

Marvin Part numbers: Sash Lock Only, No Keeper<br/> 10500669 - Taupe (TP)<br/> 10500668 - Bronze (BZ)<br/> 10500662 - White (WH)<br/> 10500783 - Brass (BS)<br/> 10500789 - Antique Brass (AB)<br/> 10500784 - Satin Chrome (SC)<br/> 10500788 - Satin Nickel (SN)<br/> 10500787 - Oil Rubbed Bronze (ORBZ)<br/> 10500785 - Polished Chrome (PC)<br/>
