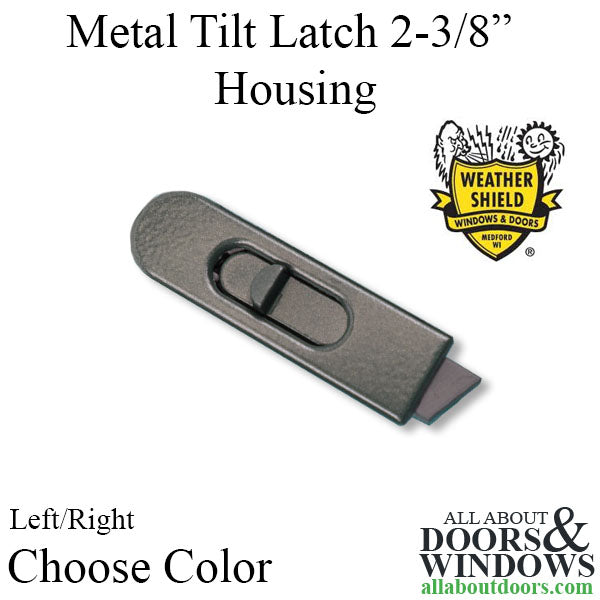

Metal Tilt Latch For Double Hung Windows Bottom Sash Lock Lower Window Sash Lock Choose Color Handing
Part Number: Price: $9.95 to $9.95Used in wood double hung windows. Metal housing with plastic tip. Priced and sold each.

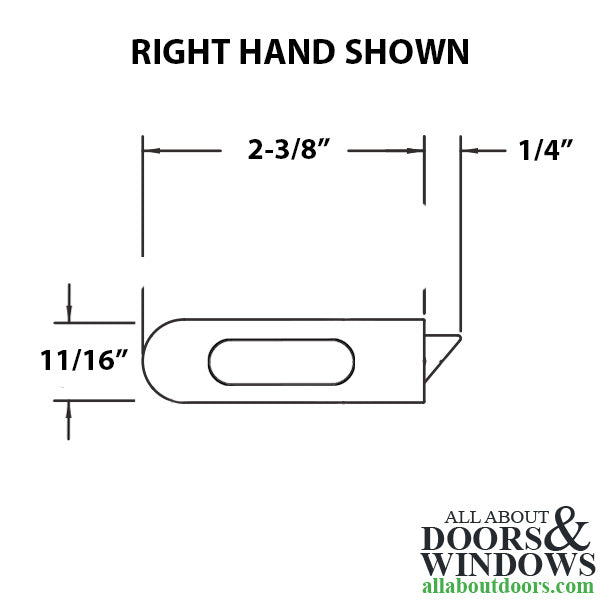

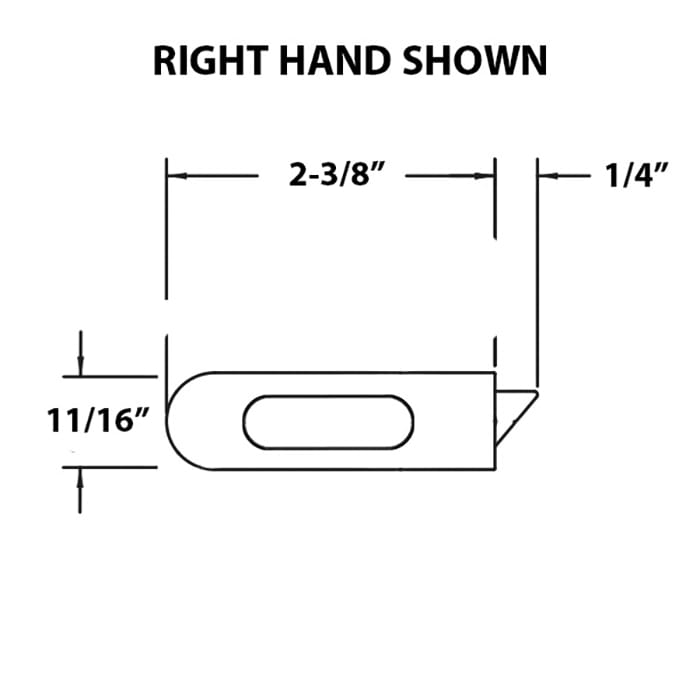

Housing Length: 2-3/8"
Housing Width: 11/16"
Tip projection: 1/4", non-bevelled

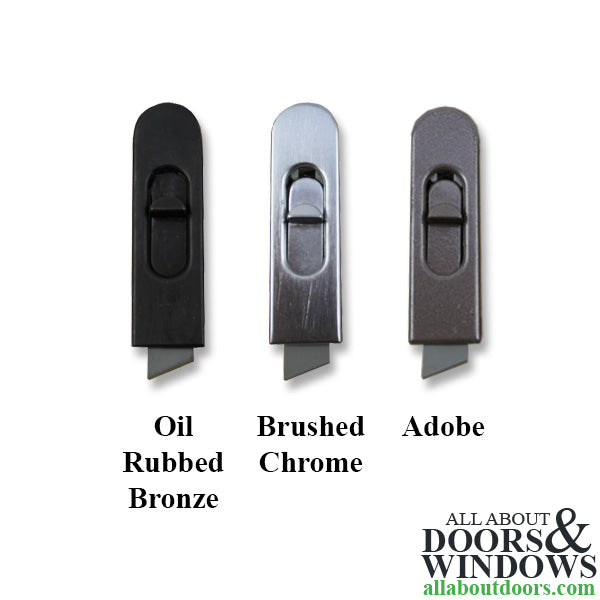

Available Colors/Finishes:
Oil-Rubbed Bronze
Brushed Chrome
Adobe
NOTE:

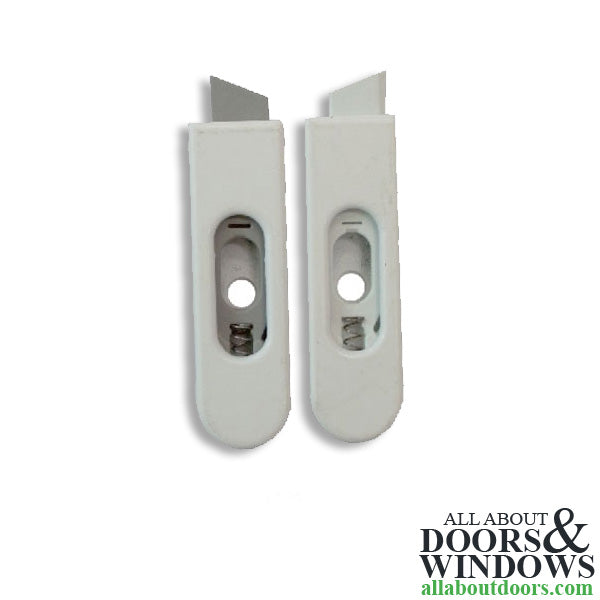

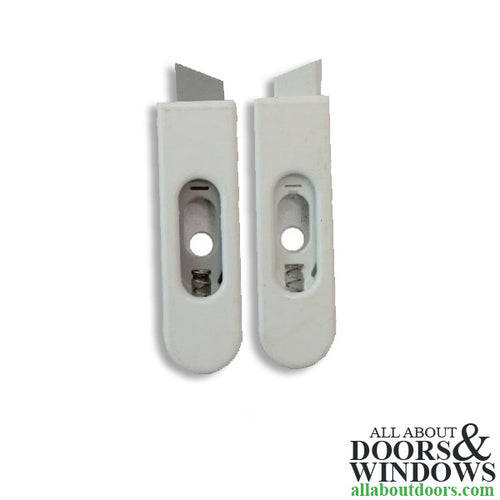

This latch is held in with a screw located under the thumb button.
To remove button, slide back and insert a small screw driver under the edge, and lift up.
Then, remove Phillips head screw and slide latch out.
Housing Length: 2-3/8"
Housing Width: 11/16"
Tip projection: 1/4", non-bevelled
Available Colors/Finishes:
Oil-Rubbed Bronze
Brushed Chrome
Adobe
NOTE:
This latch is held in with a screw located under the thumb button.
To remove button, slide back and insert a small screw driver under the edge, and lift up.
Then, remove Phillips head screw and slide latch out.
