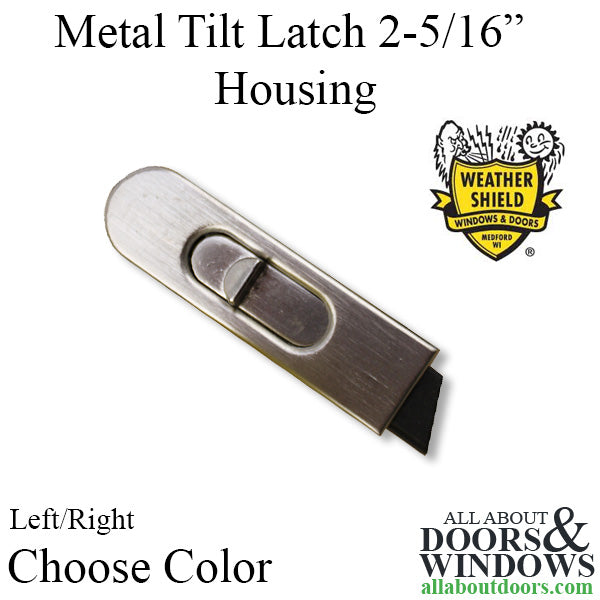

Metal Tilt Latch, Top/Upper Sash, Choose Handing/Color

Part Number: 503210-L-ADB Price: $3.65
COLOR: - Adobe / Left
ITEM HANDING: - Adobe / Left
Used in wood double hung windows. Metal housing with plastic tip. Priced and sold each.

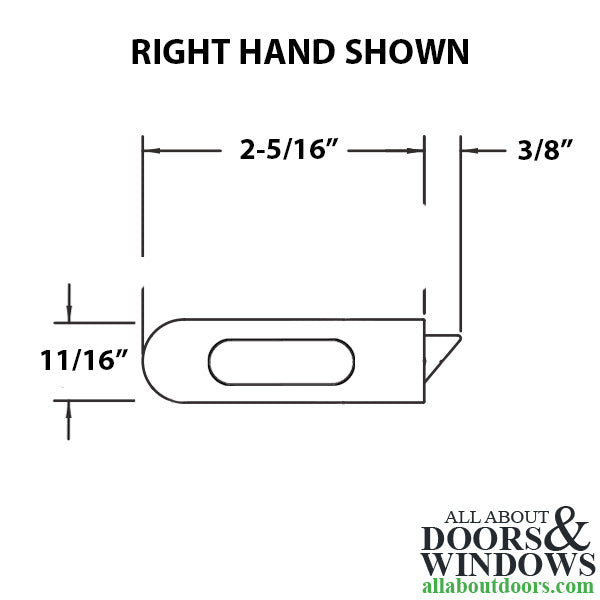

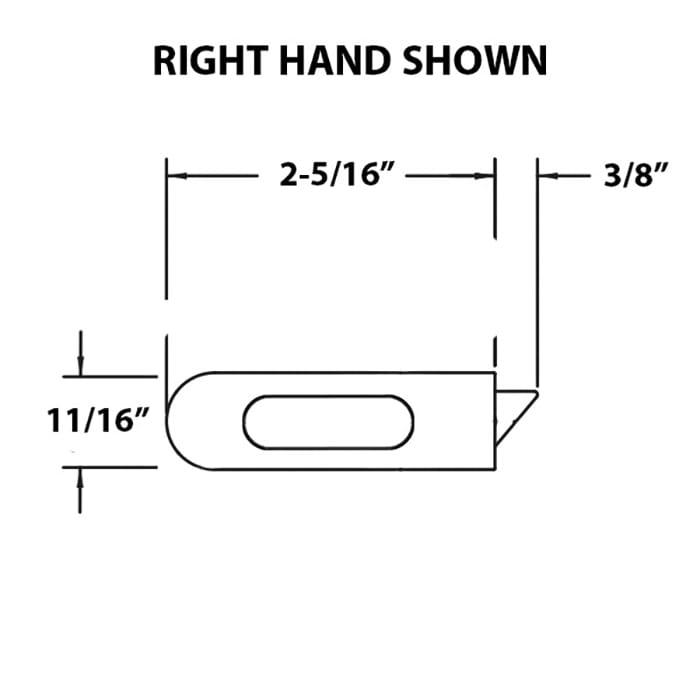

Housing Length: 2-5/16"
Housing Width: 11/16"
Tip projection: 1/4"

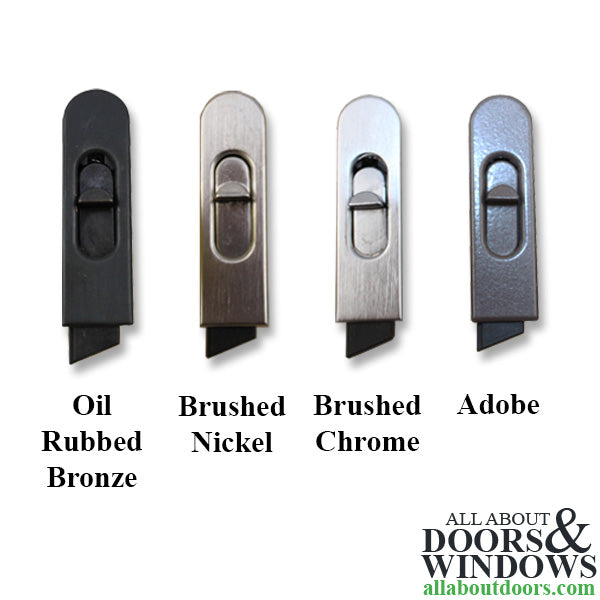

Available Colors/Finishes:
Oil-Rubbed Bronze
Brushed Nickel
Brushed Chrome
Adobe

NOTE:

This latch is held in with a screw located under the thumb button.
To remove button, slide back and insert a small screw driver under the edge, and lift up.
Then, remove Phillips head screw and slide latch out.
Used in wood double hung windows. Metal housing with plastic tip. Priced and sold each.<br>
