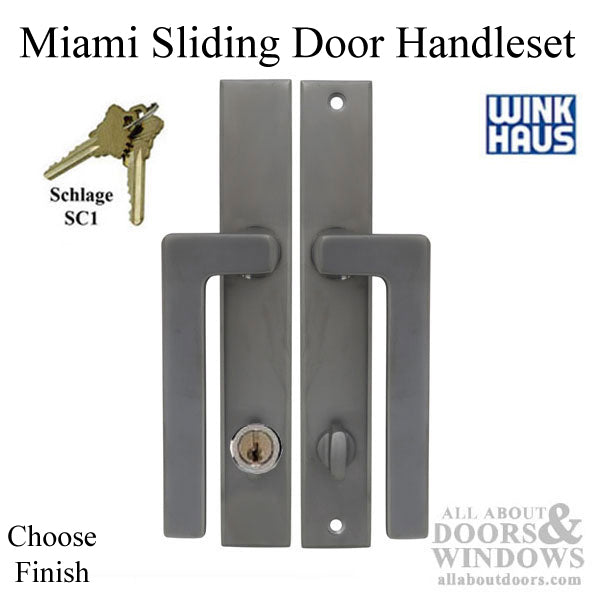

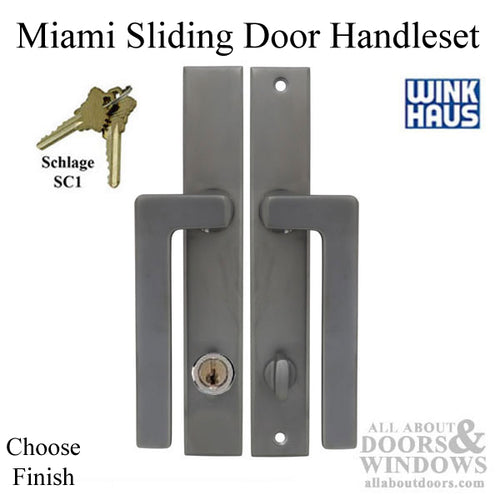

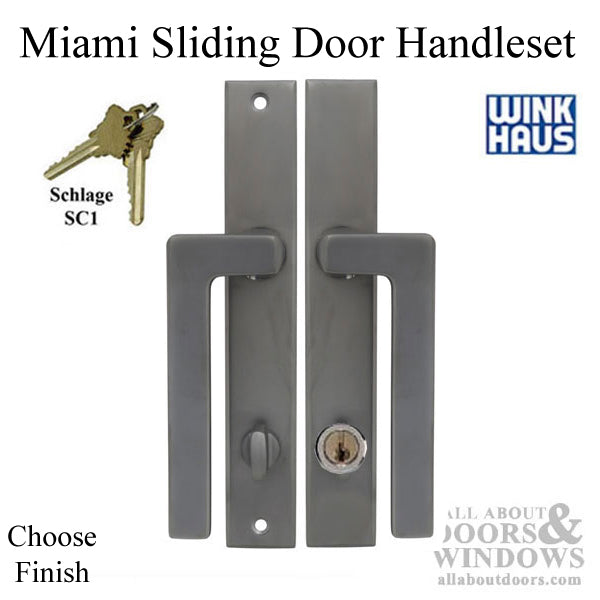

Miami Sliding Patio Door Handle - Keyed Active, Left Hand

Part Number: 398113-175-BL
COLOR: - Black / 1-3/4 inch door
DOOR THICKNESS: - Black / 1-3/4 inch door
Miami handles feature new easier assembly and PVD corrosion resistant finishes.

Application: Wood, Vinyl or Aluminum Sliding doors
Function: Keyed (Active)
Door Thickness: 1-3/4 or 2-1/4 inch (45mm or 57mm)

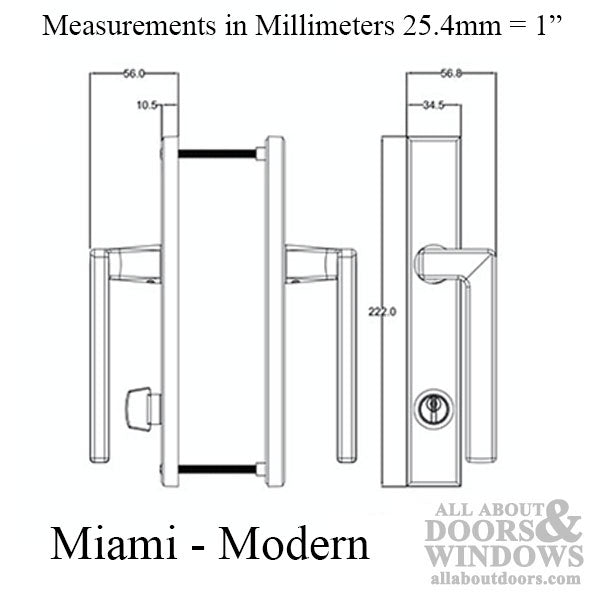

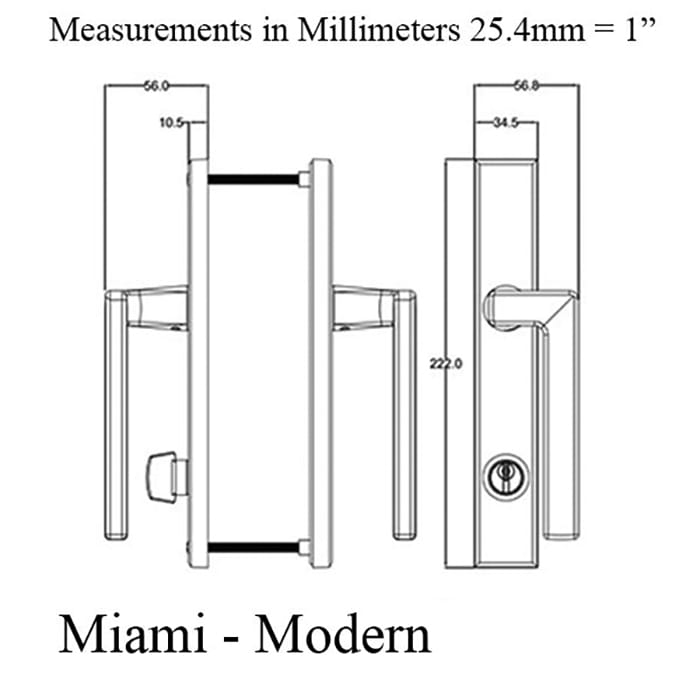

Plate Width: 1.358 inches (34.5mm)
Plate Height: 8.740 inches (222mm)
Screw Hole Center: 7-7/8 inches (200mm)
Handle Projection: 2.204 inches (56mm)

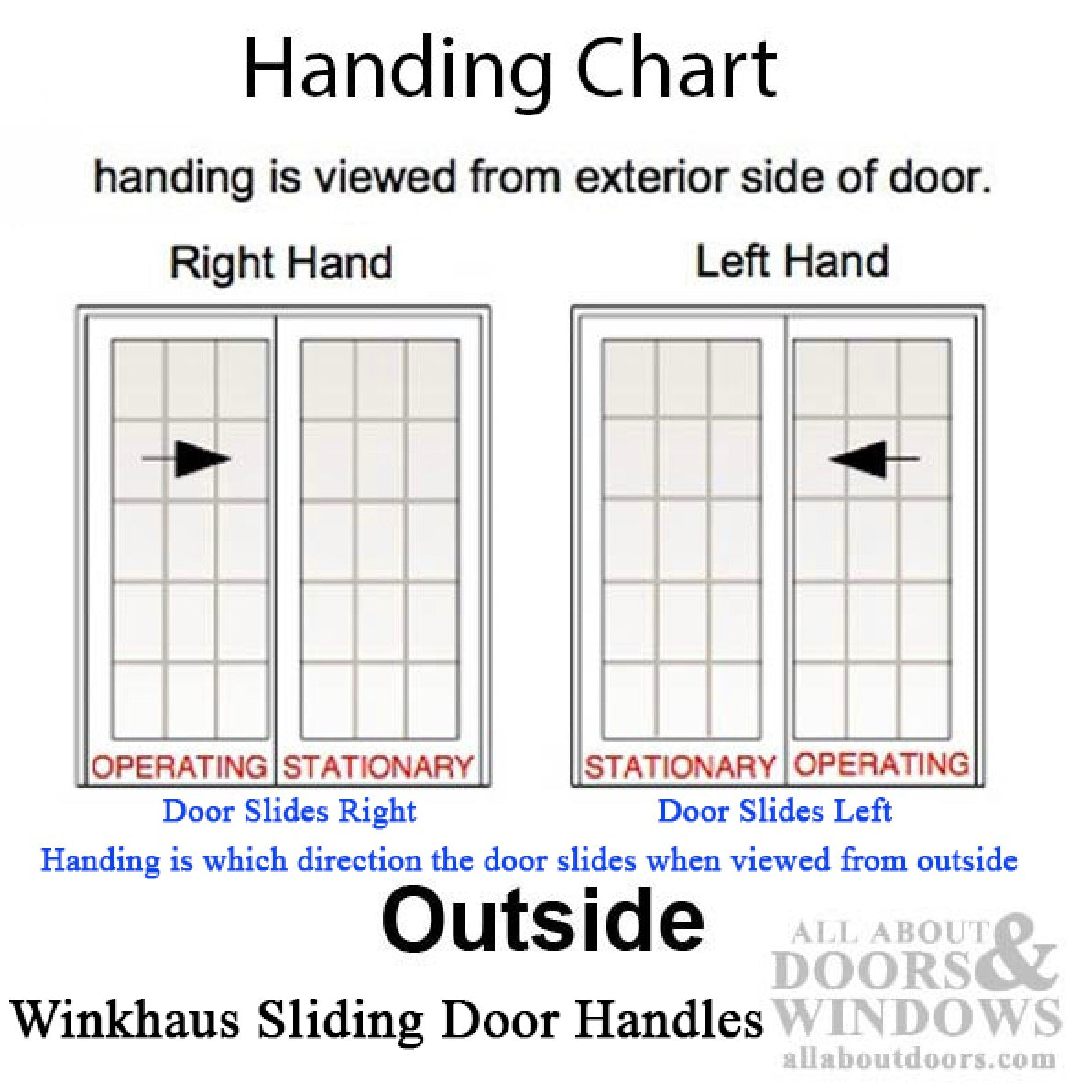

Handed: Left (Door slides left when viewed from exterior)
Material: Stainless Steel

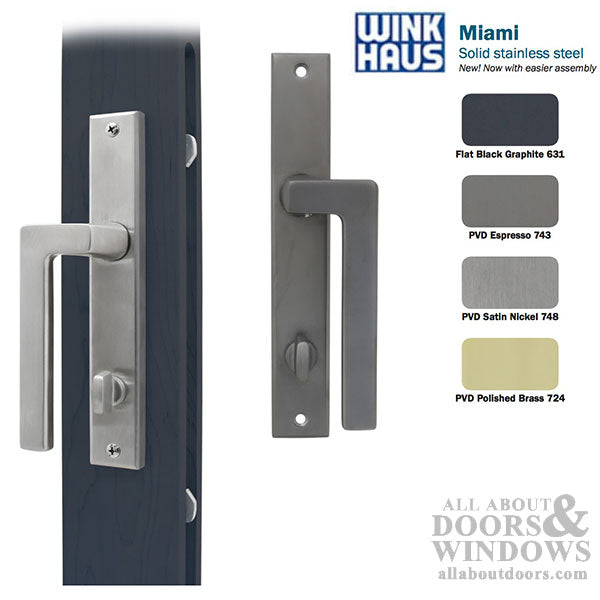

Colors:
Flat Black Graphite (631)
PVD Espresso (743)
PVD Satin Nickel (748)
PVD Polished Brass (724)
PVD Lifetime Bronze (739)

Made for use with Winkhaus sliding door lock #15122

This set includes:
- Interior and Exterior Handles & plates (Left handed)
- Cylinder
- Spindle
- Screws
- Foam gasket
- Allen wrench
- Instructions

Right Handed version of this handleset available as part #398114

Please note: this is a special order, non-stock item. It is non-returnable and has a 2-3 week lead time
