Montecito by Milgard

Multipoint Sliding Door Mortise Lock

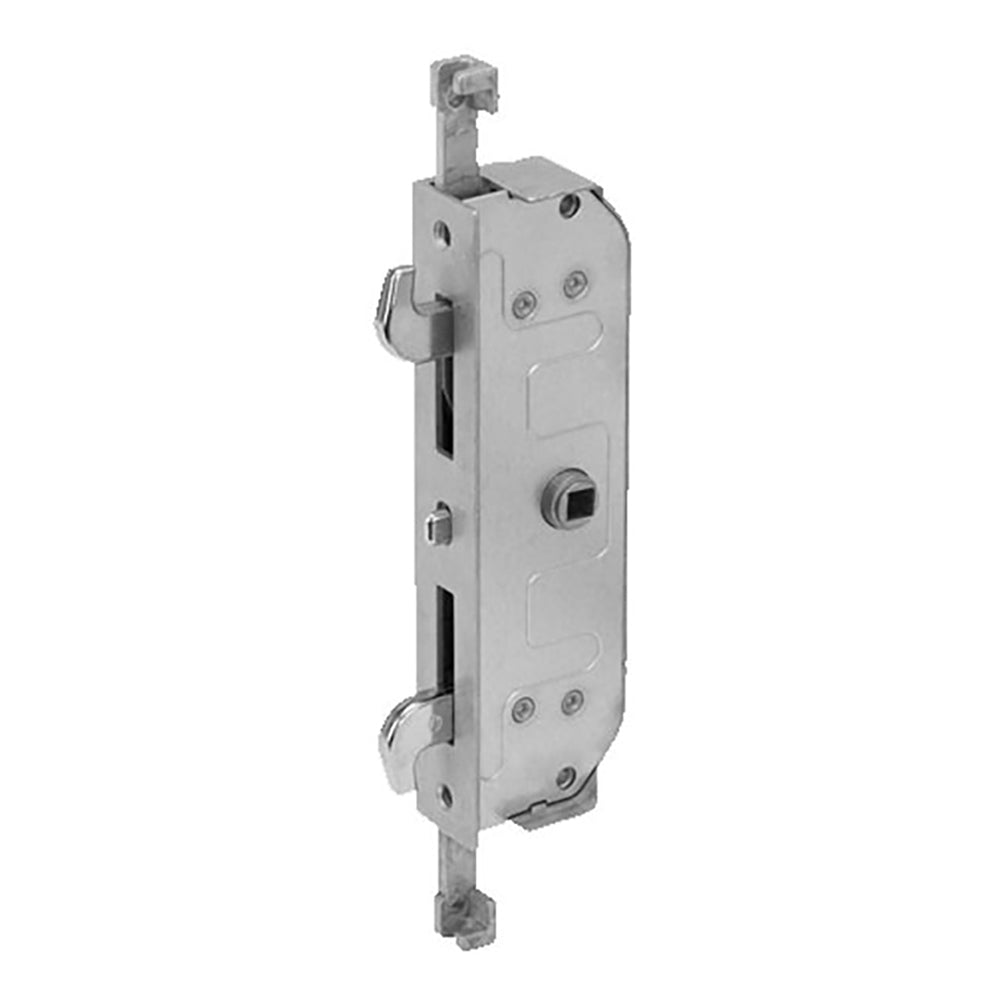

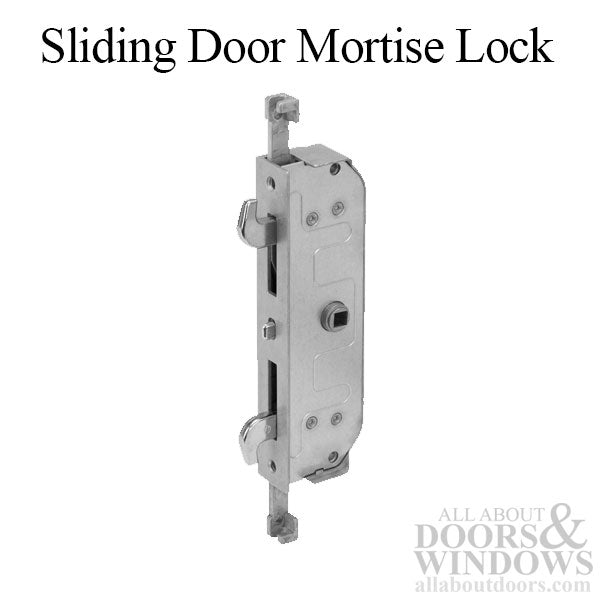

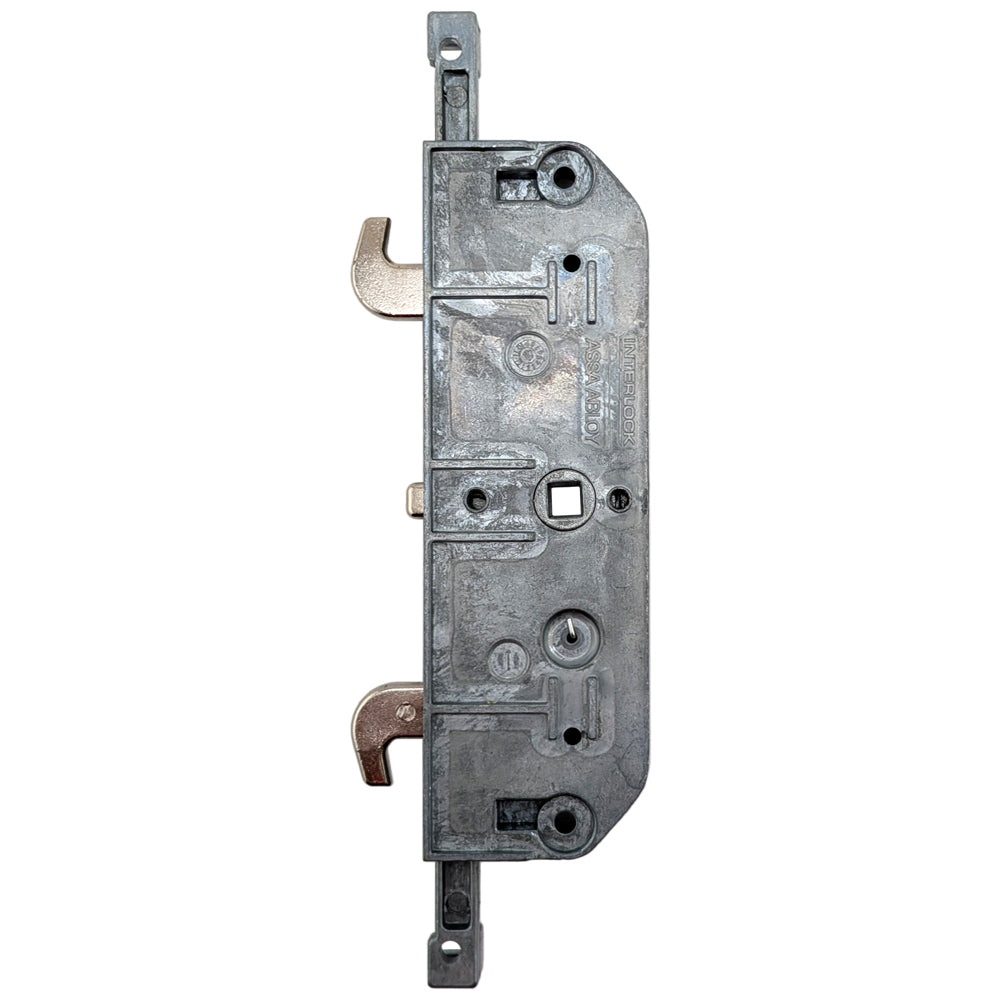

The Milgard Montecito sliding door mortise lock features a 2-point locking system, designed for enhanced security and reliability in sliding door applications.

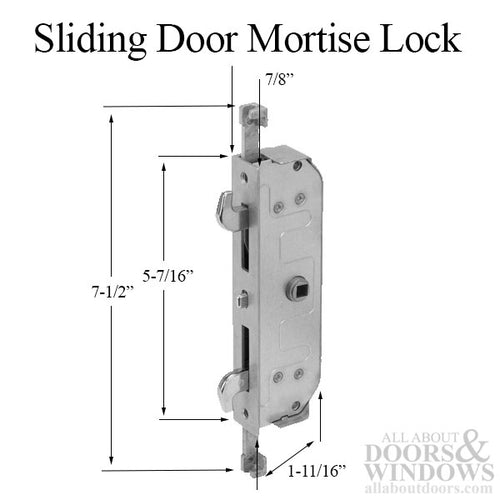

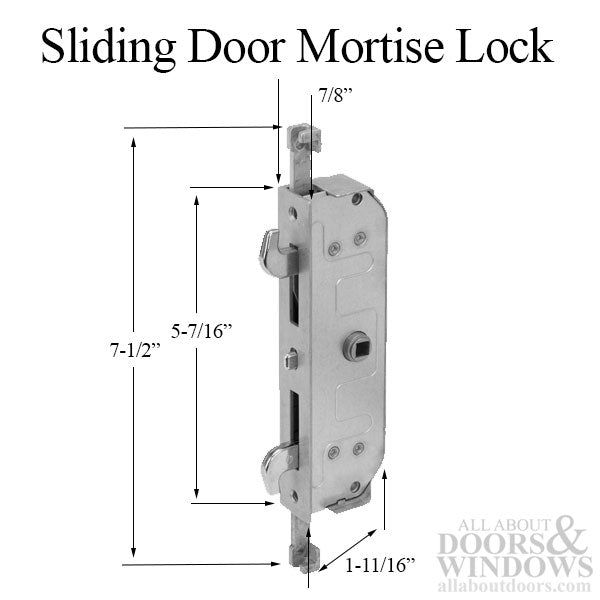

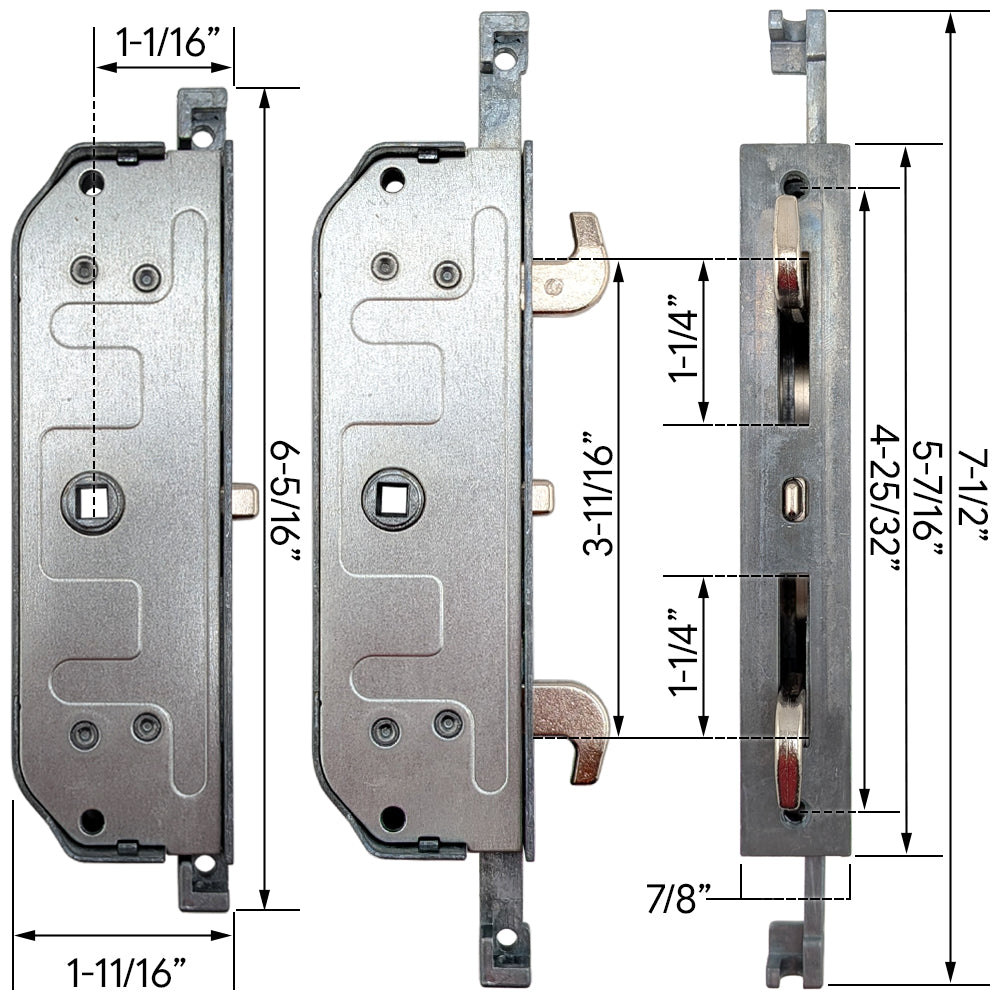

Dimensions:

• Lock Body:
  • Faceplate Width:  7/8 inch (22mm)
  • Faceplate Height:  5-7/16 inches (138mm)
  • Screw Hole Spacing:  4-25/32 inches (121mm)
  • Depth:  1-11/16 inches (43 mm)
• Hook Spacing:  3-11/16 inches (94mm) end-to-end
• Backset:  1-1/16 inch (27mm)

Priced and sold each.
