Milgard Passive Mortise Multi-Point Lock for Sliding Door
Use the arrows or swipe left to view all images for this product
Milgard Passive Mortise Multi-Point Lock for Sliding Door
Part Number: $55.58Interlock Passive Lock Body

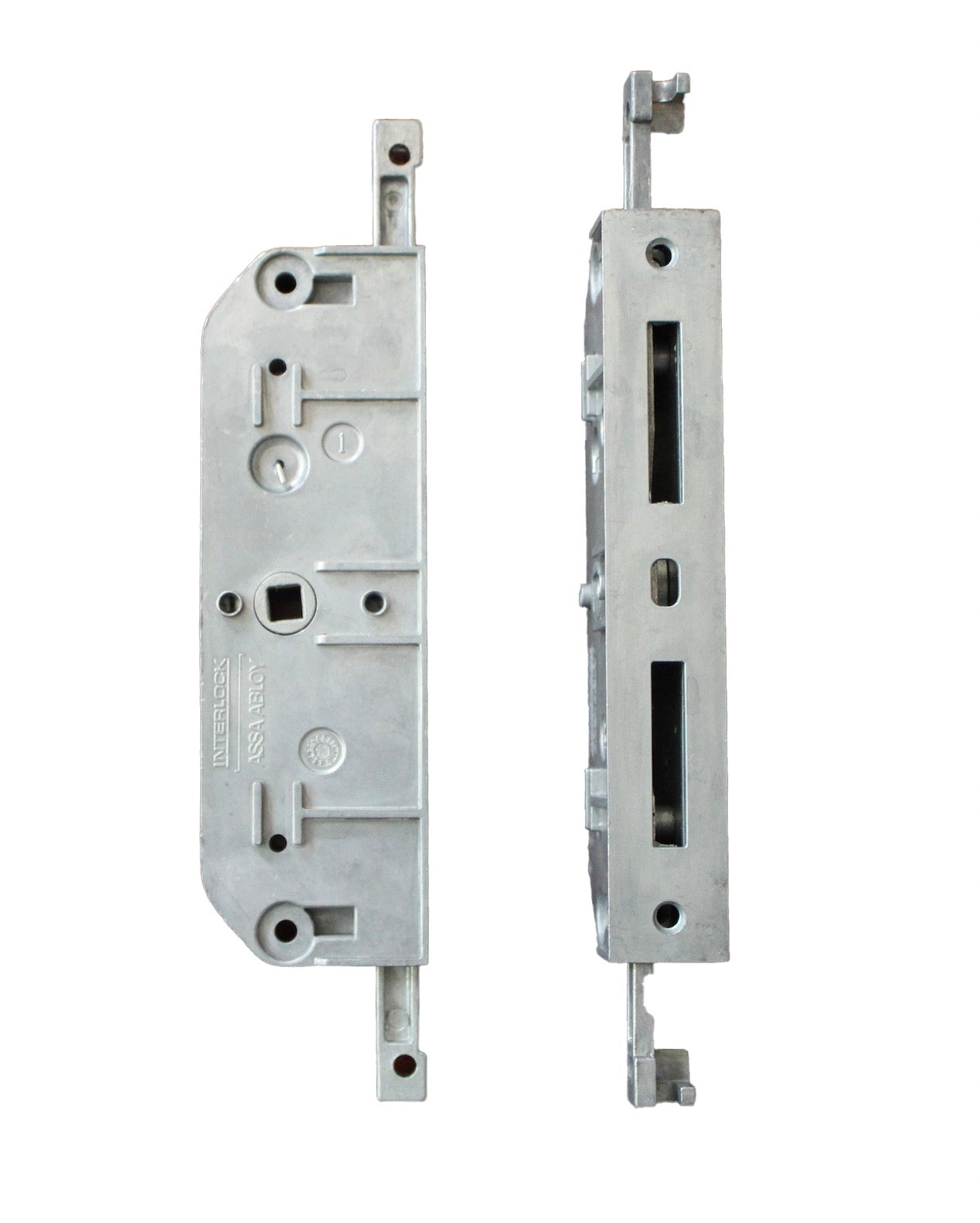

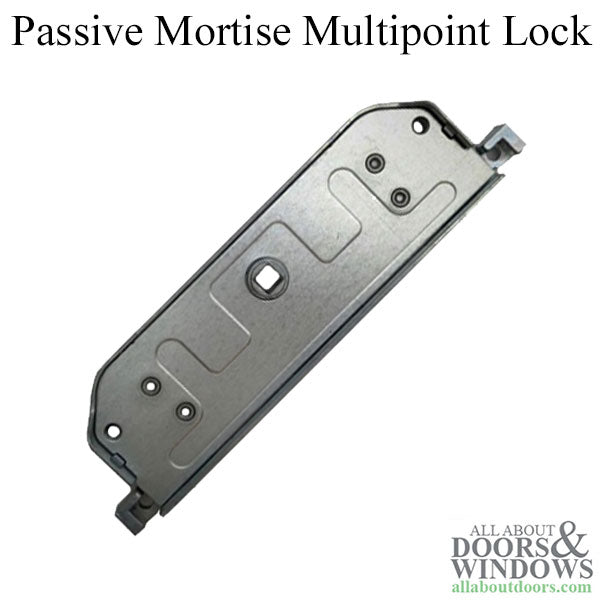

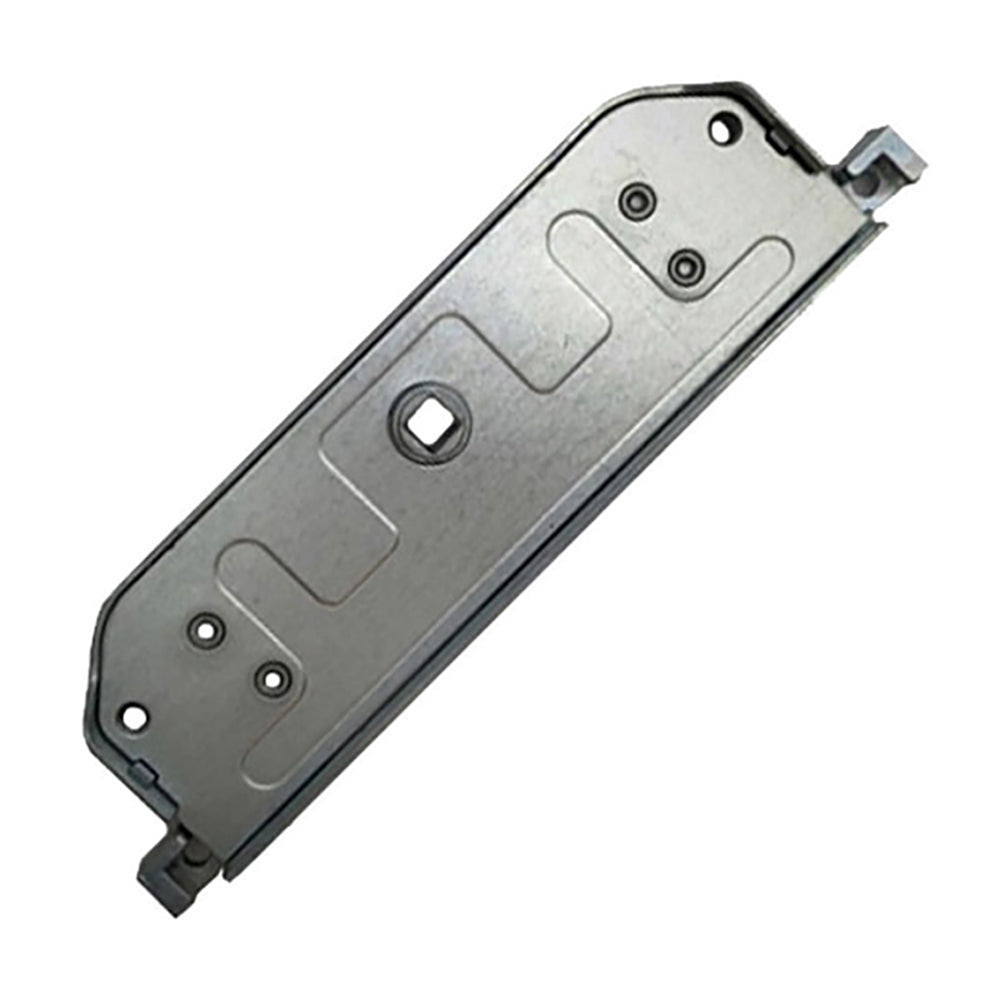

Multi-Point Mortise Lock Body
Used by Milgard on their Classic, Montecito, and Tuscany sliding glass doors.
This two point lock has rods that connect to the top and bottom to secure the Inactive / Passive sliding door.
Uses a 7mm × 7mm square thumb latch with upper and lower shootbolt locking rods.

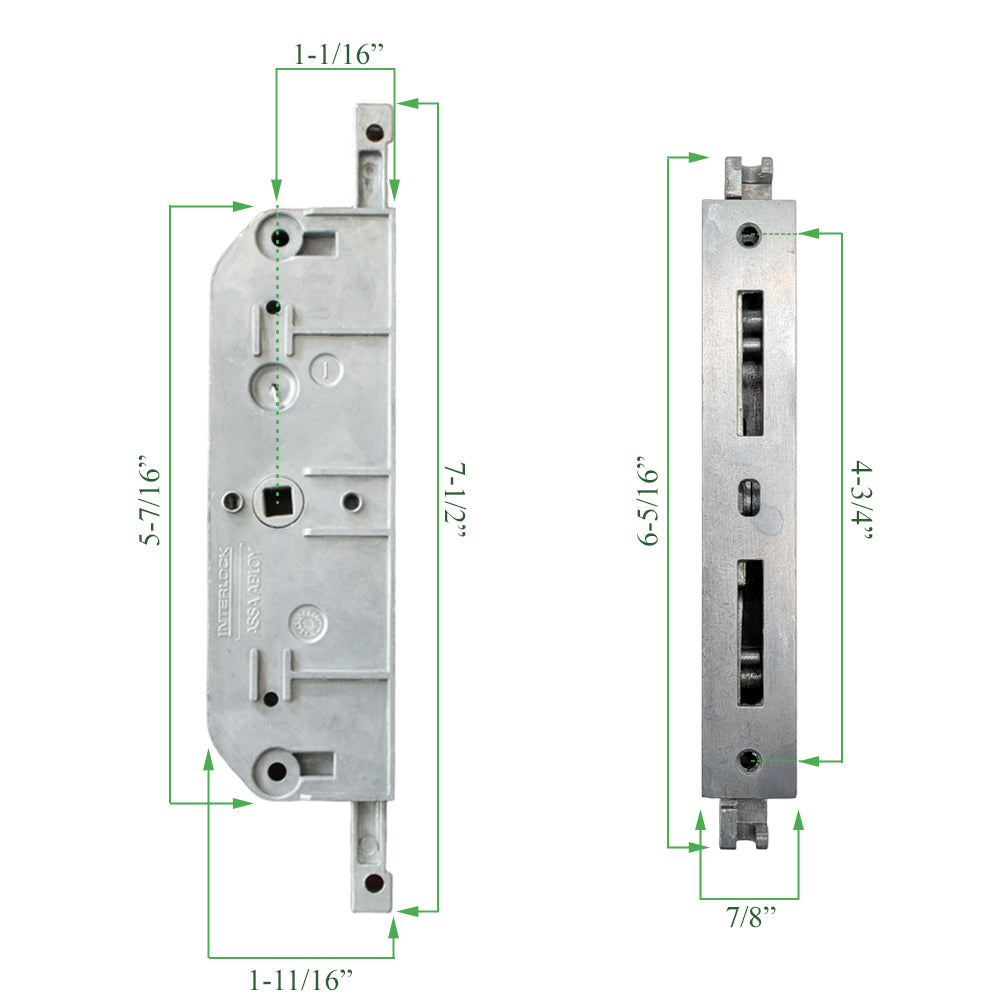

Specifications:
- Face Width: 7/8 inch
- Face Length: 5-7/16 inches
- Screw Hole Spacing: 4-3/4 inches
Priced and sold each.
Interlock Passive Multi-Point Mortise Lock used by Milgard on their Classic, Montecito and Tuscany sliding glass doors
Uses a square 7mm thumb latch with upper and lower shootbolt locking rods.
13/16" face width
6-5/16" face length
5-3/4" screw hole spacing
Priced and sold each.
