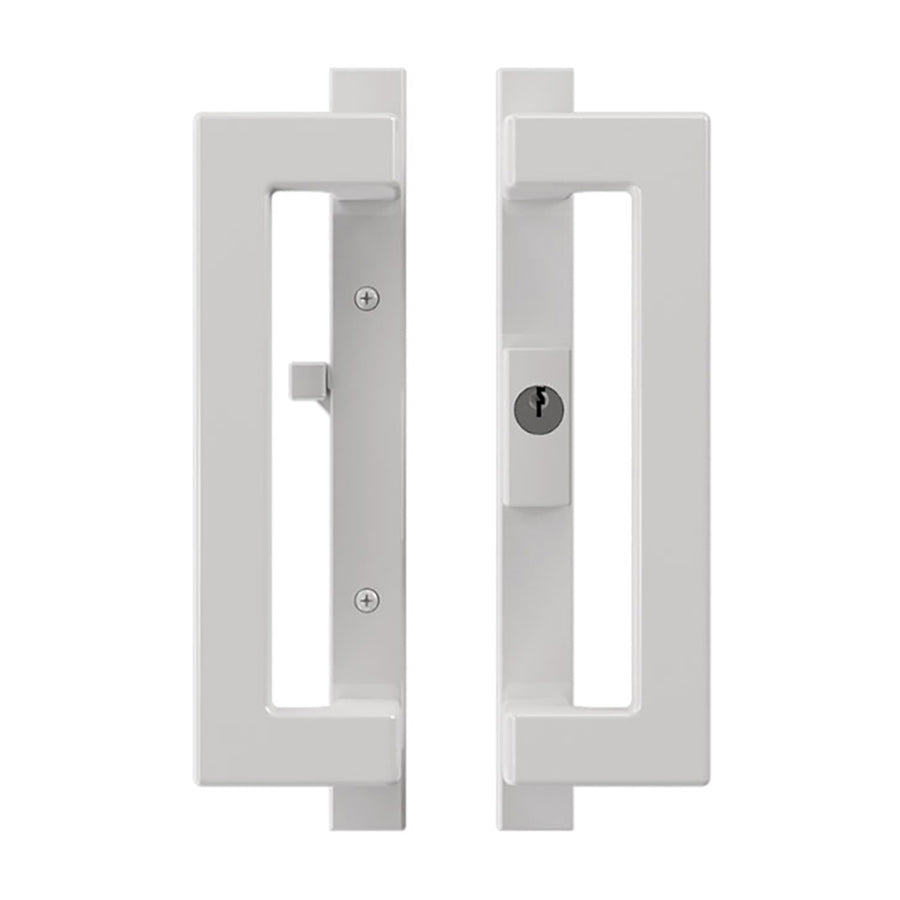

Amesbury Truth Door Handle For Sliding Patio Door Handle Keyed Cylinder Modern Contemporary Door Handle
Use the arrows or swipe left to view all images for this product

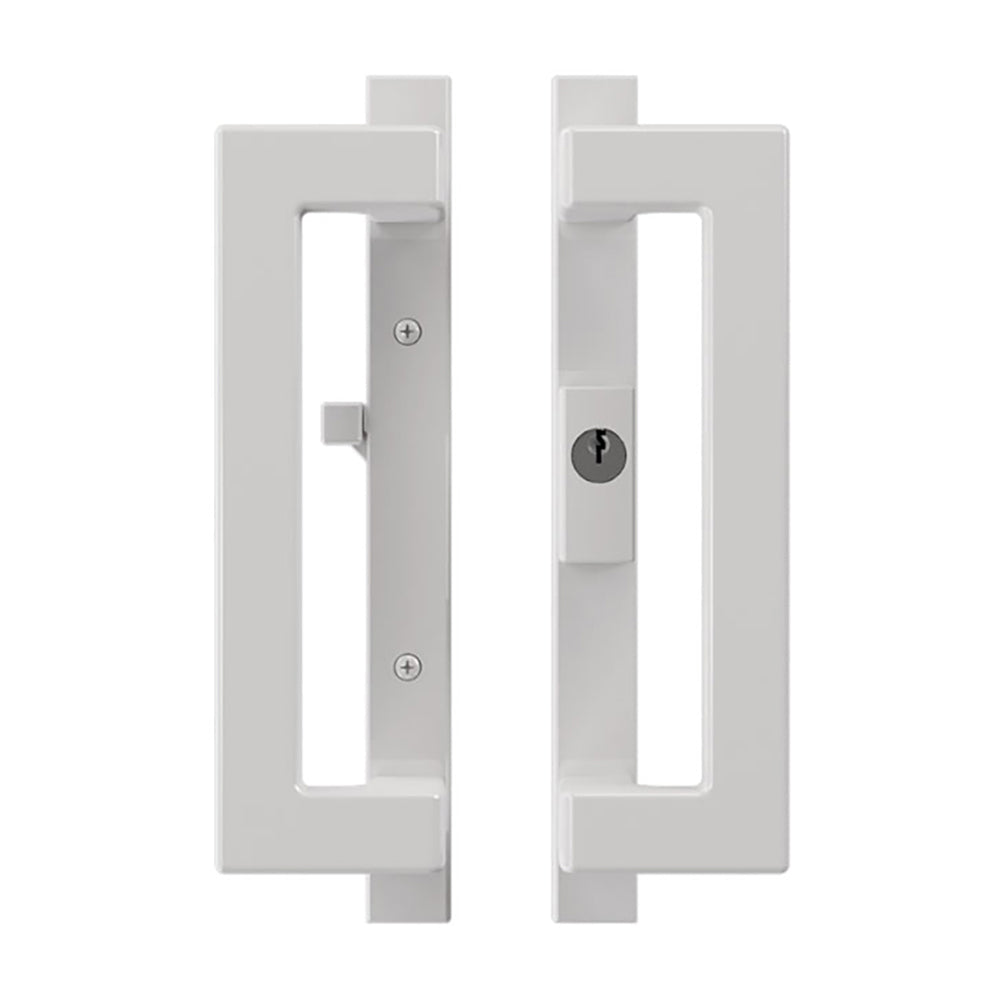

Amesbury Truth Modern / Contemporary Signature series Sliding patio door handle
Active Keyed Exterior with Interior Thumb Latch
Typically installed with a single, 2-Point or 3-point locking mortise lock with hooks.
Applications: Residential and Commercial sliding doors. Aluminum, Wood, Vinyl and Composite

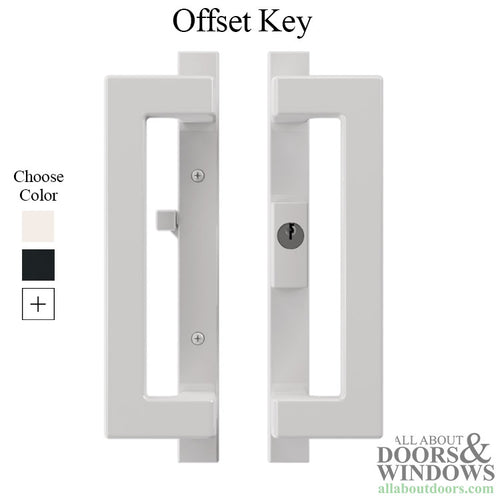

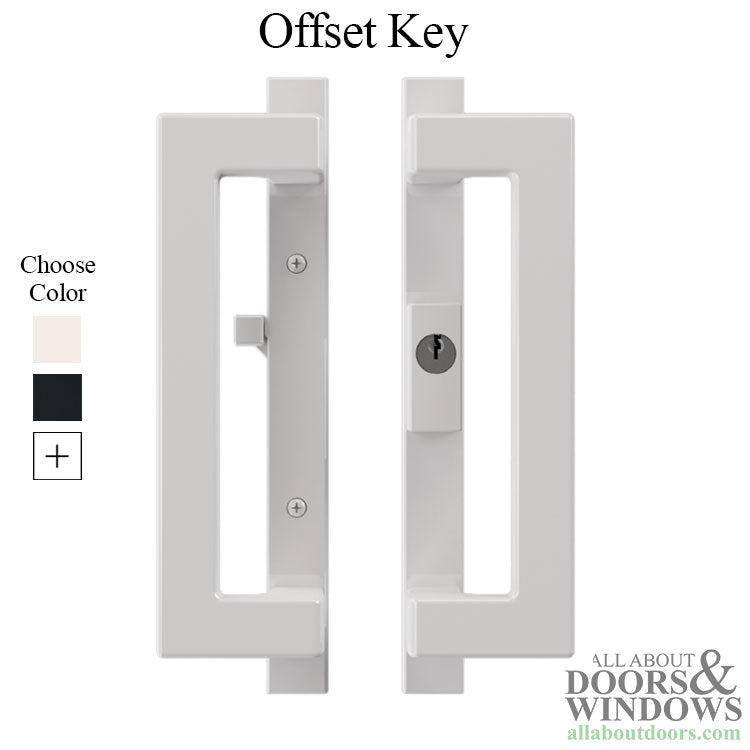

Key Position: Off Center
Function: Active, keyed with Interior thumb latch
Key Cylinder: Schlage SC1, 5 pin

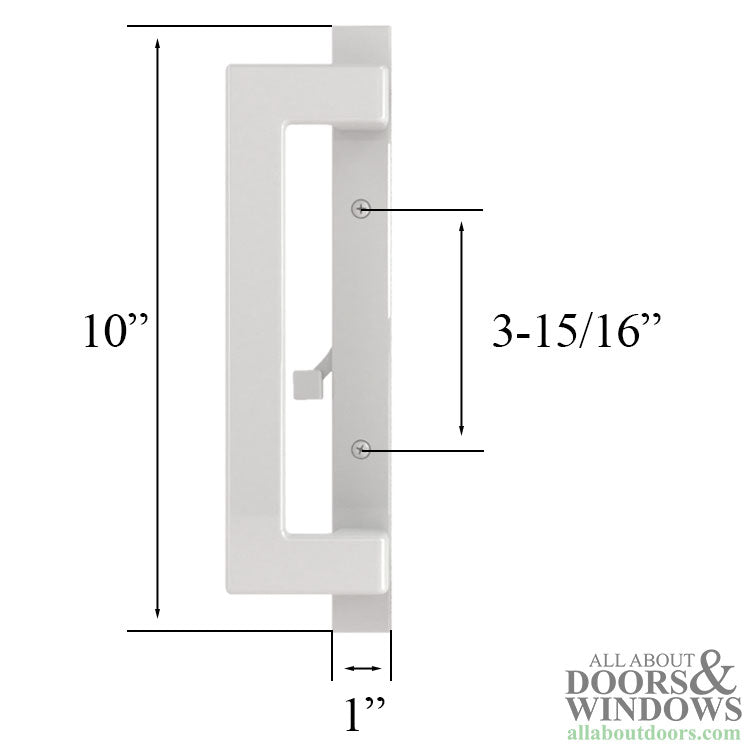

Screw Hole Centers: 3-15/16 inch
Door Thickness: stile thickness ranging from 1.25 to 2.25 inches (32 - 57mm)
Material: Brass substrate for Plated and PVD finishes Zinc substrate for Painted finishes
Color / Finish Options:

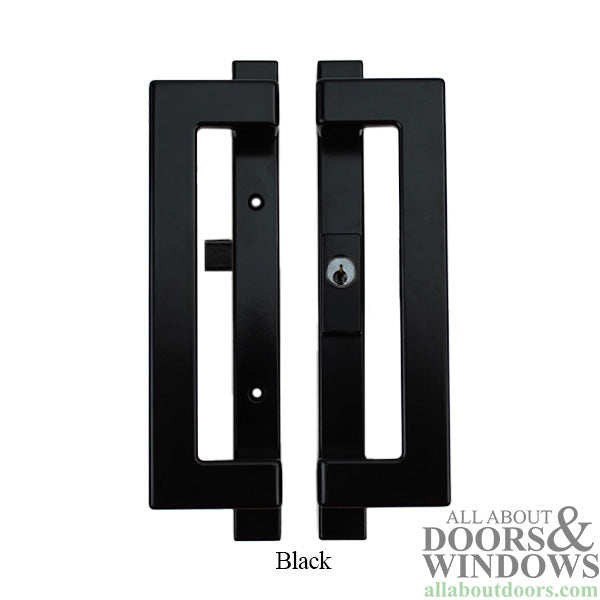

Black
White
Other Functions:
147184: Semi Active, Non-Keyed with an interior thumb latch
147185: Active, Keyed with an interior thumb latch (key is centered)
40.68 Inline Handle 13" Key Above
40.69.xx.100 Semi - Active 10"
40.69.xx.101 Active 10" Key Centered
40.69.xx.102 Active 10" Key Off Centered
40.69.xx.103 Inactive 10" Dummy
40.70 Offset Handle 13" Key above
