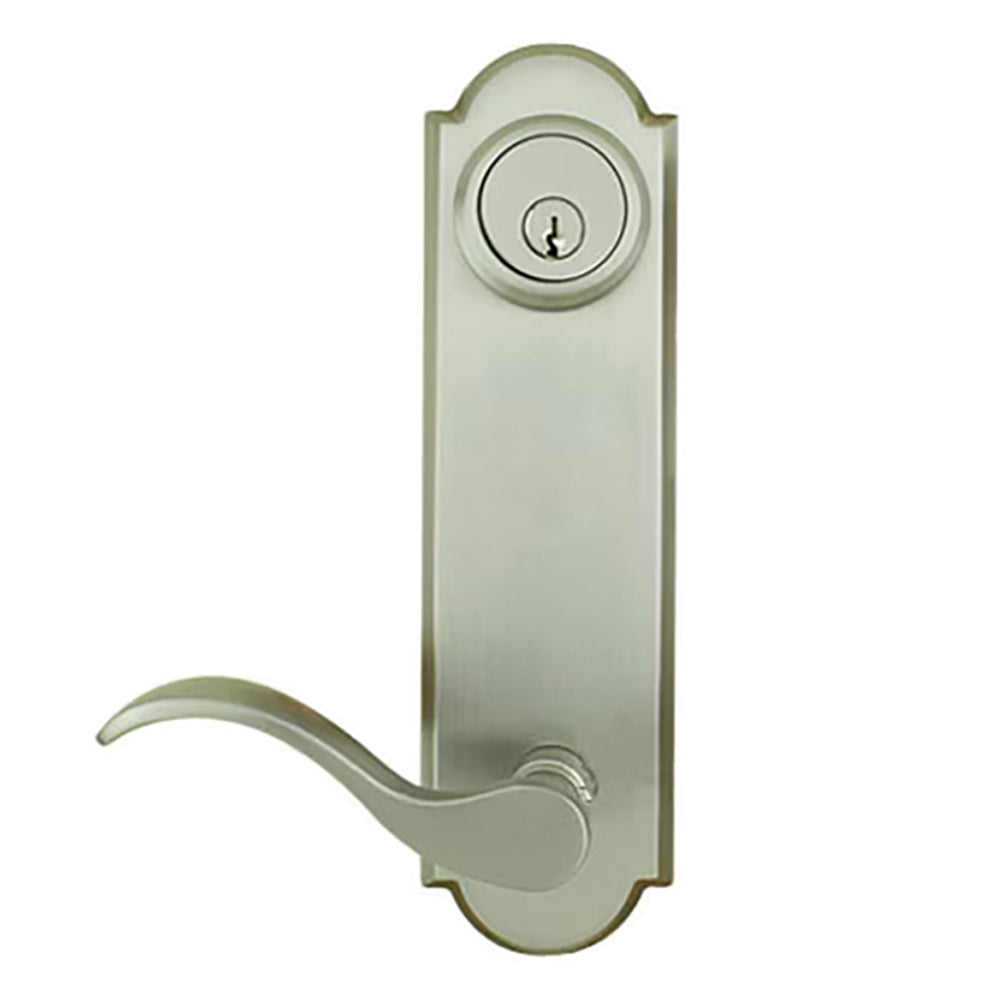

This is an active keyed handle set with dummy parts used with the Sentry XL or RS Triple Latch multipoint lock.
This set works as a Active keyed or Dummy handle set.

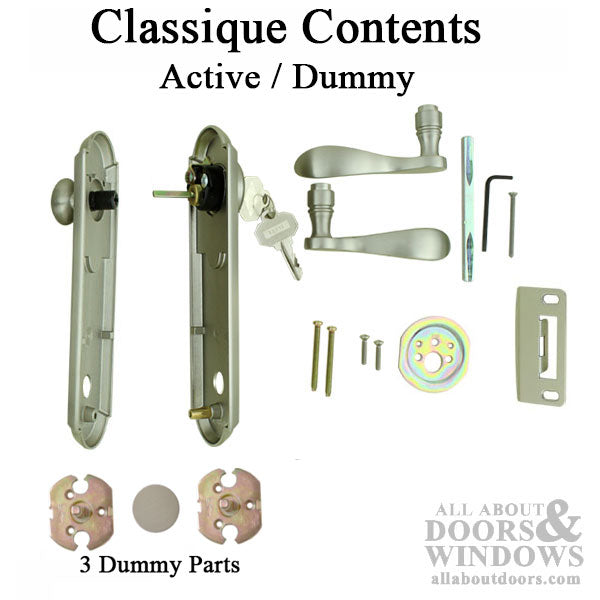

Has a dummy cylinder that will replace the keyed one and 2 fixed plates for Dummy levers. The extra 6mm spindle is not needed when Active is used as dummy
This handleset only works with the Sentry XL or RS Triple Latch multipoint lock with 5-1/2 CTC Spacing.

Application: Sentry RS & XL Multipoint Triple Latch Lock

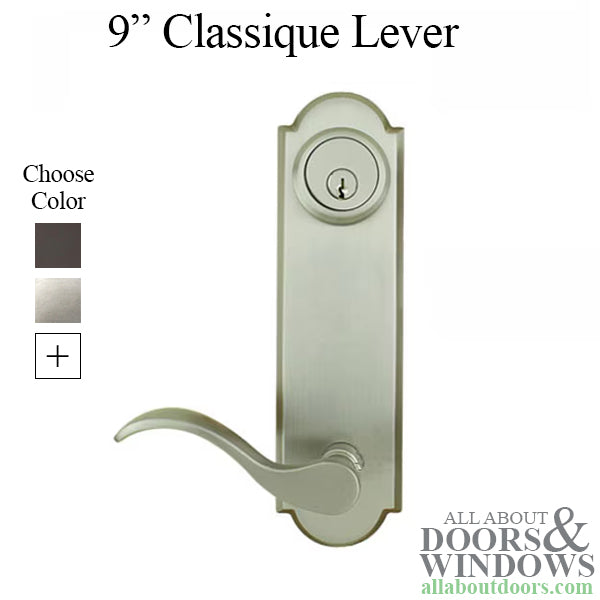

Style: Classique Wave Lever

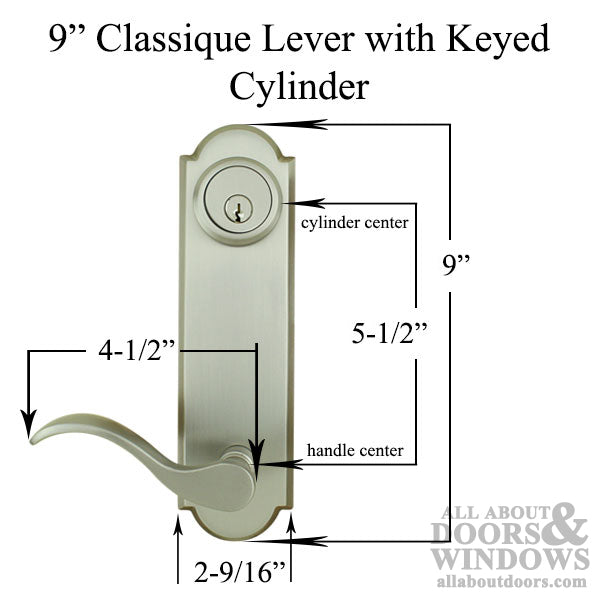

Plate Width: 2-9/16 inch
Plate Length: 9 inches
Handle to Cylinder Bore: 5-1/2 inches Center to Center
Lock Handle Hub to Cylinder: 5-1/4 inch Center to Cente
Door Thickness: 1-3/4 inch
Spindle Length: 4-5/16 inch
Keyway: Schlage SC1, 5 pin
Keys: 2 with Large Bow head
Strike Plates ordered Separately ( 1-3/4 x 3-1/2" length) Need 4 on 8' door

Note:
Key cylinder hole on deadbolt is not in the center of the rosettes, it is offset from the center of the rosette by ¼ inch. This is the reason they measure 5-1/4 inch but they are made to fit a 5-1/2” Center to Center double bore on the door.

Related Sentry Hardware:
72220068 - Sentry XL 66.5" Triple Latch 6-8 Door 5-1/2 PZ x 2-3/8" Backset
72220080 - Sentry XL 79.3" Triple Latch 8-0 Door 5-1/2 PZ x 2-3/8" Backset
70100068 - Sentry RS 73" Triple Latch 6-8 Door 5-1/2 PZ x 2-3/4" Backset
70100080 - Sentry RS 89" Triple Latch 8-0 Door 5-1/2 PZ x 2-3/4" Backset
