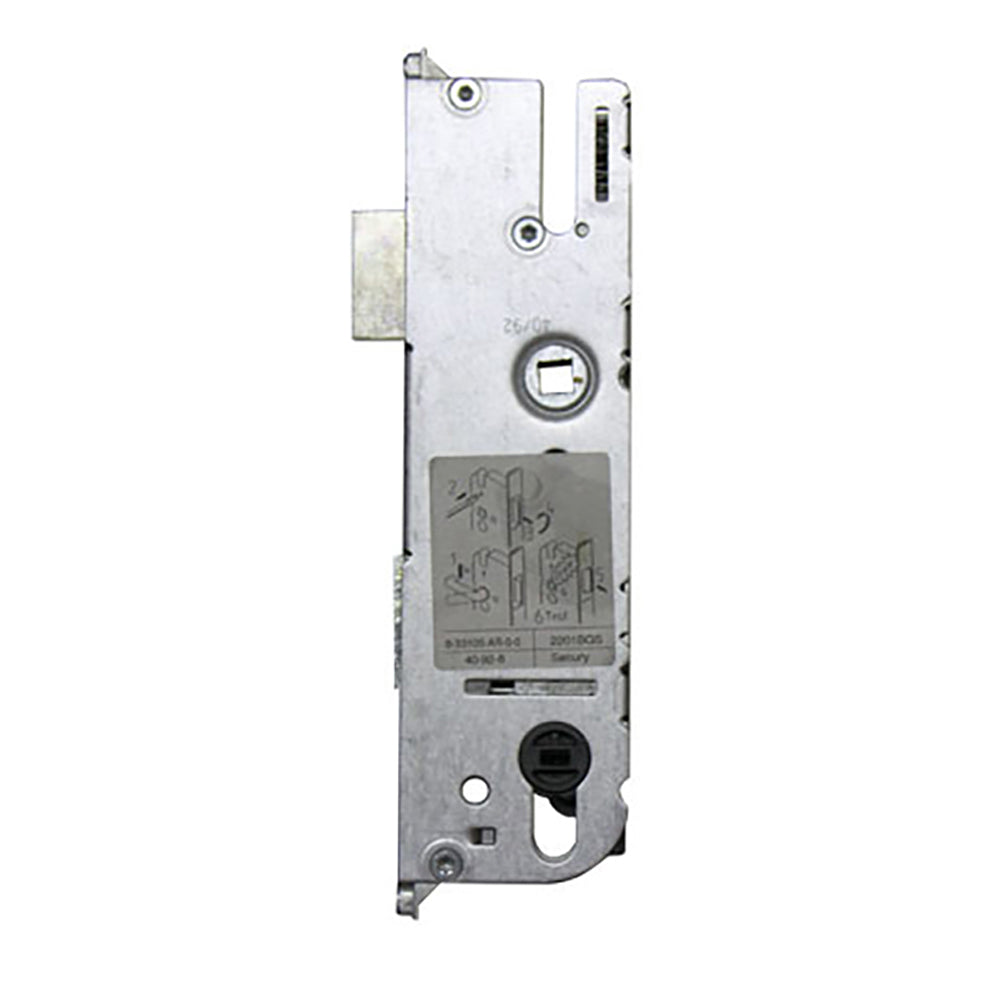

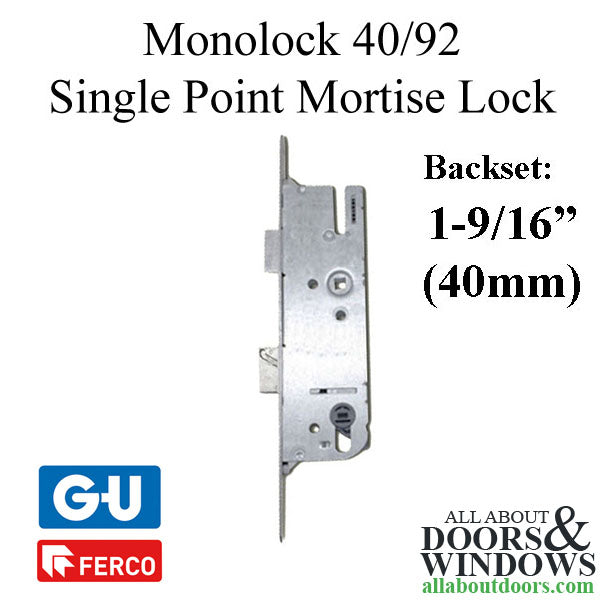

G-U Monolock 40mm Interior and Exterior Door Lock System
(This Locking System is also available with a backset of 35, 40, 45, 50, and 55 mm)

Series: Europa - Monolock

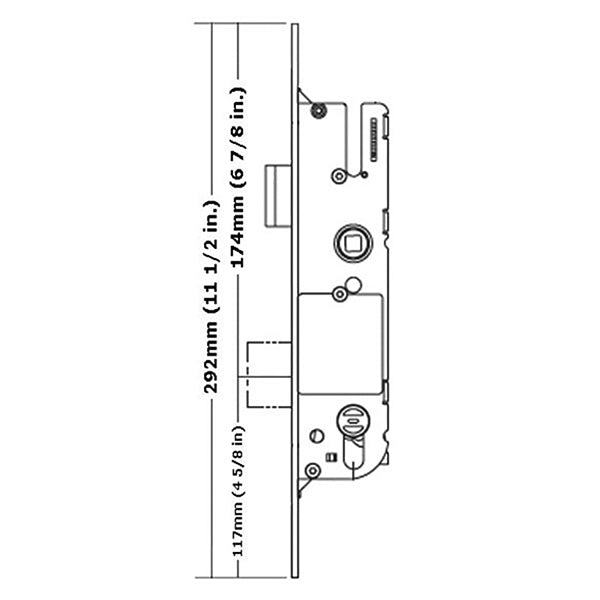

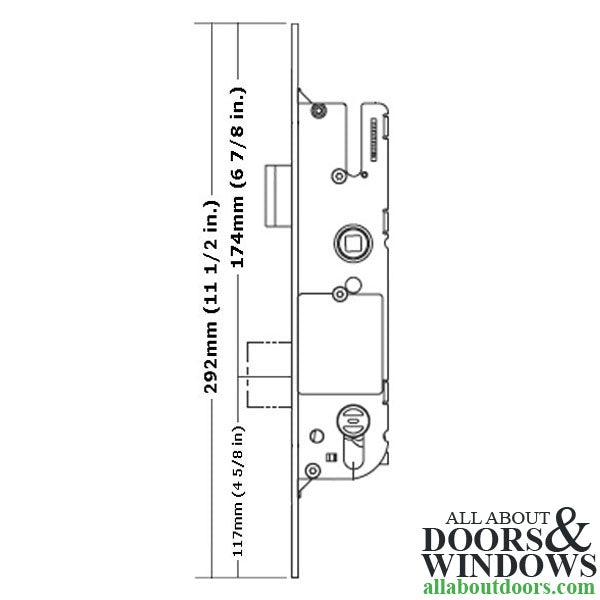

Handle to Cylinder Spacing: 3-5/8 inch (92mm)
Cylinder: US-Cylinder system with a 90 degree turn of key or thumbturn.
Handle Position: Key below Handle (Europa)
Backset: 1 9/16 inch (40mm)
Faceplate Width: 5/8 inch (16mm)
Faceplate Finish: Stainless Steel
Handle Height: Normally used with 35 Inches (889mm) Handle Height
Spindle Size: 8mm Square

Related GU Parts:
Monolock Door Lock - 30mm Backset - 6-UA600-30-0-1
Monolock Door Lock - 35mm Backset - 6-UA600-35-0-1
Monolock Door Lock - 40mm Backset - 6-UA600-40-0-1
Monolock Door Lock - 45mm Backset - 6-UA600-45-0-1
Monolock Door Lock - 50mm Backset - 6-UA600-50-0-1
Monolock Door Lock - 55mm Backset - 6-UA600-55-0-1

The Monolock system consists of the same reliable features youÍve come to expect from G-U.
This product is ideal for exterior and interior door applications.
The routing and mortising dimensions are the same as our multi-point locking systems.
Also featured is our 90 degree locking mechanism that incorporates a standard US cylinder offering a variety of Schlage SC1 keyway systems.

Key Features:
1 inch (25.4 mm) throw on deadbolt
US design with deadbolt located above lever
Lever controlled releasing of deadbolt and latch
Locking by US-Cylinder system with a 90 degree turn of key or thumb-turn
Non-handed, latch easily reversible
Heavy duty mortise construction with reinforced lever return spring system
Available in stainless steel for increased corrosion resistance
Same hardware groove detail throughout our entire door lock program (router bits available)

To Identify a Multipoint Door Lock
1. Check for manufactures stamp on the lock strip
2. Measure the width of the lock strip
3. Measure the Backset
4. Measure the Center points
5. What locking types are on the strip? (Mushroom, Deadbolt, Hook, ect.)
6. How many of those locking types are on the strip?
7. What color is the lock? (Silver, Stainless Steel, ect.)
8. Is the door UPVC, Aluminium, Composite or Wood?


How to Rehand a GU Single Point Lock
