Mortise Lock For Sliding Patio Doors 45 Degrees Slot For For Wood And Vinyl Sliding Patio Doors

Part Number:15142 Price: $6.98 to $19.64
Color: - Yellow Dichromate

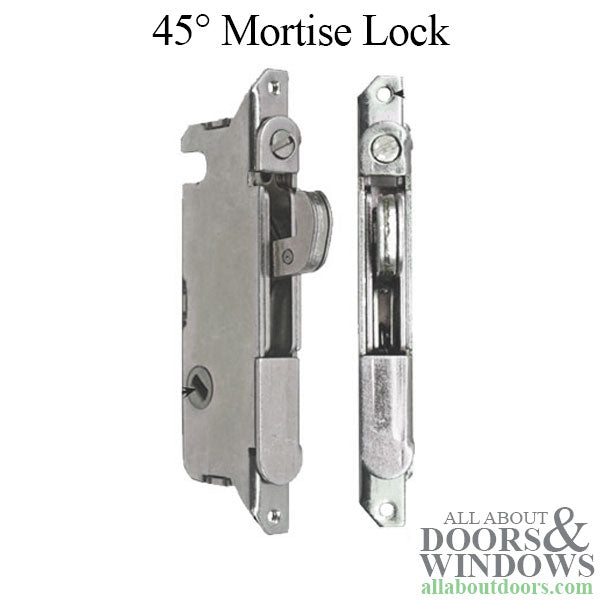

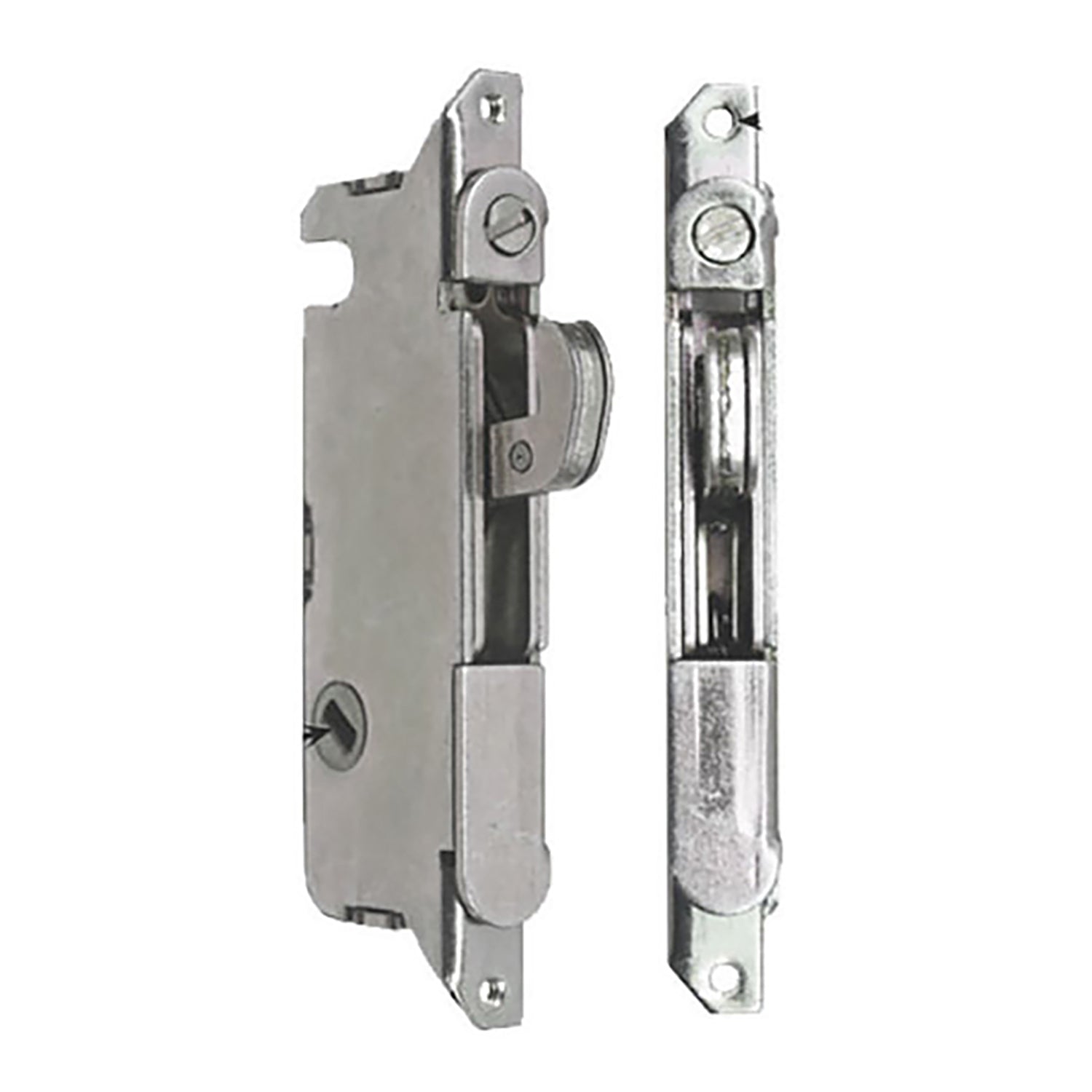

Common Mortise Lock, 45 deg Slot Wood & Vinyl Patio Doors, W & F Style

W&F Style mortise lock - round end with 45 degree slot when locked.

Available Finishes: Zinc Dichromate and Stainless Steel

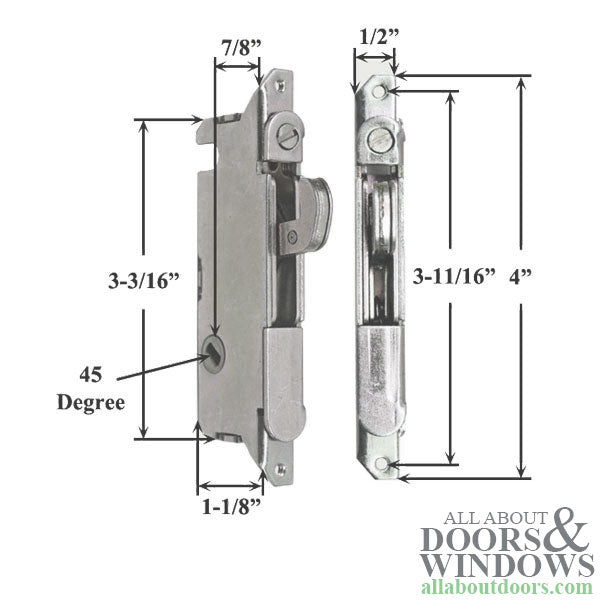

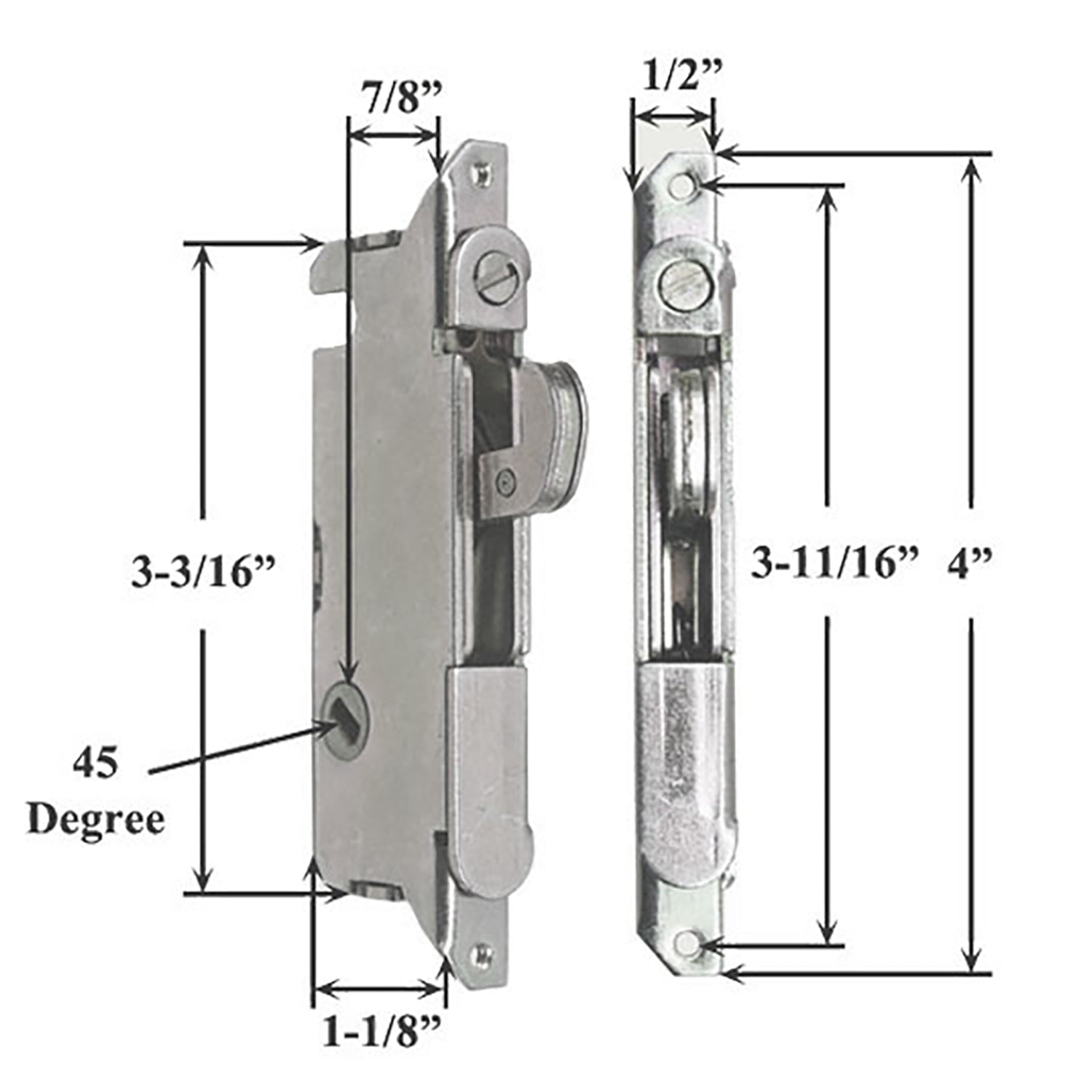

7/8'' Backset
Installed with 6-32 machine screw
Internal Latch for primarily Wood and Vinyl Glass Sliding Patio Doors

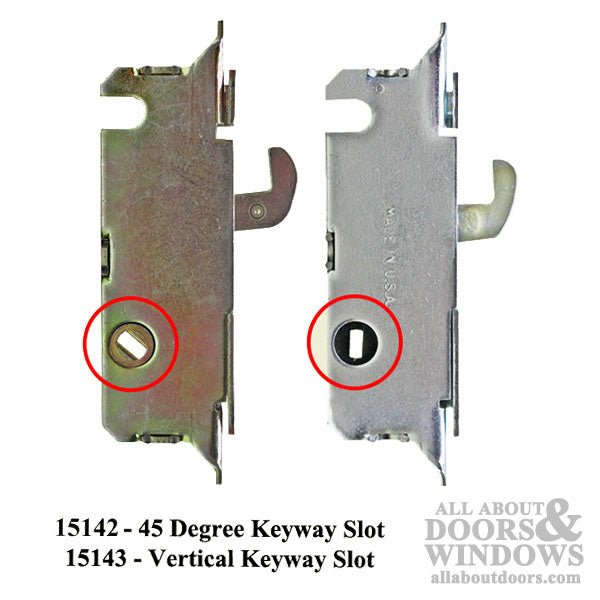

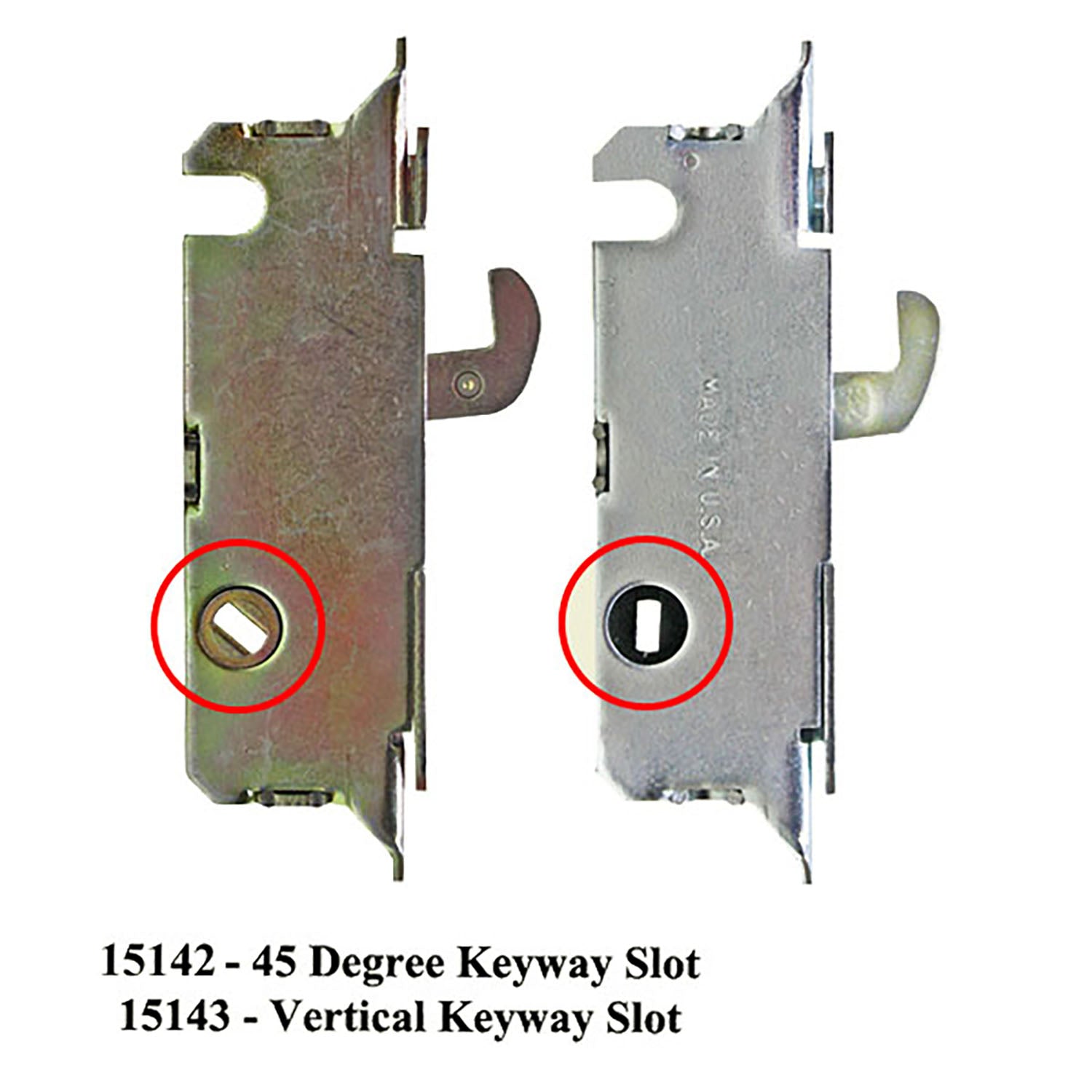

Note: Metal Doors usually use the 15143 vertical keyway Latch

Hole Center: 3-11/16-inch
Keyway: 45 Deg.

VIDEO: Replacing a Single Hook Lock in a Sliding Door

Cross Reference mortise latch numbers<br/> Prime Line E-2014<br/> SlideCo 15410-F<br/> Strybuc 16-175<br/> Truth 2300-1063<br/> Weathershield 972493<br/> Amesbury 2310-1061<br/> Adams-Rite MS-1848-02-630<br/>
