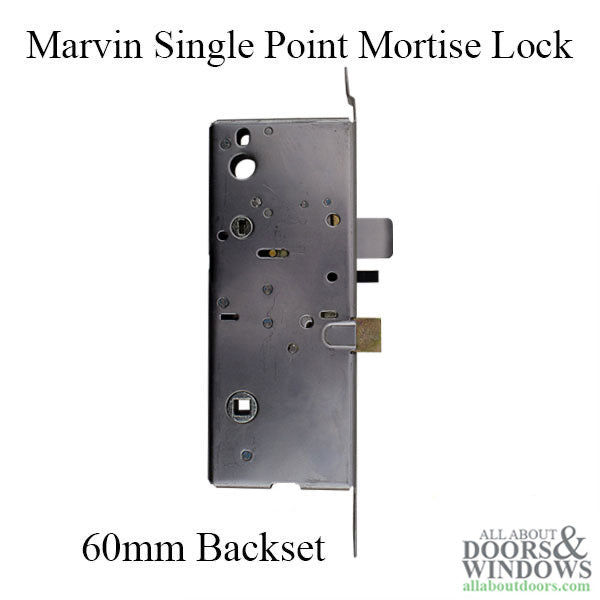

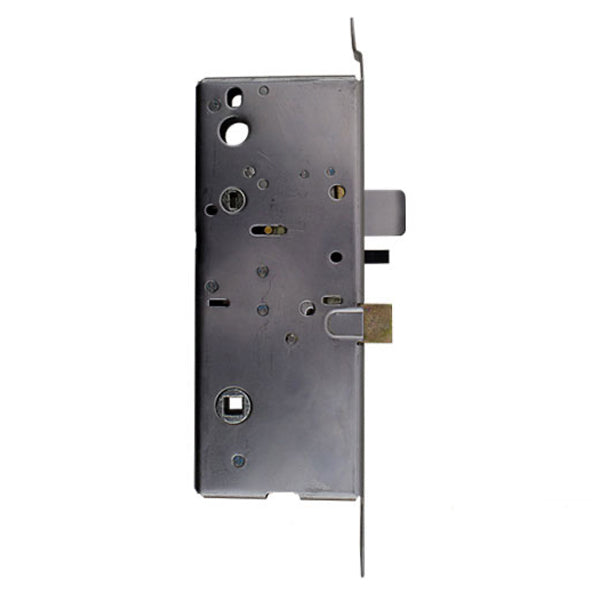

Single point active lock (SPL) for Marvin Ultimate and other inswing doors
manufactured 1/17/2000 to present.

For mortise lock faceplate, see part # 395040

Lock Body Type: American cylinder

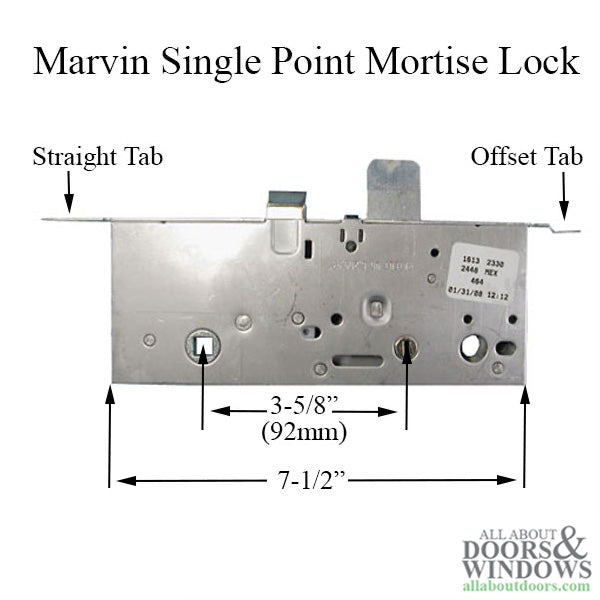

Handle spacing: 3-5/8 inch (92 mm) Center of handle to center of cylinder
Backset: 2-3/8 inch (60 mm) Measured from door edge to center of handle

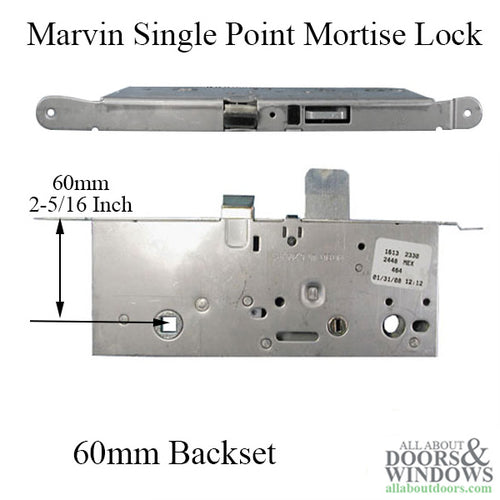

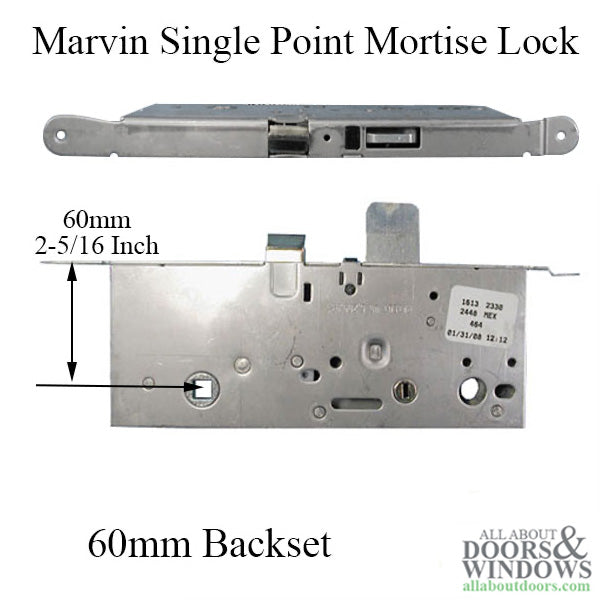

Backset without Face plate (measures 2-5/16 as shown in 2nd image)
Deadbolt throw: 1 inch (25.4 mm) Tapered
Patent NO. 6,209,931
Single point locks used by Marvin, Caradco, Jeldwen and others
Priced and sold each.

NOTE: Does Not include faceplate or Strike, lock body only
Screw between Latch and Deadbolt is a # 6 Flat head, not included

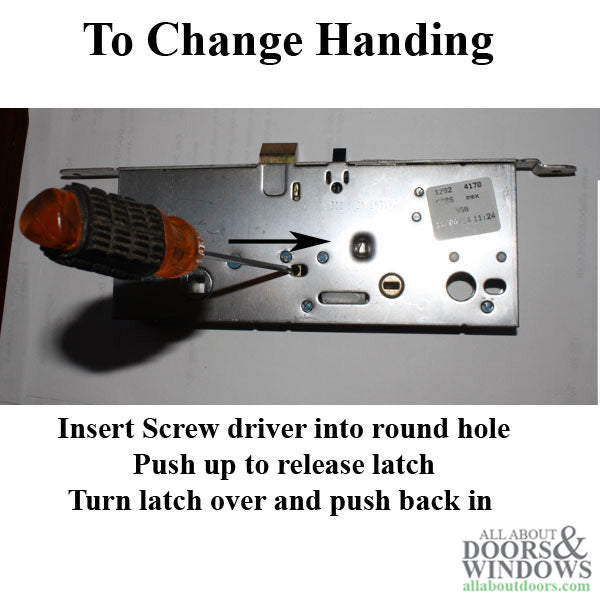

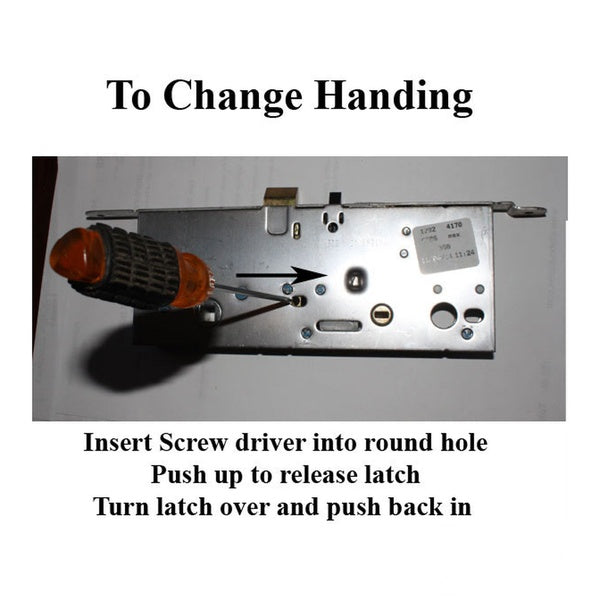

Change Handing:
1. Insert screw driver into slot behind latch
2. Pull down on handing release, latch pops out
3. Rotate latch and push back into lock case
ALWAYS Check Function of lock before closing door

Operation:
1. Lift handle to engage
2. Turn Thumbturn or key to extend the deadbolt


How to Rehand an Ashland Multipoint Lock (Marvin Doors)



Rehanding Ashland Multipoint Locks


Rehanding a Marvin Integrity Multipoint Lock
