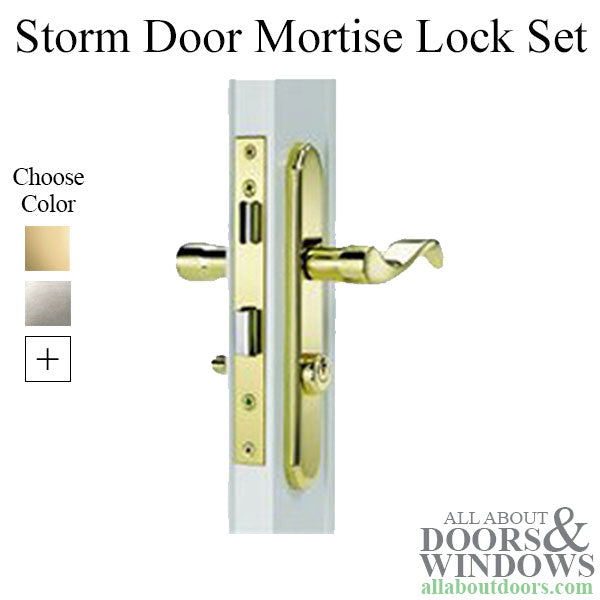

Mortise Lock Set with 0.875 Inch Backset for Storm Doors

Part Number:302040 Price: $134.60 to $139.20
Color: - Polished Brass

Mortise Lock, Storm Door Hardware, Wright - Choose Color

Specifications:

  • Available Colors: Polished Brass and Brushed/Satin Nickel
  • Mortise hardware kit for mortise application in storm and security doors;
  • Replaces Many Brands - Pado, Papaiz and other storm door mortise locks
  • Fits Doors: 1-1/8 to 2 Inches
  • Re-keyable 5 pin American cylinder
  • Yale, Y-11 Keyway.
  • Single cylinder lock - keyed outside and thumb turn inside
  • Non-handed lock; Latch can be rotated for left or right hand doors; Instructions included.
  • Solid Brass handles;

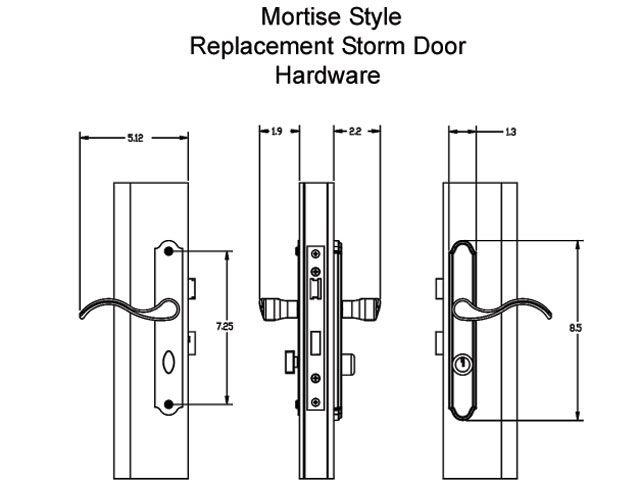

  • Escutcheon / trim plates screws spaced at 7-1/4 inches;
  • Lock Face Plate: 13/16 x 7-3/4 inch.

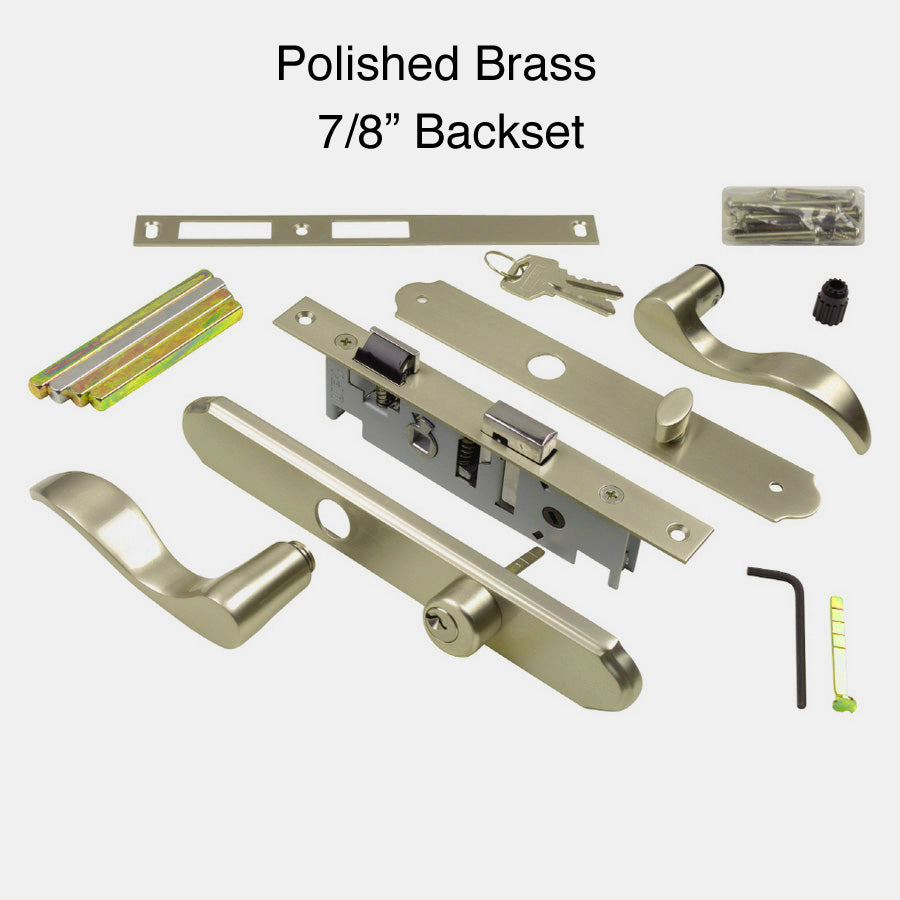

  • Backset: 7/8 inch
  • Screw hole spacing on lock face plate: 7 inches

NOTE: This lock does not have a finish warranty


<p><br />Minor modification may be required; may require drilling new holes or enlarging existing trim plate holes.<br /><br />Note: For general information about mortise locks, see article on <a href="https://www.allaboutdoors.com=">Mortise lock conversion</a>.<br /><br />Instructional Video: <a href="https://www.allaboutdoors.com/video-how-to-rehand-a-wright-mortise-lock" target="_blank">How to Rehand Wright Mortise Lock</a></p>
