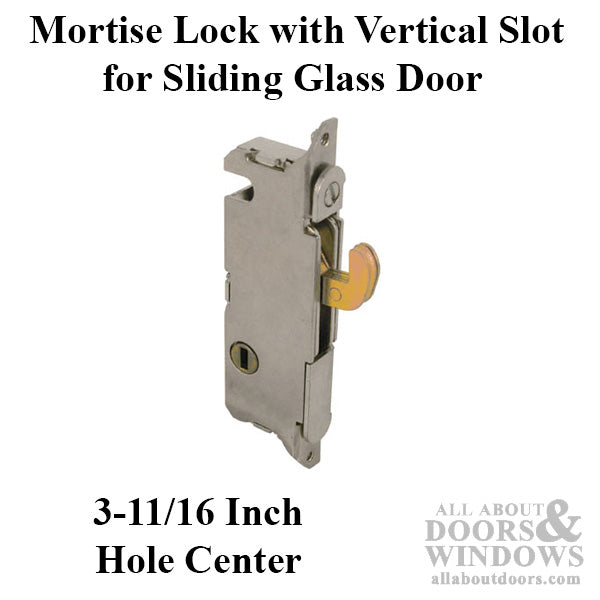

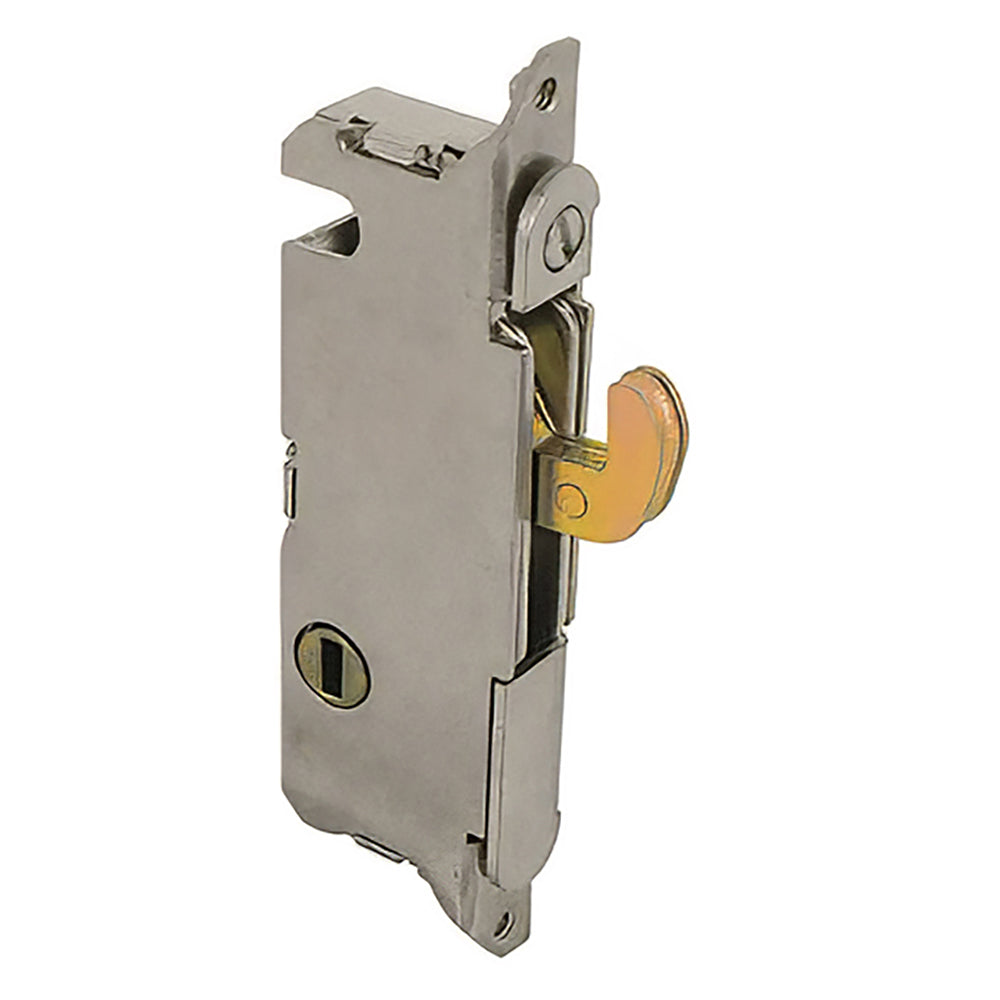

W&F style mortise lock - face has round end with vertical slot when locked.
Squared off lock body with flat mounting plate Installed with 6-32 machine screw;
7/8" Backset
Internal latch for primarily metal glass sliding patio doors;
Note: wood & vinyl doors usually use the 15142 with 45 degree slot.
Faceplate: radius corners / round ends
Installation Screw Holes: 3-11/16 inch center to center
Lock Body: 1/2 wide, 1-1/8 deep, 3-3/16 length
Keyway Slot: vertical when locked
Related Parts:

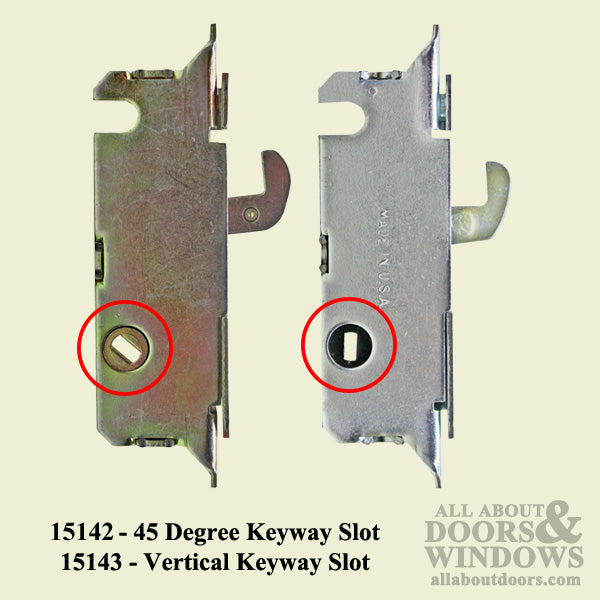

15142: 45 degree Keyway Slot primarily for wood and vinyl patio doors

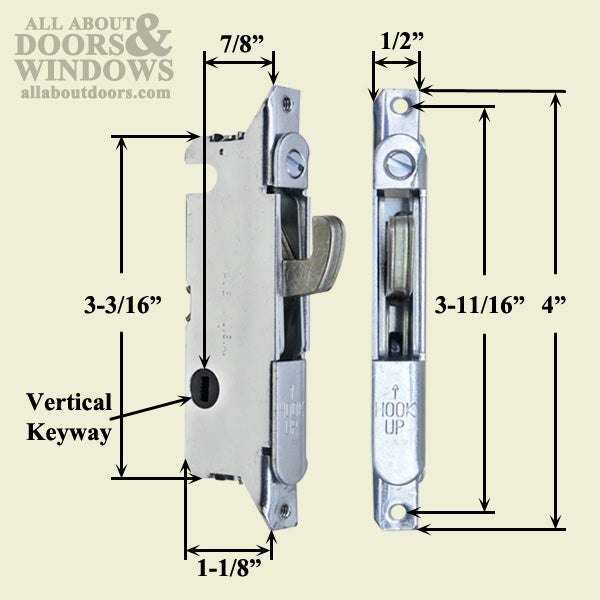

Note: See additional pictures for dimensions

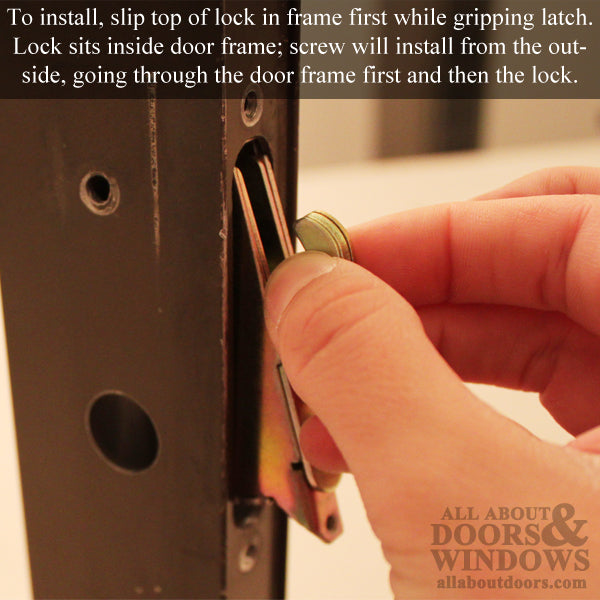

VIDEO: How to Replace Single-Hook Lock (part # 15143) in a Sliding Door
<span style="box-sizing: border-box; color: rgb(38, 38, 38); font-family: 'Open Sans', Helvetica, sans-serif; font-size: 13px; background-color: rgb(255, 255, 255);">Cross Reference mortise latch numbers</span><br style="box-sizing: border-box; color: rgb(38, 38, 38); font-family: 'Open Sans', Helvetica, sans-serif; font-size: 13px;"><span style="box-sizing: border-box; color: rgb(38, 38, 38); font-family: 'Open Sans', Helvetica, sans-serif; font-size: 13px; background-color: rgb(255, 255, 255);">Prime Line E-2013</span><br style="box-sizing: border-box; color: rgb(38, 38, 38); font-family: 'Open Sans', Helvetica, sans-serif; font-size: 13px;"><span style="box-sizing: border-box; color: rgb(38, 38, 38); font-family: 'Open Sans', Helvetica, sans-serif; font-size: 13px; background-color: rgb(255, 255, 255);">SlideCo 15410</span><br style="box-sizing: border-box; color: rgb(38, 38, 38); font-family: 'Open Sans', Helvetica, sans-serif; font-size: 13px;"><span style="box-sizing: border-box; color: rgb(38, 38, 38); font-family: 'Open Sans', Helvetica, sans-serif; font-size: 13px; background-color: rgb(255, 255, 255);">Strybuc 16-174</span><br><span style="box-sizing: border-box; color: rgb(38, 38, 38); font-family: 'Open Sans', Helvetica, sans-serif; font-size: 13px; background-color: rgb(255, 255, 255);">Amesbury 2310-1061</span><br style="box-sizing: border-box; color: rgb(38, 38, 38); font-family: 'Open Sans', Helvetica, sans-serif; font-size: 13px;"><span style="box-sizing: border-box; color: rgb(38, 38, 38); font-family: 'Open Sans', Helvetica, sans-serif; font-size: 13px; background-color: rgb(255, 255, 255);">Adams-Rite MS-1848-06-630</span>
