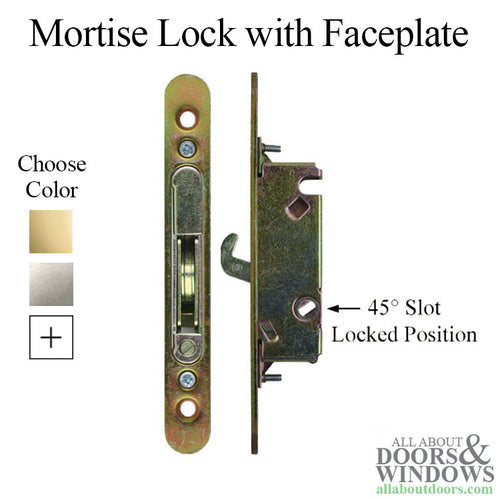

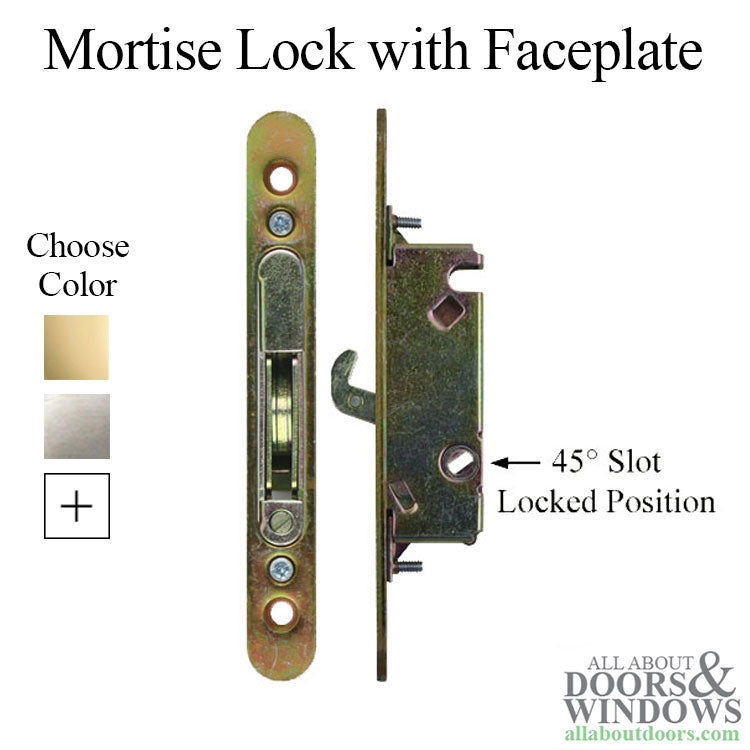

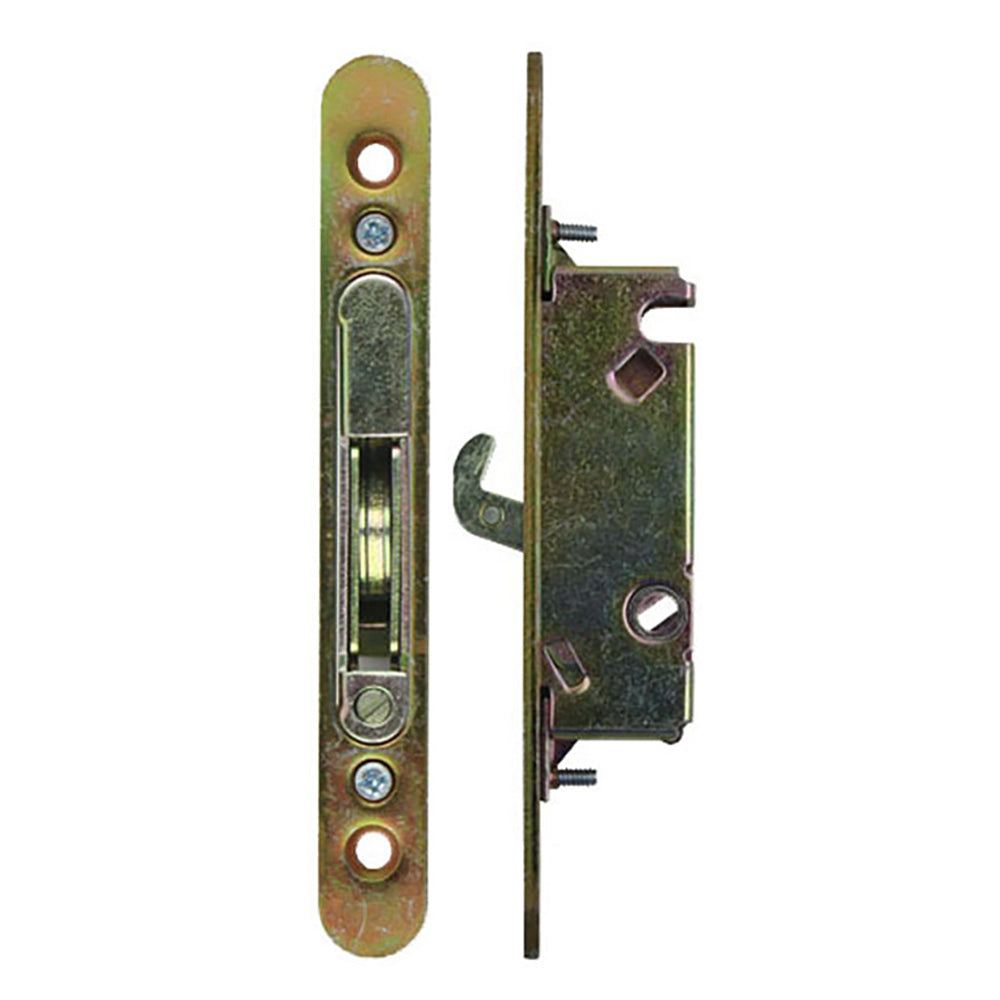

Mortise Lock with Face Plate, 45 Slot Wood or Vinyl Door
Use the arrows or swipe left to view all images for this product
Mortise Lock with Face Plate, 45 Slot Wood or Vinyl Door
Part Number: $24.99 to $39.20Truth 2300-1063 mortise latch with face plate for wood or vinyl doors.
Keyway Slot: 45 degrees locked position.

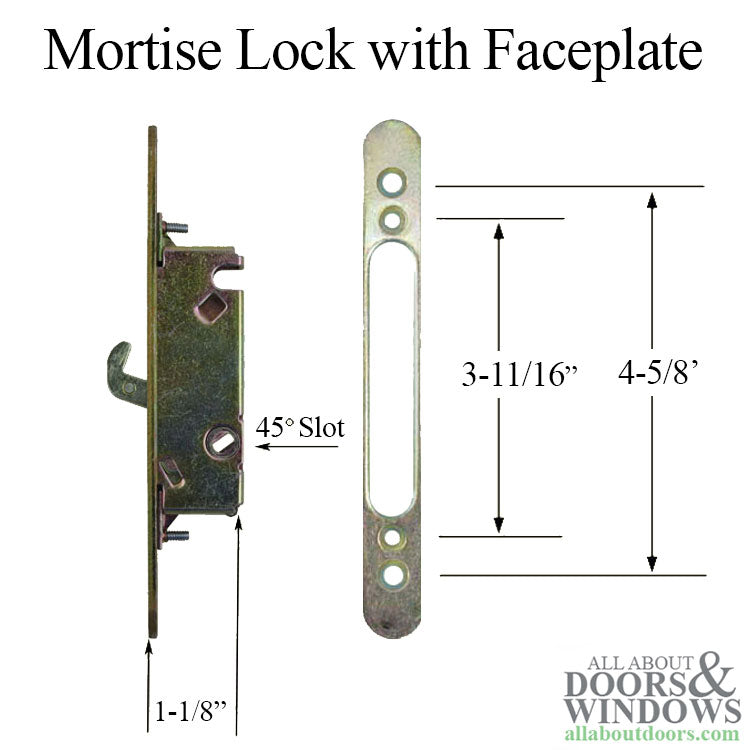

Faceplate Width: 3/4"
Faceplate Length: 6-1/8"
Faceplate Screw Holes: 4-5/8".
Back set with Faceplate attached: 15/16"
Used on Morgan, Weathershield, Caradco, Hurd and other wood sliding door.
Markings: 32451 PM500
Material: Stainless Steel & Yellow Dichromate Steel
Priced and sold each.
Keyway Slot: 45 degrees locked position.
Faceplate Width: 3/4"
Faceplate Length: 6-1/8"
Faceplate Screw Holes: 4-5/8".
Back set with Faceplate attached: 15/16"
Used on Morgan, Weathershield, Caradco, Hurd and other wood sliding door.
Markings: 32451 PM500
Material: Stainless Steel & Yellow Dichromate Steel
Priced and sold each.
Truth 2300-1063 mortise latch with face plate for wood or vinyl doors.
Latch: 45° Slot in locked position.
Faceplate: 3/4 inch x 6-1/6 inch
Faceplate Screw Hole Spacing: 4-5/8 inches.
Back set with Faceplate attached: 15/16 inch.
Used on Morgan, Weathershield, Caradco, Hurd and other wood sliding door.
Color Options:
Stainless Steel
Yellow Dichromate
Priced and sold each.
