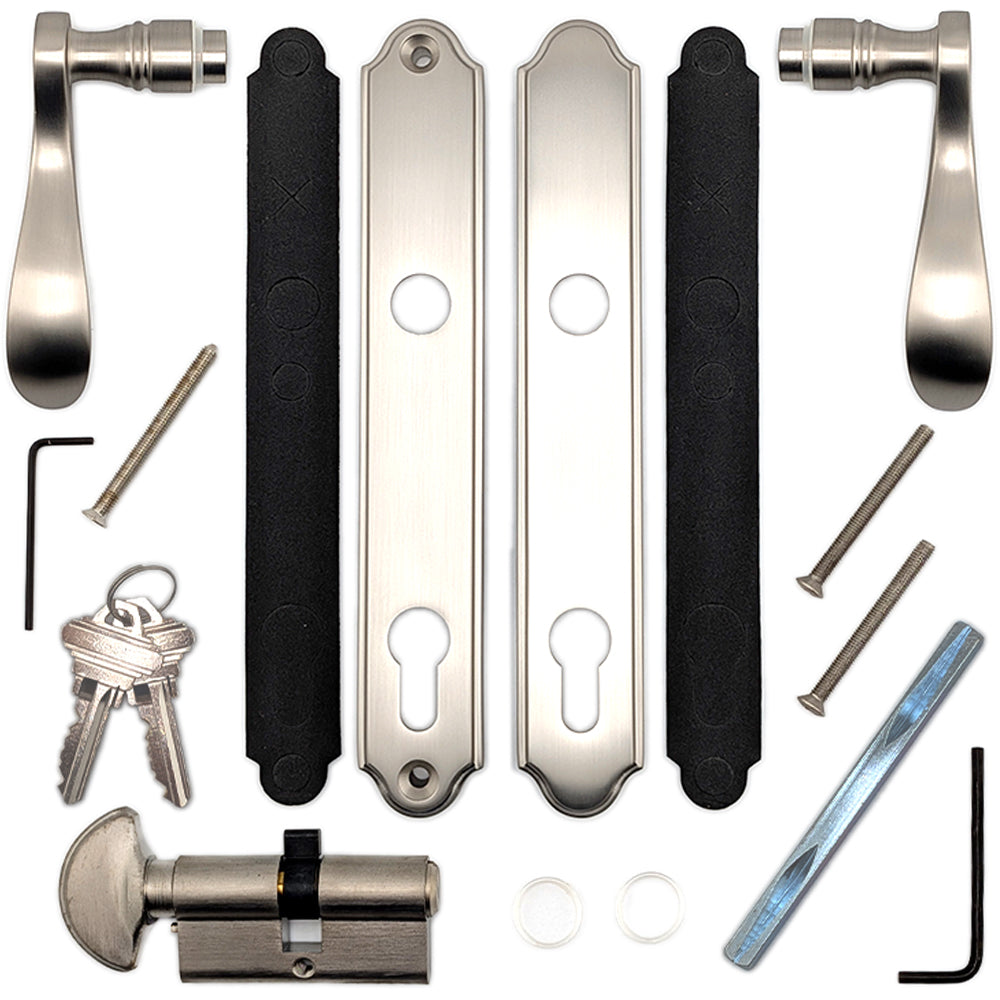

Active multipoint trim for a 1-3/4 inch door
90 degree turn deadbolt
Full 5 pin Euro Profile Cylinder with a 5 pin SC-1 keyway
Fits doors by Kolbe & Kolbe, Lincoln, Loewen, Norco, Peachtree, Pozzi, SNE, Semco, Vetter, Weathershield and Windsor doors with multi-point lock hardware.

NOTE: The handle hole is smaller than Hoppe and parts are NOT interchangeable. Does not include strike plate (part 1963554)

Replaces Atrium Door Lock Hardware:
This is the trim only - Does not include the mortise lock body # 400002.
The plate is slightly larger and requires drilling a new screw hole.

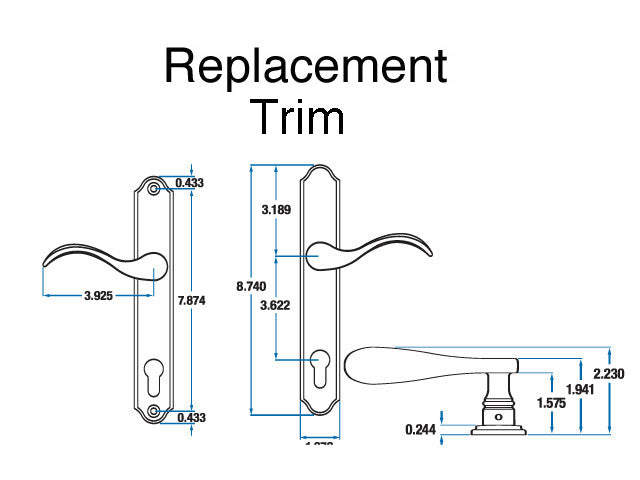

Plate measures 1-1/4 x 8-3/4 vs. Atrium lock 1-3/16 x 8-1/4.
The bottom screw hole matches the Atrium, the top hole is 9/16 inch higher; both holes will have to be drilled larger.

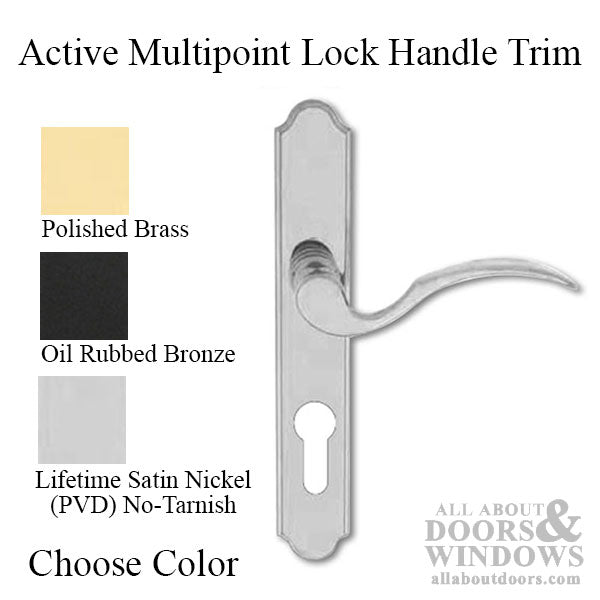

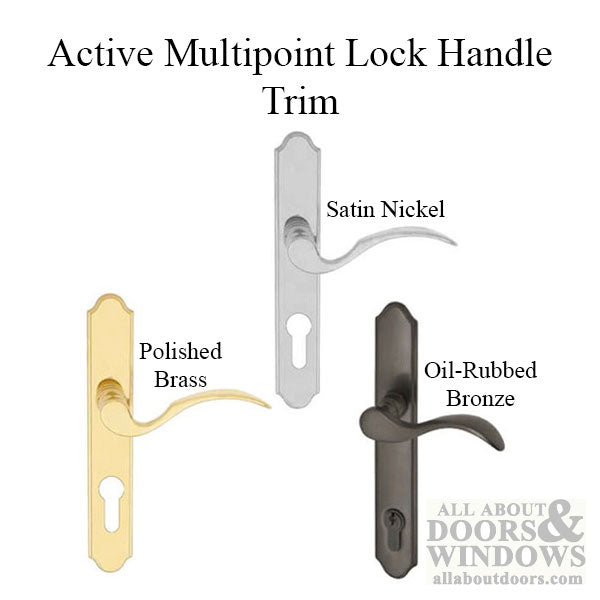

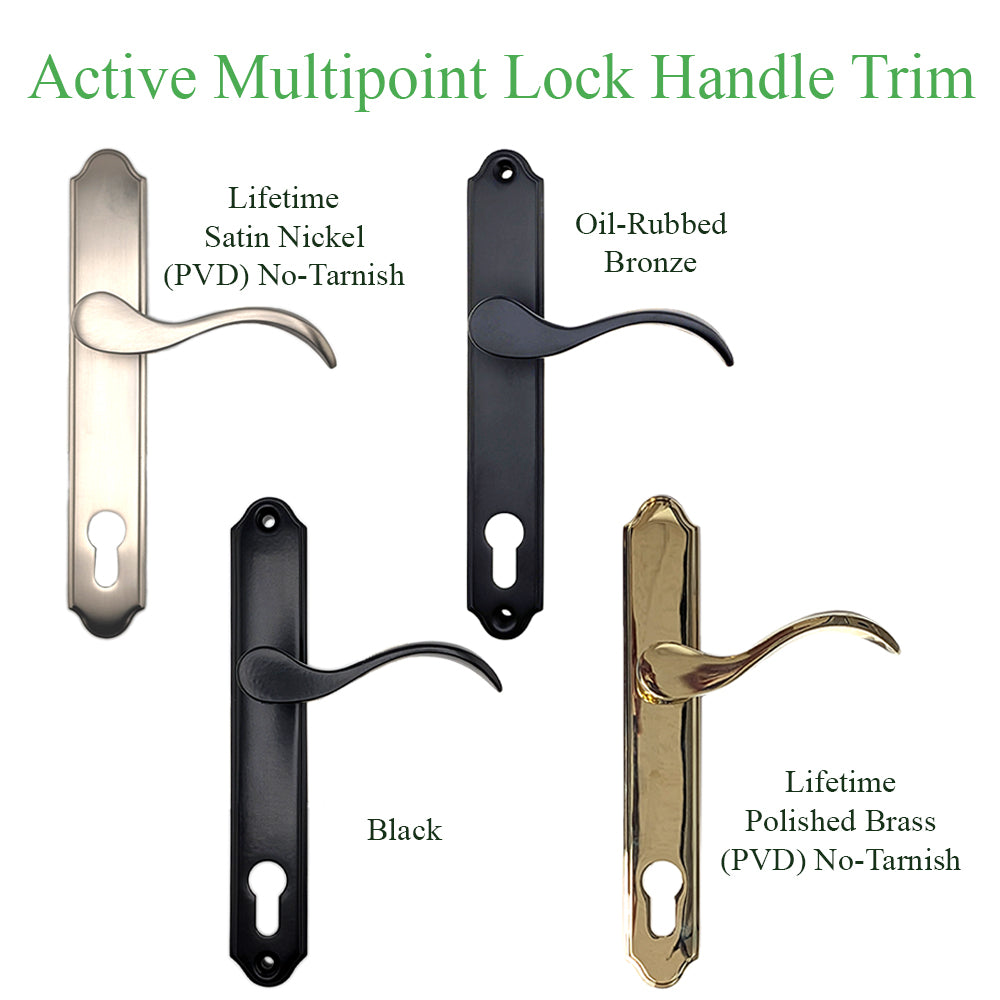

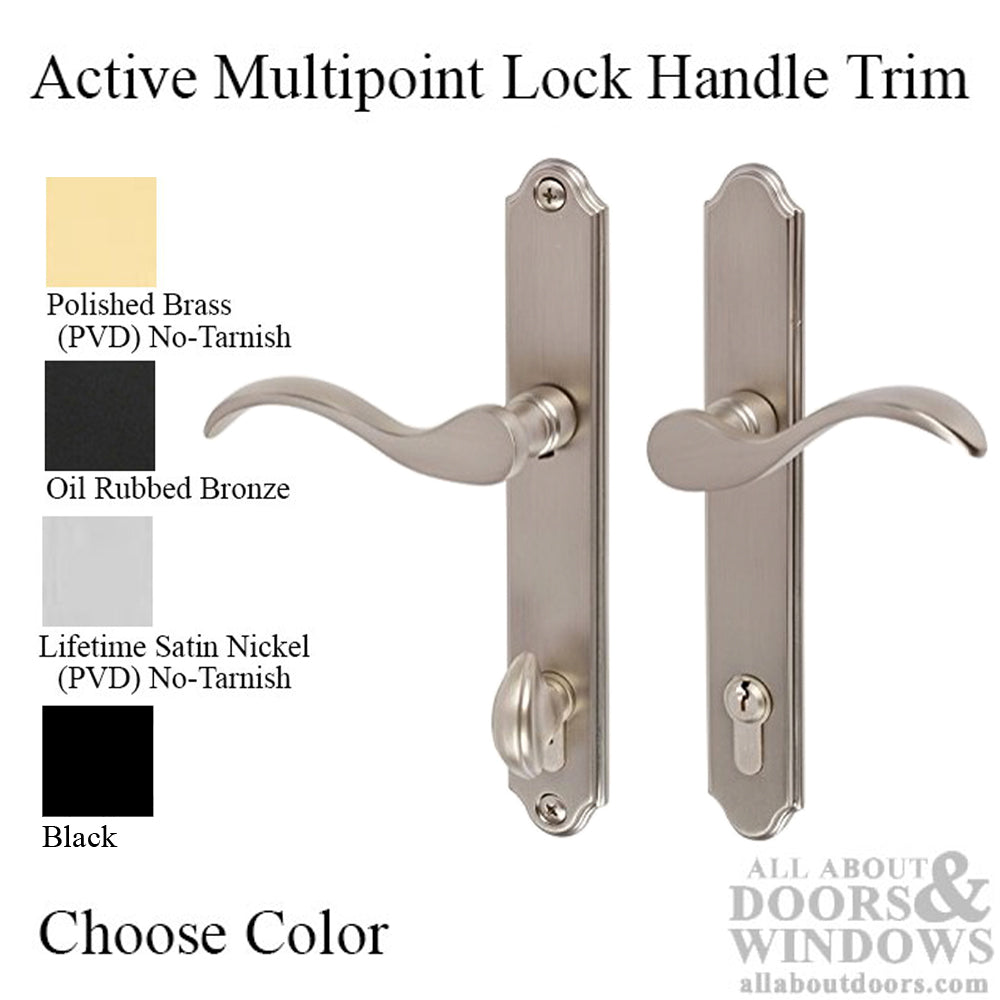

Available Colors:

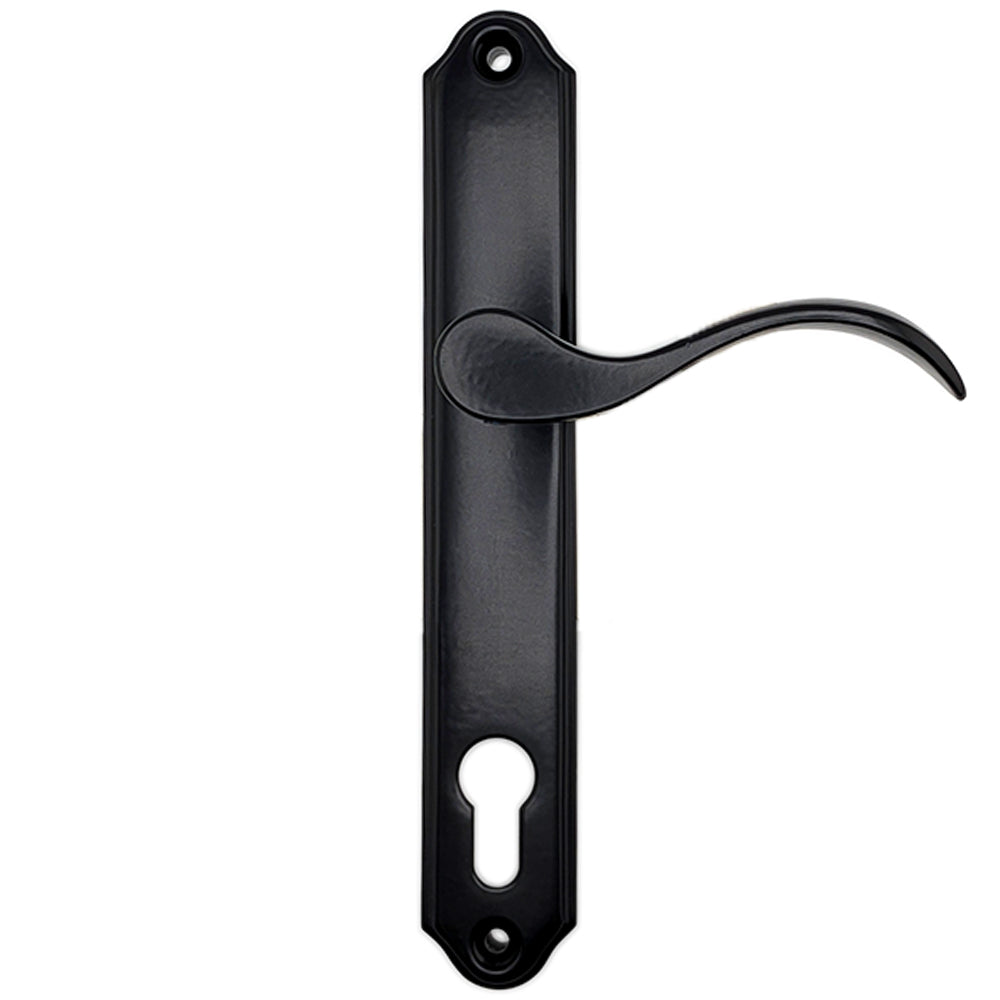

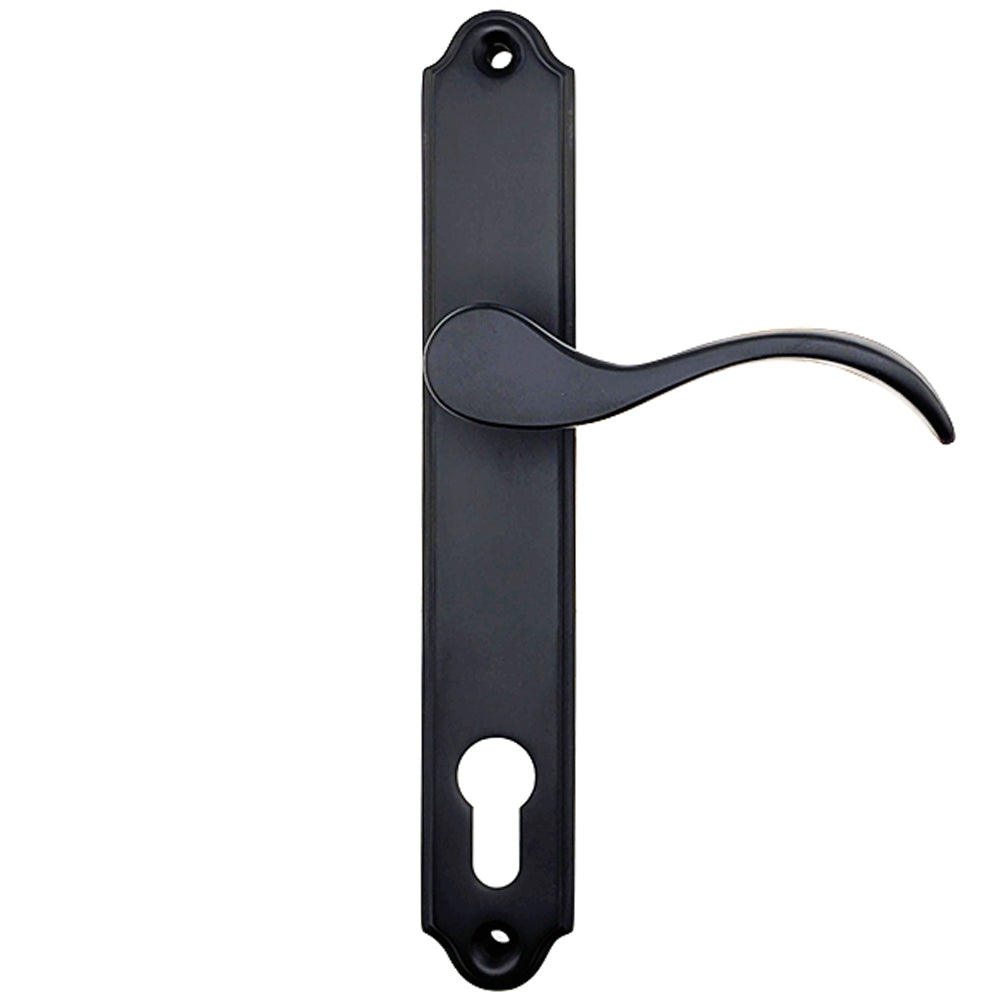

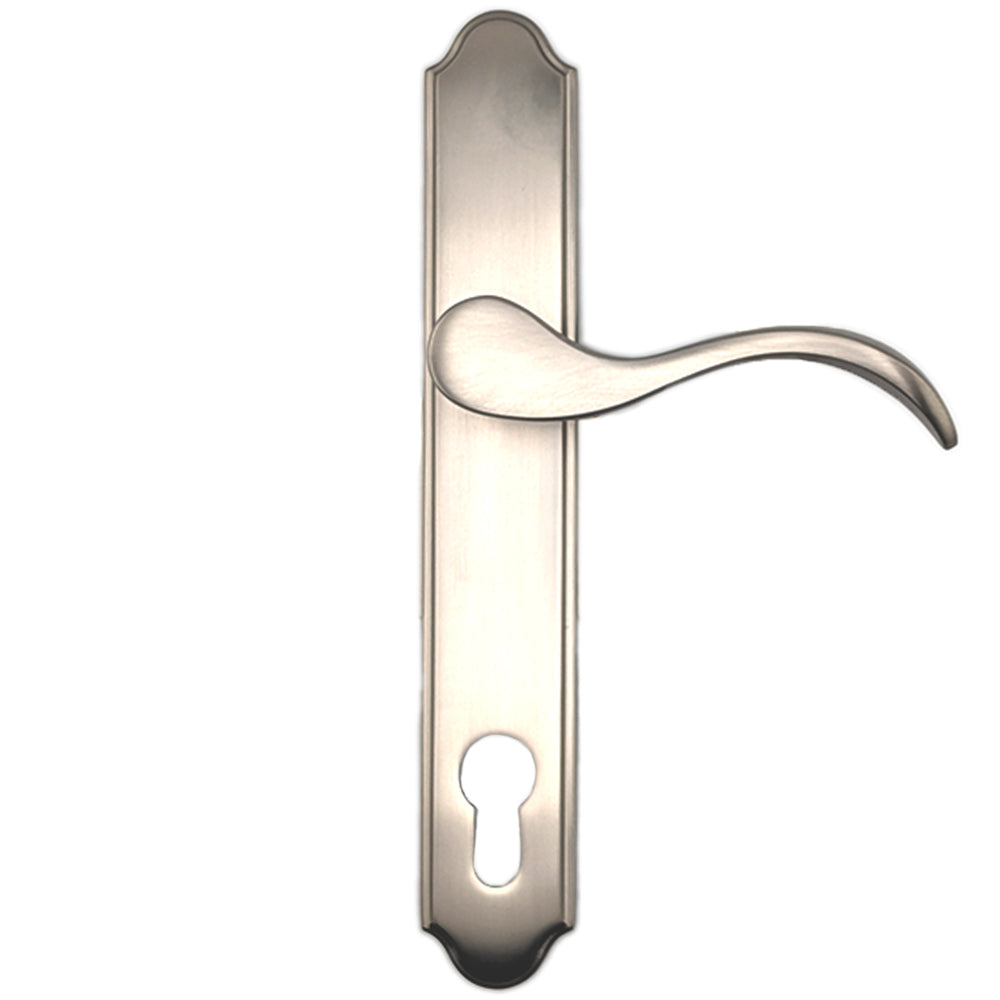

Brushed Satin Nickel and Oil Rubbed Bronze

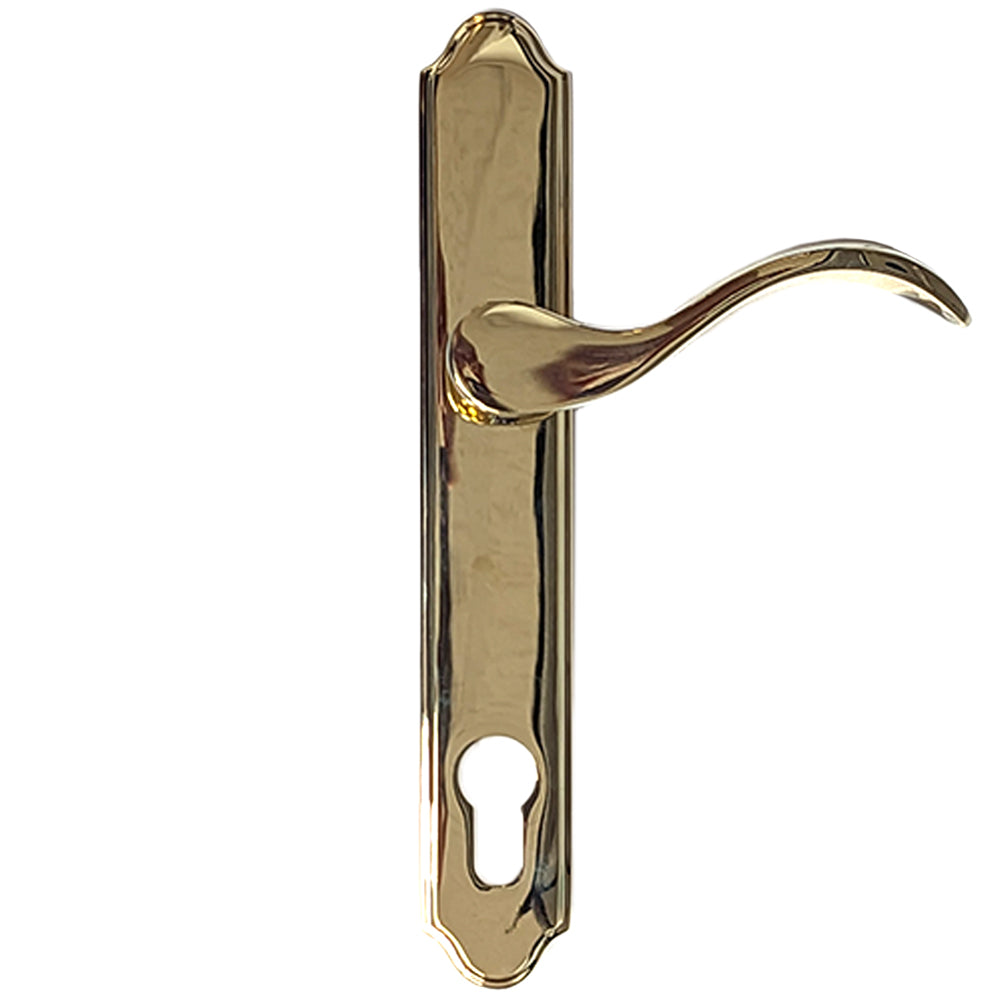

All other finishes discontinued

Keyed Active handle set 40024
Non-Keyed with Thumbturn handle set 40025
Fixed Dummy Pair handle set 40026

Atrium Door - Related Items:
Atrium Door bottom replace with Sweep # 840007 w/Bulb or 840008 w/ Fins.
Beige door frame weatherstrip # 842042.
Strike stainless steel 1963554 will work with 400002 lock.
