Multipoint Lock, 76" Hinged Door- Inswing

Part Number:395092 Price: $480.00
COLOR: - Nickel
Please note, this product has been discontinued.

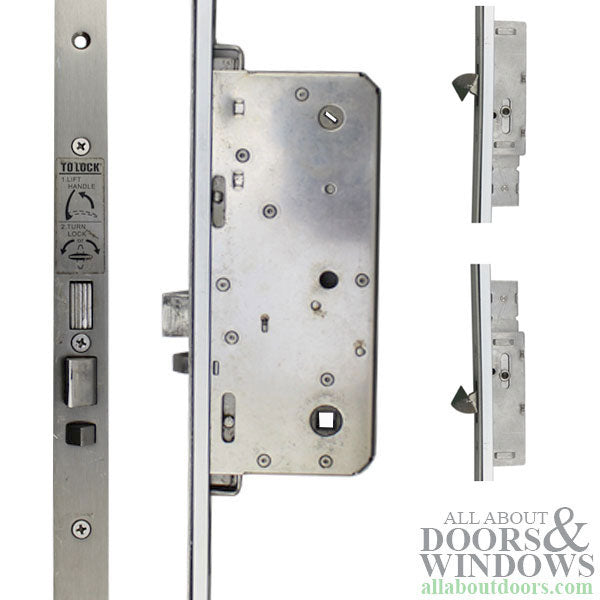

Multipoint Lock (MPL) 76 inch tall In-Swing Door with 15/16" wide faceplate, 2-3/8 inch lock backset, 2 hooks, 1 deadbolt,
Taiwan, Republic of China, Hinged Patio Door

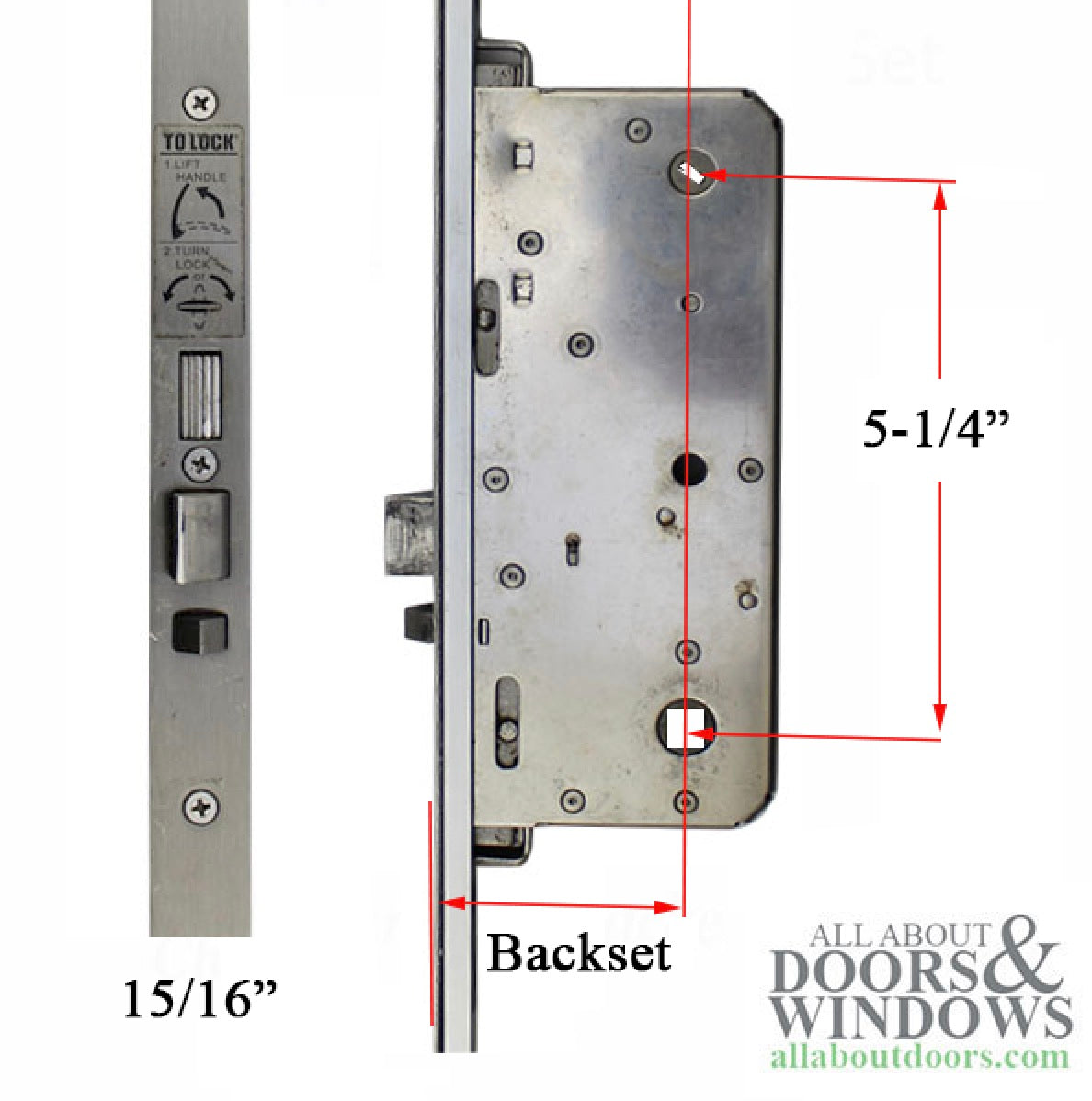

This lock is a direct Taiwan Import and has an unusual handle to thumb turn spacing of 5-1/4 inch

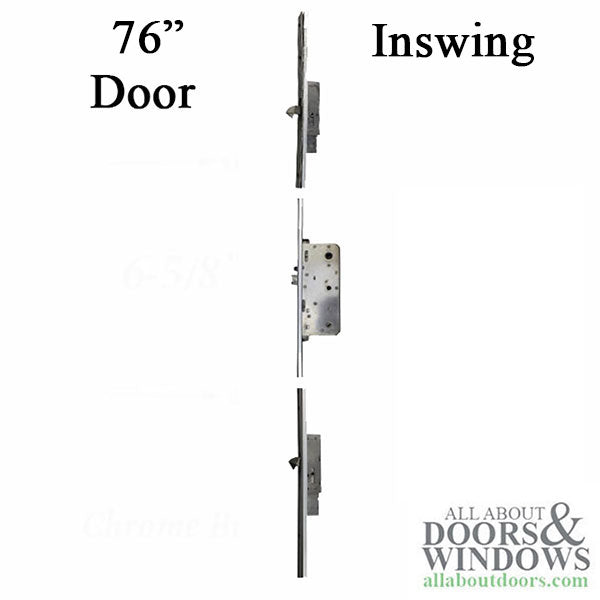

Application: 76 inch In-Swing Door
Backset: 2-3/8 (60mm)
Faceplate: 15/16 inch (24mm)
Cylinder Type: American
Hooks: Top, Points down, Bottom, Points Up
Overall Length: 76 inches
Handle Height: 37 inch
Handle PZ: 5-1/4 inch
Handle Position: Key Above Handle
Lower Hook: 30-3/4 inch
Upper Hook: 35-1/4 inch

Markings: Pat M267300
Markings on some handle sets: HPVD

This lock is a direct Taiwanese Import used primarily on Fiberglass Door.
This is a one (1) piece unit and available in 8 heights: 6-8, 6-11, 7-6, 8-0 Inswing and Outswing
