Neuma Multipoint Lock 15/16 Inch Faceplate 2-3/8 Inch Backset 79-1/8 Inch Out-Swing Door

Part Number: 395094-NI Price: $744.01
COLOR: - Nickel

Neuma Multipoint Lock 15/16 Inch Faceplate 2-3/8 Inch Backset 79-1/8 Inch Out-Swing Door

This lock is a direct Taiwanese import used primarily on Fiberglass Door and has an unusual handle to thumb turn spacing of 5-1/4 inch.
This is a one piece unit and available in 8 heights: 6-8, 6-11, 7-6, 8-0 Inswing and Outswing.

Application: 79-1/8 inch In-Swing Door

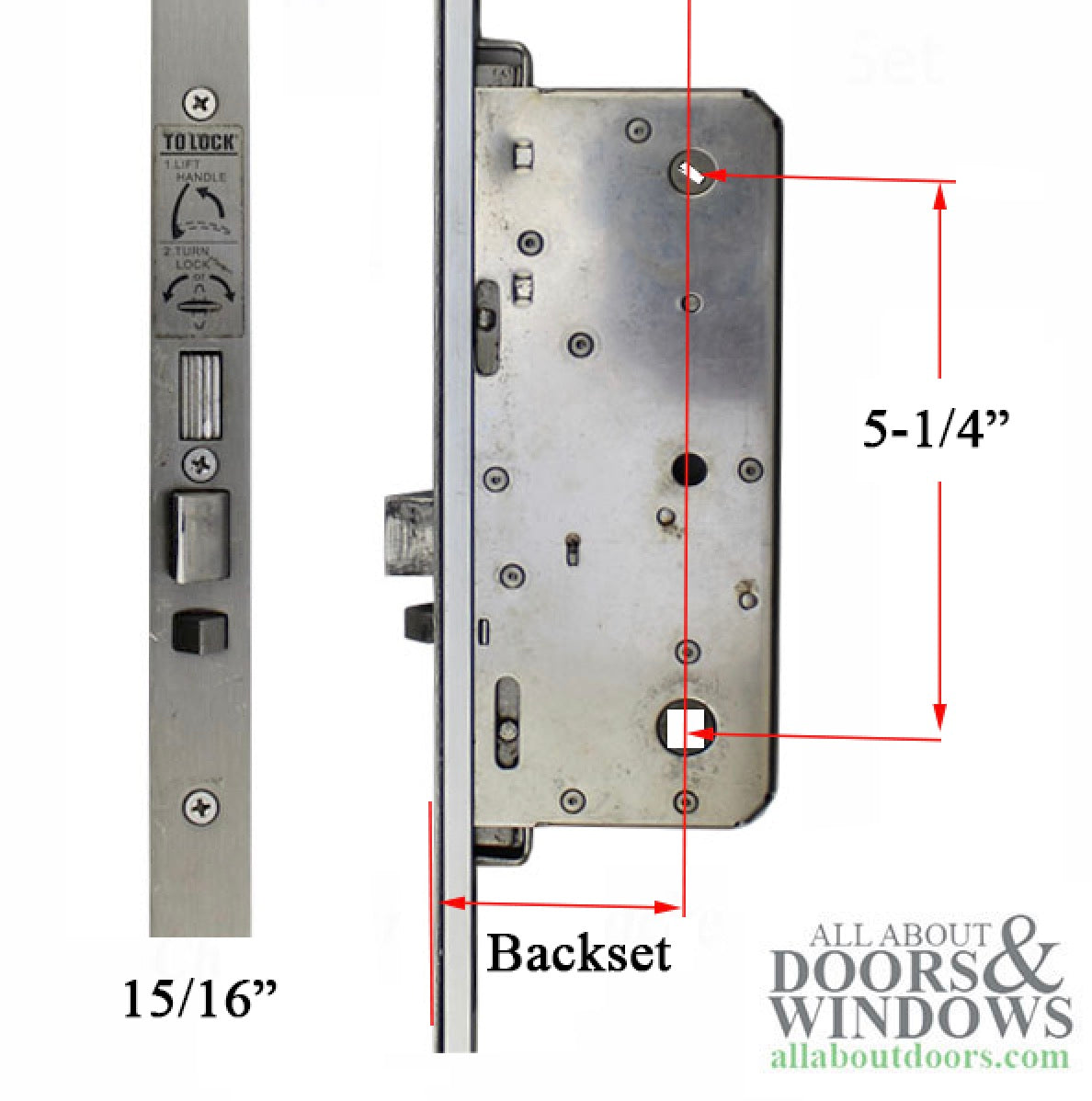

Backset: 2-3/8 inch (60mm)
Faceplate: 15/16 inch (24mm)
Cylinder Type: American
Handle Position: Key Above Handle
Handle to Cylinder PZ: 5-1/4 inch
Hooks: Top, Points down, Bottom, Points Up
Overall Length: 79-1/8 inches
Handle Height: 35-3/8 inches
Lower Hook: 30-3/4 inches
Upper Hook: 38-1/4 inches

Markings: Pat M267300
Markings on some handle sets: HPVD

Multipoint Lock (MPL) 79-1/8 inch tall In-Swing Door with 15/16" wide faceplate, 2-3/8 inch lock backset, 2 hooks, 1 deadbolt,<br>Taiwan, Republic of China, Hinged Patio Door<br>This lock is a direct Taiwanese Import and has an unusual handle to thumb turn spacing of 5-1/4 inch<br><br>Application: 79-1/8 inch In-Swing Door<br>Backset: 2-3/8 (60mm)<br>Faceplate: 15/16 inch (24mm)<br>Cylinder Type: American<br>Handle Position: Key Above Handle<br>Handle to Cylinder PZ: 5-1/4 inch<br>Hooks: Top, Points down, Bottom, Points Up<br>Overall Length: 79-1/8 inches<br>Handle Height: 35-3/8 inch<br>Lower Hook: 30-3/4 inch<br>Upper Hook: 38-1/4 inch<br><br>Markings: Pat M267300<br>Markings on some handle sets: HPVD<br><br>This lock is a direct Taiwanese Import used primarily on Fiberglass Door.<br>This is a one (1) piece unit and available in 8 heights: 6-8, 6-11, 7-6, 8-0 Inswing and Outswing
