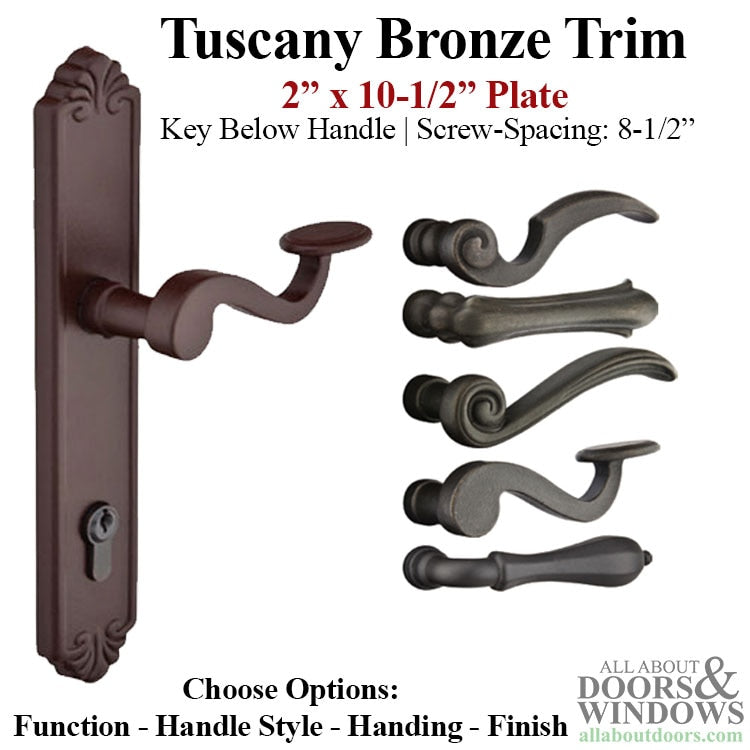

Multipoint Lock Trim, 2 x 10-1/2" Plate, Bronze Tuscany Handle set - Choose Handle Lever
Part Number: 921562000 Price: $399.38Replacement multi-point lock handle set trim in Bronze Tuscany.
Please note that these handle sets are special order and cannot be returned or exchanged.
Some handle sets may take 6 to 8 weeks for delivery.
Carefully check your measurements to reduce chances of error.
If your door has a different screw hole pattern, a new pattern may still work by drilling new screw holes.
Be sure the lock body in the door will not be in the direct line of screws.
Escutcheon Plate Style: Tuscany
Escutcheon Plate Shape: Arched
Escutcheon Plate Height: 10-½" inches
Escutcheon Plate Width: 2 inches

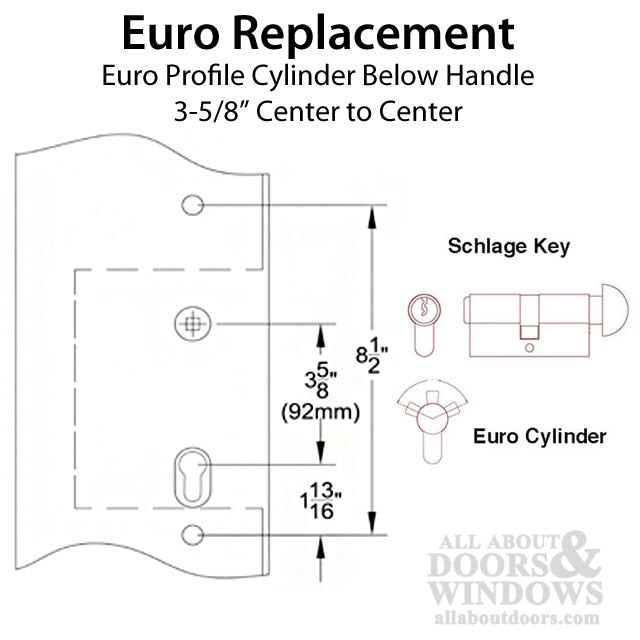

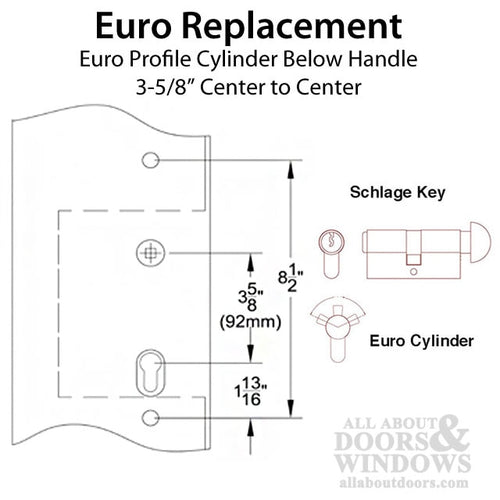

Screw Hole Center: 8-1/2 inches
Cylinder Version: Euro
Keyway: Schlage 5 Pin SC1
Key/Thumb Turn Position: Below Handle
Material: Bronze
Handle PZ: 3-5/8 inch (92 mm)
Please choose the following drop-down options:
A. Function:
(1) Active - Keyed American Cylinder with inside Thumb turn
(2) Passage - Non-keyed, No Thumb turn
(3) Inactive - Non-keyed with inside Thumb turn
(4) Dummy Passage/Half Passage - Fixed Handle Outside, Passage Inside, No Thumb turn
(5) Dummy Pair - Both Fixed, Ridged Handles, No Thumb turn

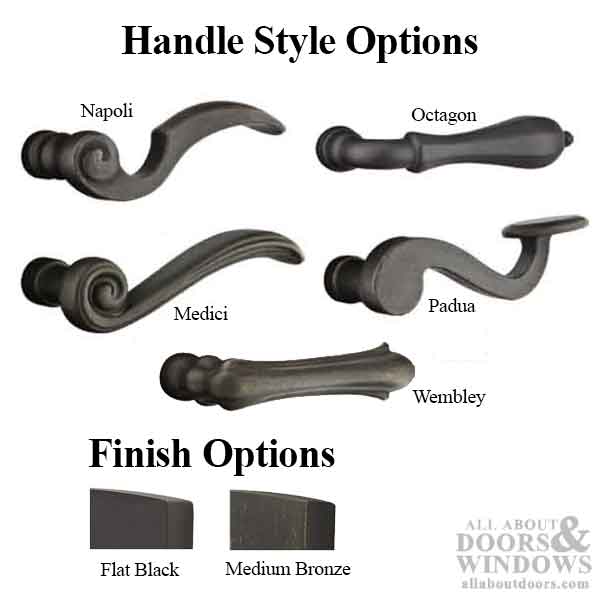

B. Handle/Lever Design:
See second image.

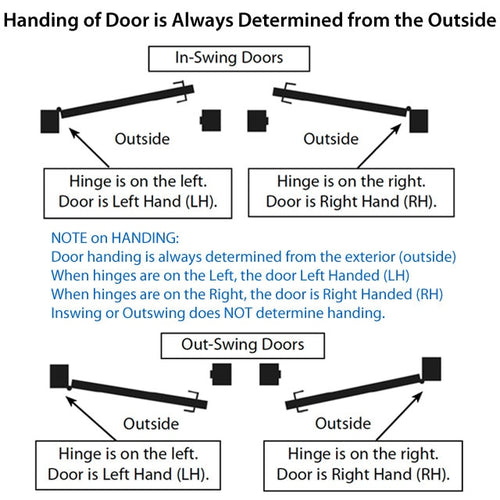

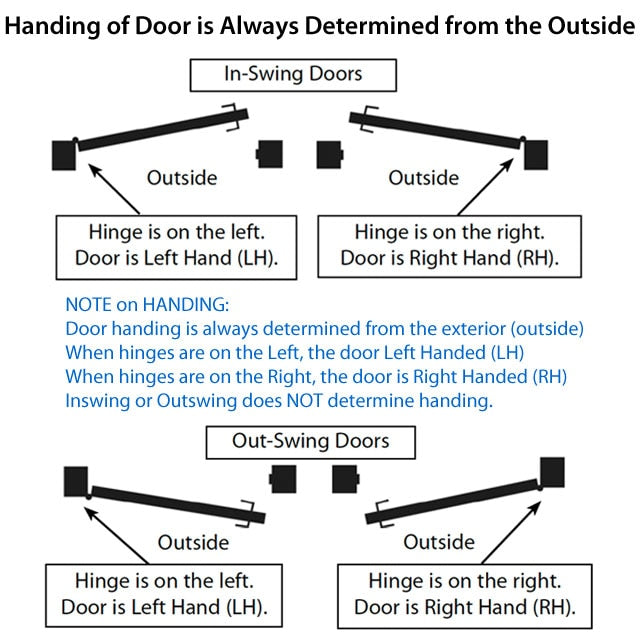

C. Handing: (viewed form outside hinge location)
LH - Left Hinge
RH - Right Hinge
D. Color/Finish:
Medium Bronze (MB)
Flat Black (FB)
Replaces American version multi-point lock hardware for the following companies:
Crestline, Hoppe, Hurd, JELD-WEN, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock LockmasterTM, Peachtree, Premium Collection (formerly Norco), Semco, Sierra Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Replaces Some Winkhaus, KFV, Truth, Atrium, Essve.
Pease and Marvin door hardware with Euro Cylinder below handle.
Priced and sold as a package.
