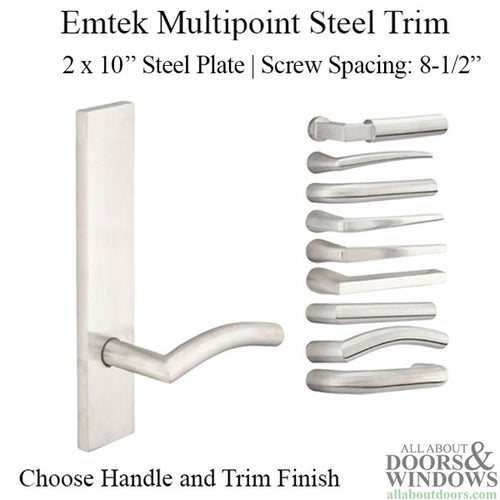

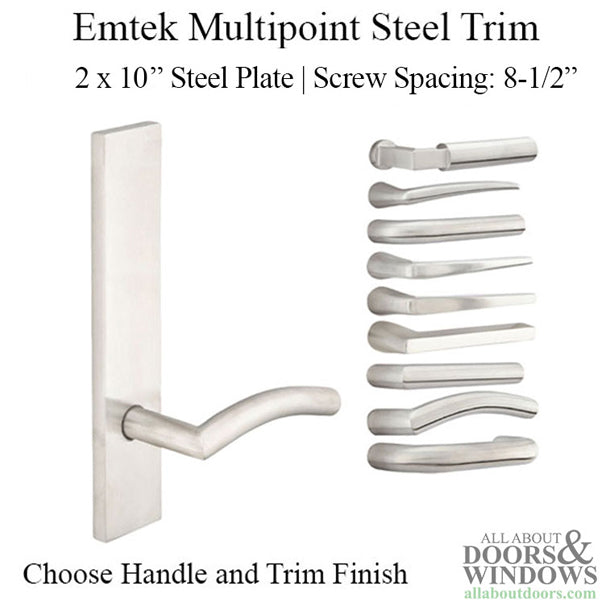

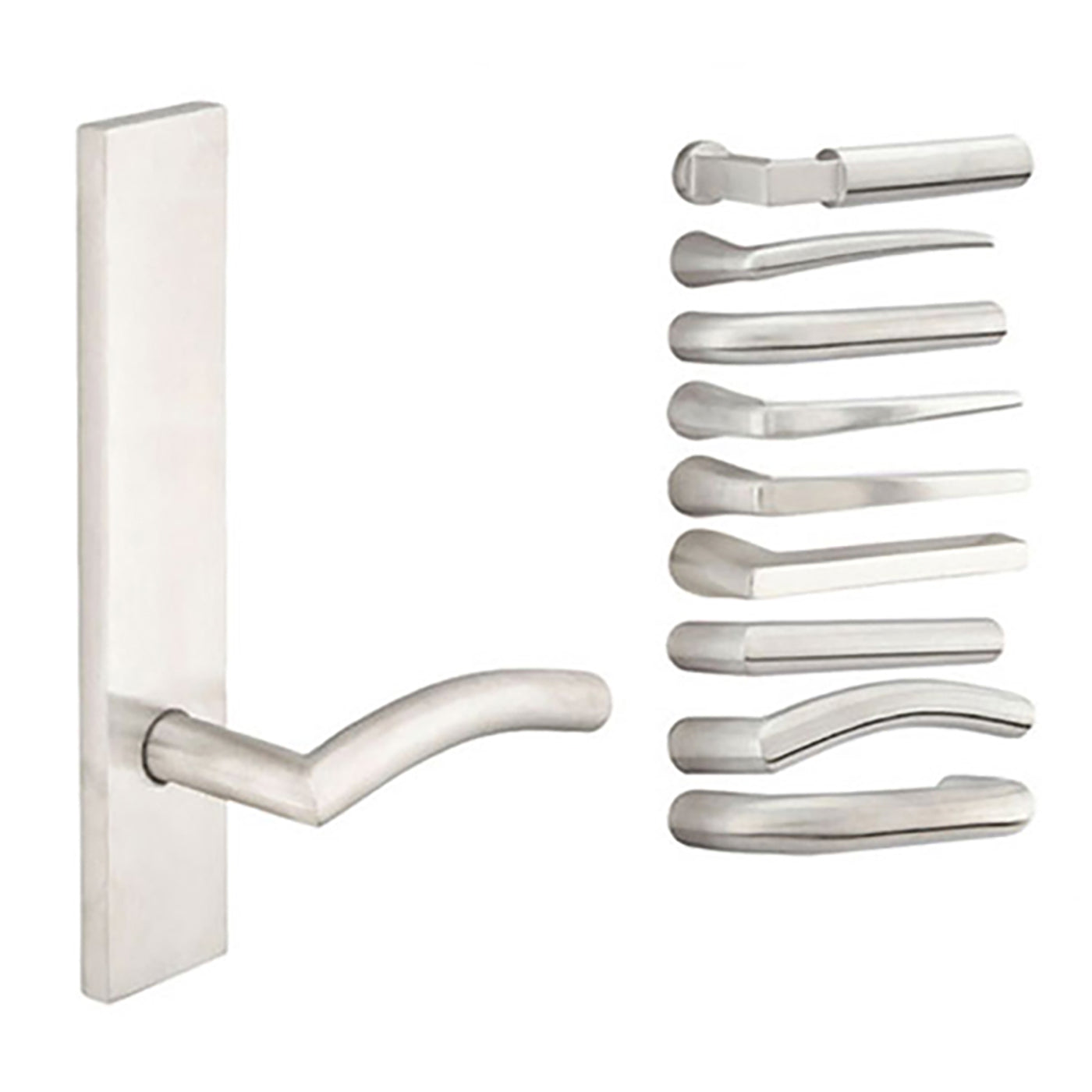

Replacement multi-point lock handle set trim in stainless steel.
Please note that these handle sets are special order and cannot be returned or exchanged.
Some handle sets may take 6 to 8 weeks for delivery.
Carefully check your measurements to reduce chances of error.
If your door has a different screw hole pattern, a new pattern may still work by drilling new screw holes.
Be sure the lock body in the door will not be in the direct line of screws.
Escutcheon Plate Style: Modern
Escutcheon Plate Shape: Square Ends
Escutcheon Plate Height: 10 inches
Escutcheon Plate Width: 2 inches

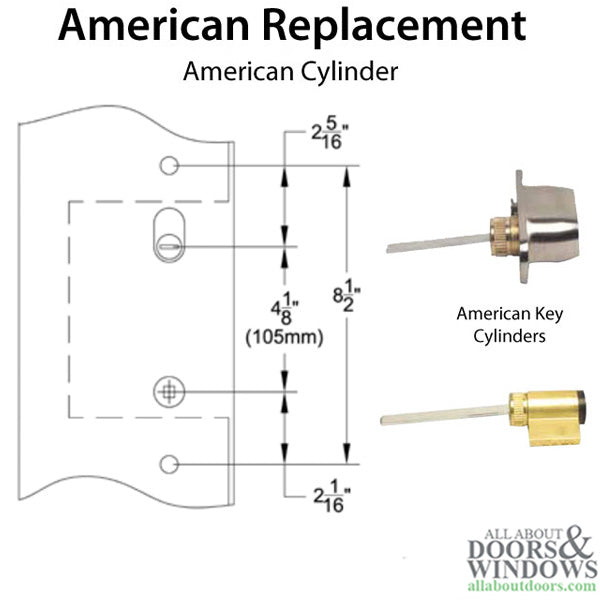

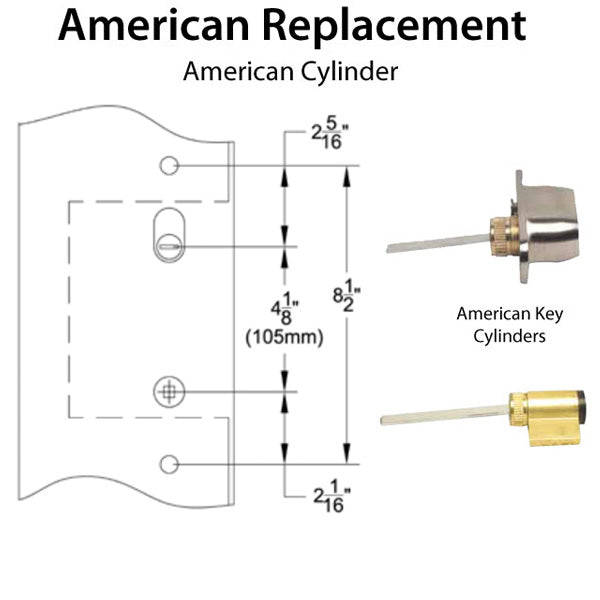

Screw Hole Center: 8-1/2 inches
Cylinder Version: American
Keyway: Schlage 5 Pin SC1
Key/Thumb Turn Position: Above Handle
Material: Stainless Steel
Handle PZ: 4-1/8 inches
Please choose the following drop-down options:
A. Function:
(1) Active - Keyed American Cylinder with inside Thumb turn
(2) Passage - Non-keyed, No Thumb turn
(3) Inactive - Non-keyed with inside Thumb turn
(4) Dummy Passage/Half Passage - Fixed Handle Outside, Passage Inside, No Thumb turn
(5) Dummy Pair - Both Fixed, Ridged Handles, No Thumb turn

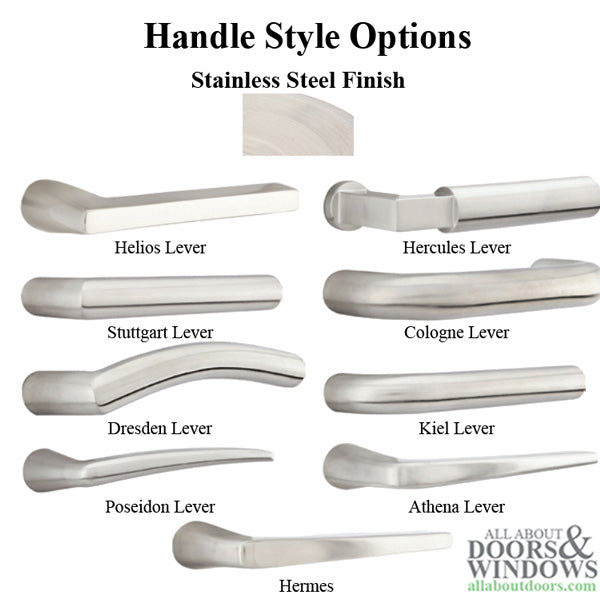

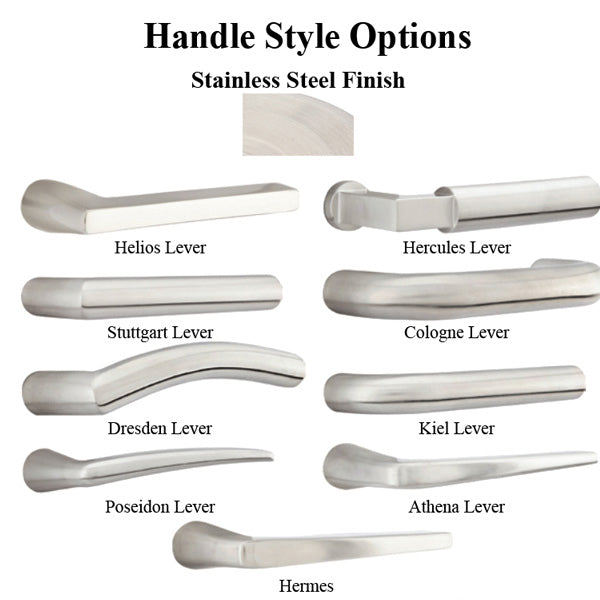

B. Handle/Lever Design:
See drop-down for 10 options.

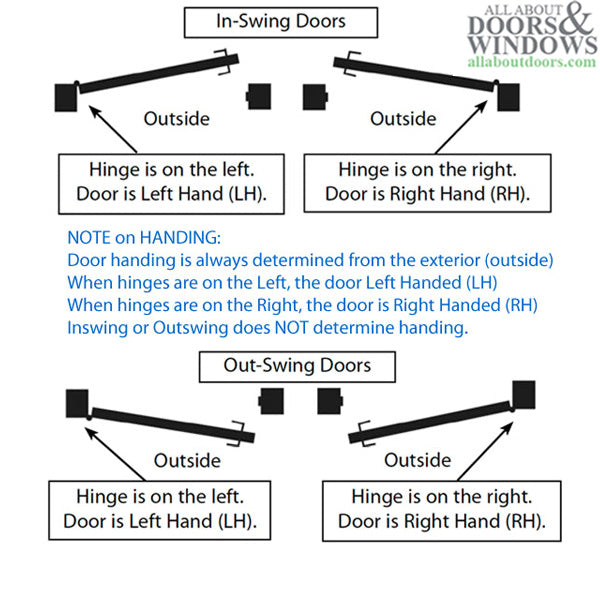

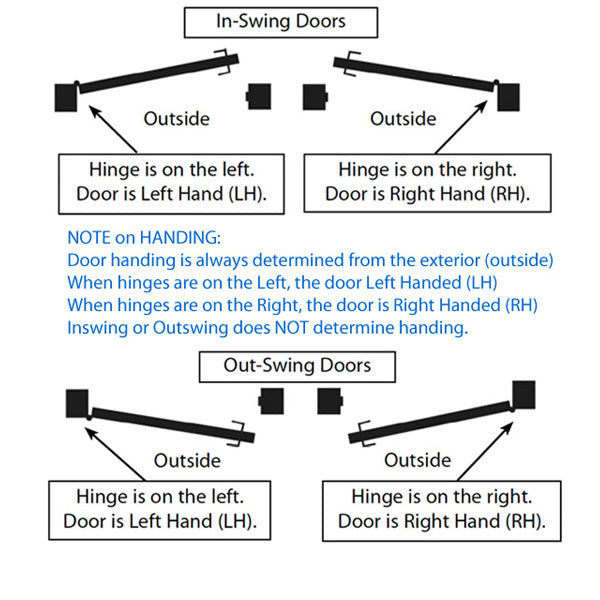

C. Handing: (viewed form outside hinge location)
LH - Left Hinge
RH - Right Hinge
Replaces American version multi-point lock hardware for the following companies:
Andersen
Priced and sold as a package.
