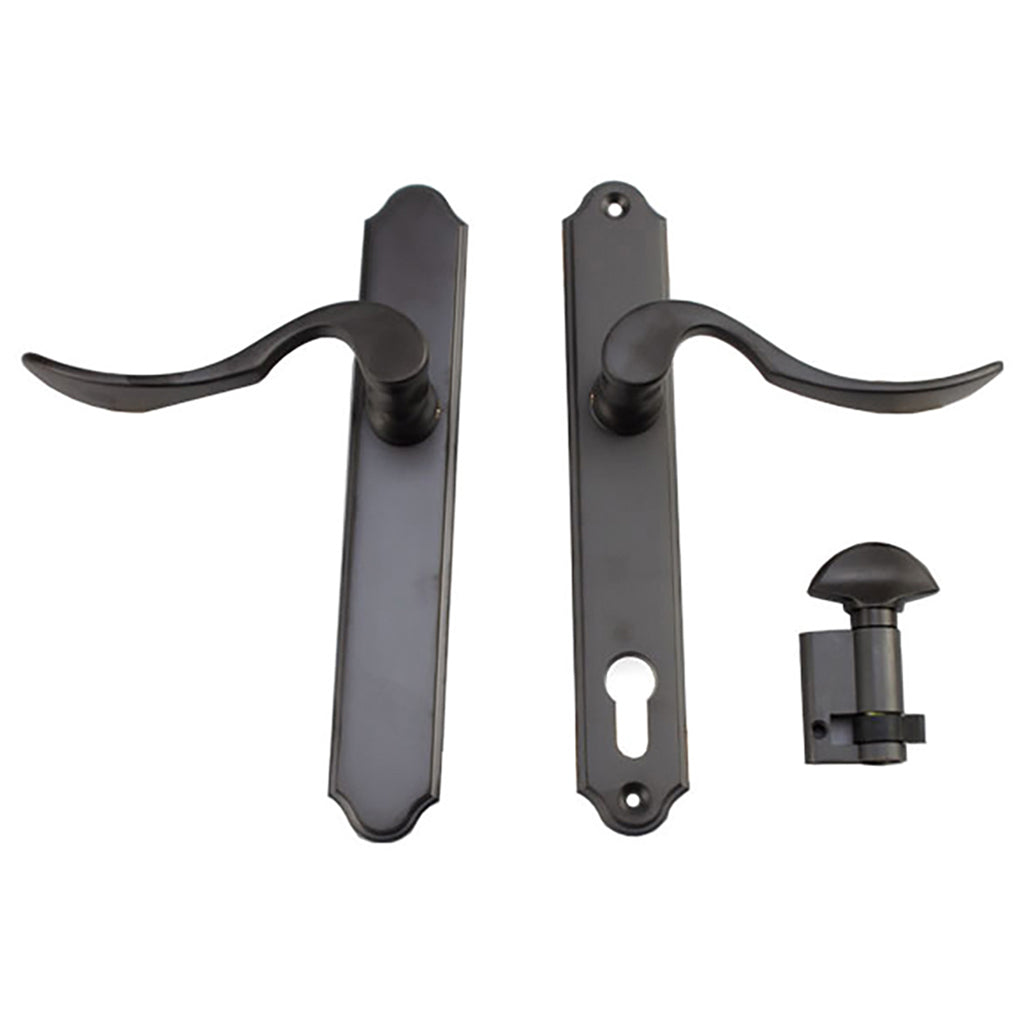

HOPPE Munchen Lever Handle-set for an inactive multipoint lock.
It is constructed from solid brass and will fit on doors that are 1-3/4" thick.
Includes interior and exterior handle levers with backplates, spindle and all necessary installation hardware.
NOTE: Certain functions will also include additional hardware such as lock cylinders and key sets. (see available functions below)

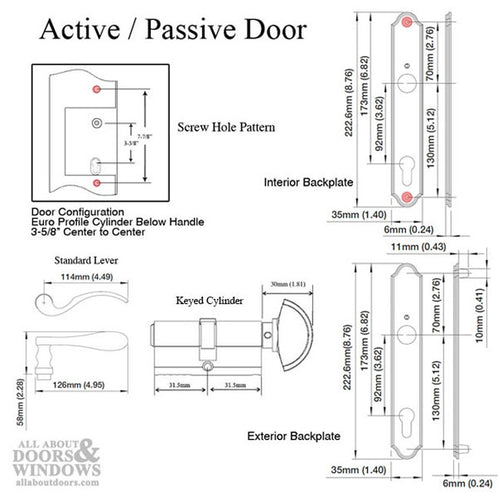

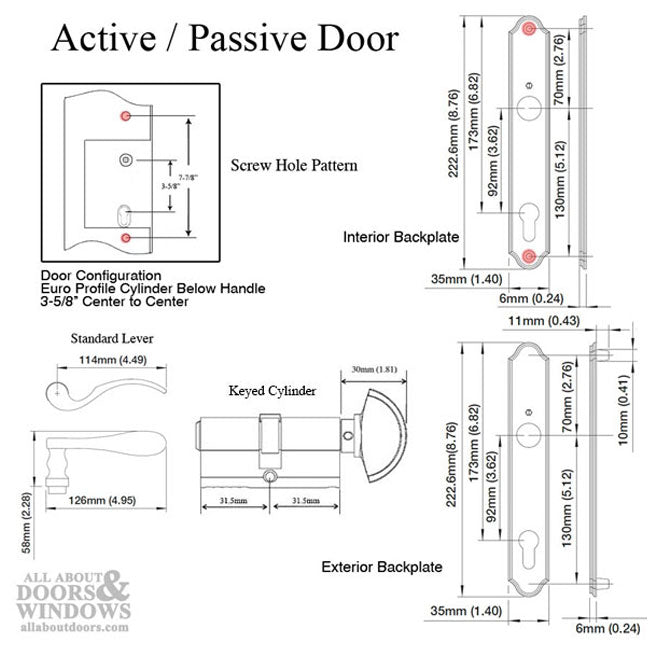

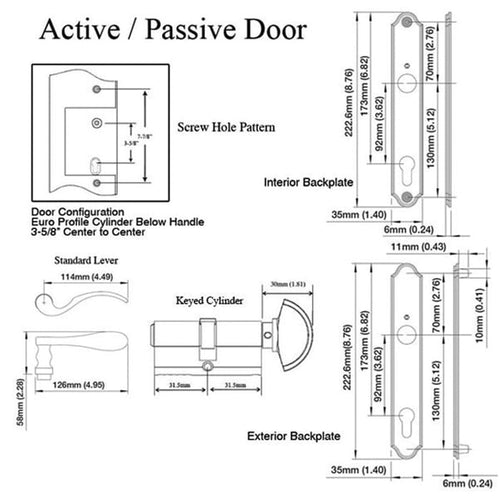

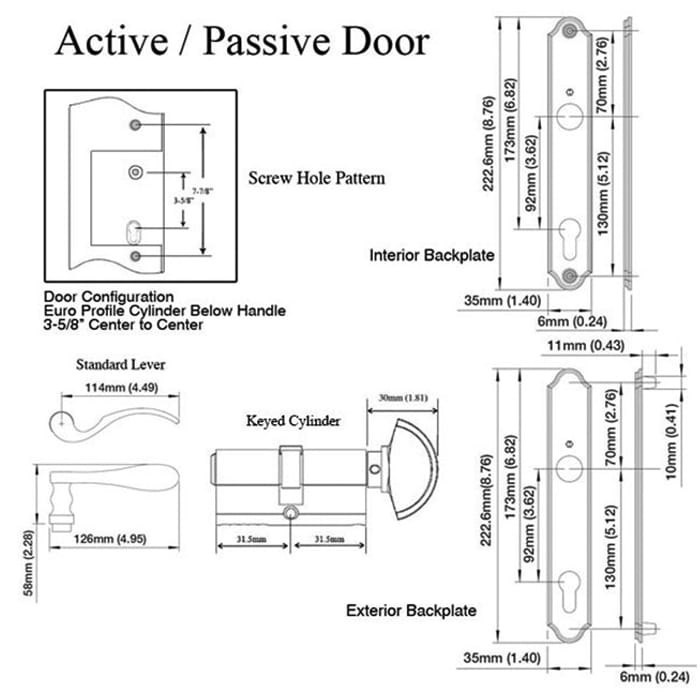

Measurements:
Escutcheon Plate Length - 8-3/4" (8.76)
Escutcheon Plate Width - 1-3/8" (1.40)
Handle PZ: 3-5/8" (92mm) (center of handle to center of cylinder)
Screw Holes Spacing:
Top - Bottom screw hole spacing - 7-7/8" (7.87)
Top screw hole spacing - 2-3/4" (2.76)
Bottom screw hole spacing - 5-1/8" (5.12) - See additional images
It is constructed from solid brass and will fit on doors that are 1-3/4" thick.
Includes interior and exterior handle levers with backplates, spindle and all necessary installation hardware.
NOTE: Certain functions will also include additional hardware such as lock cylinders and key sets. (see available functions below)
Measurements:
Escutcheon Plate Length - 8-3/4" (8.76)
Escutcheon Plate Width - 1-3/8" (1.40)
Handle PZ: 3-5/8" (92mm) (center of handle to center of cylinder)
Screw Holes Spacing:
Top - Bottom screw hole spacing - 7-7/8" (7.87)
Top screw hole spacing - 2-3/4" (2.76)
Bottom screw hole spacing - 5-1/8" (5.12) - See additional images
