Non-Tilt Spiral Balance, 3/8" Diameter with 75-500 Shoe Attached

Non-Tilt Spiral Balance, 3/8
Non-Tilt Spiral Balance, 3/8
Non-Tilt Spiral Balance, 3/8
Non-Tilt Spiral Balance, 3/8
Non-Tilt Spiral Balance, 3/8
Non-Tilt Spiral Balance, 3/8
Non-Tilt Spiral Balance, 3/8
Non-Tilt Spiral Balance, 3/8

Non-Tilt Spiral Balance, 3/8" Diameter with 75-500 Shoe Attached

Part Number:75-S-500 Price: $23.90 to $24.88
Length of Tube
Bearing Color
Length

75 Series Non-Tilt Spiral Window Balance

3/8" Diameter Tube – Standard or Extended Rod

Measure your tube size, overall rod size, and rod hole center spacing. Identify the color of the bearing you need.

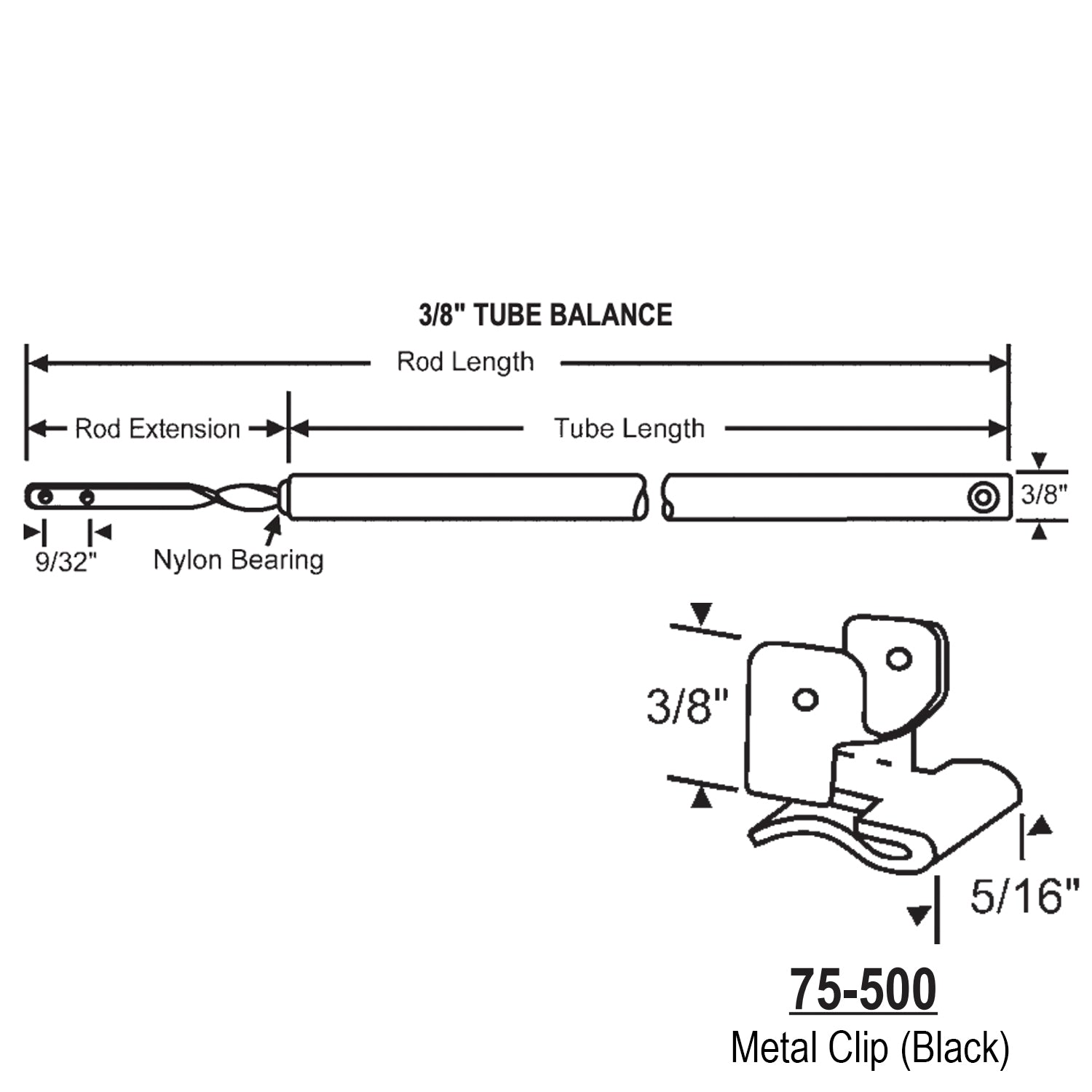

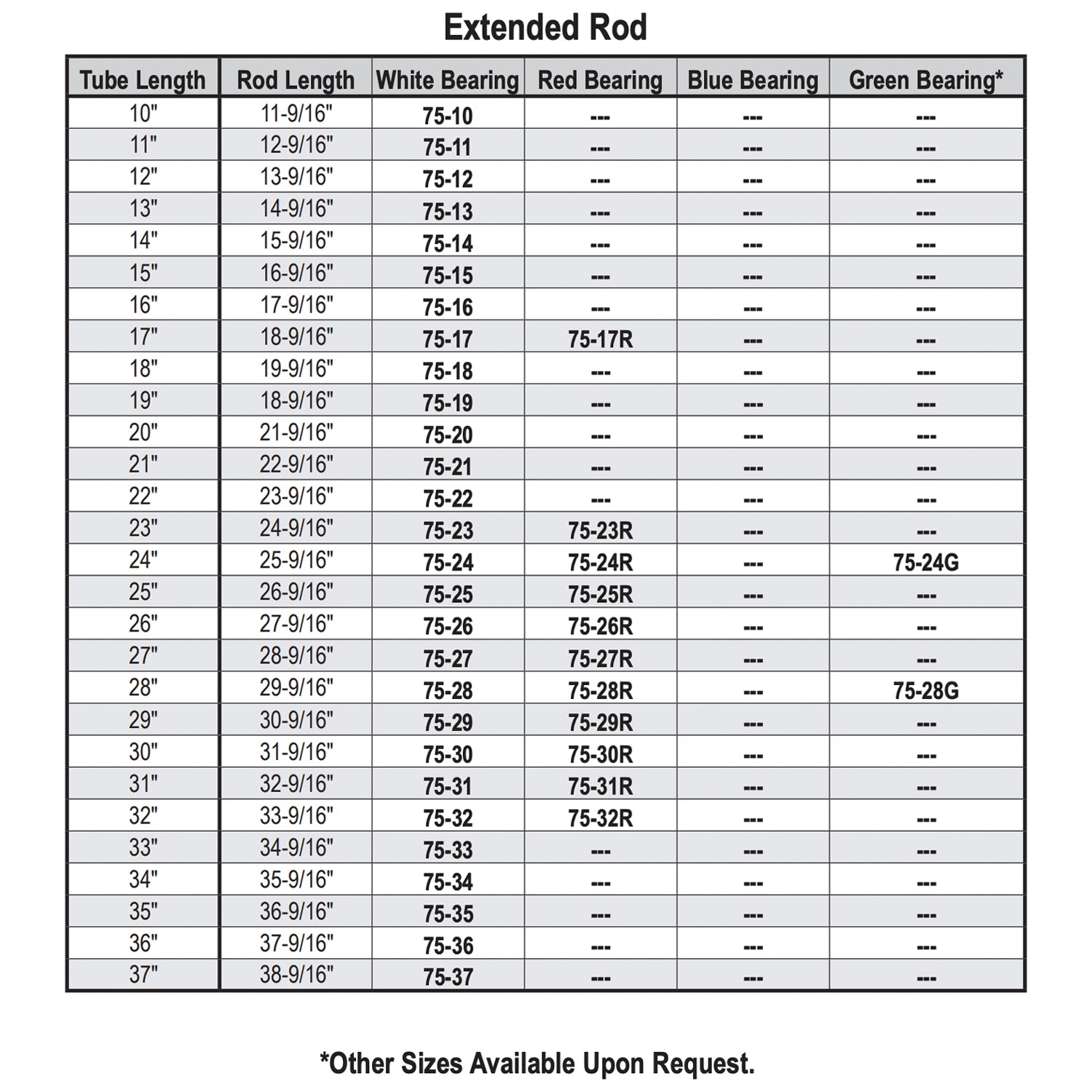

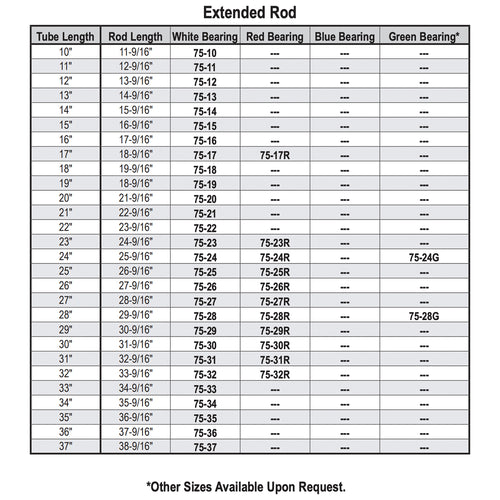

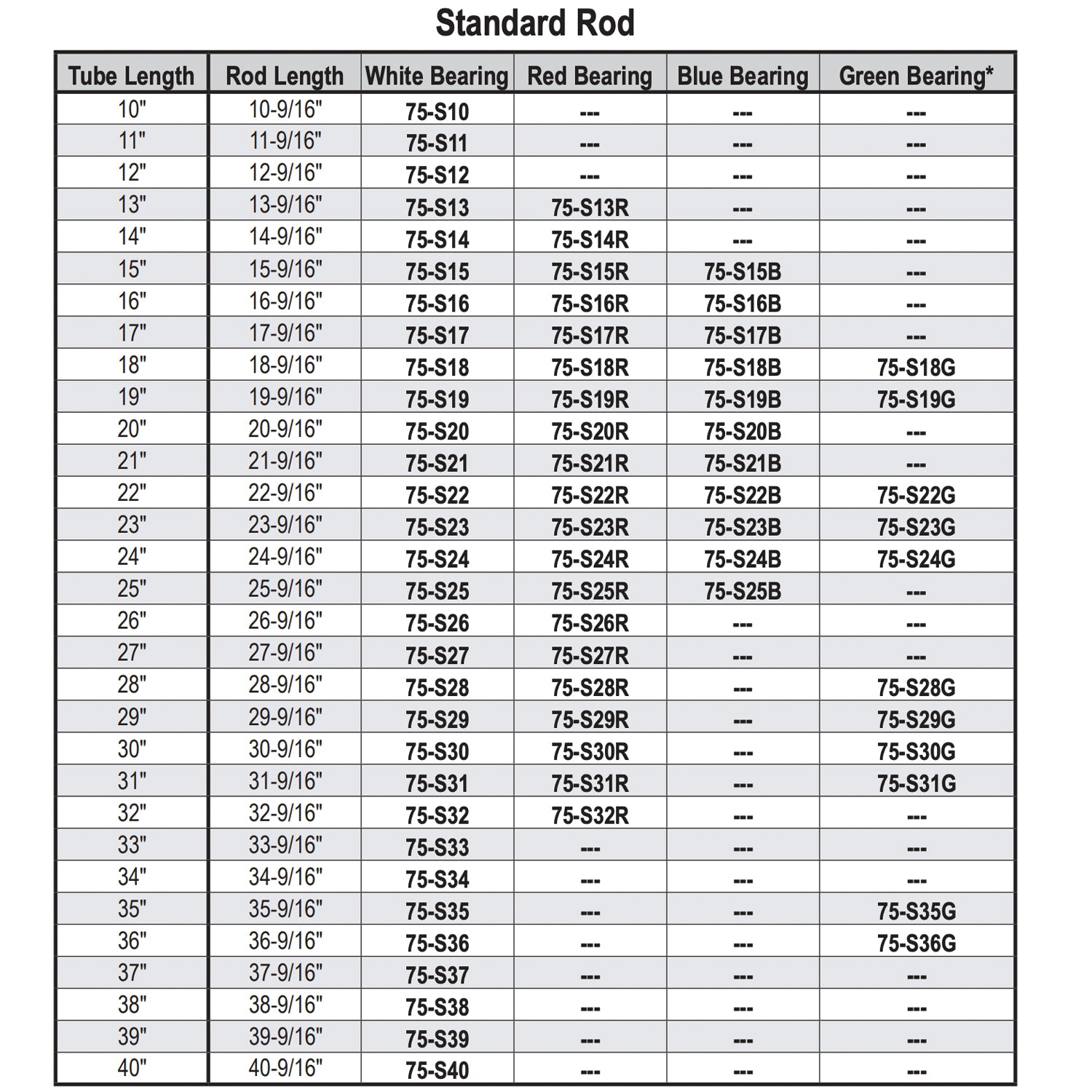

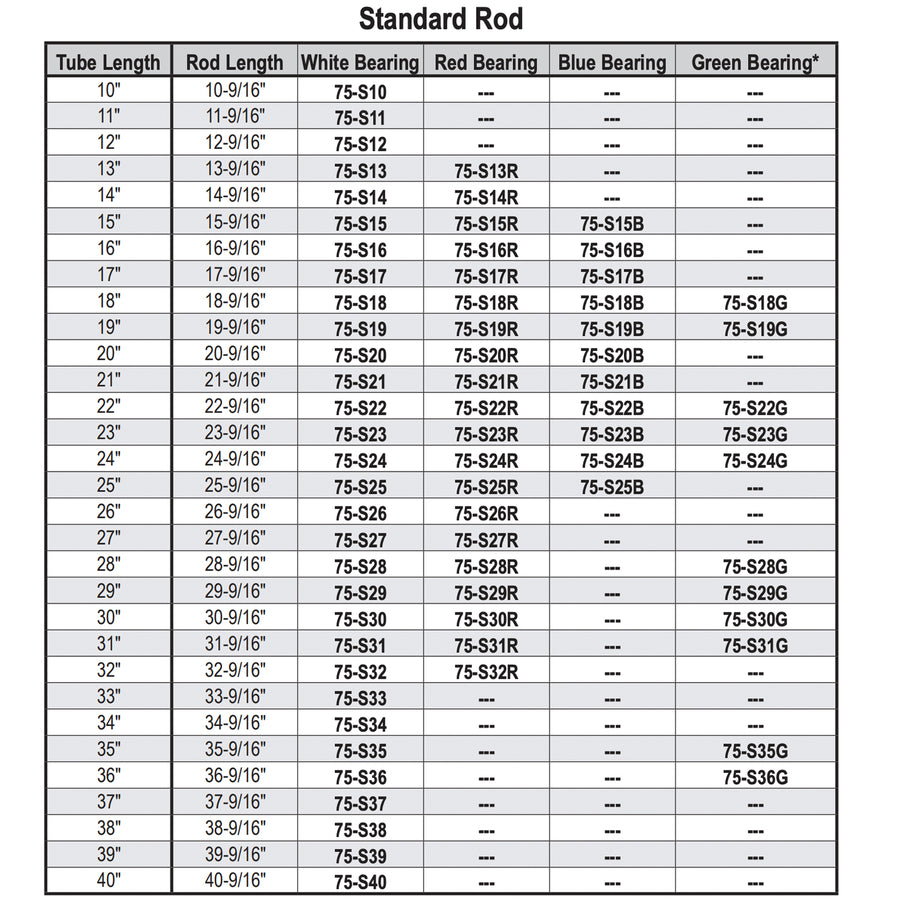

Standard rod will be 9/16 inch longer than the tube; Extended rod will be 1-9/16 inches longer than the tube. For example, a 35 inch tube could have either a standard rod of 35-9/16 inches or an extended rod of 36-9/16 inches. In other words, the extended version's overall length is always 1 inch longer than the standard version's overall length.

Please see images to find your correct configuration. If the option you want is not available on the website, please contact customer service as we are usually able to acquire the part you need.

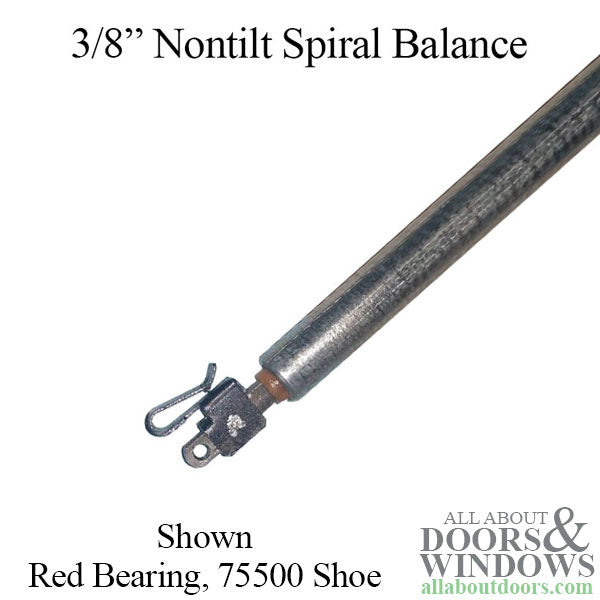

Used primarily on aluminum metal non-tilt windows. Requires a 75-500/501/502/503 bracket attached to the bottom of the sash.

Specifications:

  • Tube Length:  10 to 40 inches
  • Tube Diameter:  3/8 inch (9.5mm)
  • Spiral Rod Length:  10-9/16 inches to 40-9/16 inches (Standard), 11-9/16 inches to 41-9/16 inches (Extended)
  • Spiral Rod Hole Spacing:  9/32 inch (7.1mm)
  • Attached Carrier Bracket:  75-500
  • Bearing Colors & Maximum Sash Weights:
    • White / Red / Blue – Sash weight up to 22 lbs
    • Green – Sash weight up to 26 lbs

Please contact our customer service department for assistance in ordering the correct part.

<p>The metal tube has a mill/raw finish, but may be available in a white or black tube upon special request. Please contact customer service to inquire about special orders as they may have minimum order or non-returnable/non-refundable stipulations.</p><h3>Compatible Accessories:</h3><ul><li><strong>Carrier Brackets: </strong> 75-500 (already attached to this item), 75-501, 75-502, 75-503</li><li><strong>Balance Cap: </strong> 74-505</li><li><strong>Balance Screw: </strong> 20-002</li><li><strong>Rivets: </strong> 75-504, 75-505</li><li><strong>Vent Guide: </strong> 75-507W</li></ul><p>The difference between the <i>74 Series</i> and <i>75 Series</i> balances is the distance from center-to-center between the two holes at the end of the spiral rod. The <i>74 Series</i> has a half inch spacing, while these <i>75 Series</i> balances have a 9/32 inch spacing.</p><p>If a window tilts in and the balance has two pins, you may need an <i>83 Series</i> or <i>85 Series</i> balance instead.</p><h3>Tensioning Notes:</h3><p>The appropriate tensioning tools are Strybuc 70-515 and 70-516.<br /><br />Contact customer service if you would like a pre-tensioned balance with a rod length 1-7/8" longer than the tube by manufacturer's specifications; this would require a special order on a non-returnable basis.</p><p>If you have a pre-tensioned balance and want to use a standard <i>75 Series</i> balance, order a 1-inch longer balance with a standard rod. For example, if you already have a pre-tensioned 34 inch balance with a green bearing, you would order the 75-S35G, which would be 75-S-500-TL35-G with a 75-500 carrier bracket attached.</p>
