Operator, Type 2 Awning Window, Nu-Aire RH 5-1/8 inch
Use the arrows or swipe left to view all images for this product
Operator, Type 2 Awning Window, Nu-Aire RH 5-1/8 inch
Part Number: $18.47Awning window operator for Nu-Aire windows
1 hole at top, 2 holes at bottom; case-hardened steel gears
Baked enamel finish
Aluminum
Comes with crank handle, 3/8 spline.

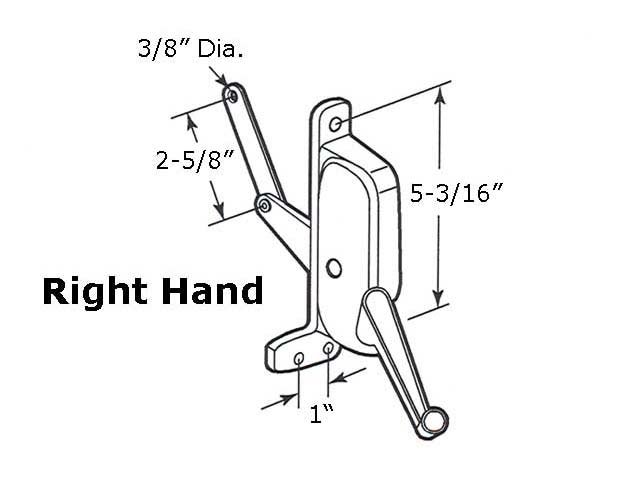

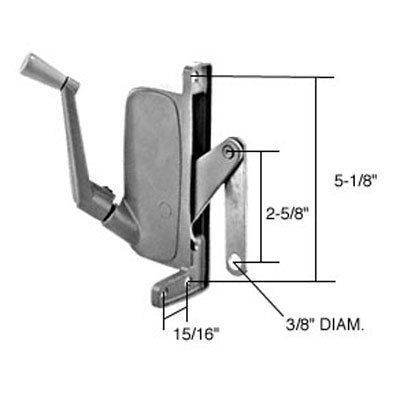

Housing Type 2 , A=5-1/8. B= 15/16, C= n/a, D=2-5/8 (see third picture)
Straight Link w/ 3/8 hole

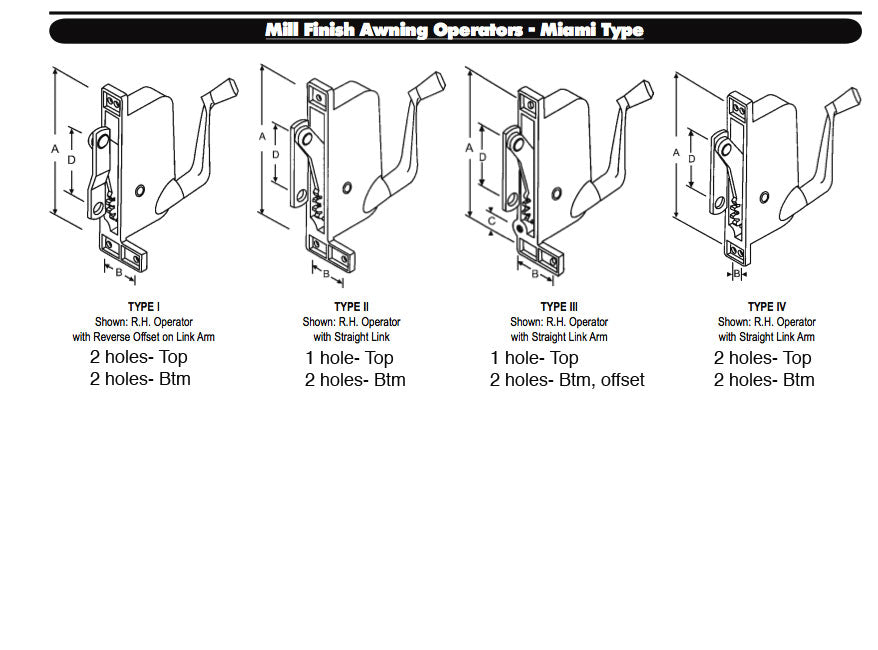

Housing Type 2: One hole at top, two holes Bottom
Sold each
Handing: Right
Material: Mixed Materials
Hole Center: 5-1/8 inch
1 hole at top, 2 holes at bottom; case-hardened steel gears
Baked enamel finish
Aluminum
Comes with crank handle, 3/8 spline.
Housing Type 2 , A=5-1/8. B= 15/16, C= n/a, D=2-5/8 (see third picture)
Straight Link w/ 3/8 hole
Housing Type 2: One hole at top, two holes Bottom
Sold each
Handing: Right
Material: Mixed Materials
Hole Center: 5-1/8 inch
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: H 3696
Strybuc Industries: 41-263P
