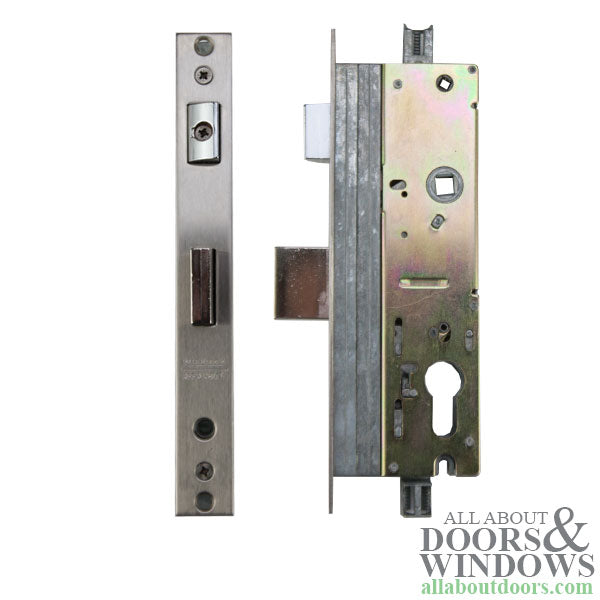

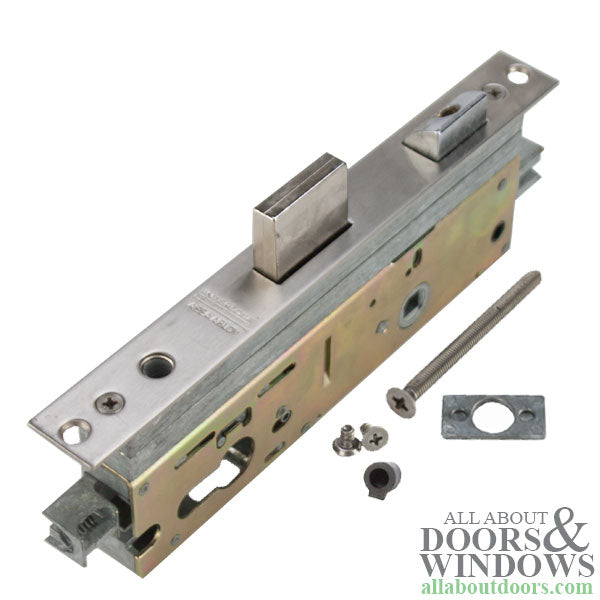

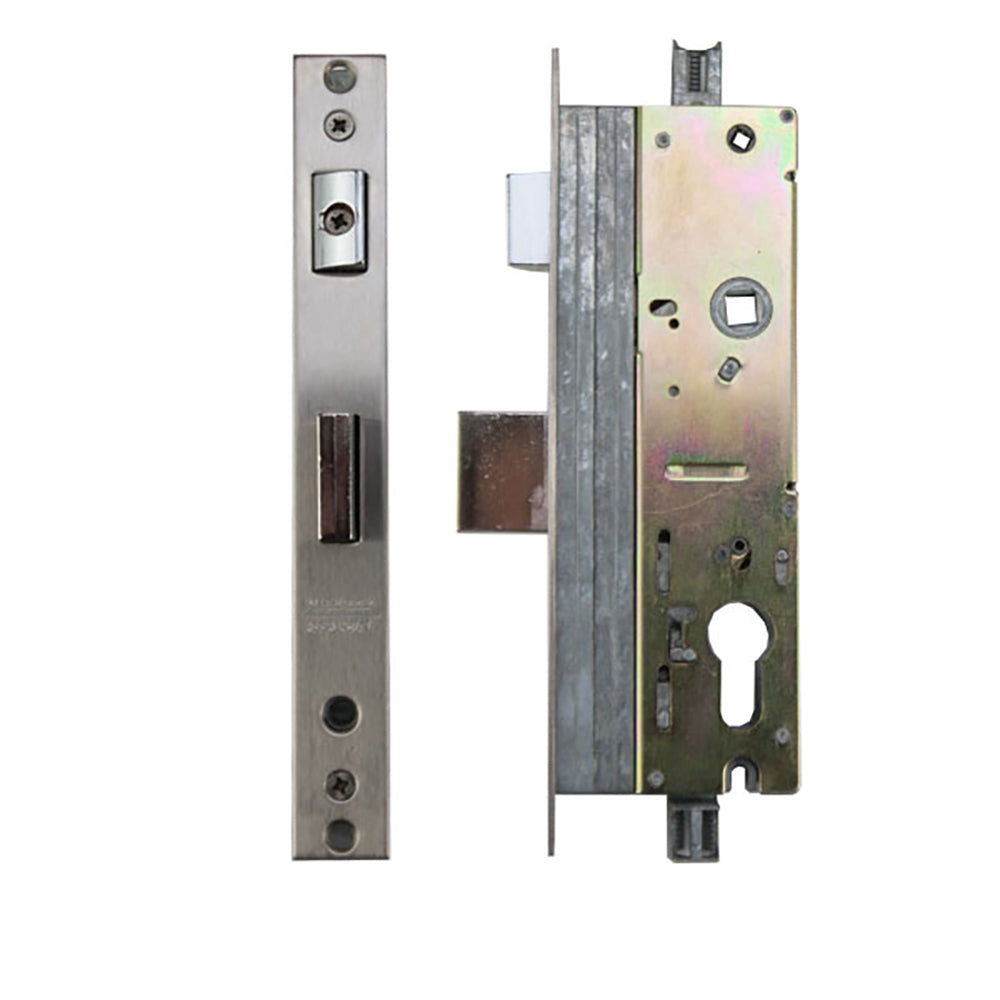

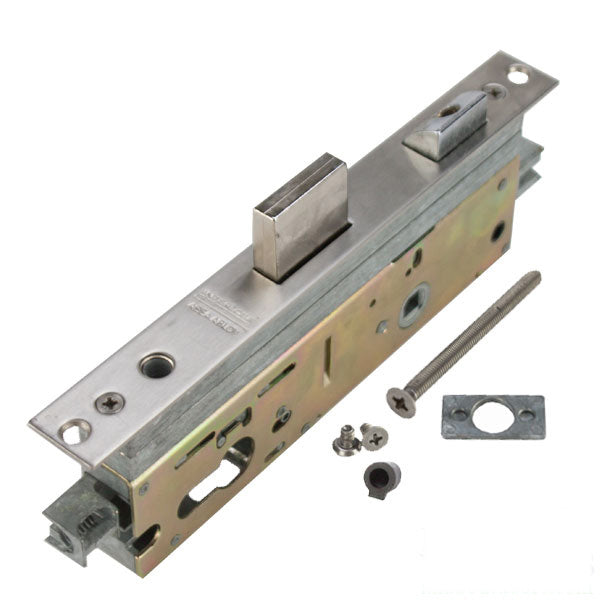

Optimum Long Throw 4-Point Door Lock 85mm PZ

Optimum Long Throw 4-Point Door Lock 85mm PZ - Optimum Long Throw 4-Point Door Lock 85mm PZ
Optimum Long Throw 4-Point Door Lock 85mm PZ - Optimum Long Throw 4-Point Door Lock 85mm PZ
Optimum Long Throw 4-Point Door Lock 85mm PZ - Optimum Long Throw 4-Point Door Lock 85mm PZ
Optimum Long Throw 4-Point Door Lock 85mm PZ - Optimum Long Throw 4-Point Door Lock 85mm PZ
Optimum Long Throw 4-Point Door Lock 85mm PZ - Optimum Long Throw 4-Point Door Lock 85mm PZ
Optimum Long Throw 4-Point Door Lock 85mm PZ - Optimum Long Throw 4-Point Door Lock 85mm PZ

Optimum Long Throw 4-Point Door Lock 85mm PZ

Part Number:DL01-6000 Price: $140.04 to $153.70
BACKSET: - 30mm / 1-3/16"
Please note, this product has been discontinued.

Interlock Optimum hinged door 2-4 point mortise lock with 2 inch backset. Used by many aluminum door manufacturers, and to replace damaged or missing mortise lock in hinged doors. When deadbolt is extended the spring latch becomes rigid and creates another locking point.

Model: Optimum
Backset(s) Available: 1-3/16 (30mm) and  2 inch (50mm)
Handle to Cylinder PZ: 3-5/16 inch (85mm)  3.346
Deadbolt Throw: 15/16”  (24mm) .0945
Faceplate Width: 15/16 inch  (24mm) 0.945
Faceplate Length: 8-1/4 inch (210mm) 8.268
Spindle Hub: 5/16 inch (8mm) 0.315
Markings: Interlock Assa Abloy
Material: Zinc, Steel, Stainless Steel

Note: The 1-9/16" (40mm) backset has been discontinued

DL01-6061 = 30mm<br>DL01-6063 = 40mm<br>DL01-6065 = 50mm<br>DL01-6014 = 35mm Long Face<br><b>Operation:&nbsp;</b>Push handle down to retract latch. Throw deadbolt with key or thumbturn and the spring latch also becomes a locking point.<br><br><br><b>To Change Handing: </b>Remove screw in latch, rotate latch, reinstall screw&nbsp;
