Outside Lock Handle with Cylinder Hole Tuscany Vinyl Sliding Door 1-1/4" Screw Hole Spacing

Part Number: 14350-CLY Price: $17.05 to $17.05
COLOR: - White

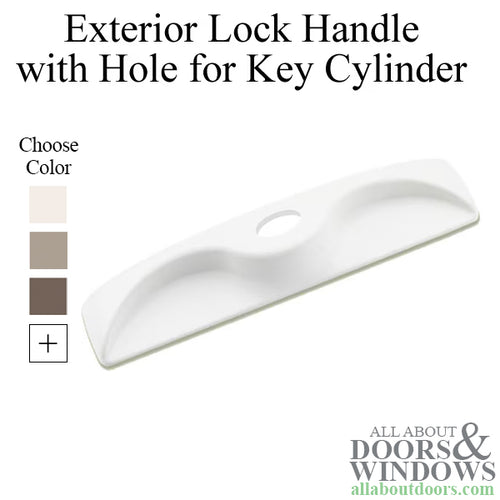

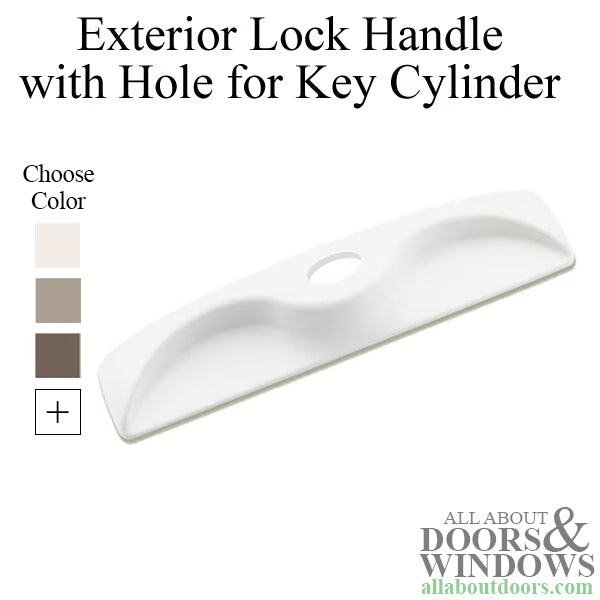

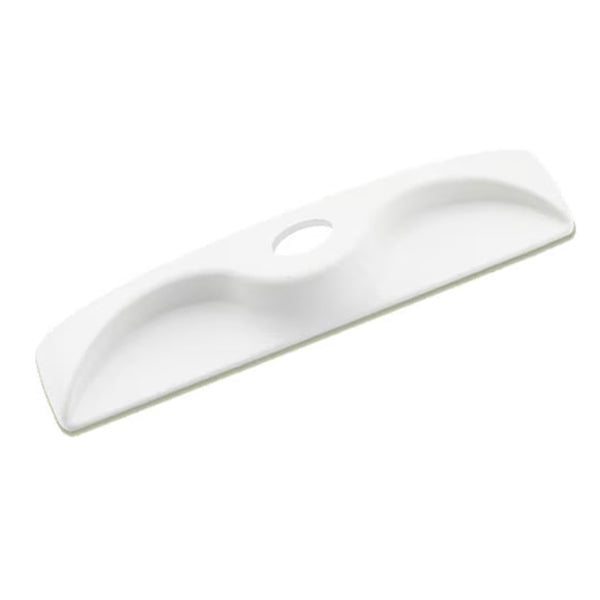

Milgard exterior handle for patio glass sliding doors, with hole for key cylinder ( not included)
Used with the Classic, Montecito and Tuscany series French sliding patio door

Application: Exterior handle only

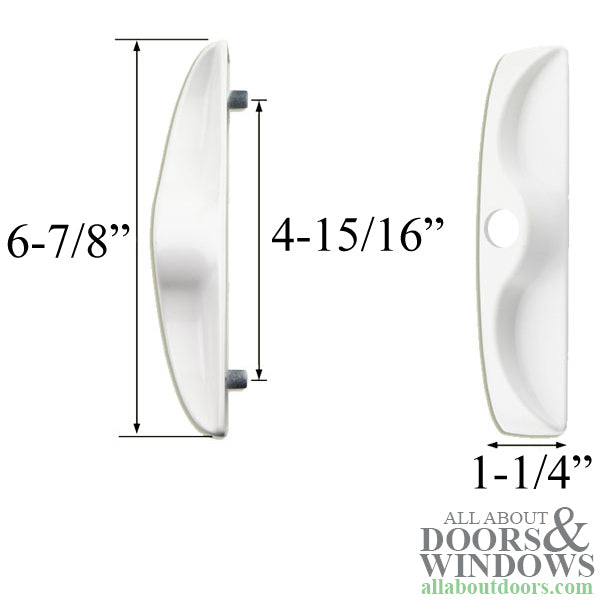

Handle Length: 6-7/8 inch
Handle Width: 1-1/4 inch
Screw Hole Spacing: 4-15/16 inch
Note: must use self tapping screws ( not included) holes are not threaded by manufacturer

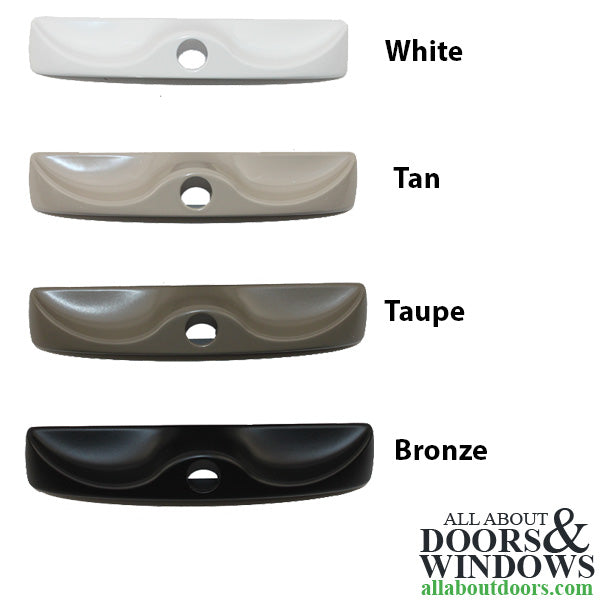

Colors: White, Almond,Tan, Bronze, Taupe
Contact office for additional colors: Satin Nickel, Clay, Gray, Tweed

Related Parts for Milgard 1-7/16 thick Classic Sliding Door:
14339 - Complete handleset Trim, 1-7/16 thick door, No mortise lock
14340 - Complete kit with mortise lock, 1-7/16 thick door
14342 - V-4 Latch, Double Locking handle 1-7/16 thick Door
14343 - V-2 Latch, Double Locking handle 1-3/16 thick Door
14344 - Inside Pull handle, no mounting plate
14346 - Key cylinder for 14345 outside pull,  Schlage SC1 5 pin
14348 - Mounting Plate for 14344 inside pull (original M4x25mm - Replace with 8-32 x 1 Thread cutter)
14349 - Outside Pull Handle, no cylinder hole
14350 - Outside Pull Handle, With cylinder hole (8-32x1-9/16 screw )
15137 - internal mortise latch only
15133 - Strike Plate, No Cover
