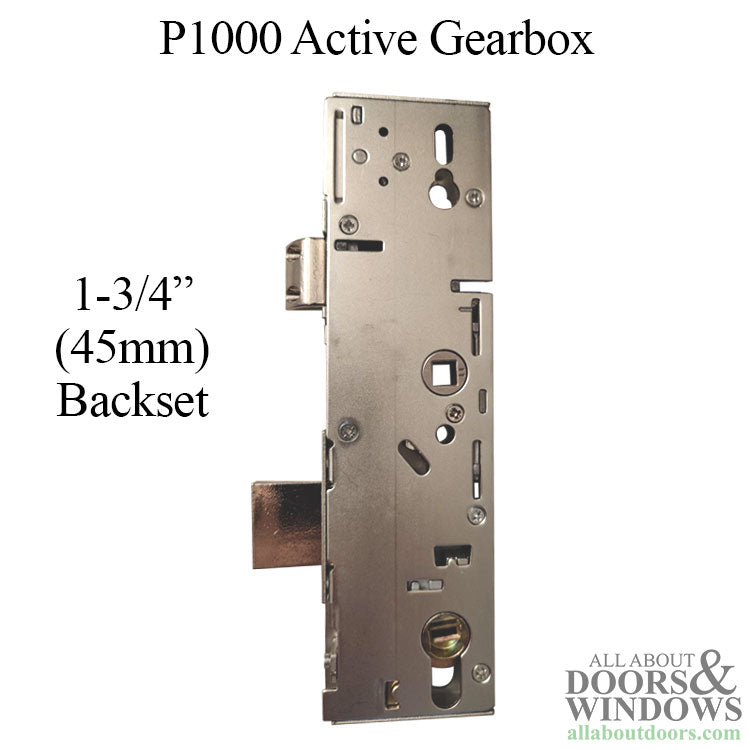

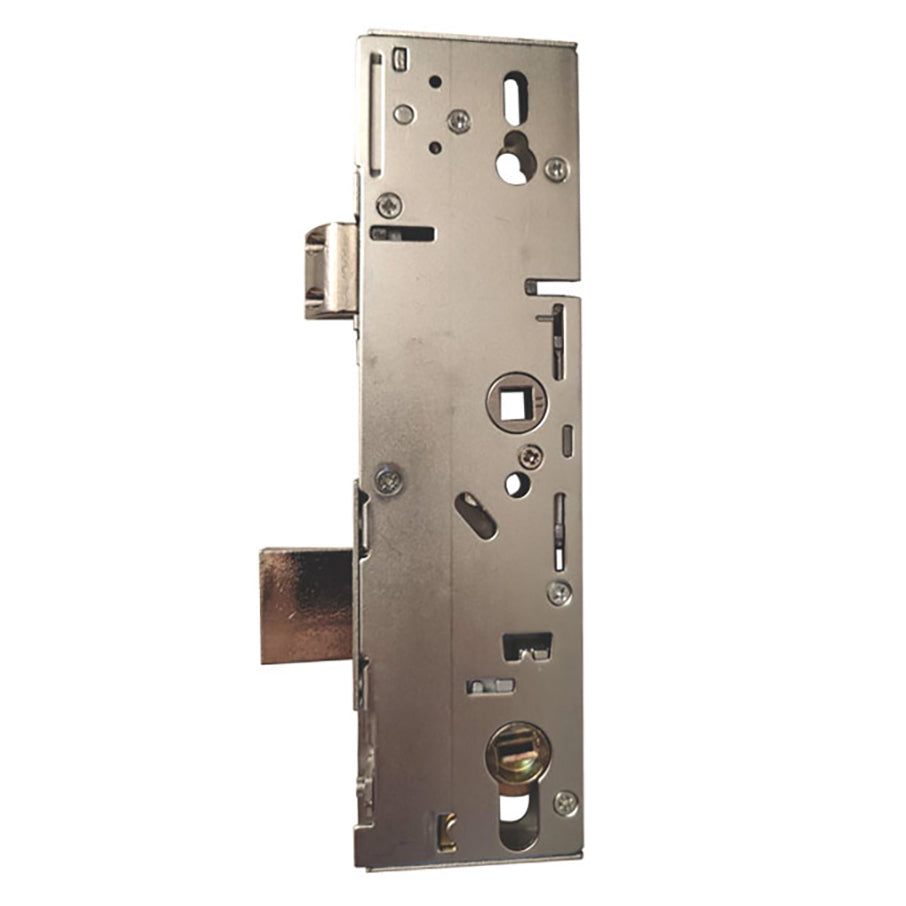

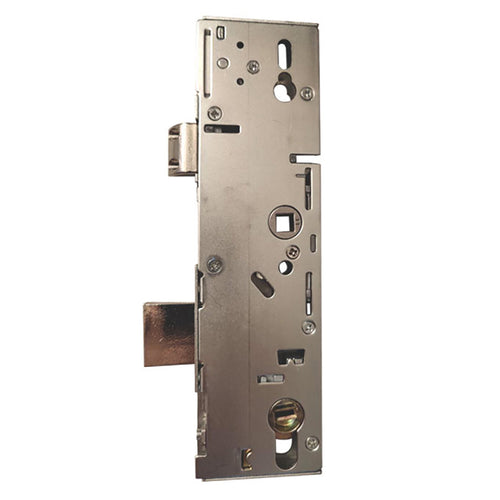

P1000 Active 45/92 Gearbox for multipoint lock (Mortise Lock Body only, No Face Plate)

This will replace the gear box only on multi-point locks

Used by Marvin Integrity and others

Cylinder Type: American Version

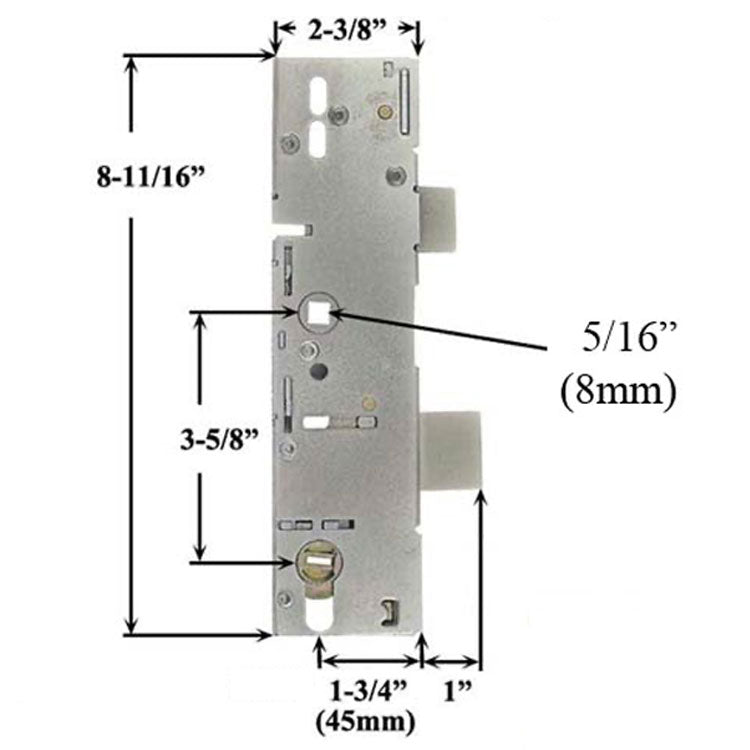

Backset: 1-3/4 inch (45mm)
Handle PZ: 3-5/8 inch ( 92mm)
Deadbolt Throw: 1 inch (25.4mm)
Spindle: 5/16 inch  (8mm)
Lock Body Length: 8-11/16 inch
Lock Body Width: 9/16 inch (16mm)
Lock Body Depth: 1-15/16 inch
Installation Note:

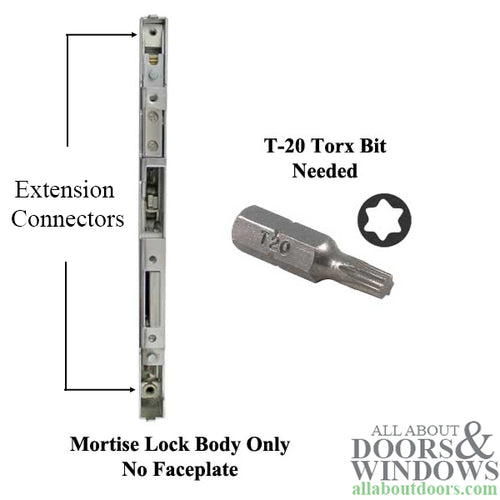

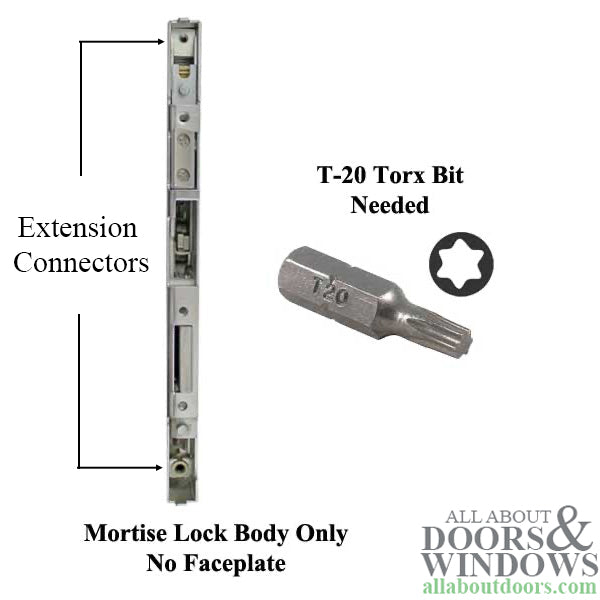

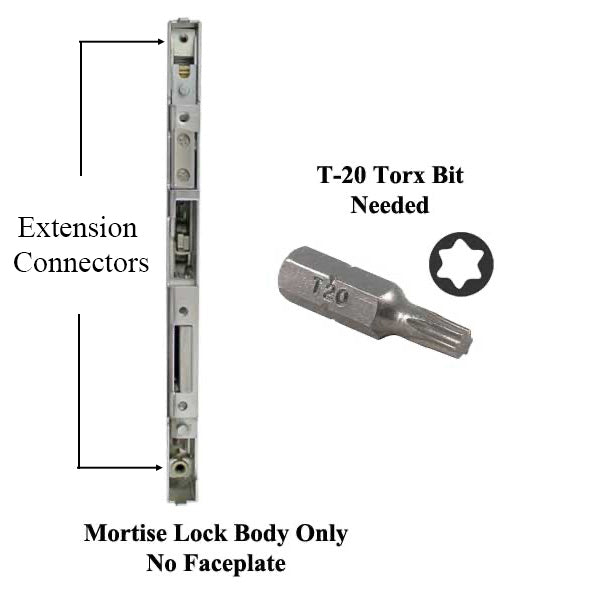

The T-20 torx Star bit screws require 12-13 pounds of torque when reinstalling faceplate screws
