Papaiz #323 Slimline Mortise Lock Body, 7/8" Backset - Choose Finish

Part Number:301025
COLOR: - Black
Please note, this product has been discontinued.

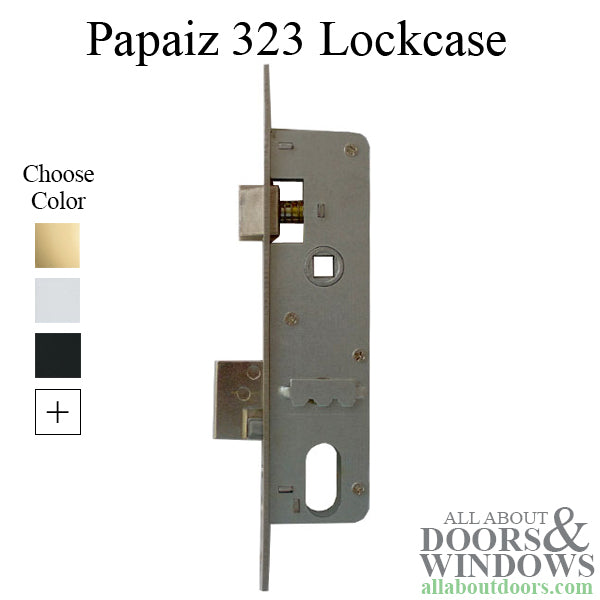

Papaiz #323 Mortise Lock

Markings: 323 on Faceplate

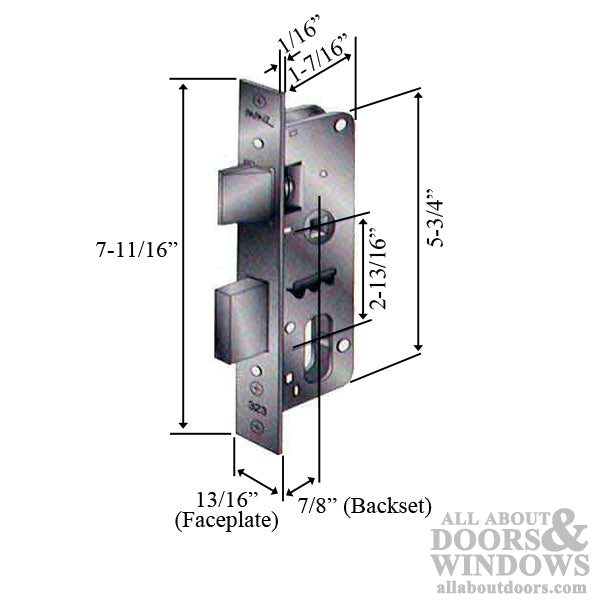

Backset (Edge of Faceplate to Center of Handle): 7/8" (22mm)
Handle PZ (Center of Handle to Center of Key Cylinder): 2-13/16" (77mm)
Faceplate Width: 13/16"
Faceplate Finish Options: Polished Brass, Polished Chrome, Satin Chrome, Black

Includes:
Mortise Lock Body
1 Keeper / Strike Plate

Important Note:
Papaiz made a lock that had #322 stamped into the faceplate; it is discontinued.
This lockset CAN be used to replace it, however, the width of the 322 lockcase faceplate was 3/4" -- 1/16" less wide than the 323 (this one).
Depending on the thickness of your storm door, you may need to file the faceplate of the 323 down to make it fit correctly.

How to Replace or Change Out a Mortise Lock
Installation Instructions
