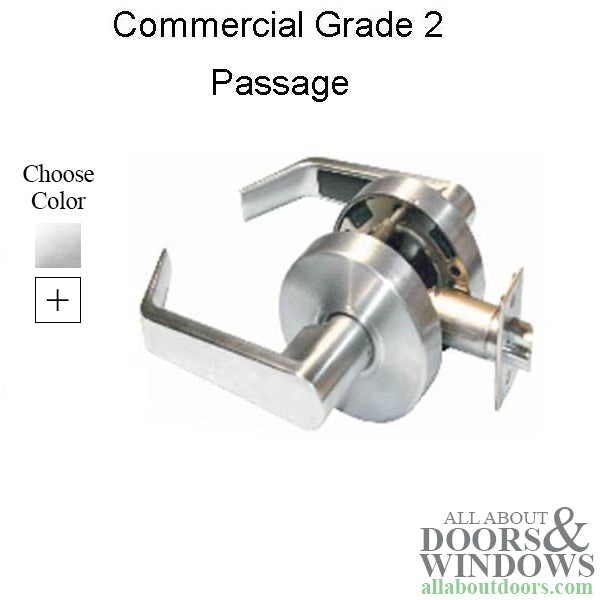

Passage Lever, Closet and Hall doors - Grade 2, Standard Commercial Duty

Certification: UL listed ANSI A156.2 Grade 2

• Door Thickness: 1-3/4" - 2" ( 45mm-50mm)

• Backset: 2-3/4" (70mm)

• Cylinder:  None

• Keying:  None

• Functions: See below

• Latch: 1/2" projection Stainless Steel Face: 1-1/8” x 2-1/4” (Optional 3 hour UL Rated)

• Bore: 2-1/8” hole retrofits all cylindrical locksets

• Fits 161 Prep doors

• Strike: ANSI 1-1/4” x 4-7/8” strike

• Removable Thru-Bolts

• Non-handed / reversible

• Warranty: Lifetime mechanical. 10 year finish.

• Finishes: US3 Polished Brass, US10B Oil Rubbed Bronze, US26D Brushed Chrome

Note: Some Finishes may be special order, normally 7-14 days
