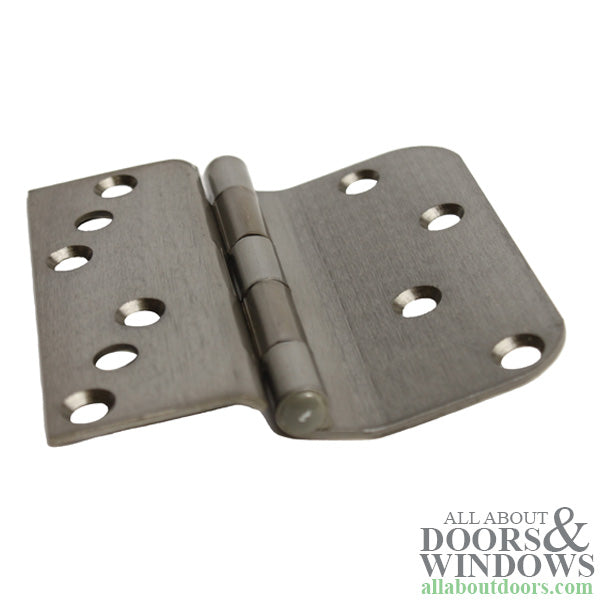

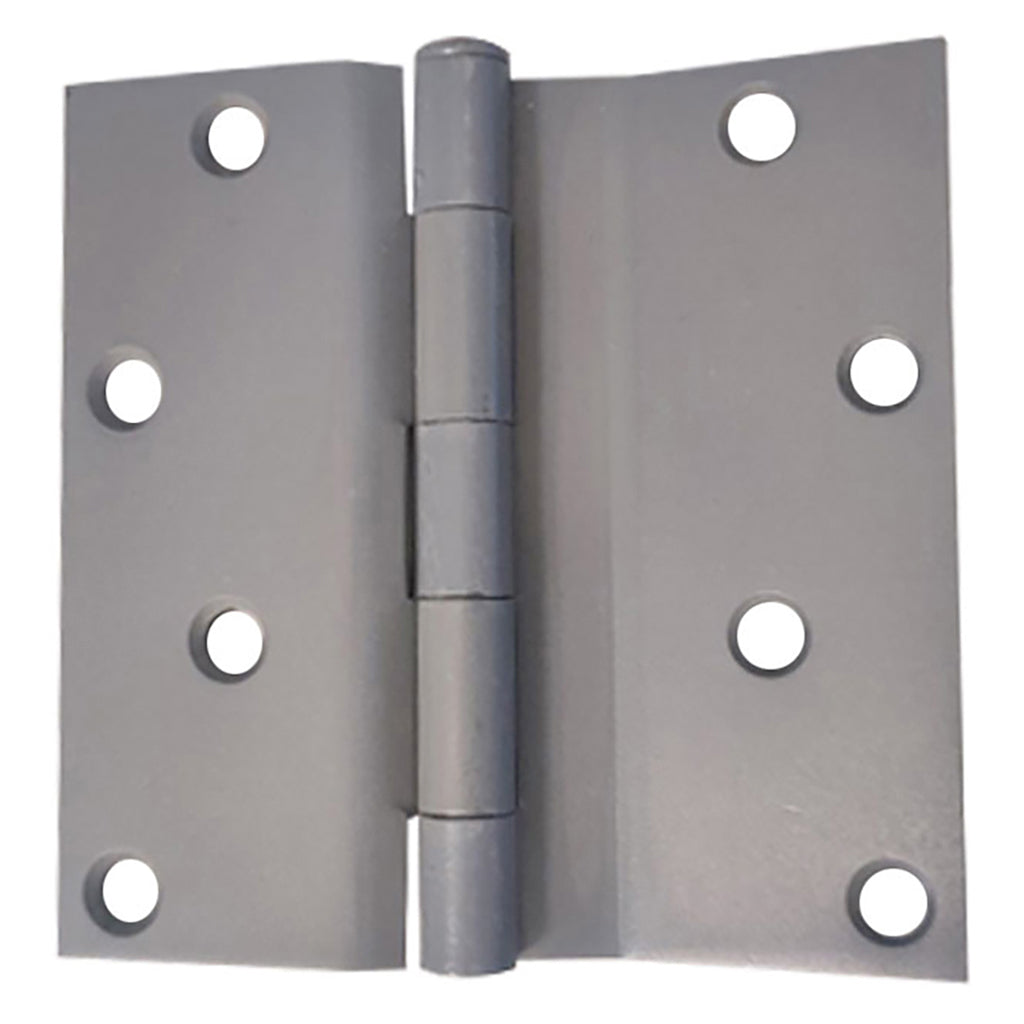

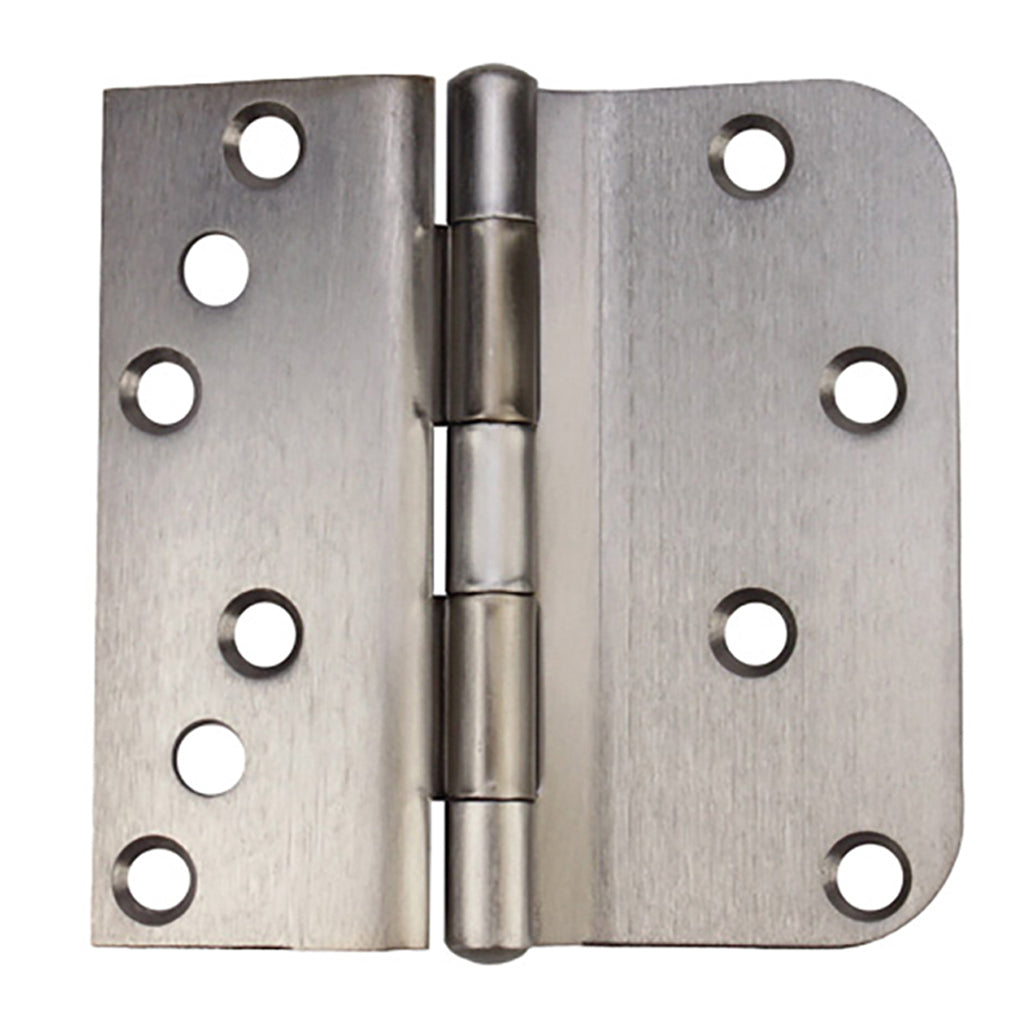

Peachtree Avanti and "CHADEAU CLASSIC" Outswing Door hinge with offset Leaf
Used on Peachtree steel outswing doors.
The hinge overall size is 4" x 4", but the left side and the right side
have the different width. Both hinges have an angle to the leaf.

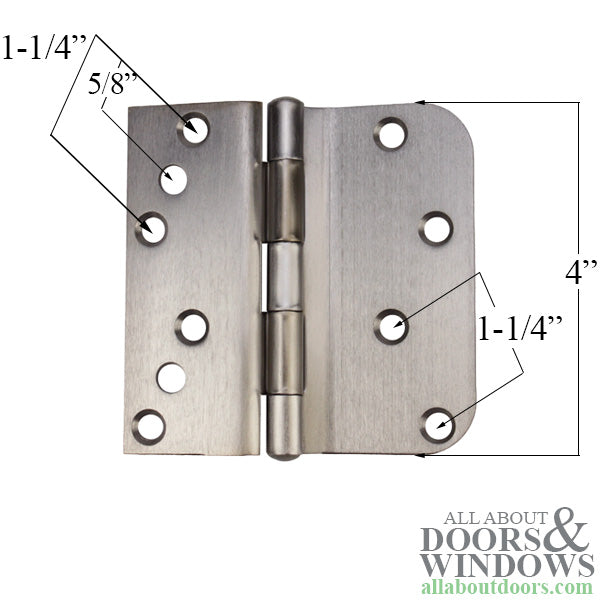

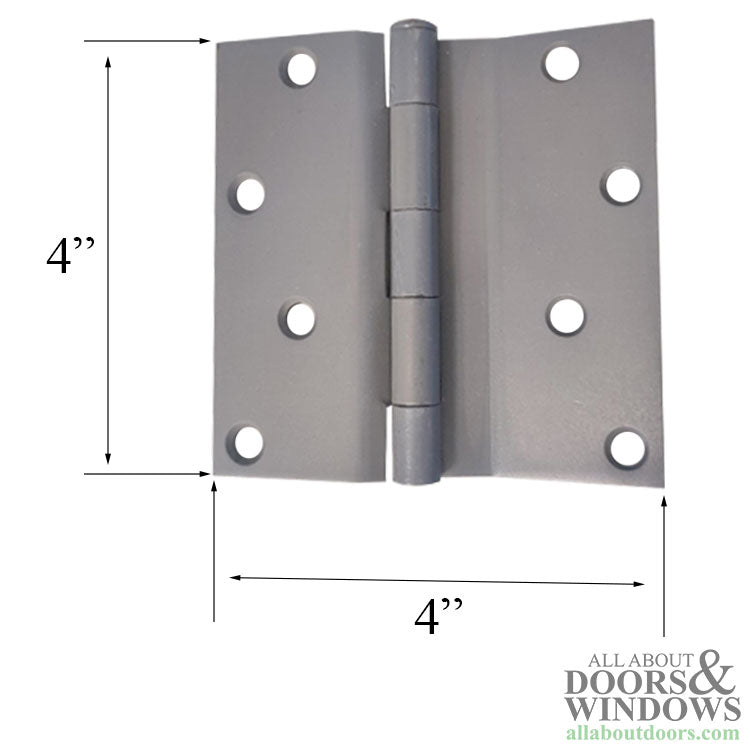

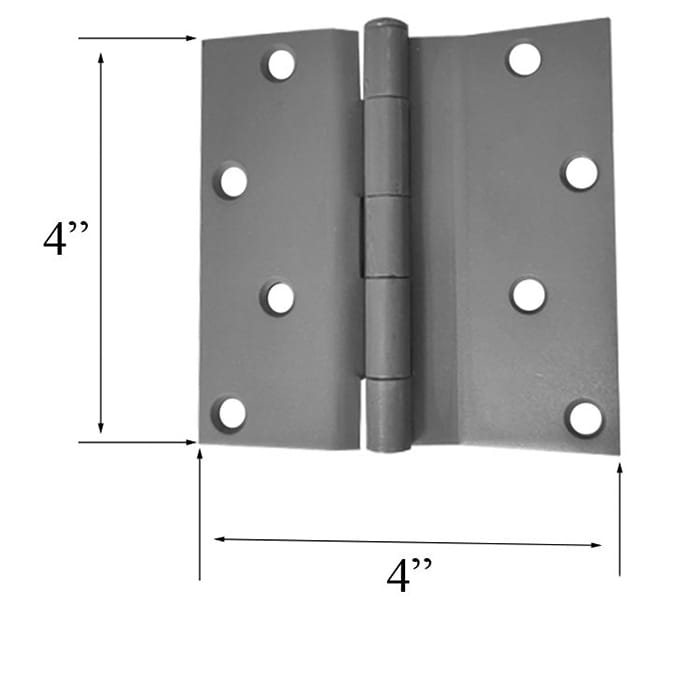

Overall Size: 4" x 4"

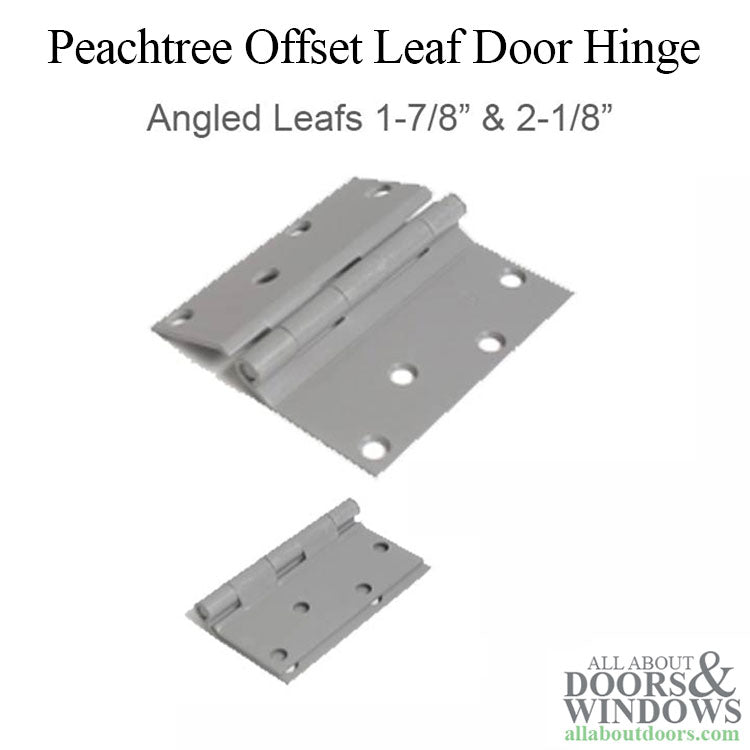

Leaf Size: 2 different widths 1-7/8" & 2-1/8"
Type: Square Corner, Angled Leaf
Material: Steel
Screw Pattern: Zig Zag
Markings: PT09

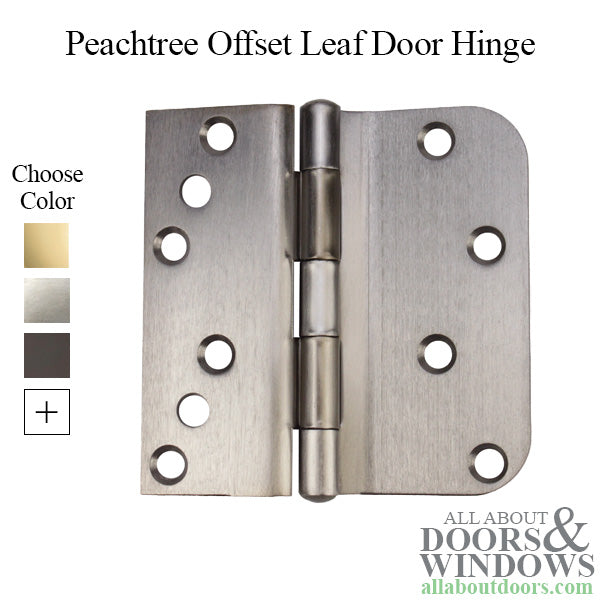

Color Options:
Polished Chrome
Dark Bronze
Primer Grey
Satin Nickel
Yellow Dichromate
Note: These hinges are NOT supplied with mounting screws. The correct screw size is #10 x 1" flat head Philips.
