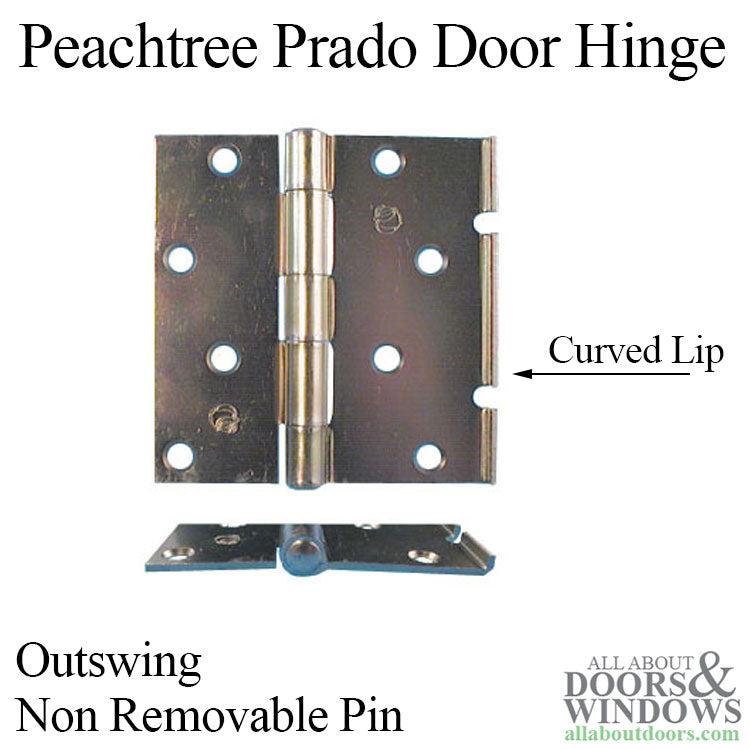

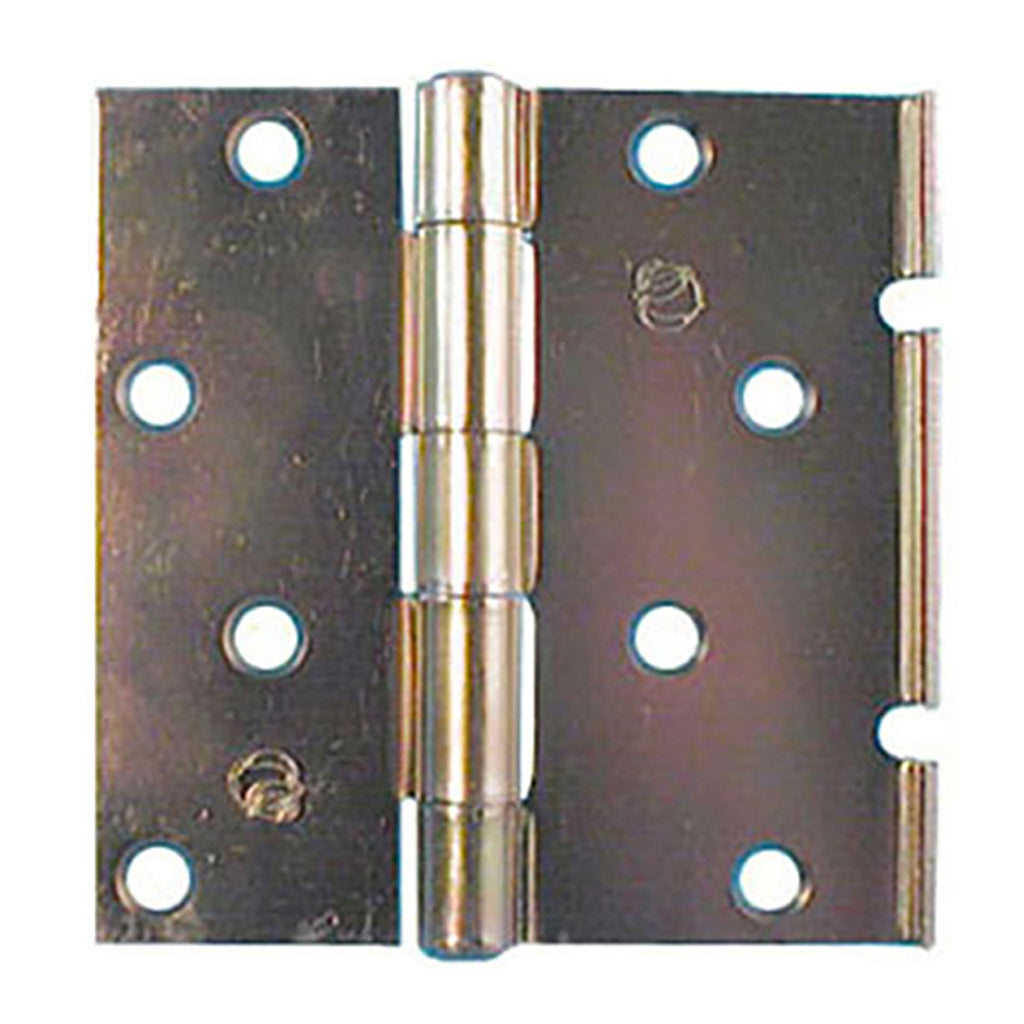

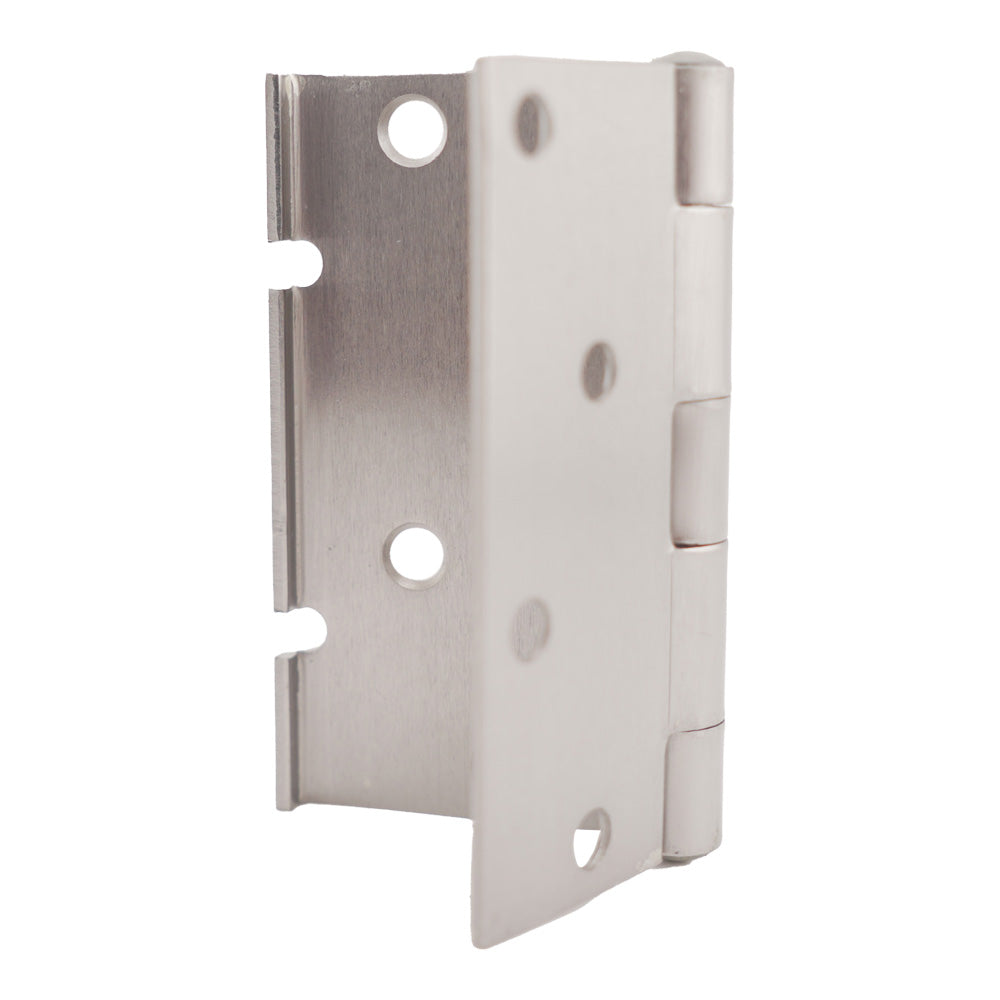

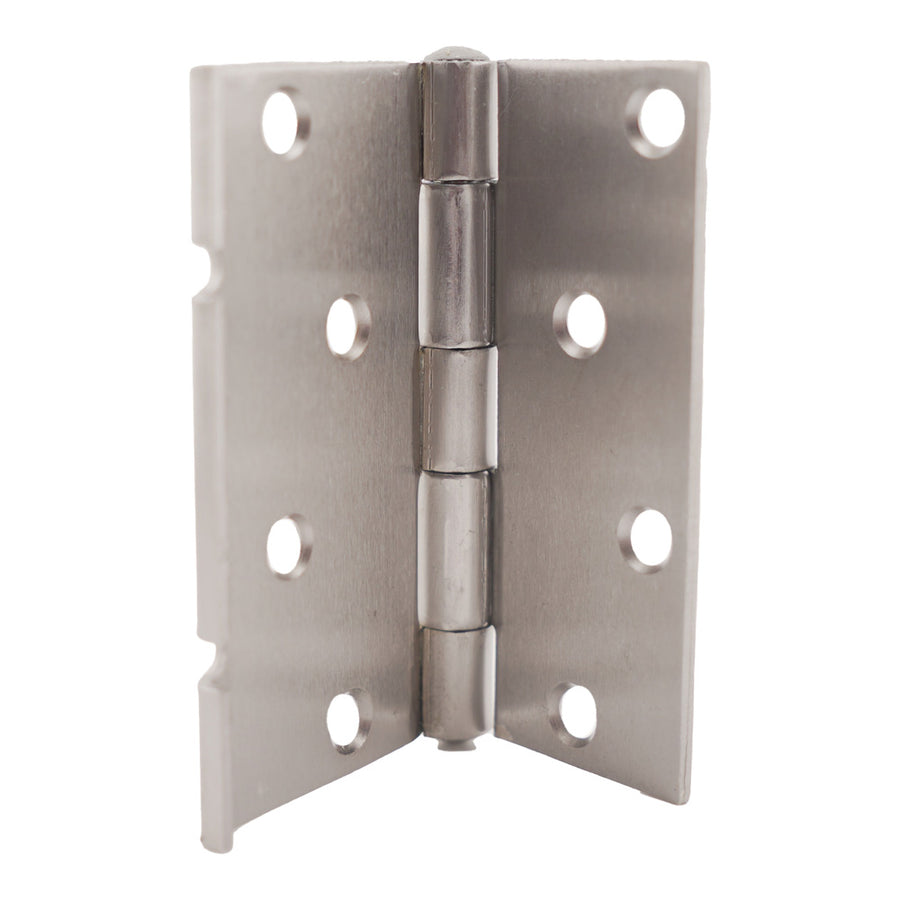

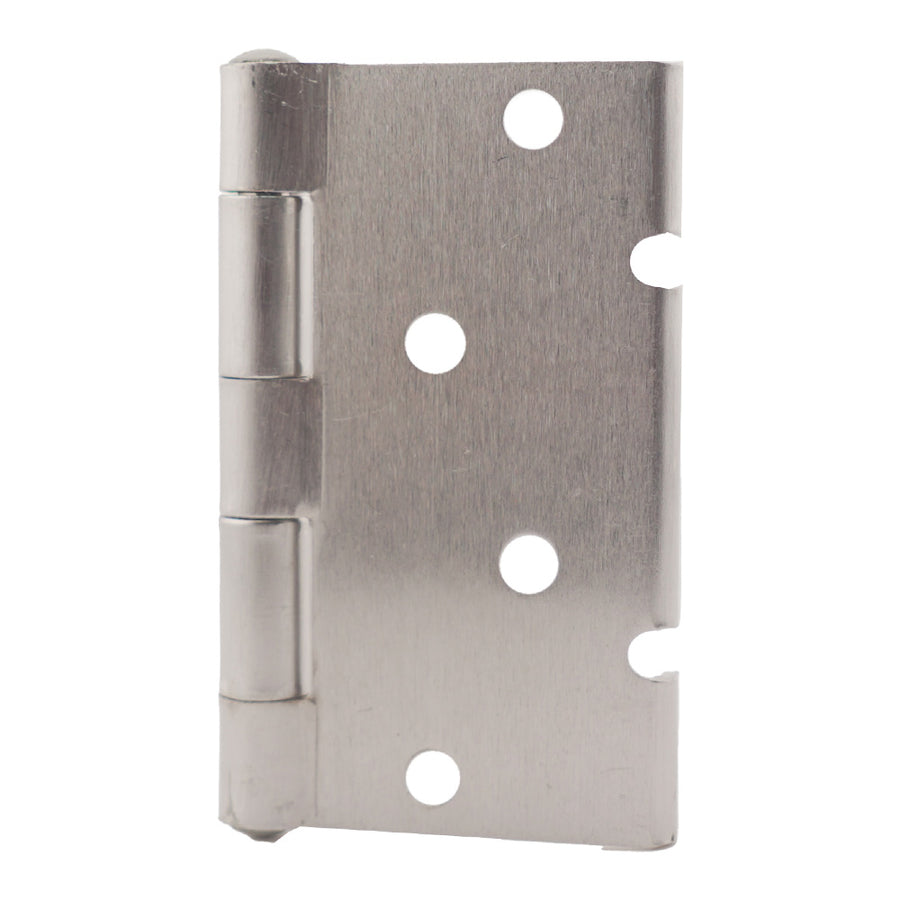

Peachtree Prado Door Hinge 3-15/16" x 4" Non Removable Pin

Part Number:36200062 Price: $40.18 to $56.12
Color: - Oil Rubbed Bronze

Peachtree Replacement Hinge with Non-Removable Pin for Prado Swinging Patio Door

Specifications:

  • Hinge Size: 3-15/16 x 4 inch ( total width - height)
  • Door side leaf: 1-3/4" with square corners
  • Jamb side leaf: 2-3/16" with curved lip
  • Type: Plain Bearing
  • Corner: Square corner with Lip;
  • Base Material: Steel
  • Color/Finish Options: Brass (YDI), Satin Nickel (Silver Steel), Antique Brass, Oil Rubbed Bronze (painted), White (painted)

    The hinged patio swing set has 2 screws going through the hinge into the astragal outside weather strip astragal. These screws hold astragal to stationary panel.

    Priced and Sold Each, Screws NOT included (#10 Flat Phillips 1")
Peachtree replacement hinge with non-removable pin for Prado swinging patio door.<br>
<br>
Hinge Size: : 3-15/16 x 4 inch ( total width - height)<br>
Door side leaf: 1-3/4" with square corners<br>
Jamb side leaf: 2-3/16" with curved lip<br>
Type: Plain Bearing <br>
Corner: Square corner with Lip; <br>
Base Material: Steel<br><br><BR>
Color/Finish Options:<BR>Brass Type (YDI)<BR>Satin Nickel Type (silver steel)<BR>Oil Rubbed Bronze (painted)<BR>White (painted)<br>
<br>
The hinged patio swing set has 2 screws going through the hinge into the astragal outside weather strip astragal.<br>
These screws hold astragal to stationary panel.<br>
<br>
Priced and sold each, screws NOT included (#10 Flat Phillips 1")
