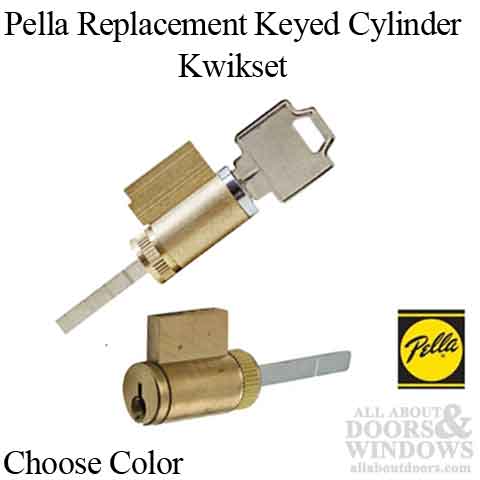

Pella Replacement Keyed Cylinder, Kwikset 1 x 1-1/4 - Choose Color
Part Number: 9060000-KW-BLDiscontinued - Replace with 9060000-SC

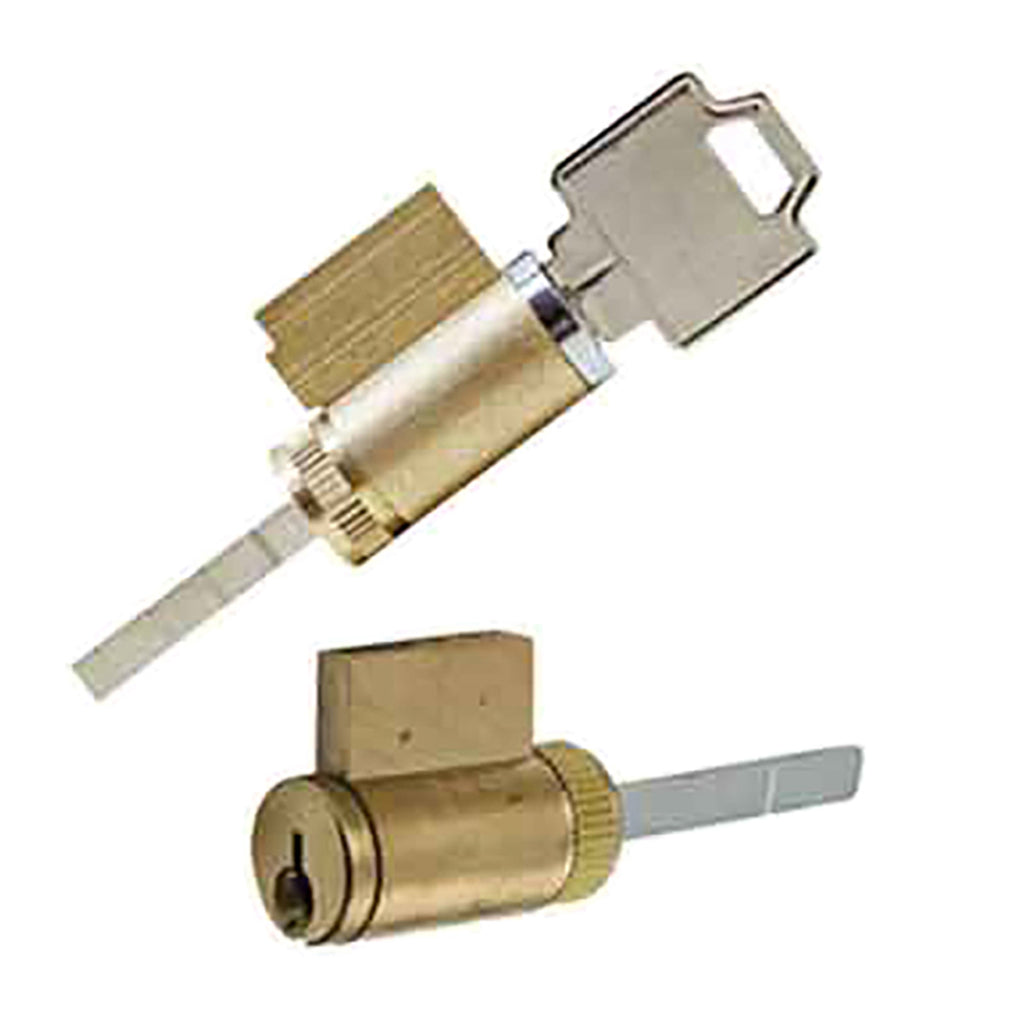

Pella Keyed 5 pin cylinder for Sliding Patio Doors and Hinged doors
Cylinder Type: American with flat tail piece
Keyway: Kwikset, KW1, 5 Pin (Discontinued by Pella, limited to inventory)
Faceplate finish / Color: Choose Color

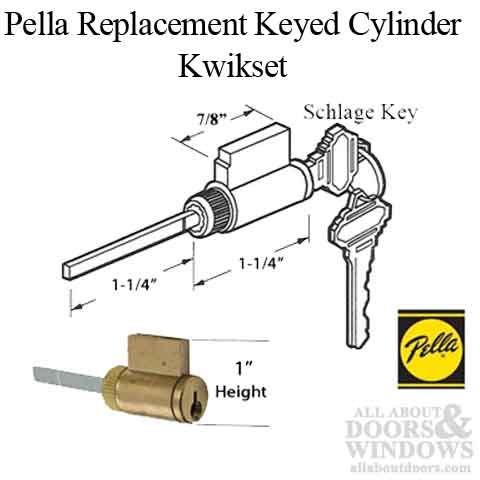

Tail Piece Length: 1-1/4 inch
Cylinder Height: 1 inch
Pin position, for retainer cap: 11:00
Cylinder Face Diameter: .60 inch
Used on Pro Series, Designer and Architectural Hardware, Hinged Patio and Sliding Door
Note:
Some after market cylinders have a slightly larger .62 Diameter face versus the Pella .60
Some after market cylinders also have a taller cylinder height - this prevents fitting properly into some handlesets
Priced and sold each.
Limited to existing inventory.
Pella Keyed 5 pin cylinder for Sliding Patio Doors and Hinged doors
Cylinder Type: American with flat tail piece
Keyway: Kwikset, KW1, 5 Pin (Discontinued by Pella, limited to inventory)
Faceplate finish / Color: Choose Color
Tail Piece Length: 1-1/4 inch
Cylinder Height: 1 inch
Pin position, for retainer cap: 11:00
Cylinder Face Diameter: .60 inch
Used on Pro Series, Designer and Architectural Hardware, Hinged Patio and Sliding Door
Note:
Some after market cylinders have a slightly larger .62 Diameter face versus the Pella .60
Some after market cylinders also have a taller cylinder height - this prevents fitting properly into some handlesets
Priced and sold each.
Limited to existing inventory.
