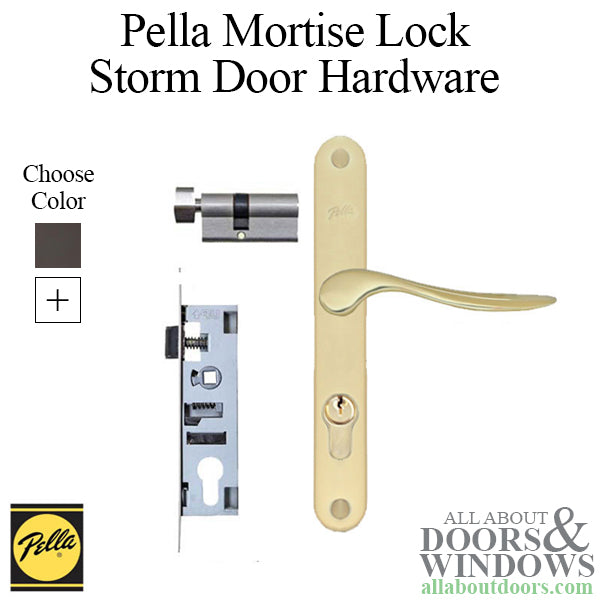

Pella contemporary storm door mortise lock with modern curved lever

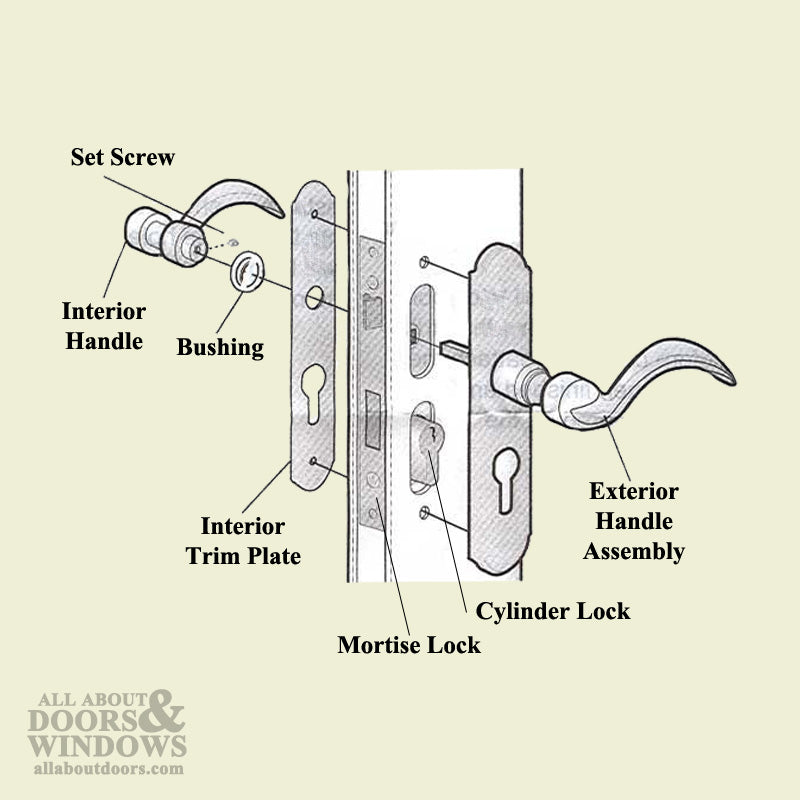

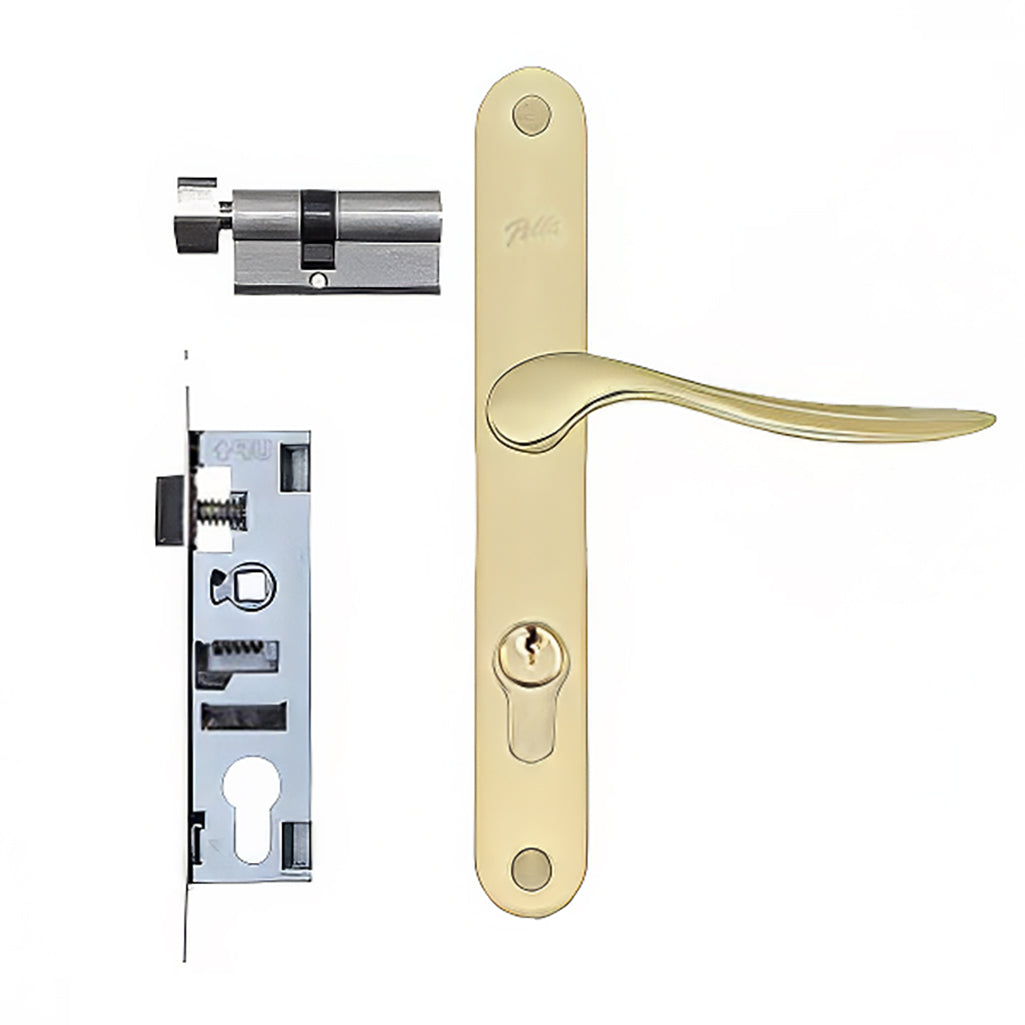

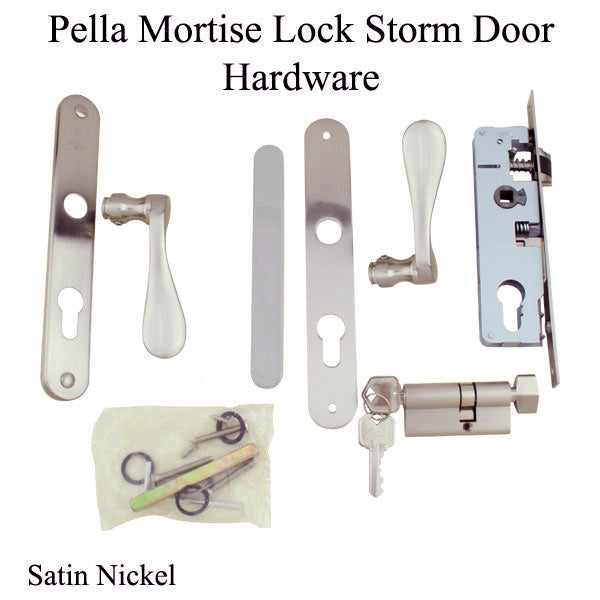

Storm door hardware kit, includes faceplates, levers, mortise lock and keyed cylinder
NOTE:
There is NO strike plate included with this hardware kit.
The manufacture's installation instructions show a strike but it is NOT INCLUDED.
It is a special purchase item and is sold separately.
To purchase a strike plate, first please determine the serial number of your door.
Then contact our office via phone or email so that we can determine the correct strike for your door.

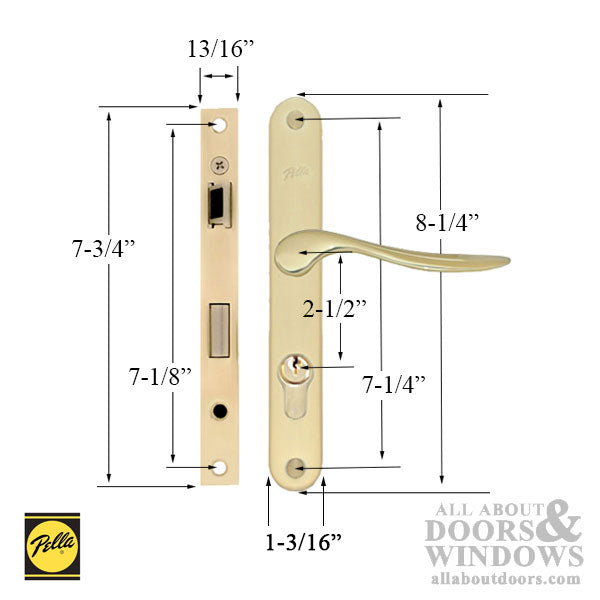

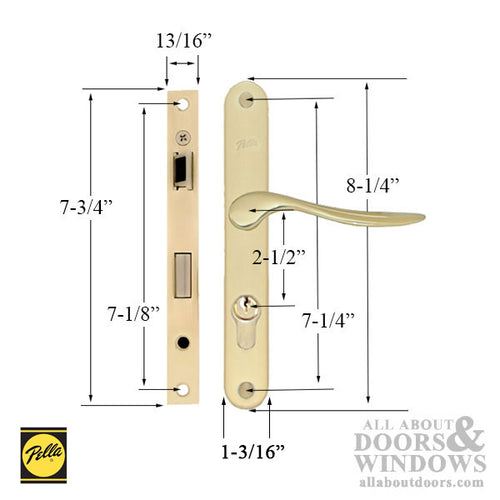

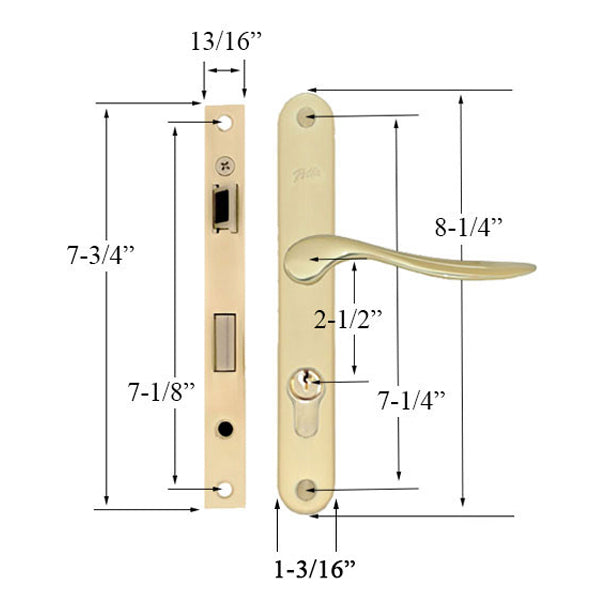

Handleset Measurements:
Backset: 7/8''
PZ: 2-1/2'' (center of handle to center of cylinder)
Screw Holes: 7-1/4''
Faceplate Length: 8-1/4''
Faceplate Width: 1-3/16 inch

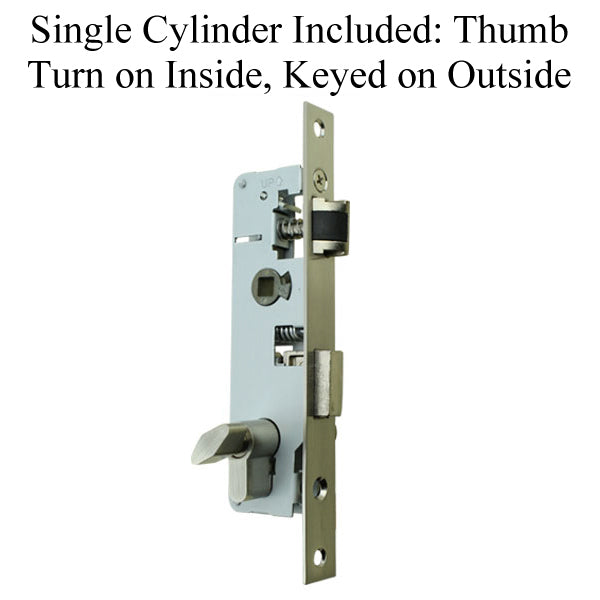

Cylinder Type: Euro, offset cam, Free spin 270 degrees
Keyway: Kwikset KW1
For use on Pella storm door models 3800, 3825, 3900
Mortise Lock Measurements:

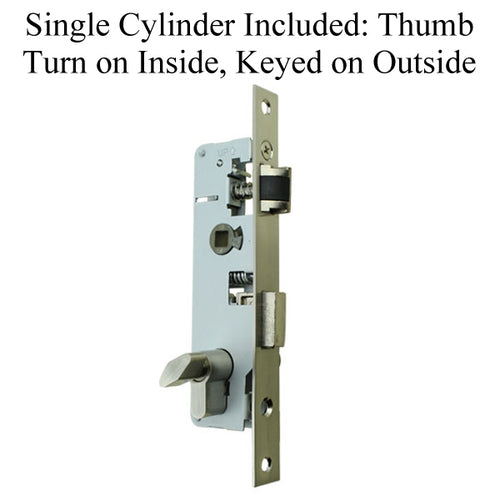

Lock Type: Mortise
Length: 7-3/4''
Width: 13/16''
Screw Holes: 7-1/8''

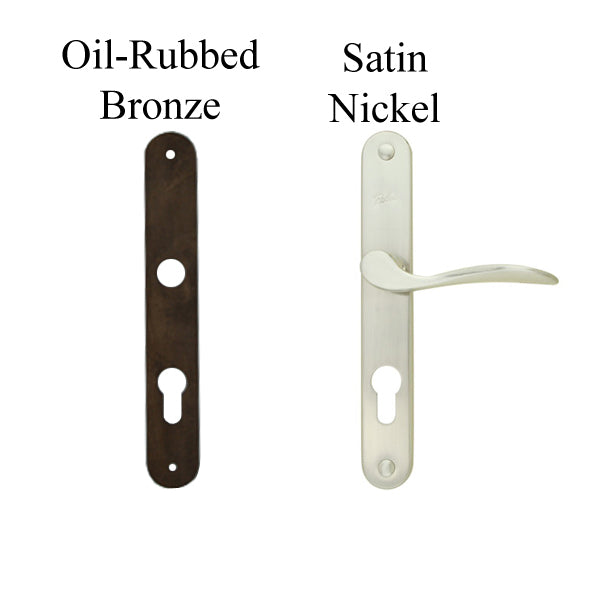

Color Options:
Oil-Rubbed Bronze

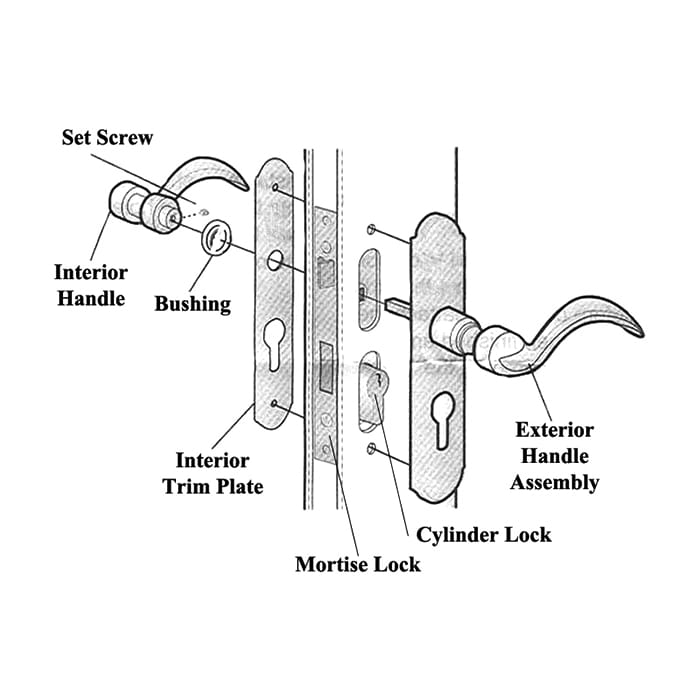

Installation Guide: Pella Installation Instructions for Mortised Hardware

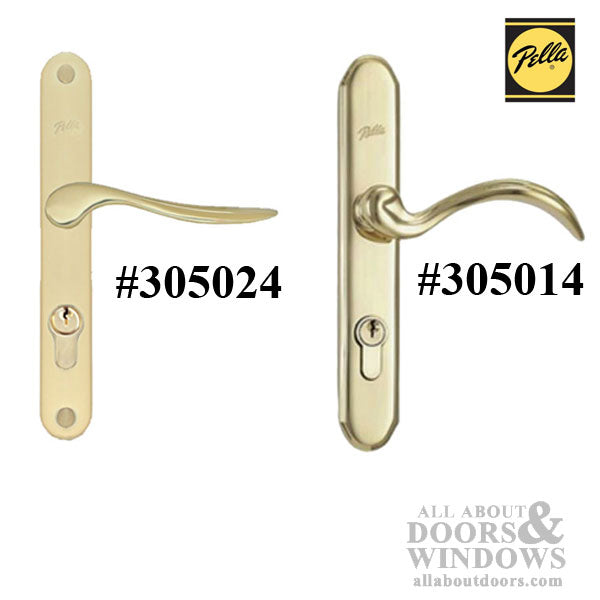

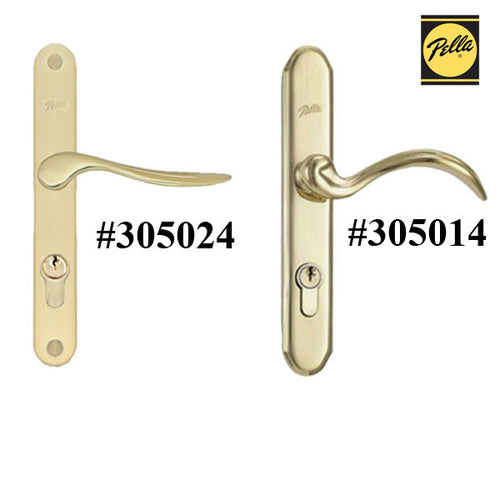

Other Replacement Options:

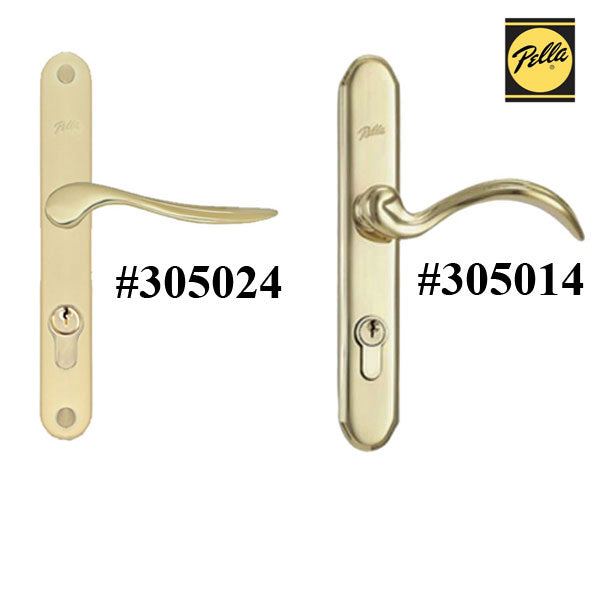

305014 - Pella Curved Lever Trim only with Euro Cylinder
302040 - Wright Curved Lever with American Cylinder, Adjustable 7/8" or 1" Backset
302035 - Wright Curved Lever with American Cylinder, 7/8" Backset
