NOTE: This trim Only fits the 2 bolt version - see images

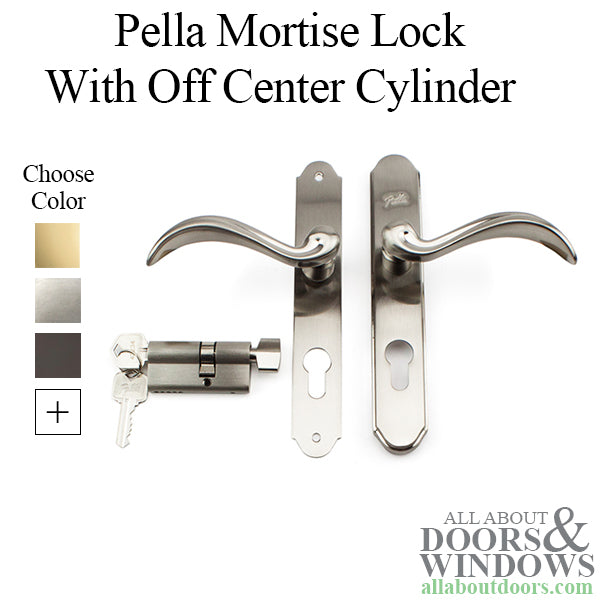

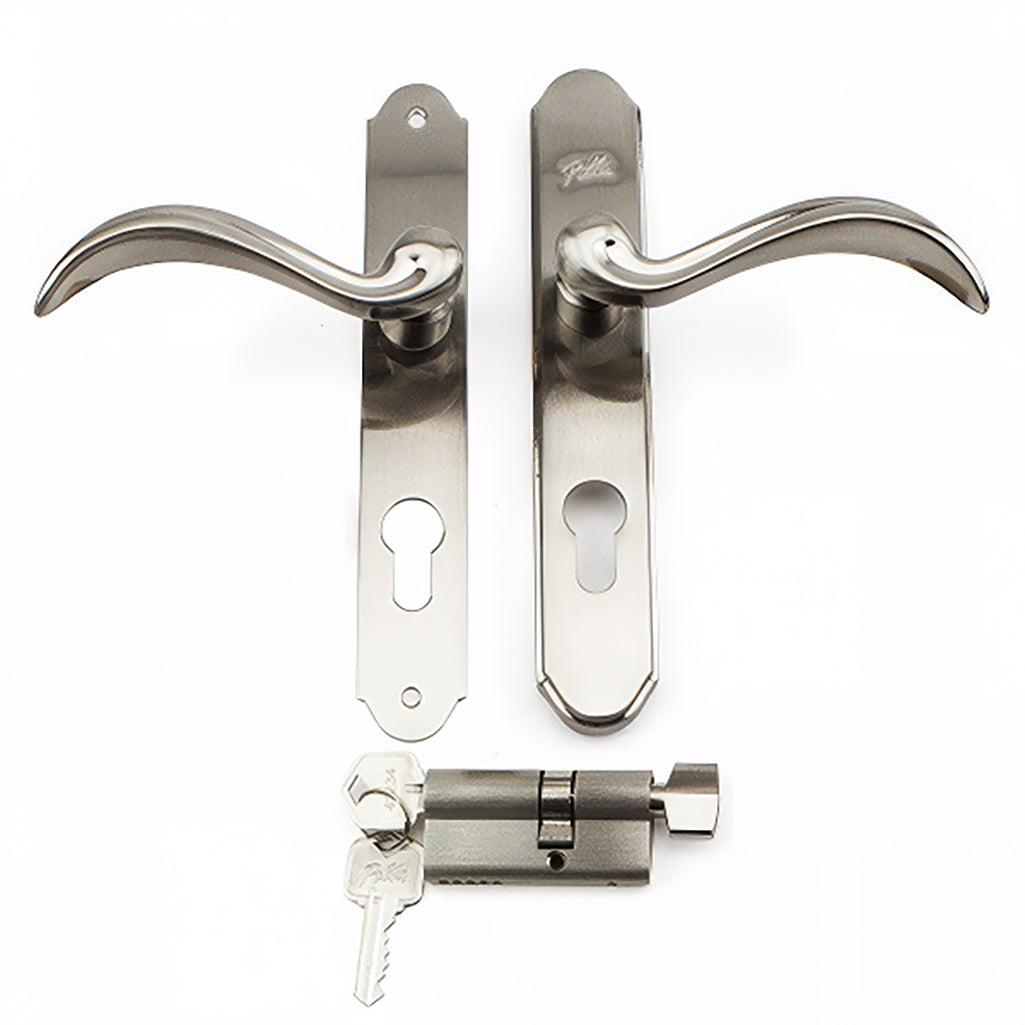

Pella 6000 series Mortise Lock version, solid brass replacement trim lever handle set for 2 bolt storm door lock

For use with Pella or Larson hardware with off center key cylinder that uses our 305013 double bolt mortise lock (not included)

Handle Trim: Curved Levers; Solid Brass Finish

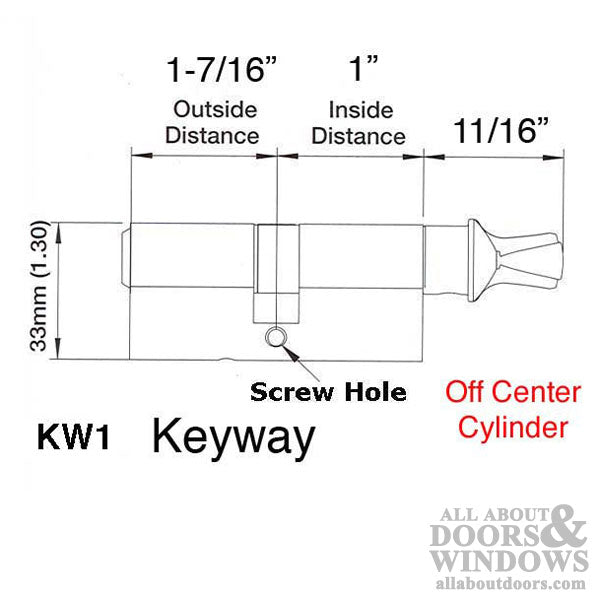

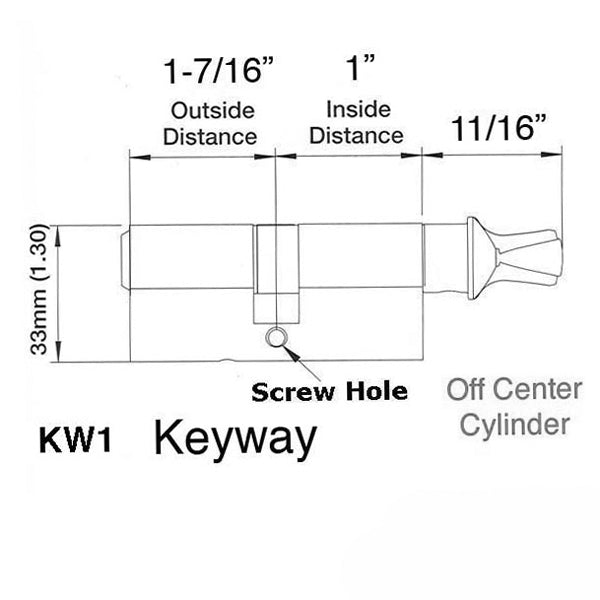

Cylinder: Single key with thumbturn, has offset (not centered) tail piece
Keyway: rekeyable Kwikset KW1 keyway with 2 keys
Escutcheon Plates: flat inside plate, raised outside plate

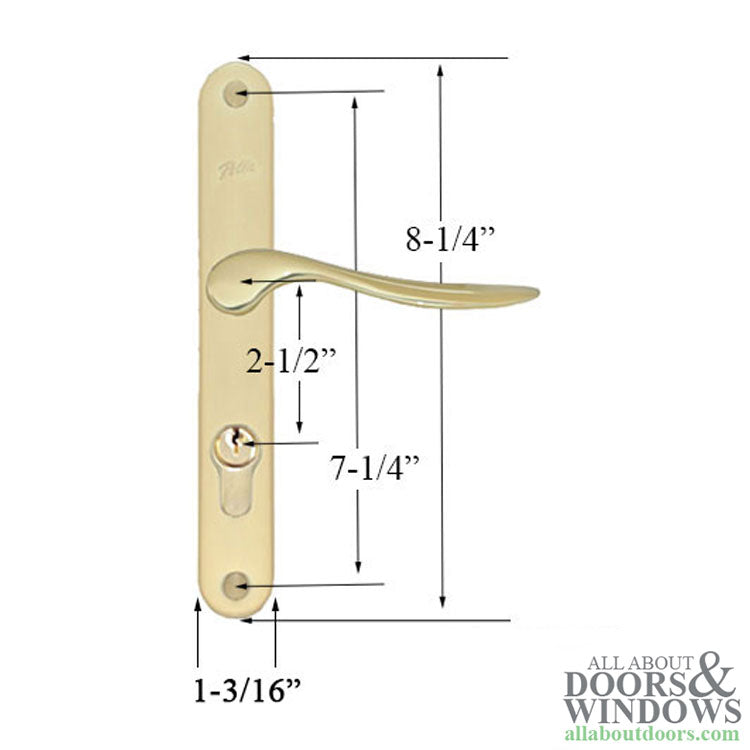

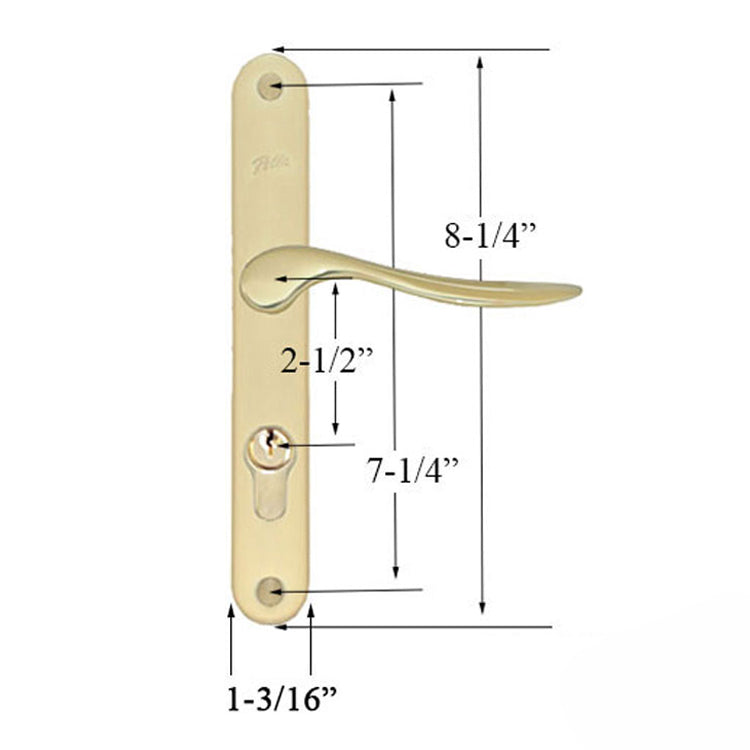

Exterior Plate Length: 8-1/4"
Exterior Plate Width: 1-5/16"
Interior Plate Length: 8-1/4"
Interior Plate Length: 1-3/16"
Escutcheon Plates screw holes: 7-1/4 inches

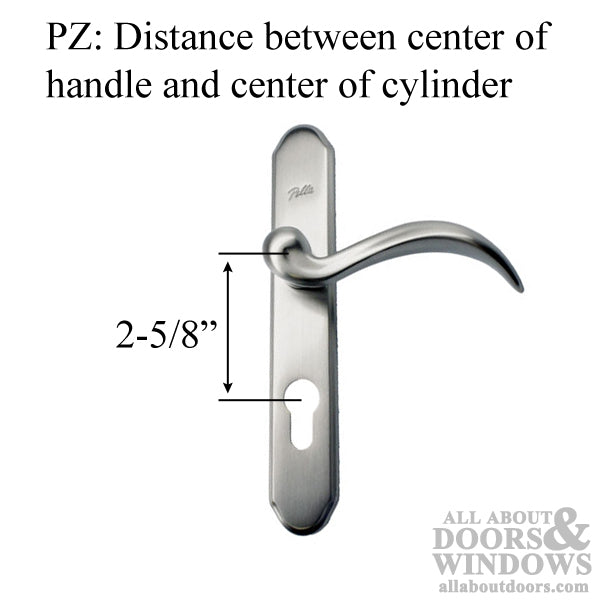

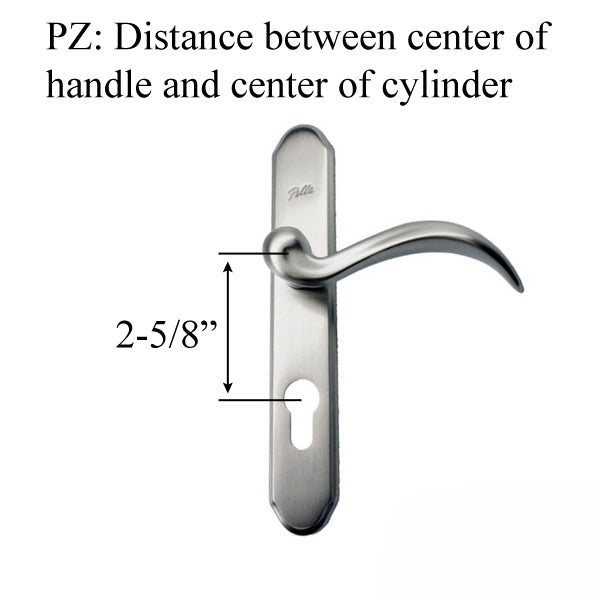

PZ (center of cylinder to center of handle): 2-5/8 inches

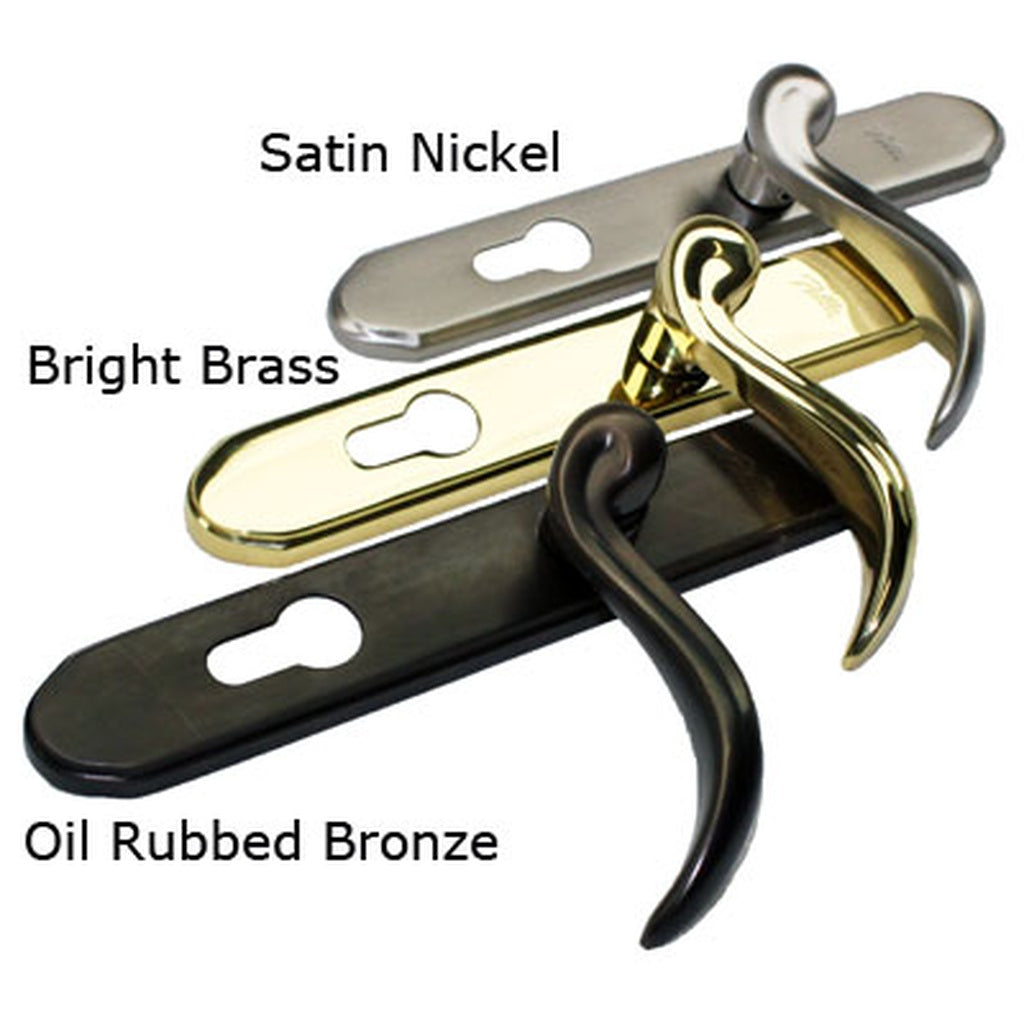

Available Colors: Oil Rubbed Bronze, Polished Brass, Brushed/Satin Nickel

Contents: Trim only with keyed cylinder. No mortise lock included.
Priced and sold as Exterior Trim only, Does not include mortise lock

Note: The 302038 cylinder will not work on this double bolt lock body
Replacement cylinder must be made by Pella (cyorrect cylinder is included)
Their cylinder knob/key turns 270 degrees before the cam starts to turn.

Related Pella Locks and Handles:
305013 - Pella 2 bolt mortise lock
305024 - Pella Trim & 1 Bolt mortise lock, Contemporary / Modern Style
305025 - Pella Trim & 1 Bolt mortise lock, Classic Style curved Lever

PDF: Installation Instructions
