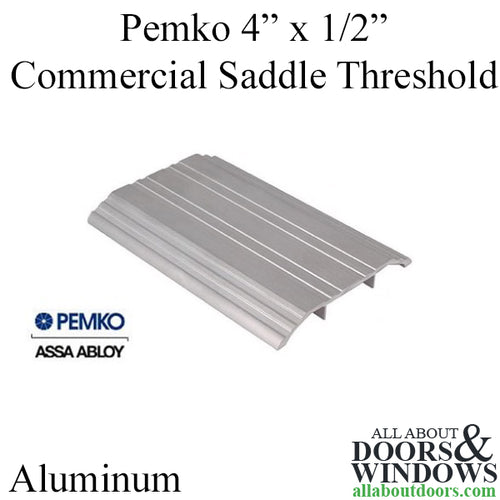

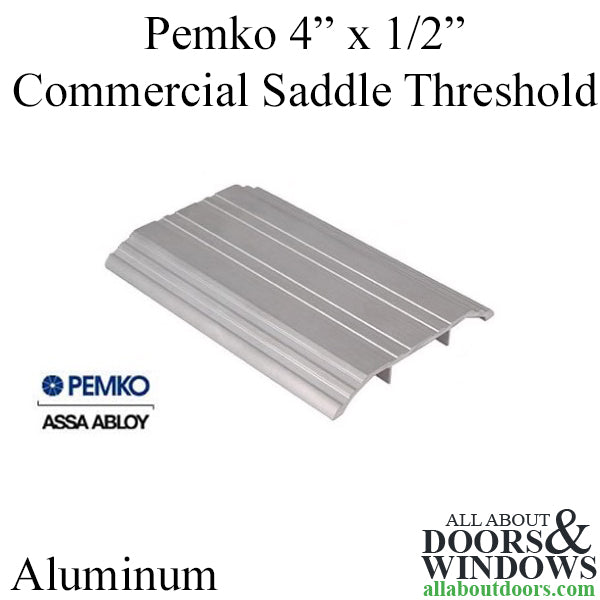

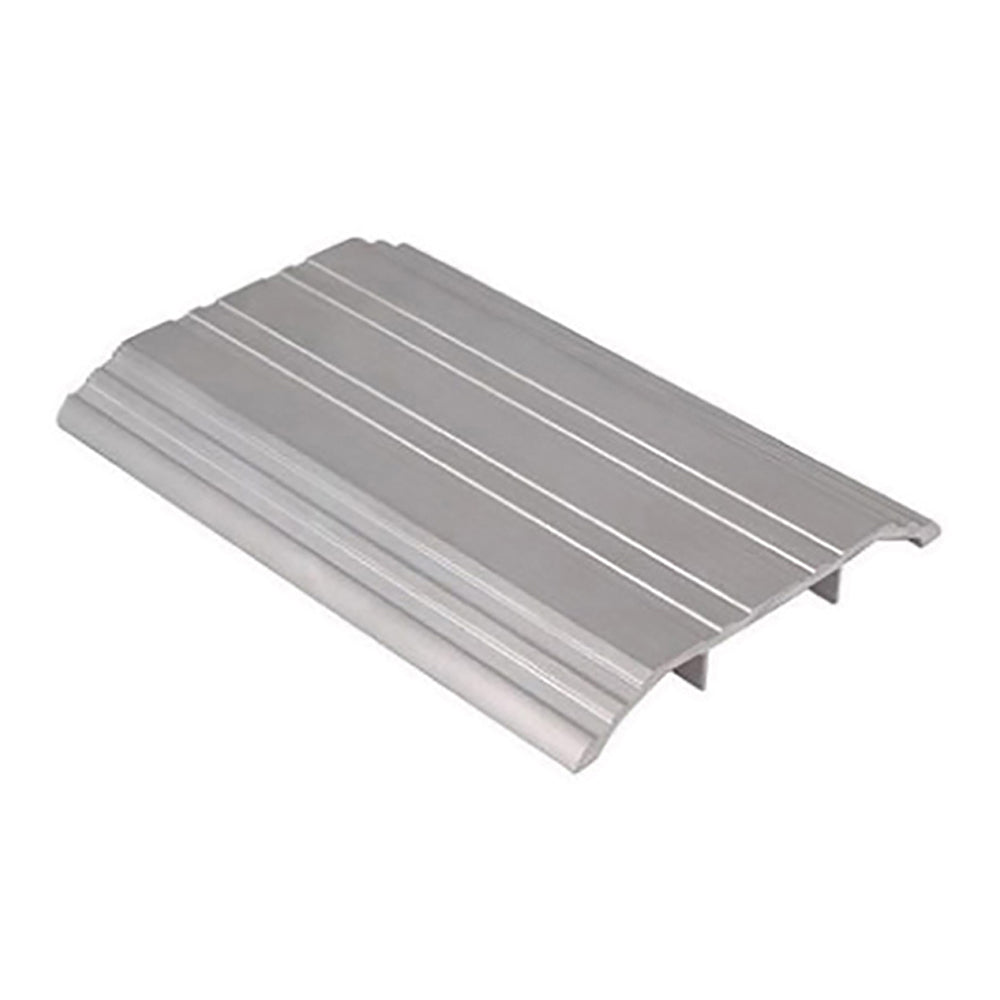

Pemko Commercial Saddle Threshold, 4" x 1/2", Aluminum

Part Number: 170A36 Price: $43.63
Type: Barrier-Free Saddle Threshold
Material: 6063-T6 Aluminum Alloy and Temper Retainer
Finish: A (Mill Finish - Aluminum)
Length: 36 inch

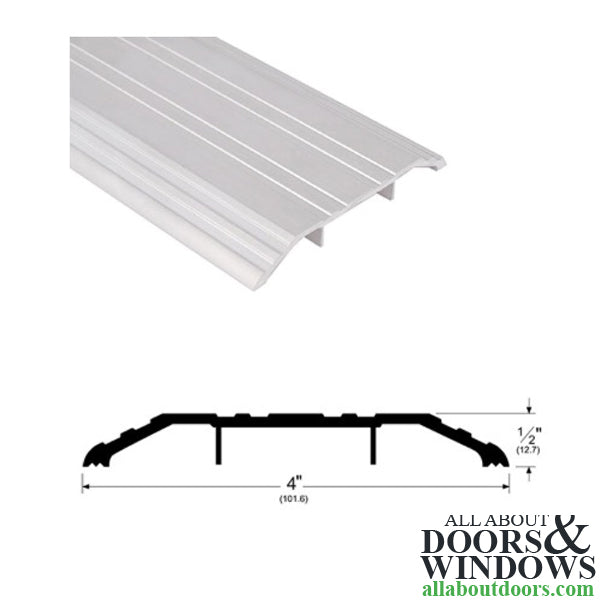

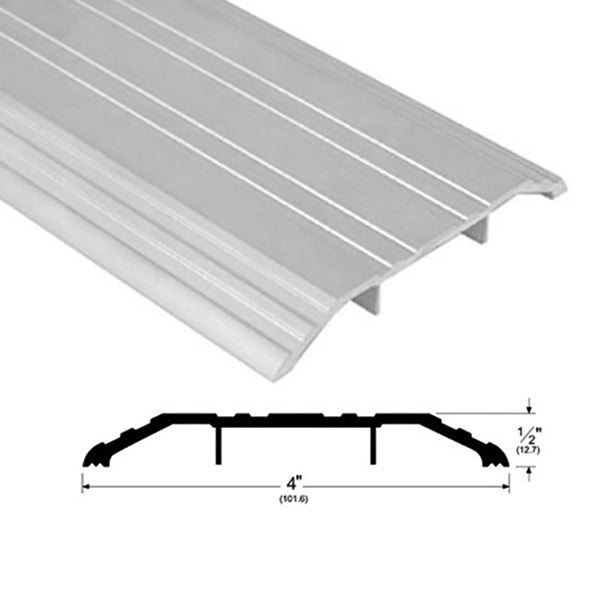

Width: 4 inch
Height: 1/2 inch

• Barrier-Free (ADA) – Meets the requirements of ADAAG-2010 (Amended) and ANSI A117.1-2009 for: • Overall height is no greater than 1⁄2”
• A vertical rise no more than 1⁄4” and/or change in elevation being beveled with a slope of 1:2
• Does not require more than 5lbs of operating force
• Non-Skid/Pemkote – Meets the requirements of ASTM D 2047, UL 410, and Federal Specifications P-F-430C
for high static coefficient of friction resulting in a slip resistance surface
• Fire Rated – Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies
• BHMA Certified – Tested for performance with regards to the requirements in: • ANSI/BHMAA156.21–Thresholds
