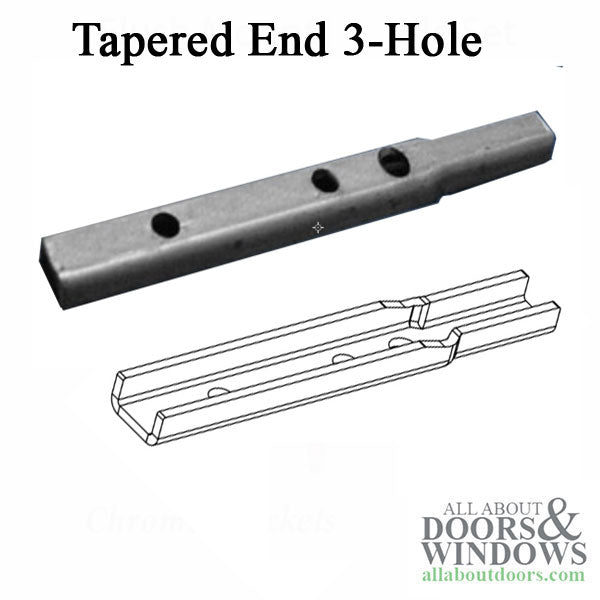

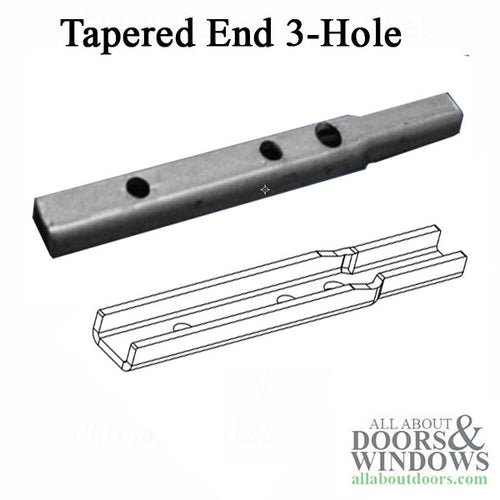

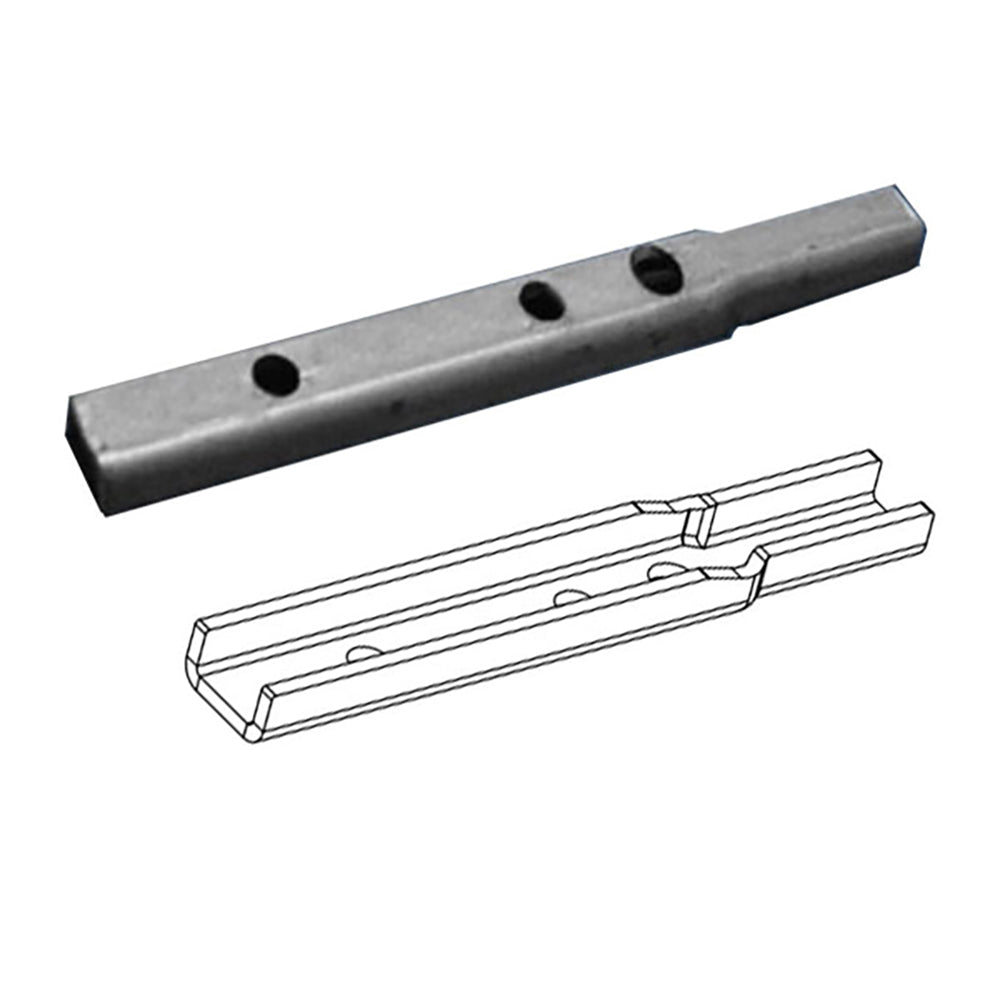

Pivot Bar, 2-1/4", 3 hole tapered end, Stamped Steel
Part Number: Price: $0.79Pivot Bar with tapered end for vinyl and metal tilt in windows
Used by Rollyson and other aluminum and vinyl window companies

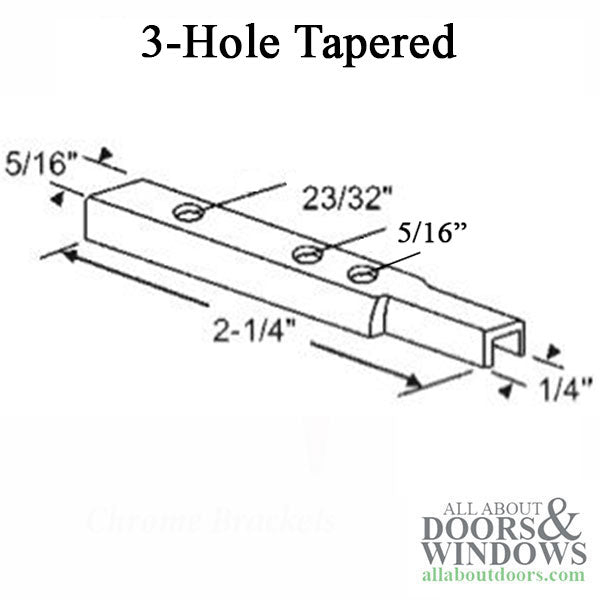

Overall Length: 2-1/4 Inch
Holes: 3 ( old style had 2 holes )
Hole Spacing: 1/2 inch & 1-3/16 inch from end
Diameter: 5/16 one end, Tampered to 1/4 inch other
Material: Stamped Steel
Related Balance Parts:
530015 - Balance Shoe, 1 inch Pocket
V-6925 - Pivot Bar, Stamped Steel, 3 hole
530002 - Pivot Lock Balance Shoe
532051 - Pivot Bar, Stamped Steel, 2 hole (old style)
Used by Rollyson and other aluminum and vinyl window companies
Overall Length: 2-1/4 Inch
Holes: 3 ( old style had 2 holes )
Hole Spacing: 1/2 inch & 1-3/16 inch from end
Diameter: 5/16 one end, Tampered to 1/4 inch other
Material: Stamped Steel
Related Balance Parts:
530015 - Balance Shoe, 1 inch Pocket
V-6925 - Pivot Bar, Stamped Steel, 3 hole
530002 - Pivot Lock Balance Shoe
532051 - Pivot Bar, Stamped Steel, 2 hole (old style)
