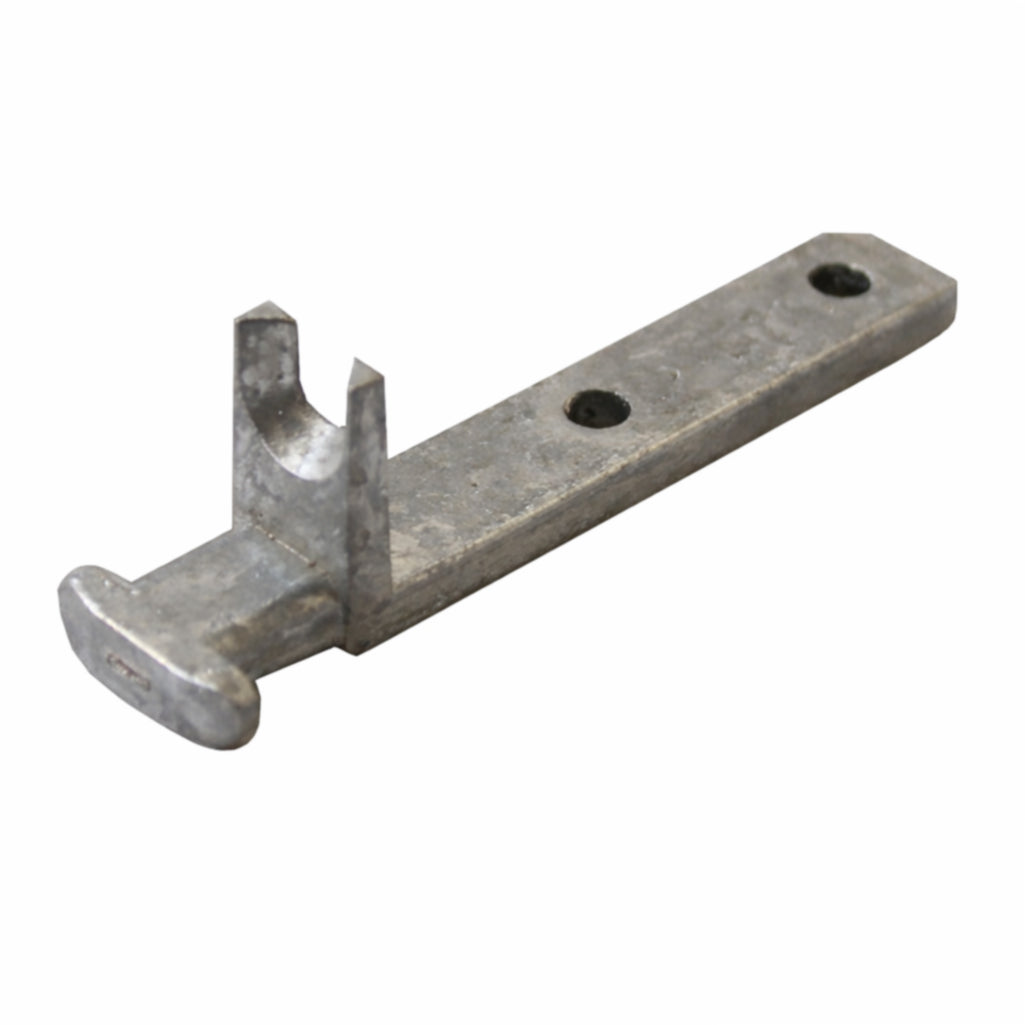

Pivot Bar, 2-1/8", 2 hole L-Shaped T-head, end - zinc die cast
Part Number: Price: $1.87Pivot Bar, 2-1/8", 2 hole L-Shaped T-head, end - zinc die cast

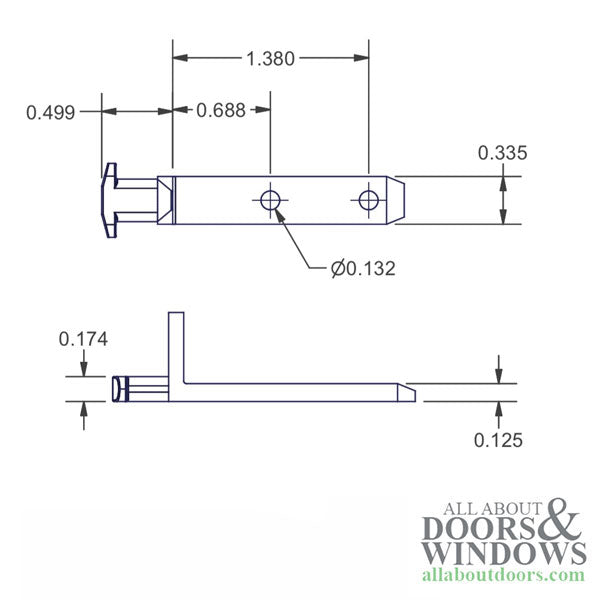

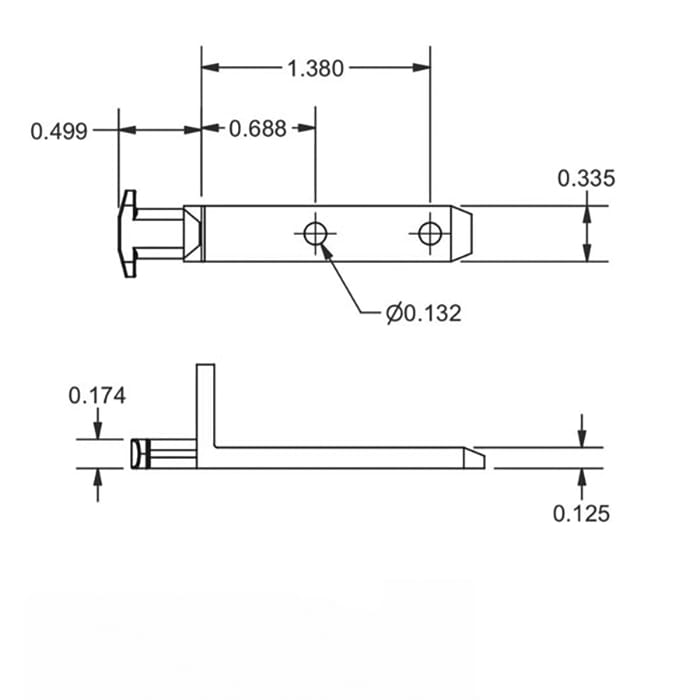

Pivot Type: L-Shaped, T-Head
Overall Length: 2-1/8 inch
Width: 21/64 inch 0.335
Thickness: 1/8 inch 0.125
1st Hole from T-Head: 1-3/16
2nd Hole from T-Head: 1-7/8
Holes Spaced: 11/16 inch
Material: Zinc die cast
Pivot Type: L-Shaped, T-Head
Overall Length: 2-1/8 inch
Width: 21/64 inch 0.335
Thickness: 1/8 inch 0.125
1st Hole from T-Head: 1-3/16
2nd Hole from T-Head: 1-7/8
Holes Spaced: 11/16 inch
Material: Zinc die cast
