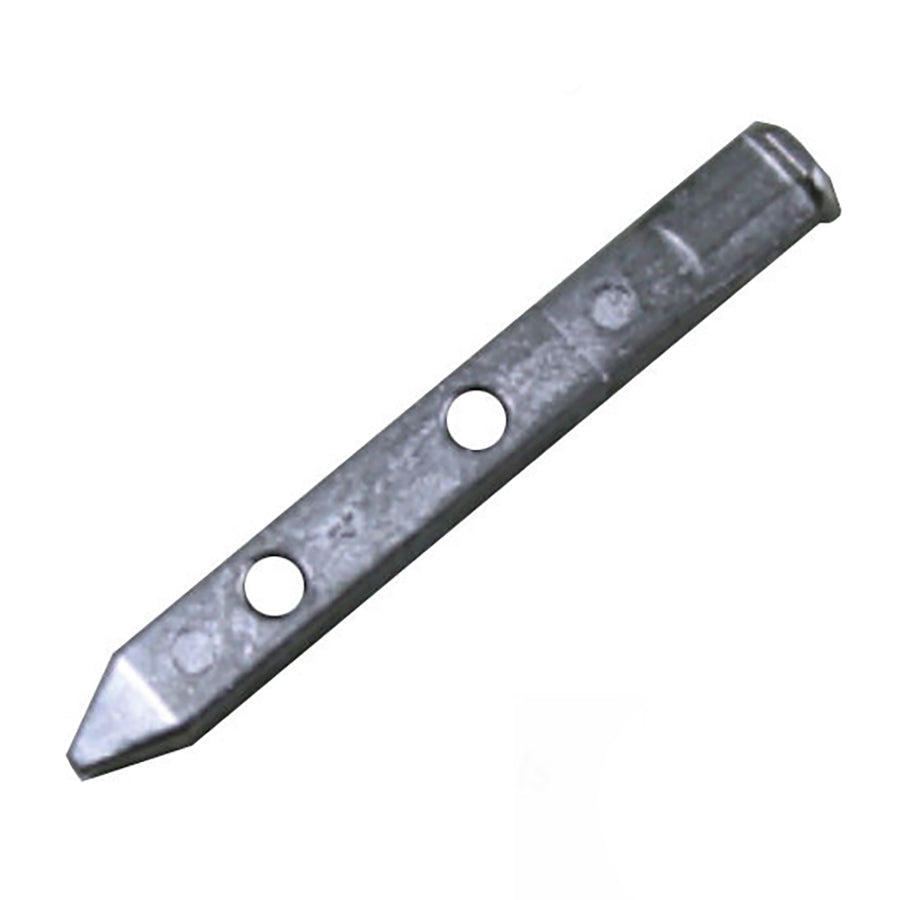

Pivot Bar 2.5", 2 holes, Round Head, Zinc Die Cast

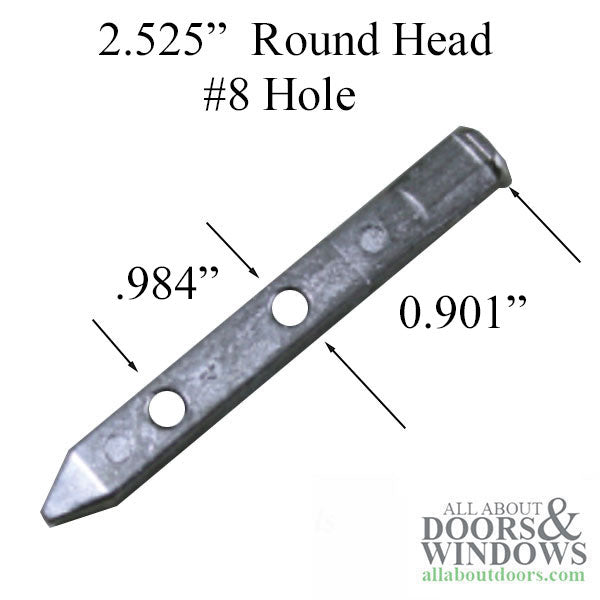

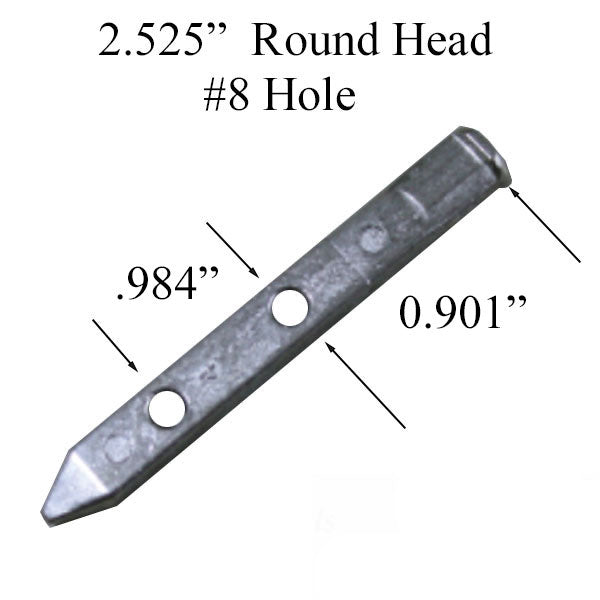

Part Number: Price: $2.882-1/2 inch straight pivot bar with round head, 2 hole spaced 0.984 inch apart used with single and double hung tilt windows.
Round head pivot bar for use with New style quick tilt constant force balance assemblies.
Head Type: Round

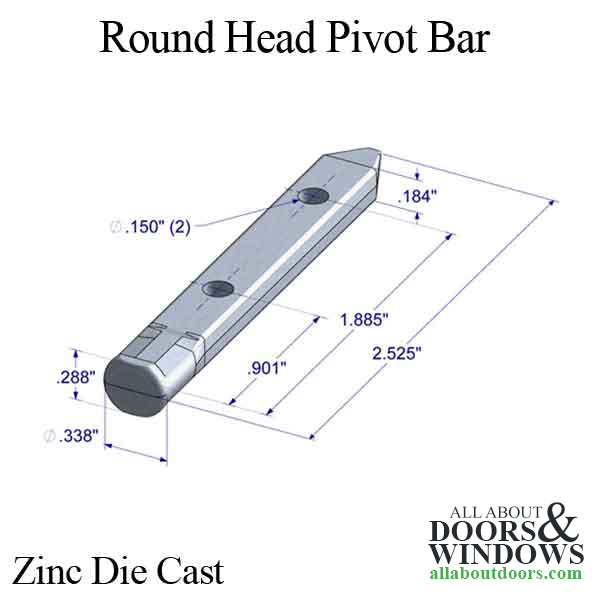

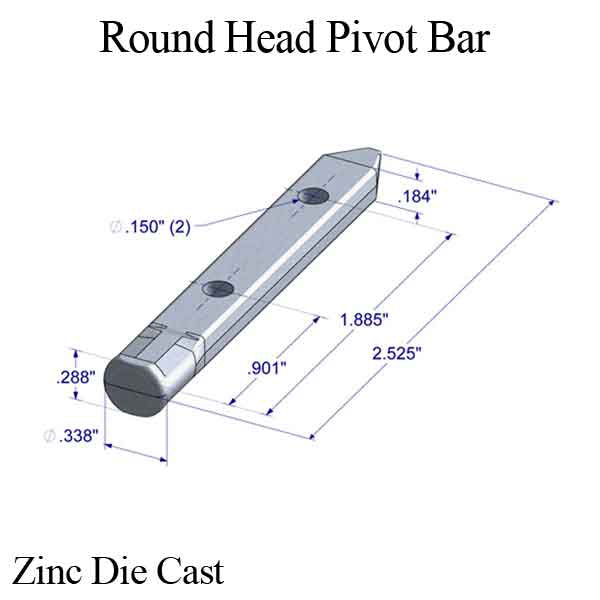

Pivot Bar Length: 2.525 inch ( 64.135mm) 2-33/64
First Hole Location: 0.901 inch (22.885mm) 57/64
Second Hole Location: 1.885 inch (47.879mm) 1-57/64
Bar Configuration: Straight
Number of Holes: 2
Screw Size: # 8
Screw Included: No
Scribe Line: none
Material: Die-Cast Zinc Alloy
Round head pivot bar for use with New style quick tilt constant force balance assemblies.
Head Type: Round
Pivot Bar Length: 2.525 inch ( 64.135mm) 2-33/64
First Hole Location: 0.901 inch (22.885mm) 57/64
Second Hole Location: 1.885 inch (47.879mm) 1-57/64
Bar Configuration: Straight
Number of Holes: 2
Screw Size: # 8
Screw Included: No
Scribe Line: none
Material: Die-Cast Zinc Alloy
