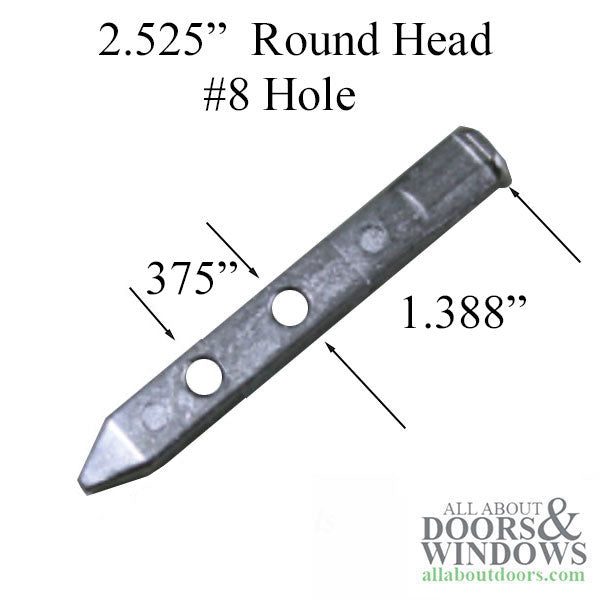

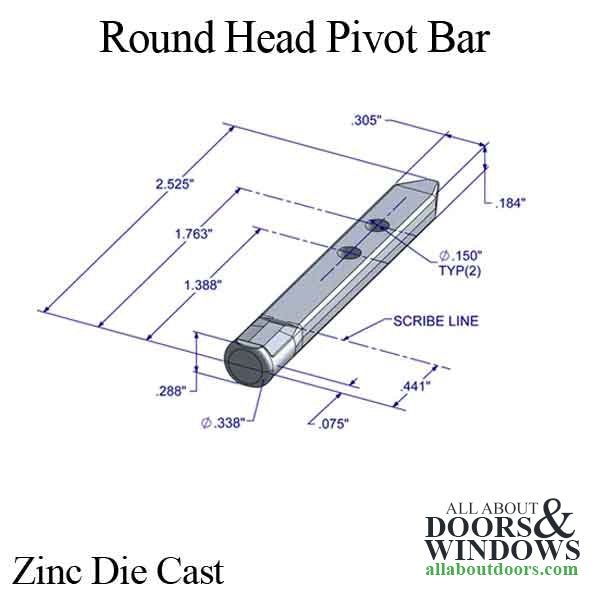

2.525 INCHES
ROUND HEAD
DIE-CAST
FIRST HOLE LOCATION: 1.388 INCHES
SECOND HOLE LOCATION: 1.763 INCHES
MOVING OR FIXED COIL Both
PIVOT BAR LENGTH 2.525 Inches
FIRST HOLE LOCATION 1.388 Inches
SECOND HOLE LOCATION 1.763 Inches
NUMBER OF HOLES 2
SCREW INCLUDED No
SCREW SIZE #8
HEAD TYPE Round
MATERIAL TYPE Die-Cast Zinc Alloy
BAR CONFIGURATION Straight
ROUND HEAD
DIE-CAST
FIRST HOLE LOCATION: 1.388 INCHES
SECOND HOLE LOCATION: 1.763 INCHES
MOVING OR FIXED COIL Both
PIVOT BAR LENGTH 2.525 Inches
FIRST HOLE LOCATION 1.388 Inches
SECOND HOLE LOCATION 1.763 Inches
NUMBER OF HOLES 2
SCREW INCLUDED No
SCREW SIZE #8
HEAD TYPE Round
MATERIAL TYPE Die-Cast Zinc Alloy
BAR CONFIGURATION Straight
