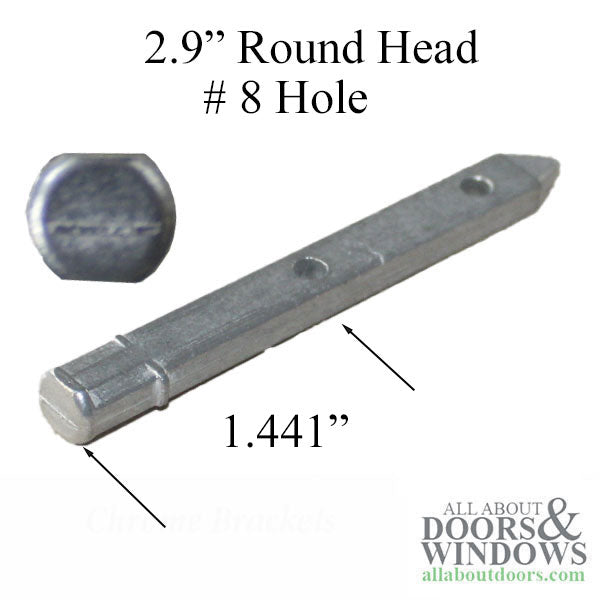

Pivot Bar 2.9", 2 holes, Zinc Die Cast

Pivot Bar 2.9
Pivot Bar 2.9
Pivot Bar 2.9
Pivot Bar 2.9

Pivot Bar 2.9", 2 holes, Zinc Die Cast

Part Number:532101 Price: $2.88

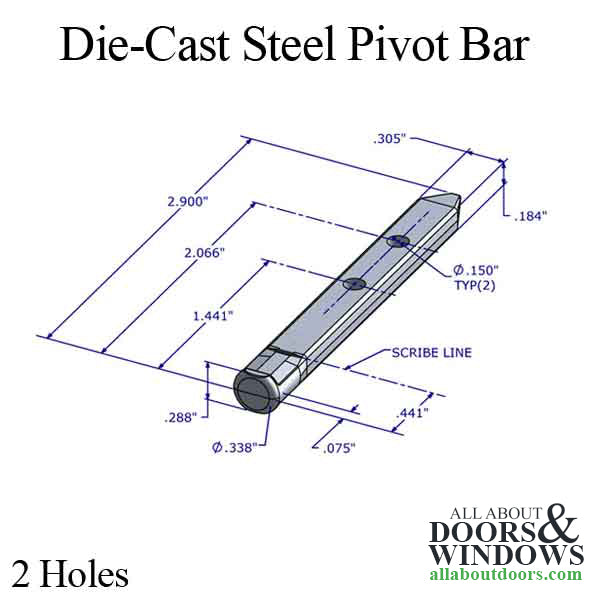

2.9 INCHES
ROUND HEAD
DIE-CAST
FIRST HOLE LOCATION: 1.441 INCHES
SECOND HOLE LOCATION: 2.066 INCHES

MOVING OR FIXED COILBoth
PIVOT BAR LENGTH2.9 Inches
FIRST HOLE LOCATION1.441 Inches
SECOND HOLE LOCATION2.066 Inches
NUMBER OF HOLES2
SCREW SIZE#8
HEAD TYPERound
MATERIAL TYPEDie-Cast Zinc Alloy
BAR CONFIGURATIONStraight
WINDOW CONFIGURATIONTilt
2.9 INCHES<BR>ROUND HEAD<BR>DIE-CAST<BR>FIRST HOLE LOCATION: 1.441 INCHES<BR>SECOND HOLE LOCATION: 2.066 INCHES<BR><br>MOVING OR FIXED COIL<span style="white-space:pre"> </span>Both<BR>PIVOT BAR LENGTH<span style="white-space:pre"> </span>2.9 Inches<BR>FIRST HOLE LOCATION<span style="white-space:pre"> </span>1.441 Inches<BR>SECOND HOLE LOCATION<span style="white-space:pre"> </span>2.066 Inches<BR>NUMBER OF HOLES<span style="white-space:pre"> </span>2<BR>SCREW SIZE<span style="white-space:pre"> </span>#8<BR>HEAD TYPE<span style="white-space:pre"> </span>Round<BR>MATERIAL TYPE<span style="white-space:pre"> </span>Die-Cast Zinc Alloy<BR>BAR CONFIGURATION<span style="white-space:pre"> </span>Straight<BR>WINDOW CONFIGURATION<span style="white-space:pre"> </span>Tilt
Add to Card
slide

Pivot Bar 2.9", 2 holes, Zinc Die Cast

Pivot Bar 2.9", 2 holes, Zinc Die Cast

Pivot Bar 2.9", 2 holes, Zinc Die Cast

Part Number:532101 Price: $2.88
