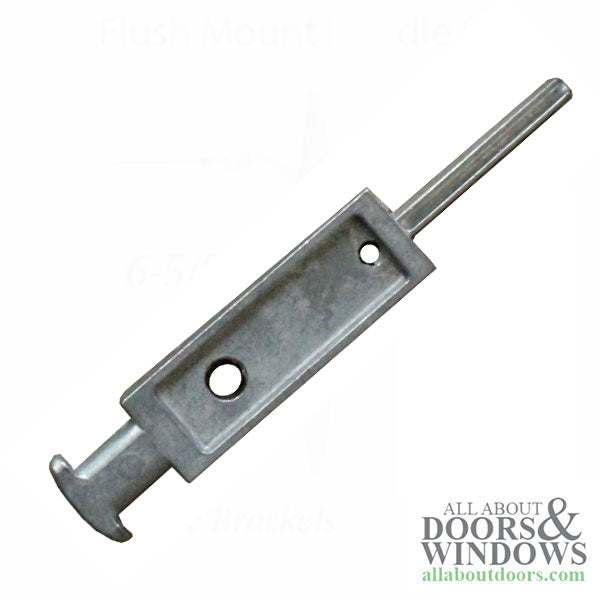

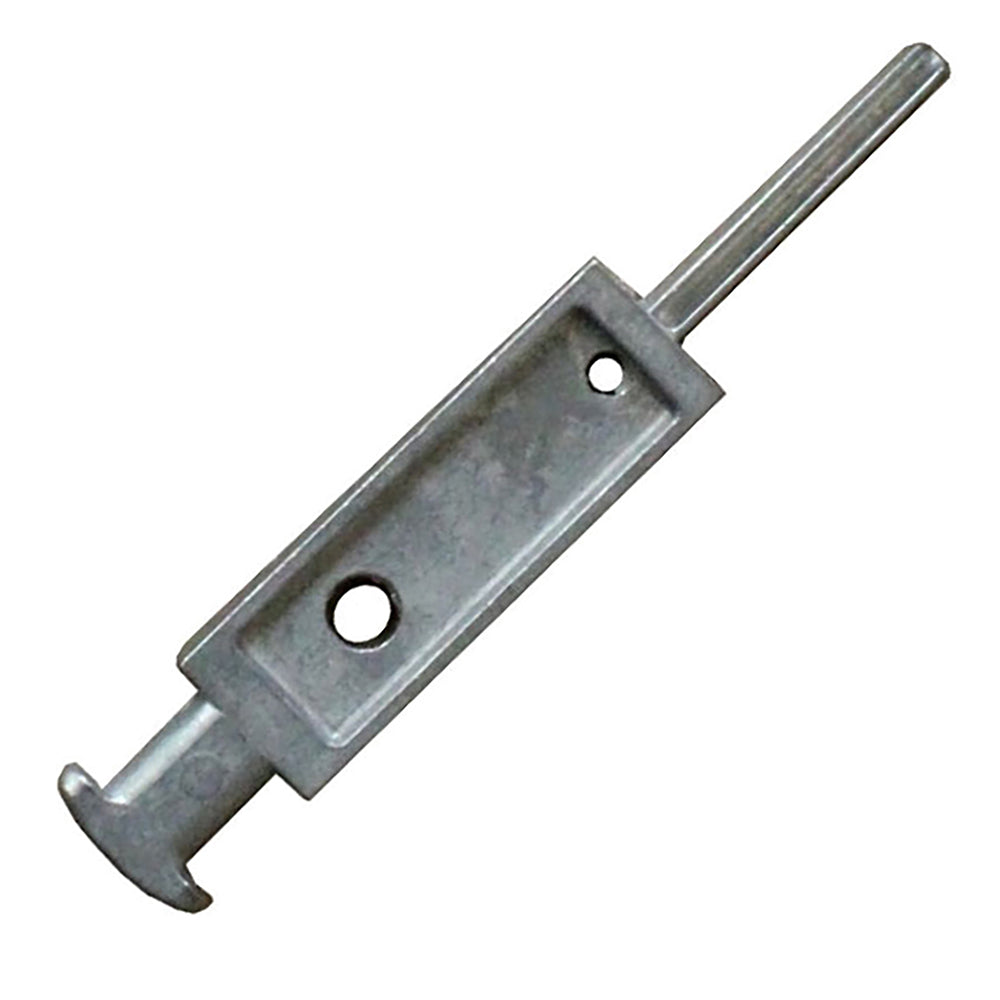

Pivot Bar, 3-1/8", 2 hole - Zinc Die Cast
Use the arrows or swipe left to view all images for this product
Pivot Bar, 3-1/8", 2 hole - Zinc Die Cast
Part Number: $0.39Pivot Bar, 3-1/8", 2 hole - Zinc Die Cast - Revised Screw Hole

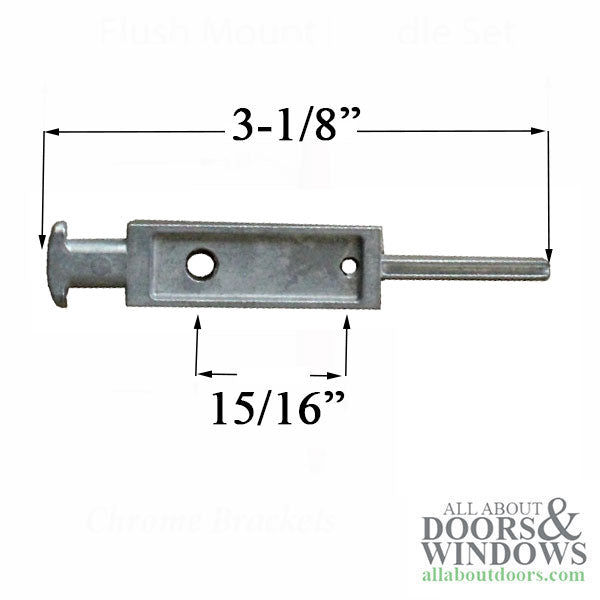

Length: 3-1/8 inch
Width: 1/2 inch
Thick: 5/16 inch
Screw hole spacing: 15/16 inch
Top center hole to long tail tip: 2-1/8 inch
Top center hole to T-Head: 13/16 inch
Lower center hole to long tail tip: 1-1/4 inch
Lower center hole to T-Head: 1-7/8 inch
Material: zinc die cast.
Length: 3-1/8 inch
Width: 1/2 inch
Thick: 5/16 inch
Screw hole spacing: 15/16 inch
Top center hole to long tail tip: 2-1/8 inch
Top center hole to T-Head: 13/16 inch
Lower center hole to long tail tip: 1-1/4 inch
Lower center hole to T-Head: 1-7/8 inch
Material: zinc die cast.

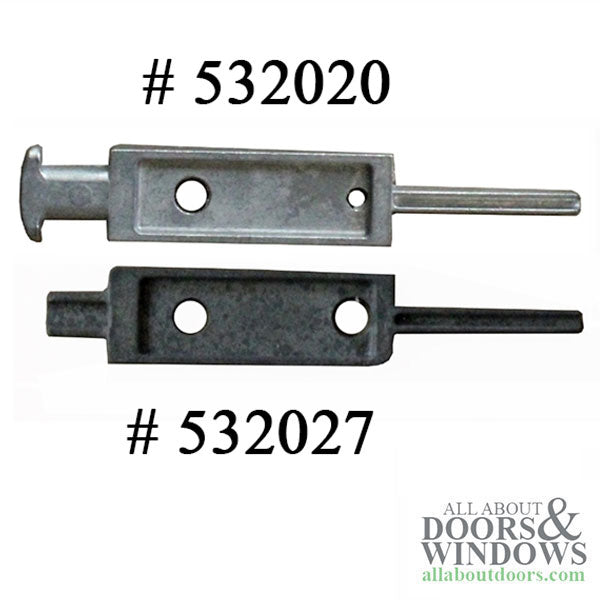

Pivot Bar, 3-1/8", 2 hole - Zinc Die Cast - Revised Screw Hole
Length: 3-1/8 inch
Width: 1/2 inch
Thick: 5/16 inch
Screw hole spacing: 15/16 inch
Top center hole to long tail tip: 2-1/8 inch
Top center hole to T-Head: 13/16 inch
Lower center hole to long tail tip: 1-1/4 inch
Lower center hole to T-Head: 1-7/8 inch
Material: zinc die cast.
