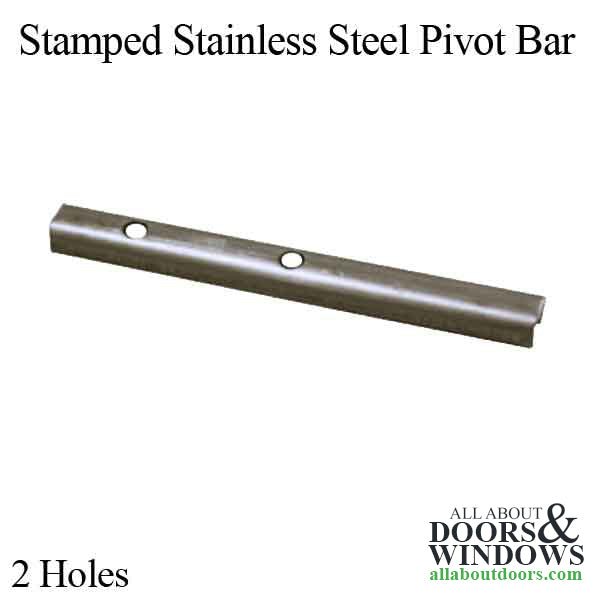

Pivot Bar, 3", 2 hole Stamped Steel, Stainless Steel

Pivot Bar, 3
Pivot Bar, 3
Pivot Bar, 3
Pivot Bar, 3

Pivot Bar, 3", 2 hole Stamped Steel, Stainless Steel

Part Number:900-17544 Price: $1.65

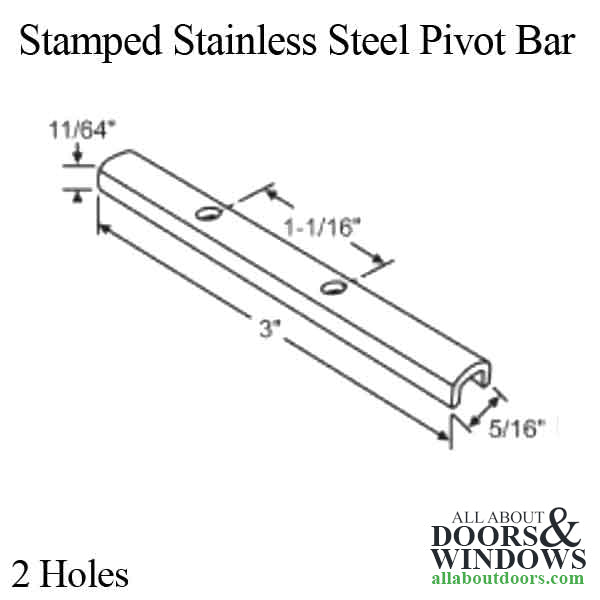

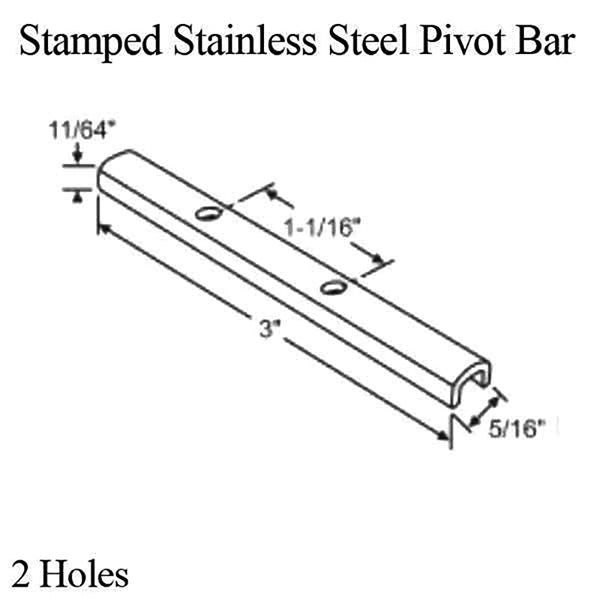

3.0 INCHES
U-SHAPED HEAD
STAMPED
FIRST HOLE LOCATION: 1.475 INCHES
SECOND HOLE LOCATION: 2.475 INCHES


MOVING OR FIXED COIL Both
PIVOT BAR LENGTH 3.0 Inches
FIRST HOLE LOCATION 1.475 Inches
SECOND HOLE LOCATION 2.475 Inches
NUMBER OF HOLES 2
SCREW INCLUDED No
SCREW SIZE #8
HEAD TYPE U-Shaped
MATERIAL TYPE Stamped Stainless
BAR CONFIGURATION Straight
3.0 INCHES<BR>U-SHAPED HEAD<BR>STAMPED<BR>FIRST HOLE LOCATION: 1.475 INCHES<BR>SECOND HOLE LOCATION: 2.475 INCHES<BR><br><br>MOVING OR FIXED COIL<span style="white-space:pre"> </span>Both<BR>PIVOT BAR LENGTH<span style="white-space:pre"> </span>3.0 Inches<BR>FIRST HOLE LOCATION<span style="white-space:pre"> </span>1.475 Inches<BR>SECOND HOLE LOCATION<span style="white-space:pre"> </span>2.475 Inches<BR>NUMBER OF HOLES<span style="white-space:pre"> </span>2<BR>SCREW INCLUDED<span style="white-space:pre"> </span>No<BR>SCREW SIZE<span style="white-space:pre"> </span>#8<BR>HEAD TYPE<span style="white-space:pre"> </span>U-Shaped<BR>MATERIAL TYPE<span style="white-space:pre"> </span>Stamped Stainless<BR>BAR CONFIGURATION<span style="white-space:pre"> </span>Straight
