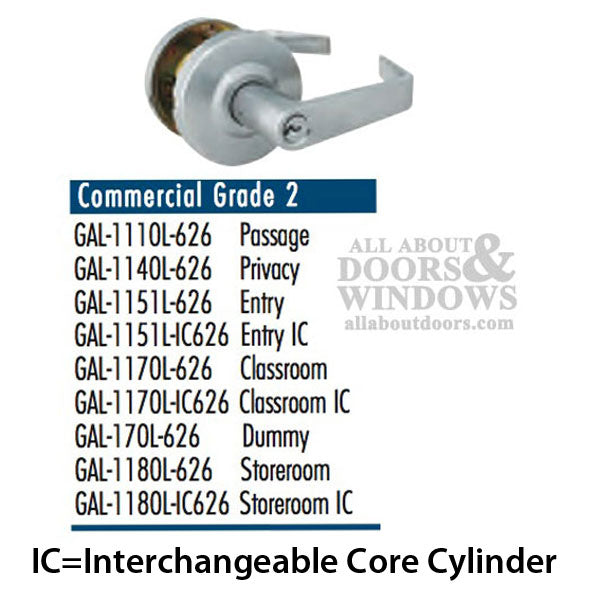

Similar to Schlage AL40S Standard grade 2 commercial Lock at 1/2 the Price

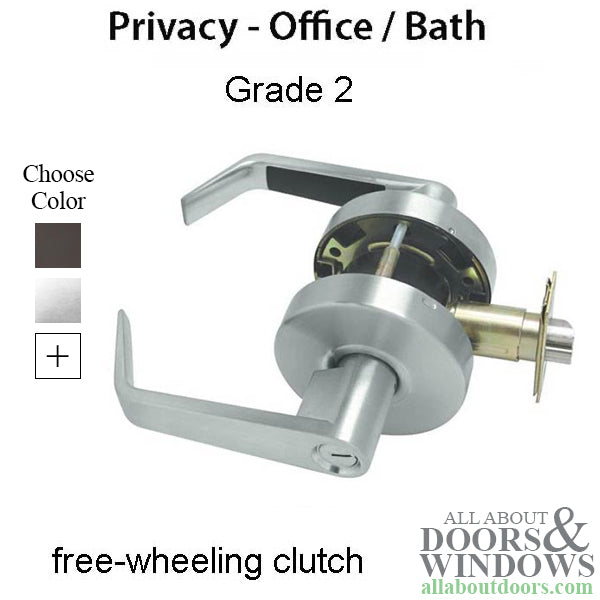

Free-Wheeling clutch, allows lever to move when locked

ADA compliant, Privacy Lock - Office / Bath Function
Heavy duty, Grade 2, Fire rated latch

Color / Finish Options:
Brushed/Satin Chrome US26D (626)
Oil Rubbed Bronze US10B

Conforms to Handicap Code ANSI A156.2 Series 4000
Fits doors from 1-3/8 to 1-3/4 thick

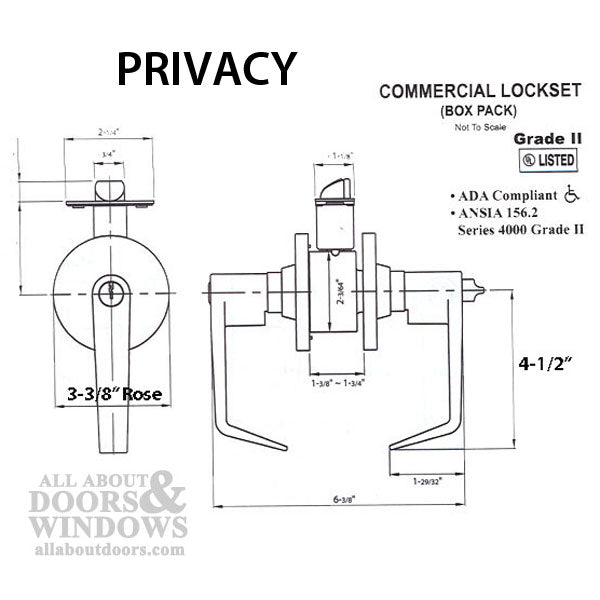

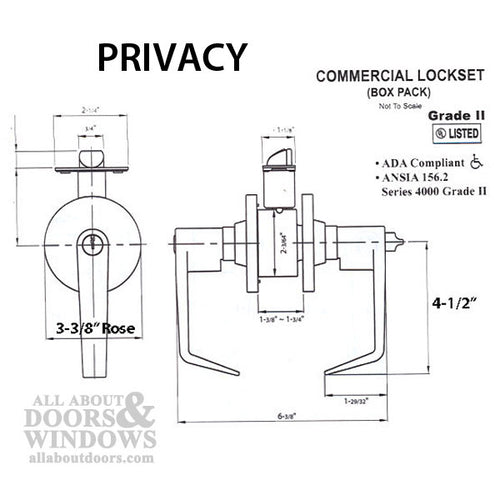

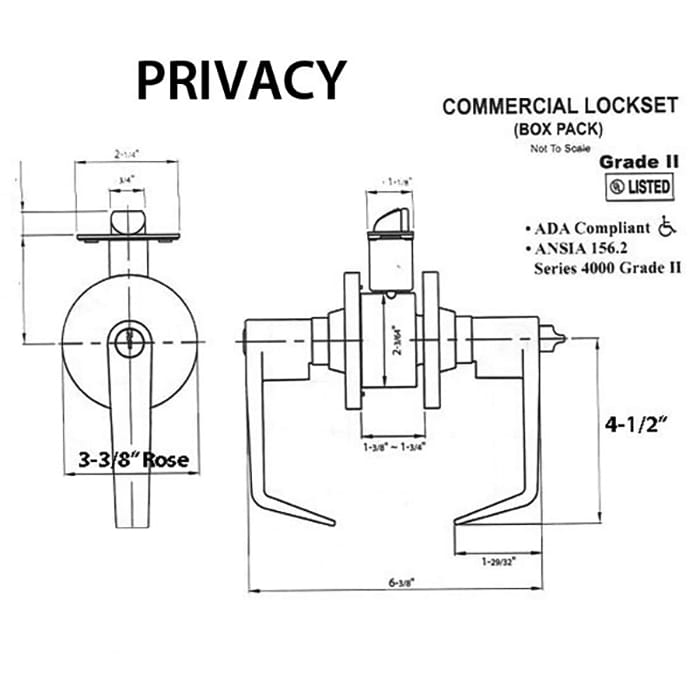

Rose: 3-3/8 inch Flat
Latch: 2-3/4 inch Deadlatch, 1-1/8 x 2-1/4 face
Furnished with ASA Satin Chrome strike plate
Non-handed

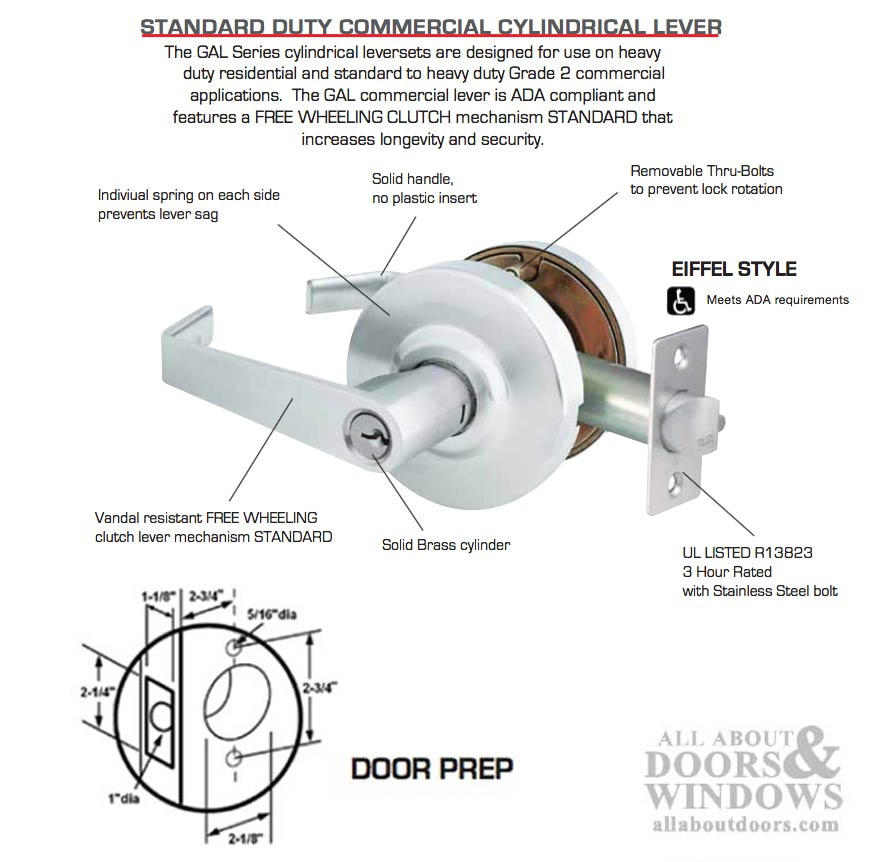

Fits the standard Commercial door preparation 2-3/4 backset, 2-1/8 bore

Easy installation
Suitable for new construction & retrofit
Concealed screw mount, One step rosette
Instructions & Templates for new construction
