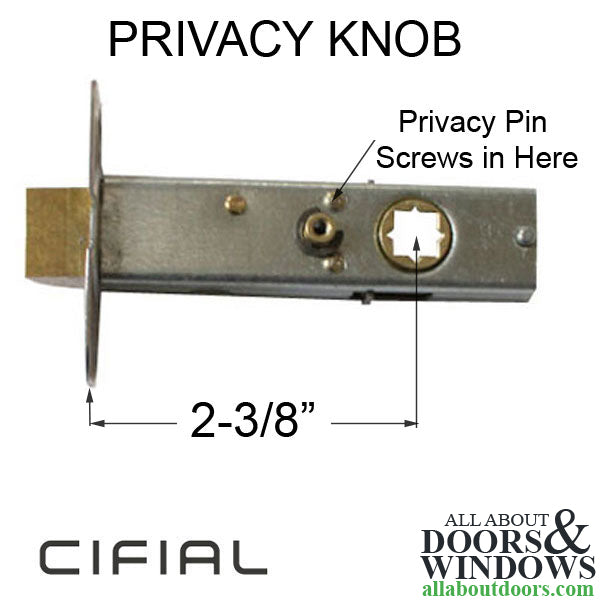

Cifial Privacy Latch, Lever, 2-3/8" bs, Brass Tongue
Function: Privacy, Bedroom or Bathroom
Type: Lever, with heavy duty spring
Tongue Color: Satin Brass
Faceplate: None, Not included
Backset: 2-3/8 inch (60mm)
Overall Length: 3-1/4 inches, not including spring latch
Hub Diameter : 5/16 inch (8mm) on the Square / 7mm on Diamond
Center of Hub to Privacy Pin 11/16 inch
Note:
This is latch only, does not include the Privacy Pin, faceplate, screws or strike plate.
The latch is made with different springs for knobs and levers.
The spring latch can be Satin Brass or Chrome finish.
Passage - Knob 01 = 481850001
Passage- Lever 02 = 481850002
Privacy - Knob 03 = 481850003
Privacy - Lever 04 = 481850004

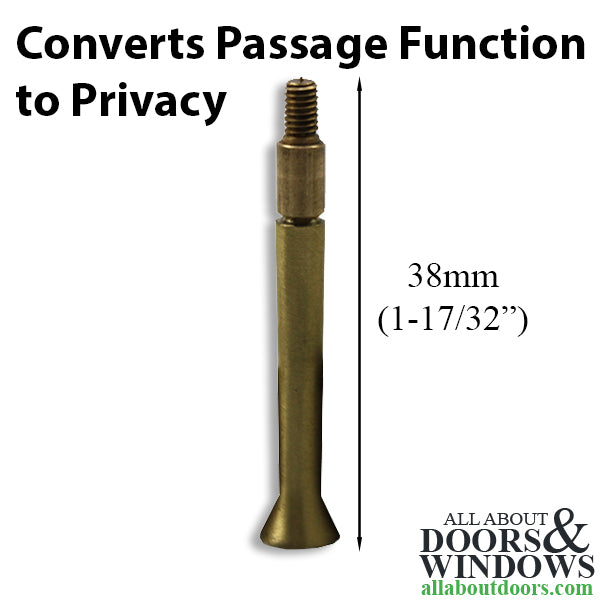

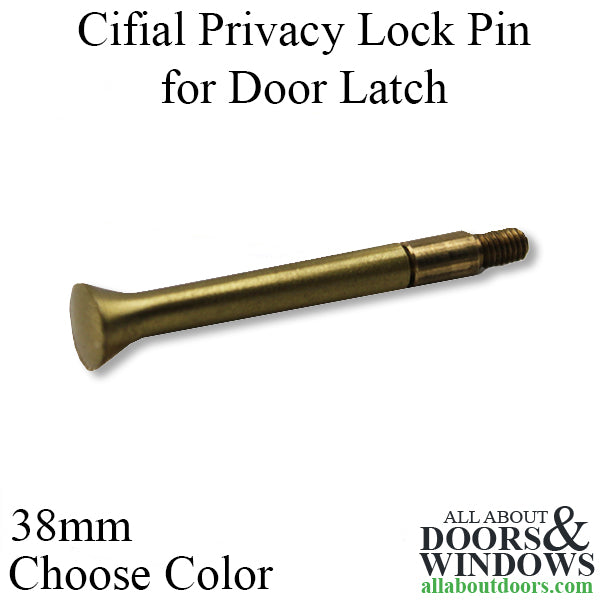

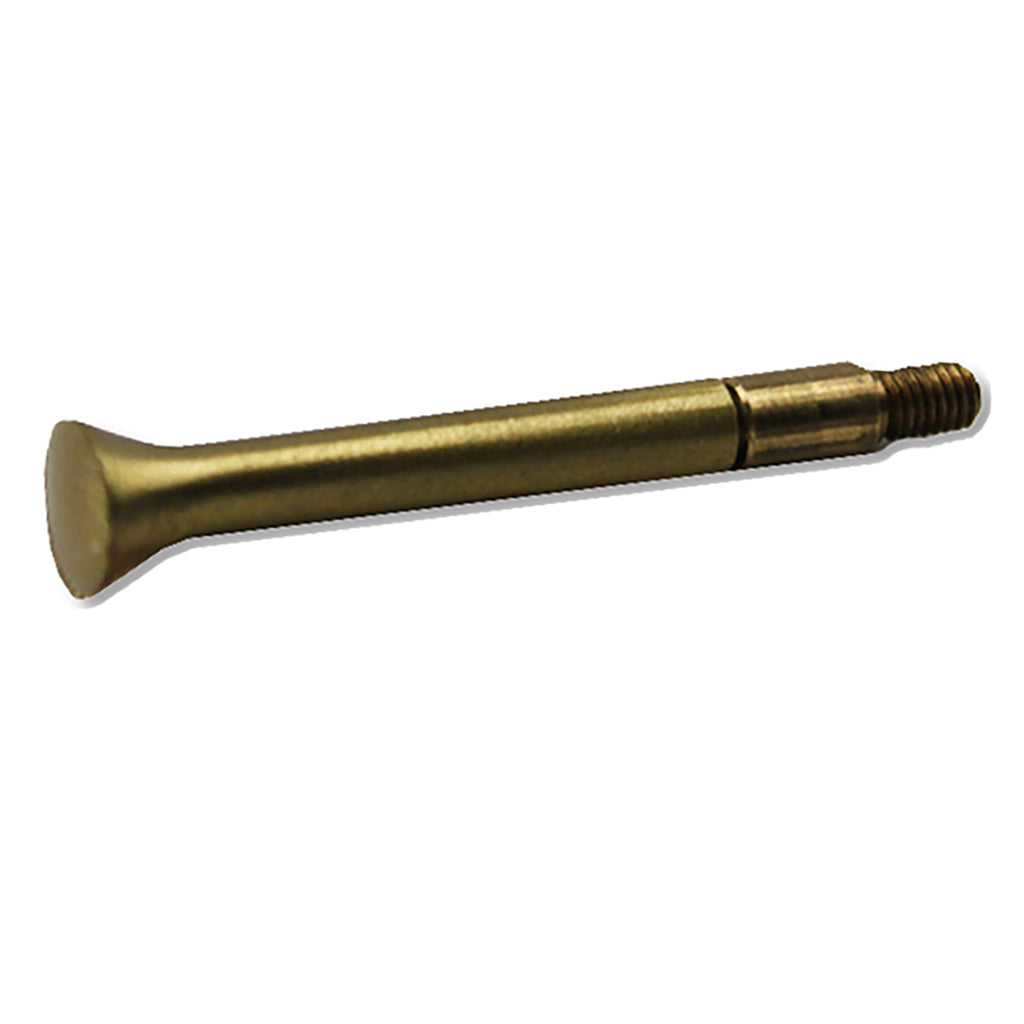

NOTE: The Privacy latch has a Push / Pull Pin used to lock or unlock the door. The threads of the Cifial and other brands are different. When replacing a Cifial latch with another brand you will need the Push / Pull Pin, Not included with latch.
Function: Privacy, Bedroom or Bathroom
Type: Lever, with heavy duty spring
Tongue Color: Satin Brass
Faceplate: None, Not included
Backset: 2-3/8 inch (60mm)
Overall Length: 3-1/4 inches, not including spring latch
Hub Diameter : 5/16 inch (8mm) on the Square / 7mm on Diamond
Center of Hub to Privacy Pin 11/16 inch
Note:
This is latch only, does not include the Privacy Pin, faceplate, screws or strike plate.
The latch is made with different springs for knobs and levers.
The spring latch can be Satin Brass or Chrome finish.
Passage - Knob 01 = 481850001
Passage- Lever 02 = 481850002
Privacy - Knob 03 = 481850003
Privacy - Lever 04 = 481850004
NOTE: The Privacy latch has a Push / Pull Pin used to lock or unlock the door. The threads of the Cifial and other brands are different. When replacing a Cifial latch with another brand you will need the Push / Pull Pin, Not included with latch.
