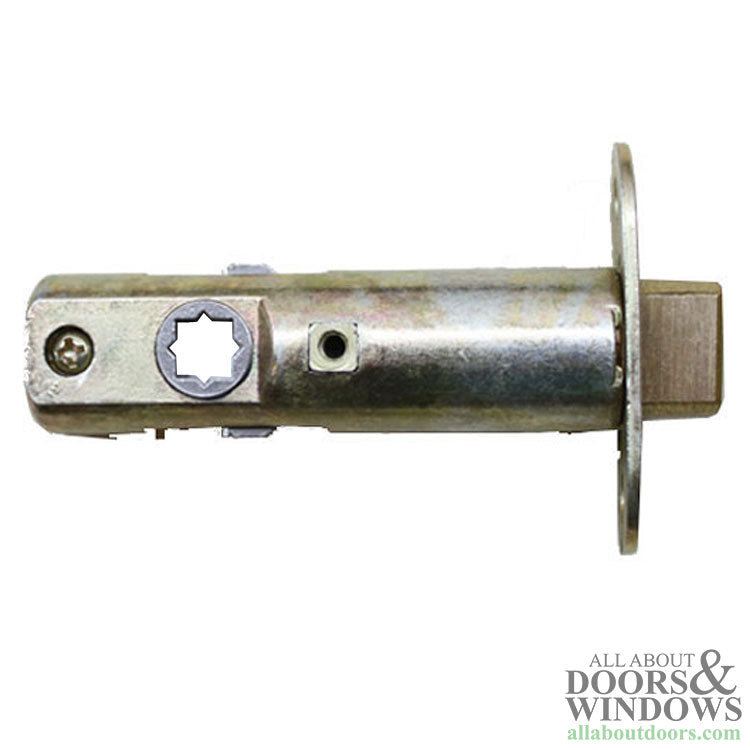

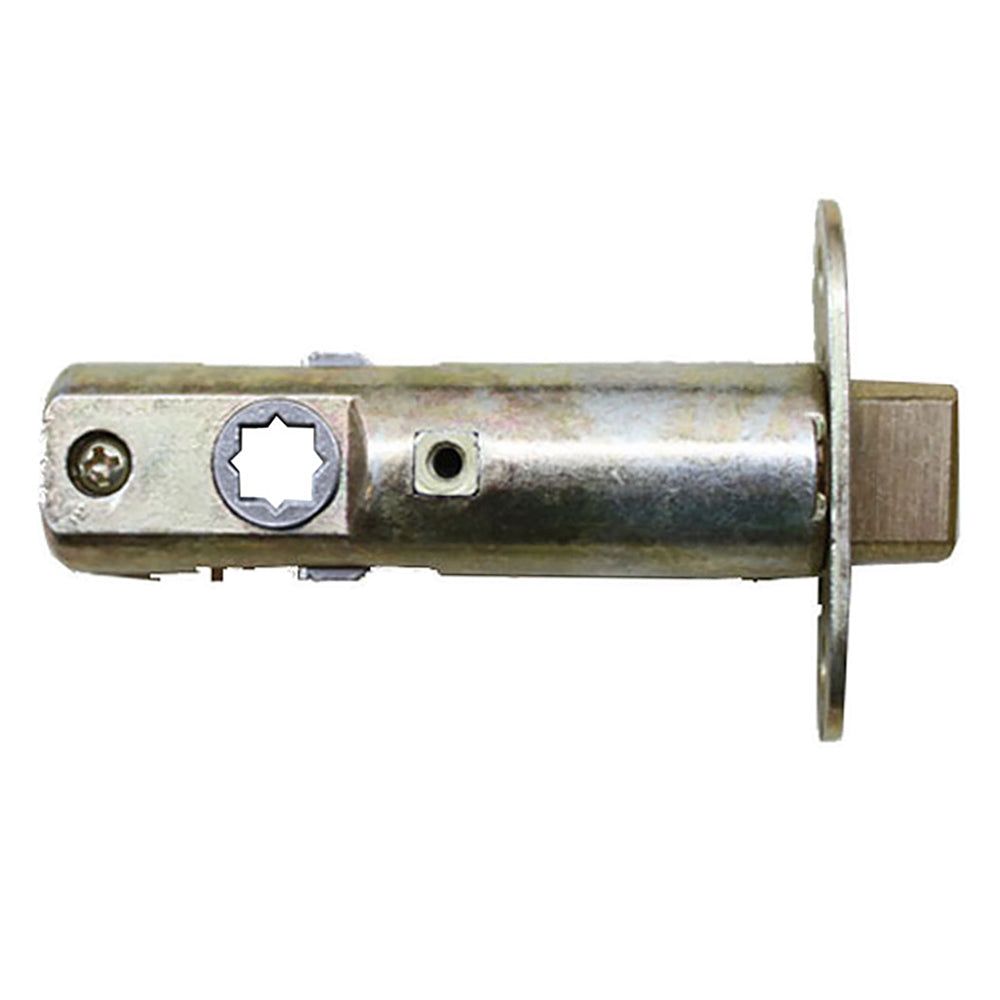

Replacement non-handed Privacy spring latch with 2-3/8 inch (60 mm) backset.

Latch used for privacy doors, like bedroom or bath.

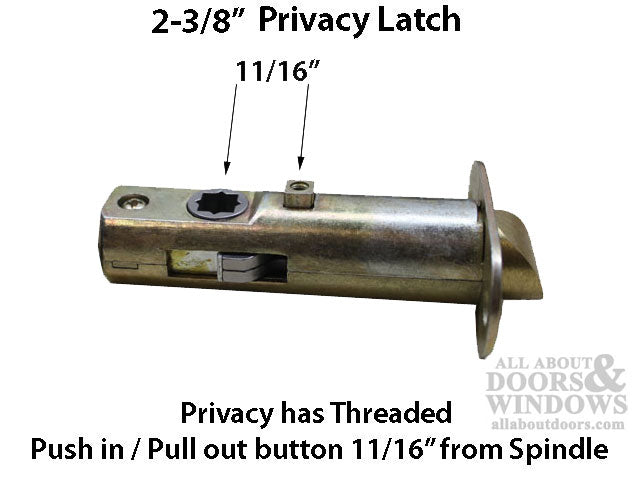

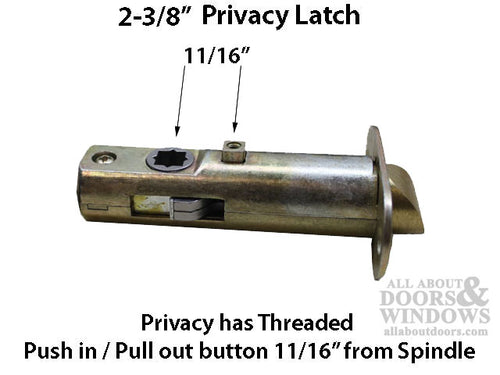

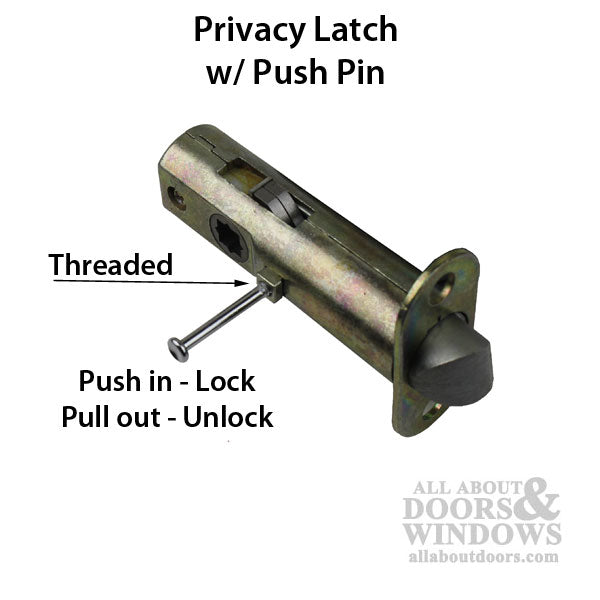

Privacy  locks have a push - pull button to activate lockout.

Installation screw holes are vertical with no holes in latch for screws.

There is a plate blocking the spindle hub, It can be removed for 1 piece spindles

Faceplate: Select from options listed  - square or radius plus color

Backset: 2-3/8 (60 mm)

Function: Spring latch w/lockout

Spindle Diameter: 5/16  inch (8 mm) square spindle

Door Type: Privacy,  bedroom or bathroom

Faceplate Finish:  Not Include, faceplate is sold seperately

Priced and sold each.

Passage have a square hole - open through

Privacy have a square hole with a plate in the middle &  privacy button.

Notes:

This latch is used with Knobs and some light weight hollow levers.

Available Backset: 2-3/8 (60 mm) or 2-3/4 (70 mm)

When ordering faceplate, choose color and corner as radius or square.

Optional Faceplate Colors: Polished Brass, Oil Rubbed Bronze, Brushed/Satin Nickel
