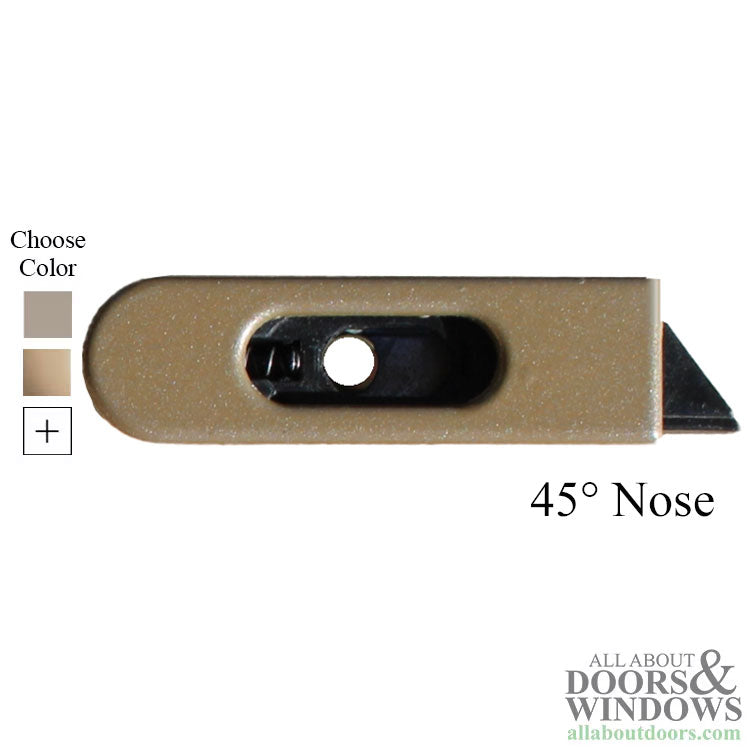

Pro Shield Black Nose Tilt Latch for Single hung, Double Hung or Slider Window Sash
Used by Weather Shield, SNE Vetter, Crestline, Peachtree and others

Application: Tilt latch for sliding window

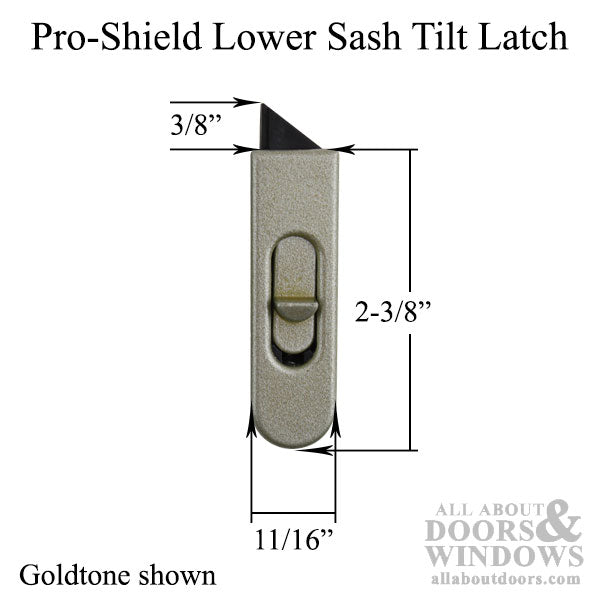

Housing Width: 11/16 inch
Housing Length: 2-3/8 inches
Latch projection: 3/8 inch, 45° Nose
Handed: Yes, As Shown
Latch Color: Black Nylon
Housing Color: Coppertone
Housing Material: Metal

Priced and sold each, no thumb button, no screw
Limited to existing inventory.
No returns, refund, or exchanges.

Related Items:
503200 - Thumb Button only
503198 - Pro Shield Tilt Latch for LOWER Sash Right Hand (No Thumb Button)
503199 - Pro Shield Tilt Latch for LOWER Sash Left Hand (No Thumb Button)
503204 - Metal Tilt Latch for UPPER Sash Right Hand (with Thumb Button)
503203 - Metal Tilt Latch for UPPER Sash Left Hand (with Thumb Button)

Installation Note:
This latch is held in with a screw located under the thumb button
To remove button, slide back and insert a small screw driver under the edge and lift up
Remove Phillips head screw and slide latch out.

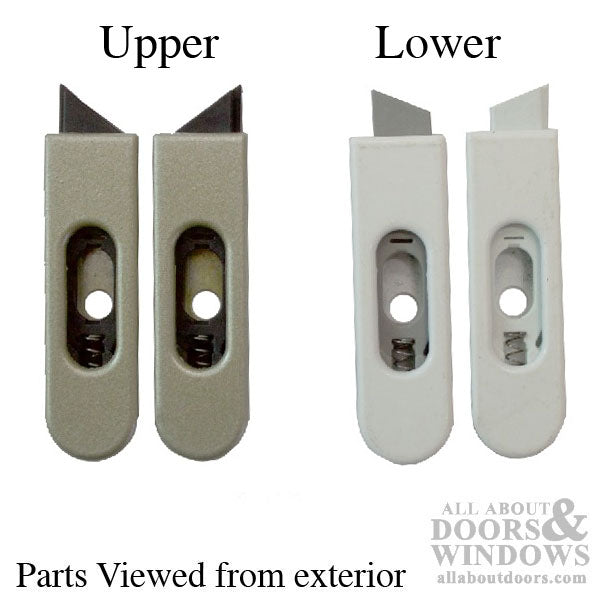

Tilt Latch Note:
Some companies referred to this as a left hand viewed from the outside. Other times is is referred to as a right hand viewed from inside. Please refer to the image to determine which handing you need.
