Project out handles are normally used in schools, Industrial and commercial applications

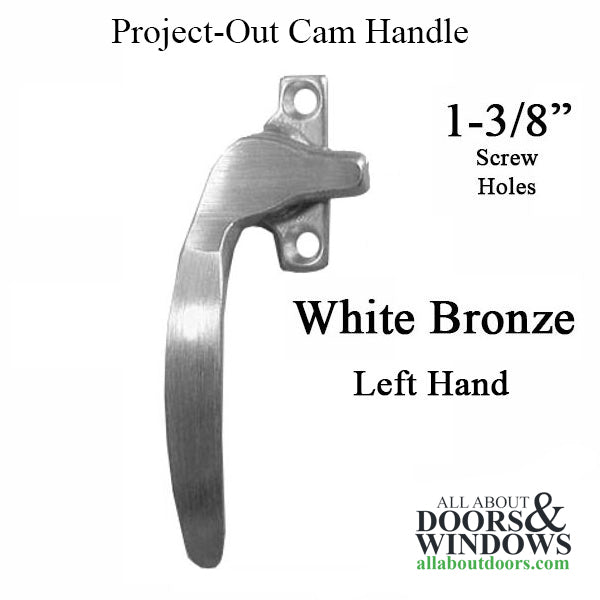

Cam Handle for Projected out vent and push open out awning or casement windows. Used by Kawneer on their Commercial GLASSvent windows.

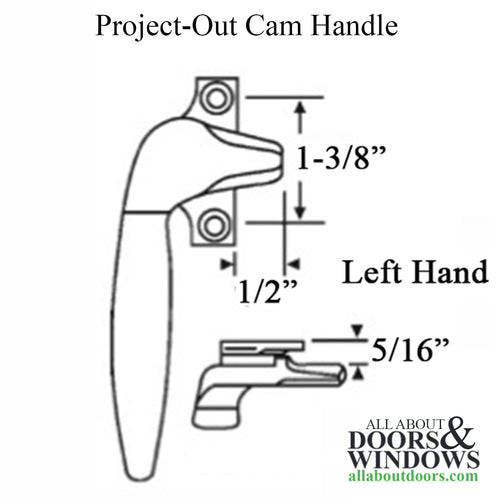

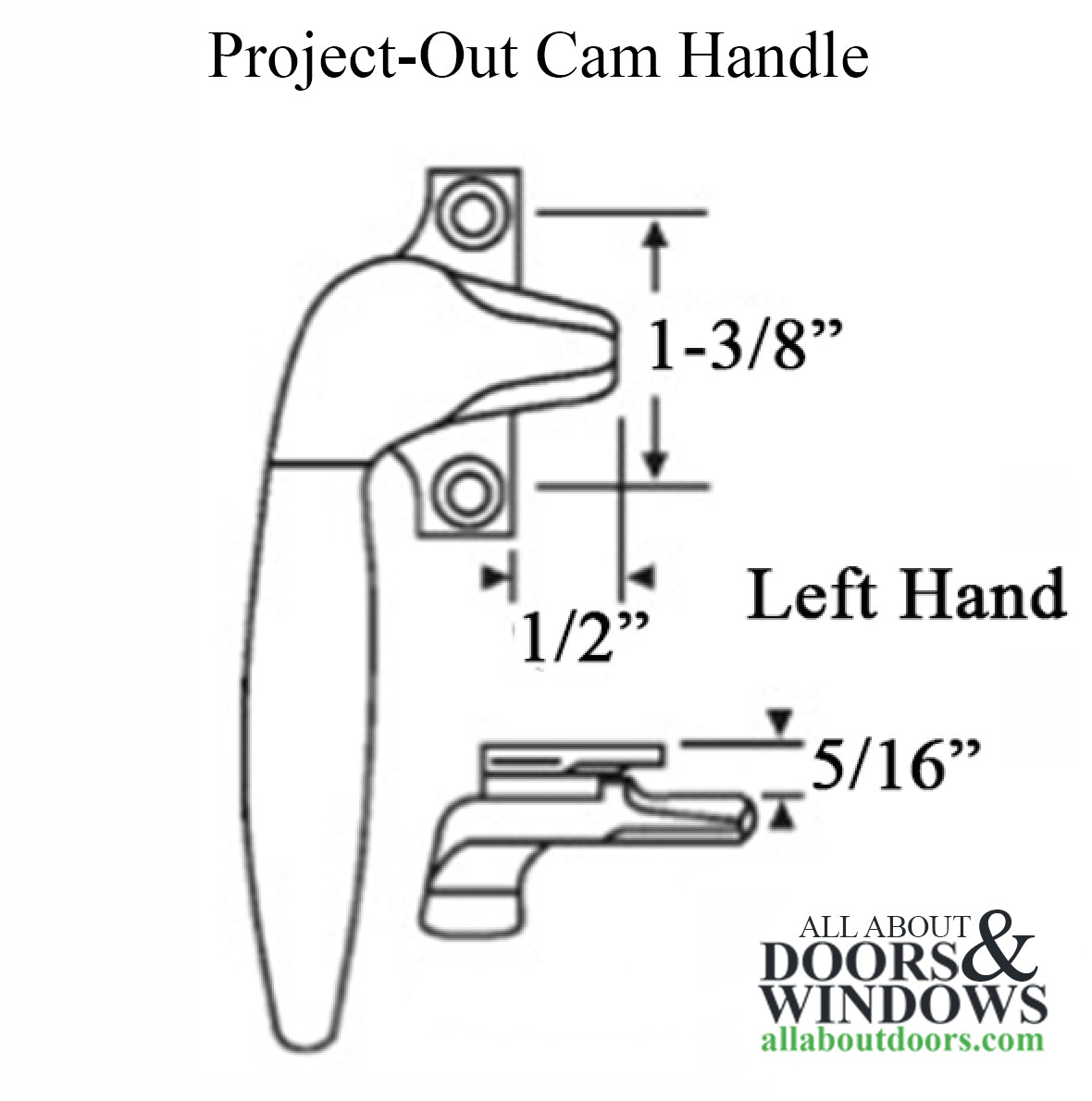

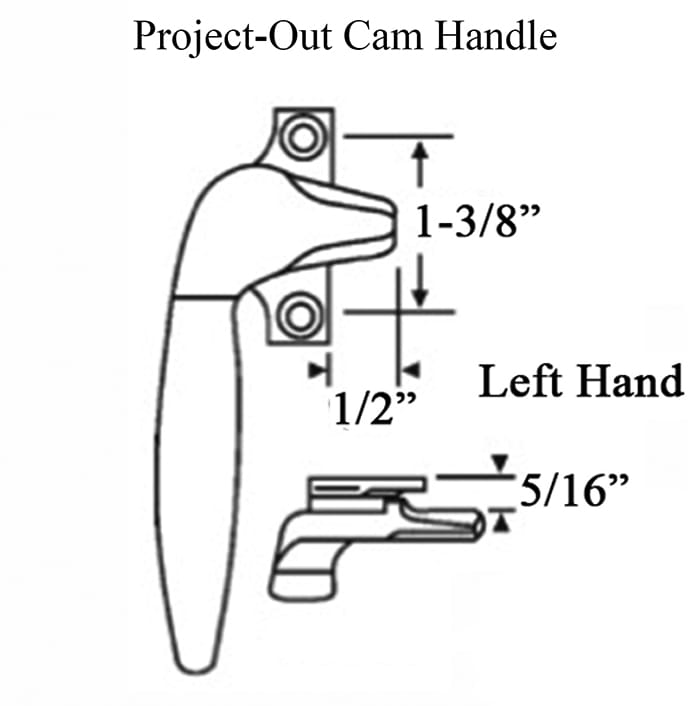

Specifications:
Screw Holes: 1-3/8 inch (35mm) 1.375
Nose Projection: 1/2 inch
Cam Offset: 5/16 inch ( 7.9mm) .312 inches
Colors / Finish: White Bronze ( nickel ) or Dark Bronze
Handed: Yes, as shown
Material: White Bronze

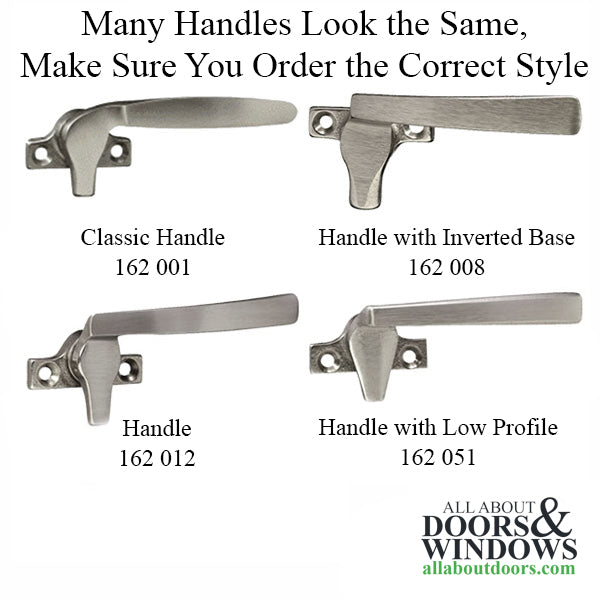

Note: These handles come in a variety of screw holes for installation, Nose projections, and offsets. Please measure carefully

Related Parts:
571058 - Right Hand
571059 - Left Hand

Handing Note: when inside the building looking out and which hand you would use to grab the handle to operate. When Unlocked, handle points to the Right or Left
