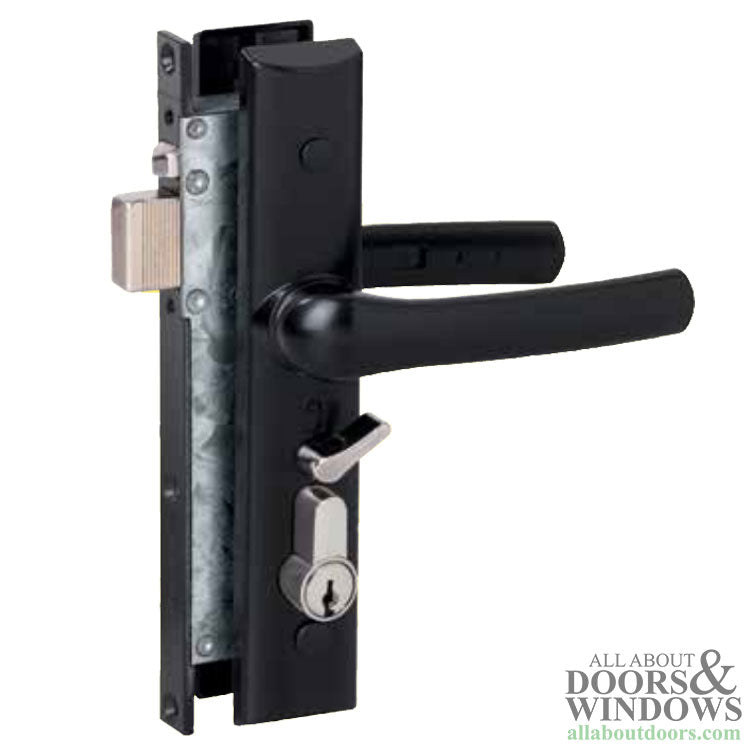

Quattro Hinged Security Screen Door Lock Handle Set with Mortise Lock

The Quattro hinged security screen door lock features a double keyed cylinder.
Includes an anti-jemmy, extra wide serrated locking bolt.
Is Compatible with industry standard door preparations.
Retrofits in place of the Tasman MK3 lockset.
Handed for Left or Right hand applications.

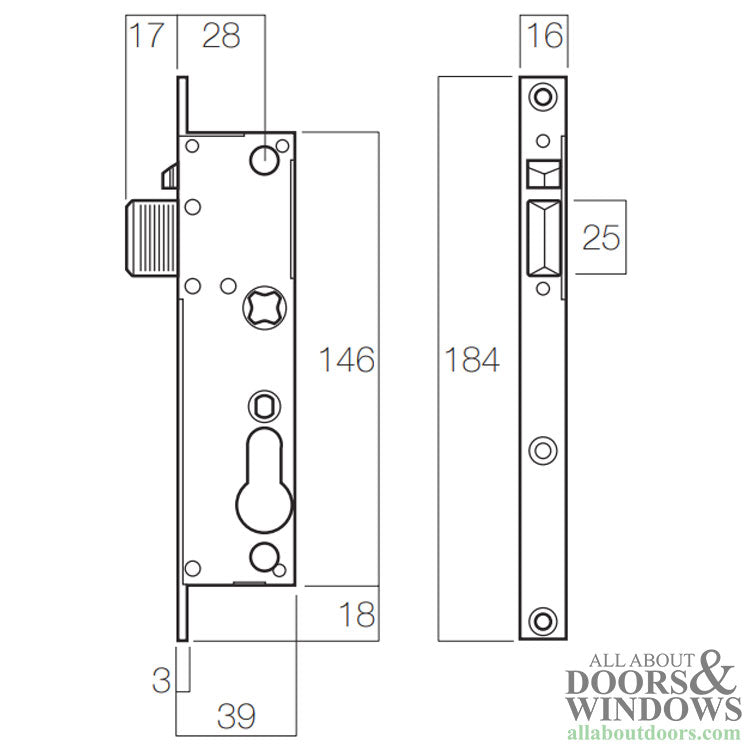

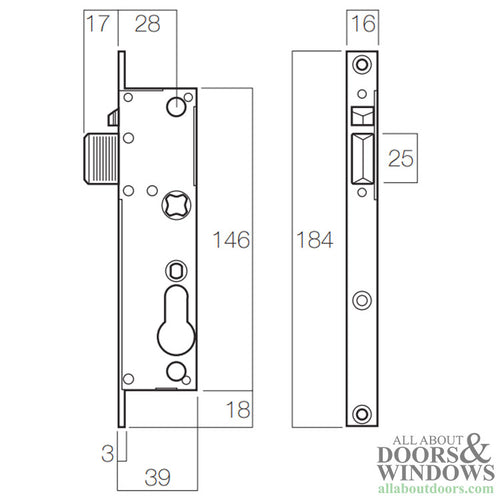

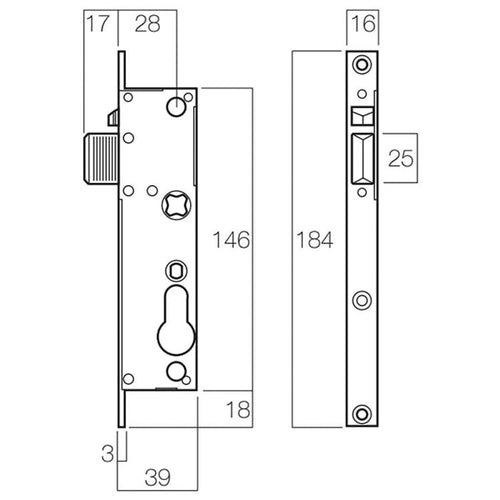

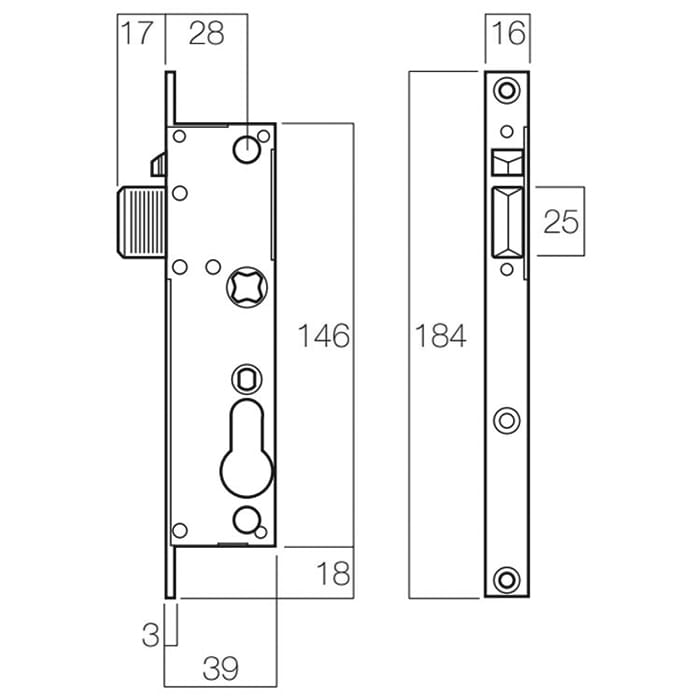

Mortise Lock Measurements
Backset: 1-1/8 inch (28mm)
Lock Body Width: 1-1/2 inch (38mm)
Faceplate Width: 5/8 inch (16mm)
Faceplate Length: 7-1/4 inches (185mm)
Faceplate Screw Hole: 6-3/4 inches . (173mm)

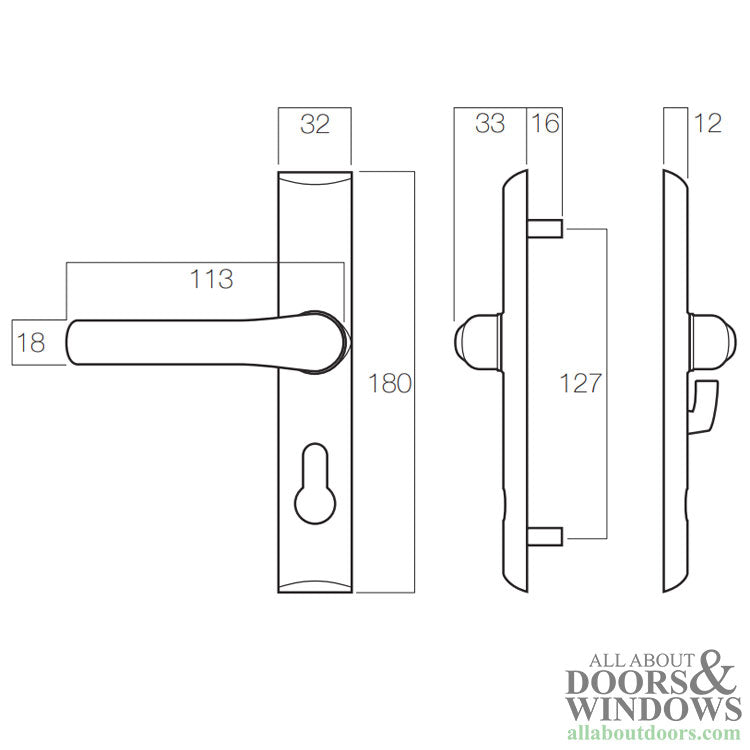

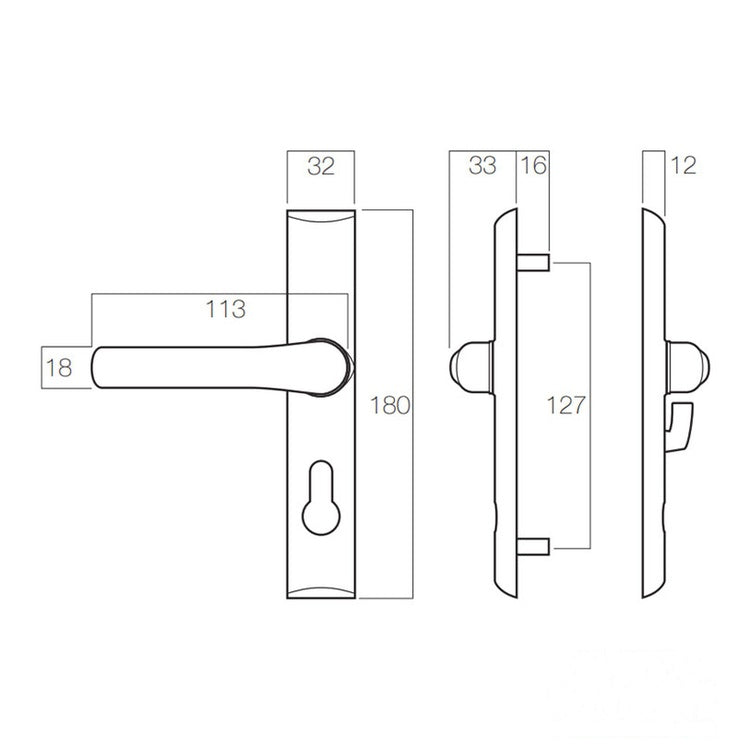

Handle Set Measurements
Escutcheon Plate Width: 1-1/4 inch (32mm)
Escutcheon Plate Length: 7-1/16 inch (180mm)
Escutcheon Plate Screws: 5-1/16 inch (127mm)
Base Material: Zinc

Available Colors/Finishes: Black

Priced and sold as a pack

Pack Includes:
1 Mortise Lock
1 Double Keyed Cylinder
1 Spindle
2 Handles with Escutcheon Plates
1 Strike Plate
2 Screw Hole Plugs
2 Fixing Screws (12mm)
2 Furniture fixing Screws (25mm)
2 Strike Plate Screws (25mm)
1 cylinder Retainer Screw (32mm)
2 Keys
1 Instruction Sheet
