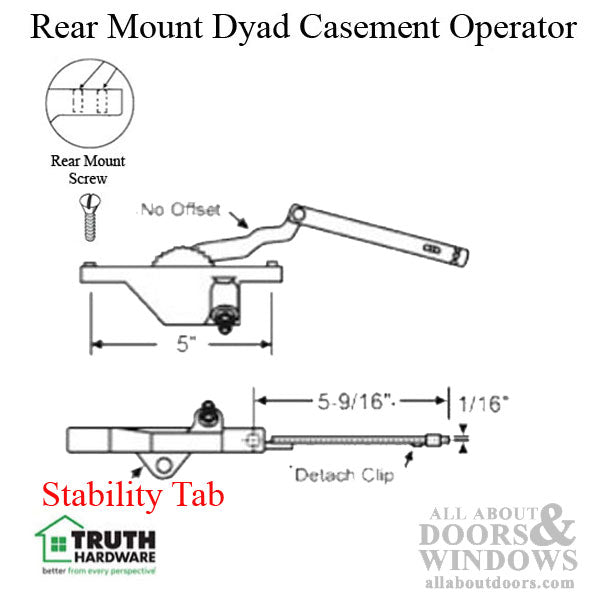

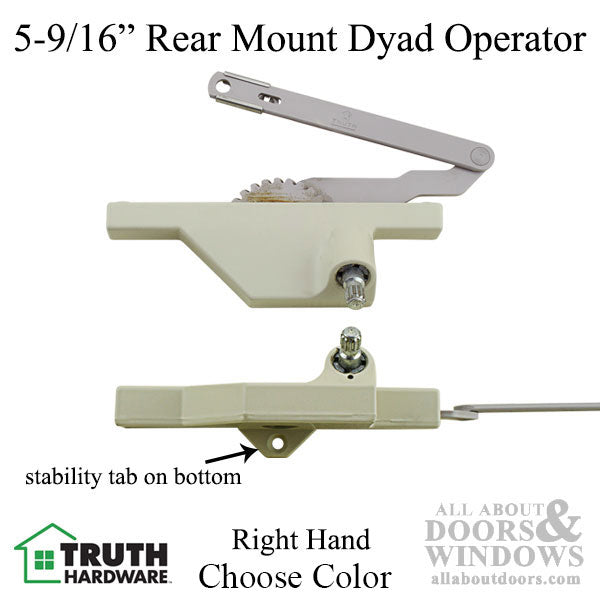

Rear Mount Dyad Casement Operators with Stability Tab, 5-9/16, Right Hand - Choose Color
Part Number: Price: $39.46 to $39.46Truth Rear Mount Dyad Casement Operators, with Stability Tab on bottom
Used by Alcoa, Jordan and others on new construction and vinyl replacement windows

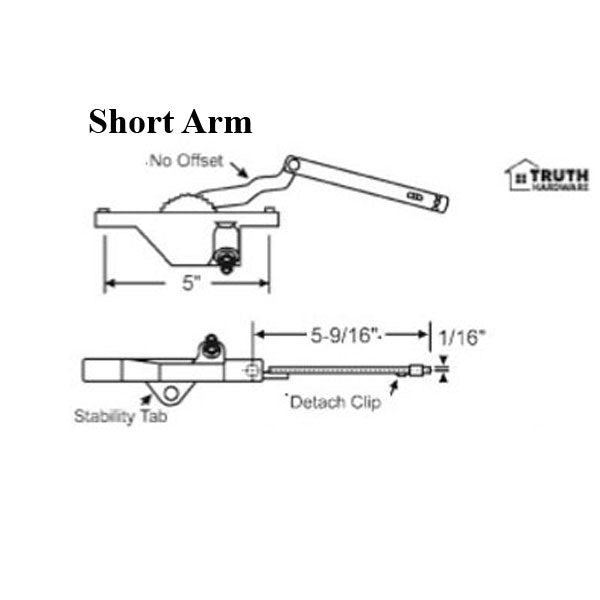

Operator Type: Casement, Truth Dyad
Arm Link: No offset
Link Length: 5 inch
Arm to Mounting Hole: 5-9/16 inch
Detach Clip: Mounted on bottom
Stability Tab: Yes

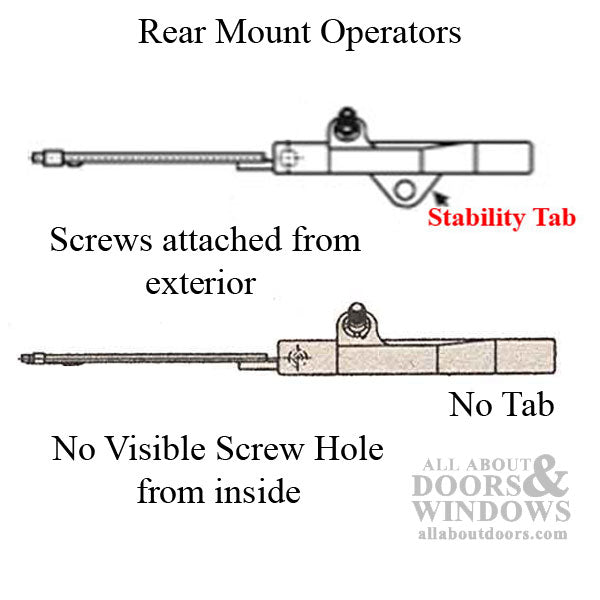

Mounting: Rear mount, screws are installed from the rear - no holes in face
Material: Mixed Materials
Arm Material: E-Gard, Corrosion Resistant
Handing: Left and Right Handed - As Shown
This operator is Right Handed.
For a Left Hand operator see 55115
Colors Options:
Beige
White
Related Truth Hardware:
55112 - RH Operator, No Stability Tab
55113 - LH Operator, No Stability Tab
55114 - RH Operator, WITH stability Tab
55115 - LH Operator, WITH stability Tab
NOTE: Special Purchase, Price is limited to existing inventory
Used by Alcoa, Jordan and others on new construction and vinyl replacement windows
Operator Type: Casement, Truth Dyad
Arm Link: No offset
Link Length: 5 inch
Arm to Mounting Hole: 5-9/16 inch
Detach Clip: Mounted on bottom
Stability Tab: Yes
Mounting: Rear mount, screws are installed from the rear - no holes in face
Material: Mixed Materials
Arm Material: E-Gard, Corrosion Resistant
Handing: Left and Right Handed - As Shown
This operator is Right Handed.
For a Left Hand operator see 55115
Colors Options:
Beige
White
Related Truth Hardware:
55112 - RH Operator, No Stability Tab
55113 - LH Operator, No Stability Tab
55114 - RH Operator, WITH stability Tab
55115 - LH Operator, WITH stability Tab
NOTE: Special Purchase, Price is limited to existing inventory
